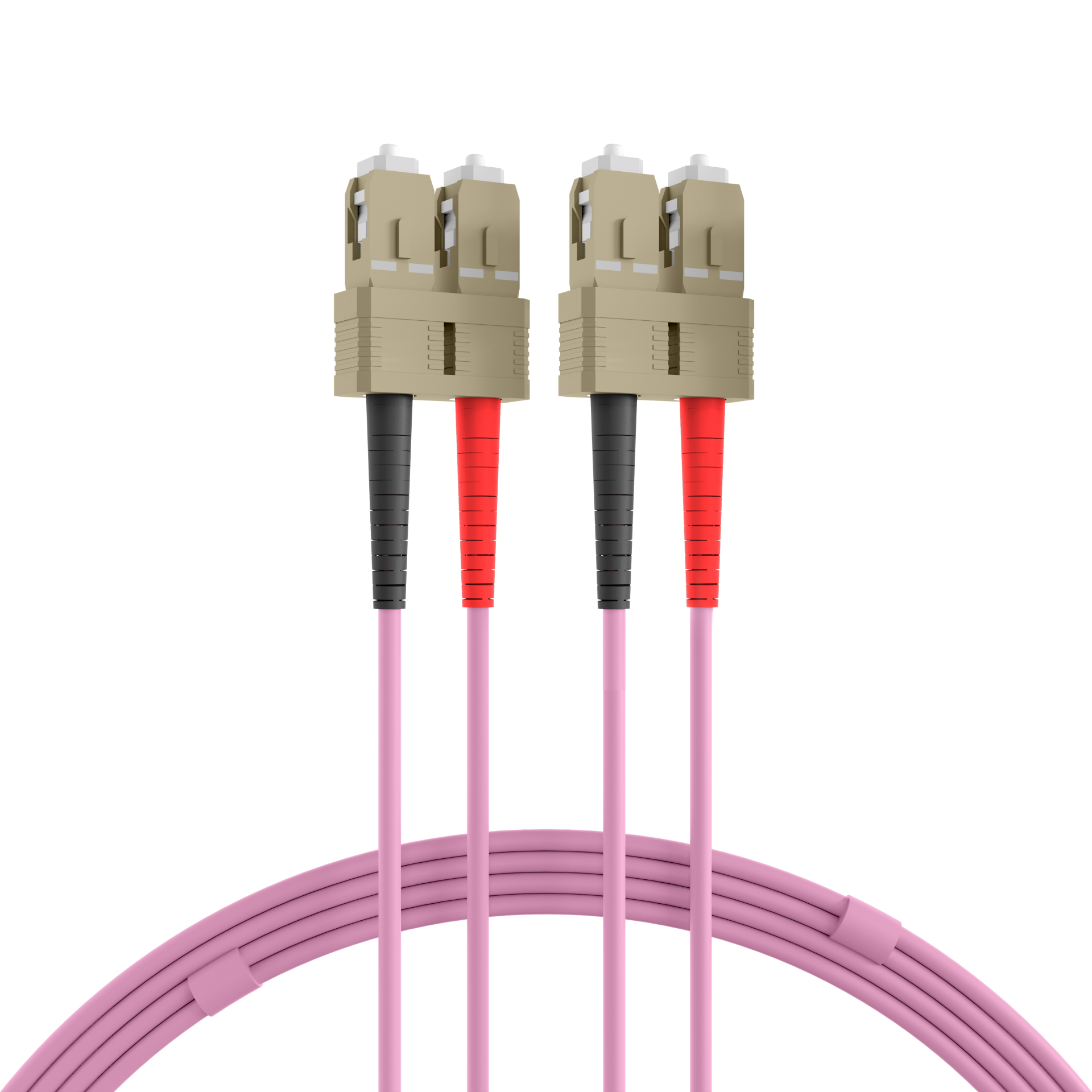

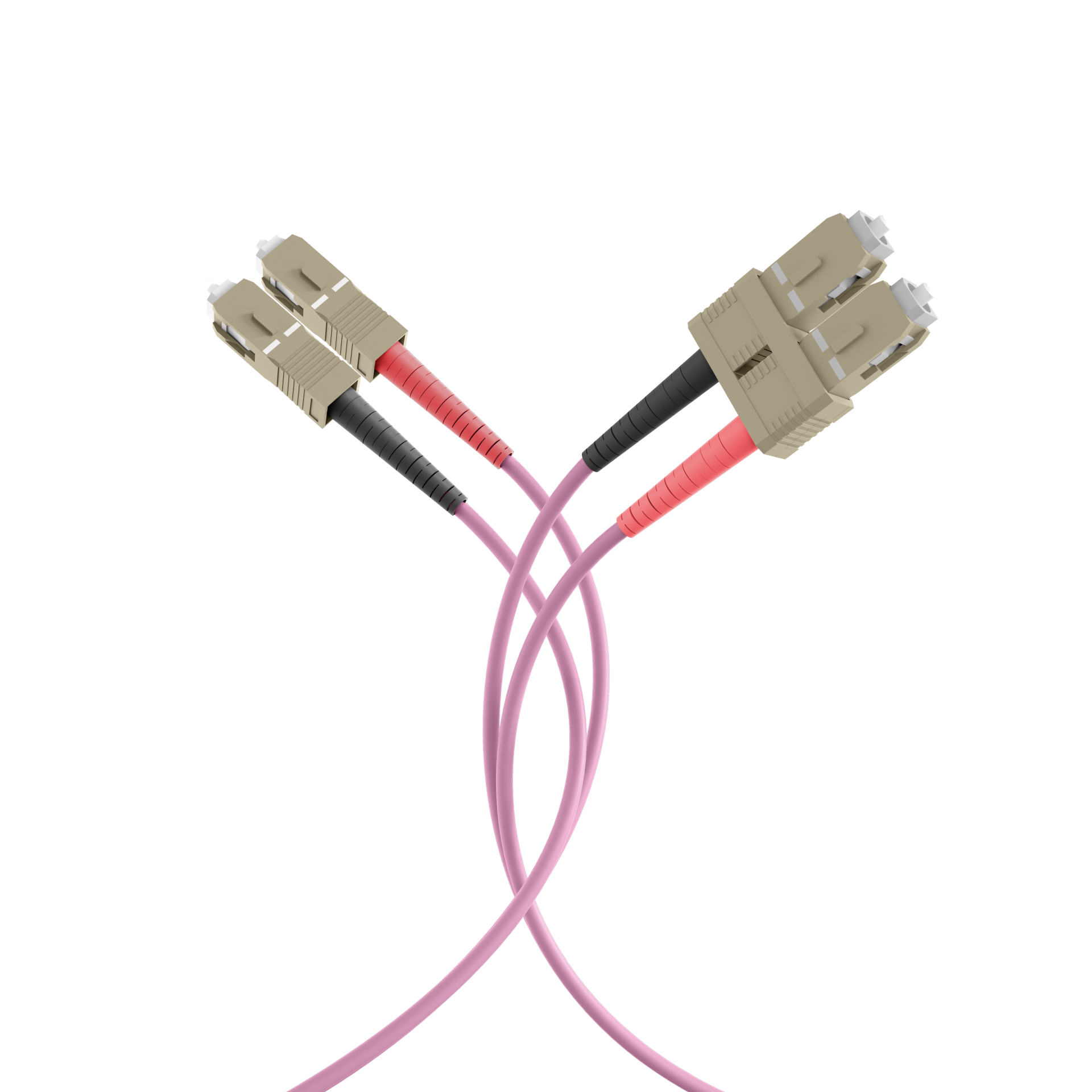

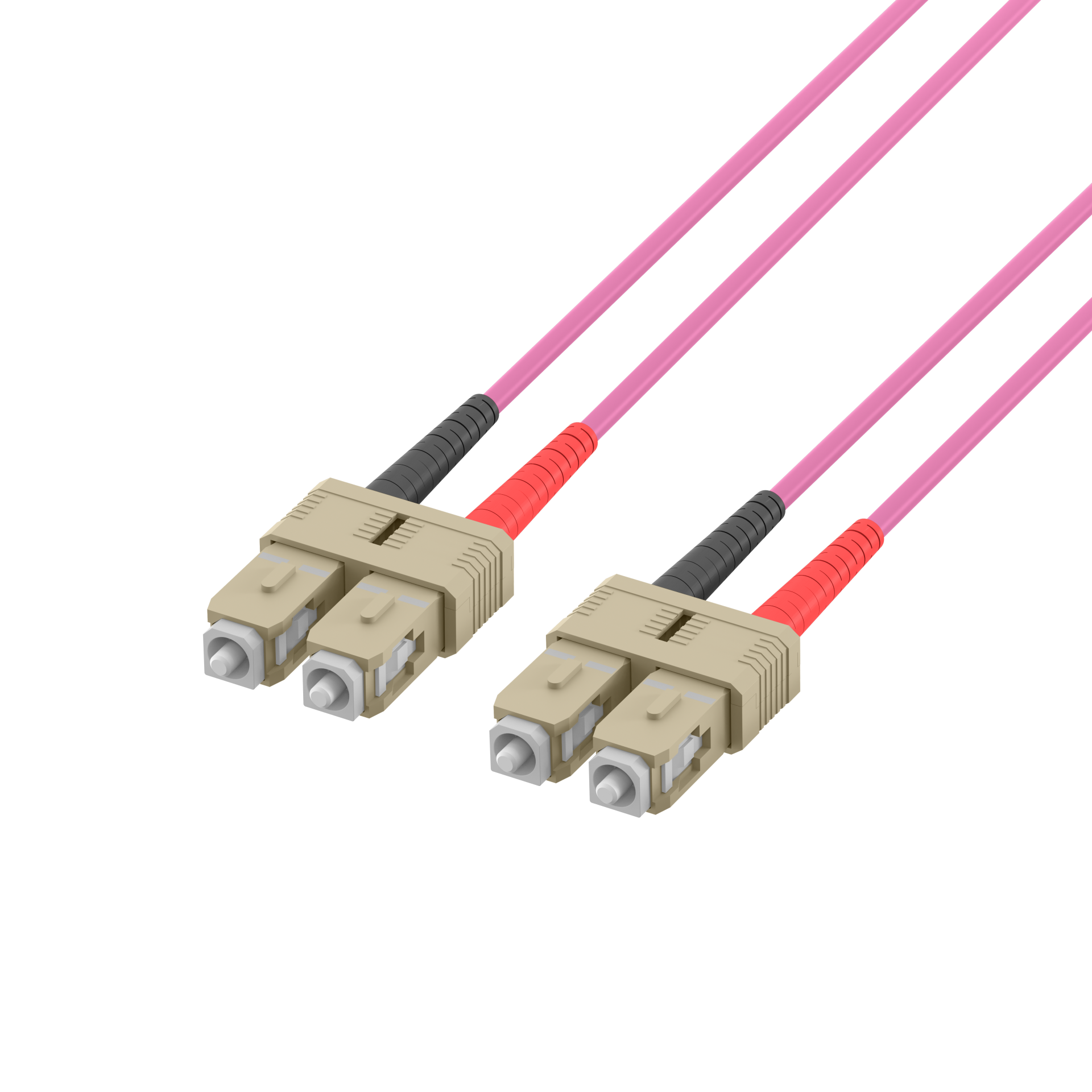

Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin
Duplex Patchcable Flat-Twin SC-SC OM4 5m LSZH 3x5mm heatherviolet
Varenummer:
O0318FT.5
EAN Nr.:
4049759157272
Produktinformation til Duplex Patchcable Flat-Twin SC-SC OM4 5m LSZH 3x5mm heatherviolet
The Flat Twin Duplex Jumper have a higher stability due to the additional added outer jacket and can be installed much easier than standard jumper. Also the jacket material is made of LSZH.
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material

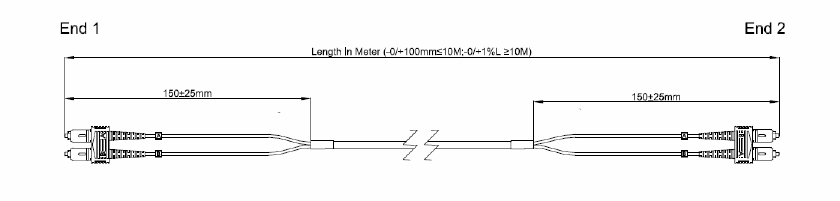

Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Characteristics
Additional outer jacket for higher stability and easier installation
Cable sheath consists of flame retardant LSZH material
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) HH |
| Cable Ø: | 3x5 mm |
| Cabling standard: | EN-50173-1 |
| Cabling standard: | ISO/IEC 11801 |
| Category: | OM4 |
| Colour outer sheath: | erica violet |
| Connector Conform to Standard: | IEC 61754-4 |
| Connector colour 1: | beige |
| Connector colour 2: | beige |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | according to EN 50265-2-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 850nm: | < 0.2 dB |
| Jacket material: | LSZH |
| Number of fibers: | 2 |
| Operating Temperature: | -40 – 70 °C |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Storage Temperature: | -40 – 85 °C |
| Type of connector connection 1: | SC duplex |
| Type of connector connection 2: | SC duplex |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| O0318FT.3 | Duplex Patchcable Flat-Twin SC-SC OM4 3m LSZH 3x5mm heatherviolet | 3.0 m | ±5 % | |
| O0318FT.5 | Duplex Patchcable Flat-Twin SC-SC OM4 5m LSZH 3x5mm heatherviolet | 5.0 m | ±5 % | |
| O0318FT.30 | Duplex Patchcable Flat-Twin SC-SC OM4 30m LSZH 3x5mm heatherviolet | 30.0 m | ±5 % | |
| O0318FT.40 | Duplex Patchcable Flat-Twin SC-SC OM4 40m LSZH 3x5mm heatherviolet | 40.0 m | ±5 % | |
| O0318FT.0,5 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 0.5 m | ±5 % | |
| O0318FT.1 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 1.0 m | ±5 % | |
| O0318FT.10 | Duplex Jumper SC-SC 50/125µ, OM4, LSZH, erica violet, Flat Twin 3x5mm, 10m | 10.0 m | ±5 % | |
| O0318FT.15 | Duplex Jumper SC-SC 50/125µ, OM4, LSZH, erica violet, Flat Twin 3x5mm, 15m | 15.0 m | ±5 % | |
| O0318FT.2 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 2.0 m | ±5 % | |
| O0318FT.20 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 20.0 m | ±5 % | |
| O0318FT.25 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 25.0 m | ±5 % | |
| O0318FT.35 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 35.0 m | ±5 % | |
| O0318FT.50 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 50.0 m | ±5 % | |
| O0318FT.7,5 | Duplex Patchcable SC-SC 50/125µ, OM4, Flat Twin | 7.5 m | ±5 % |
Sikkerhedsanvisninger
Warning: Proper disposal of fiberglass residues! Fiberglass residues must be disposed of immediately and with due care in the containers provided for them. If handled improperly, there is a risk of injury due to fiber residues penetrating the skin.
