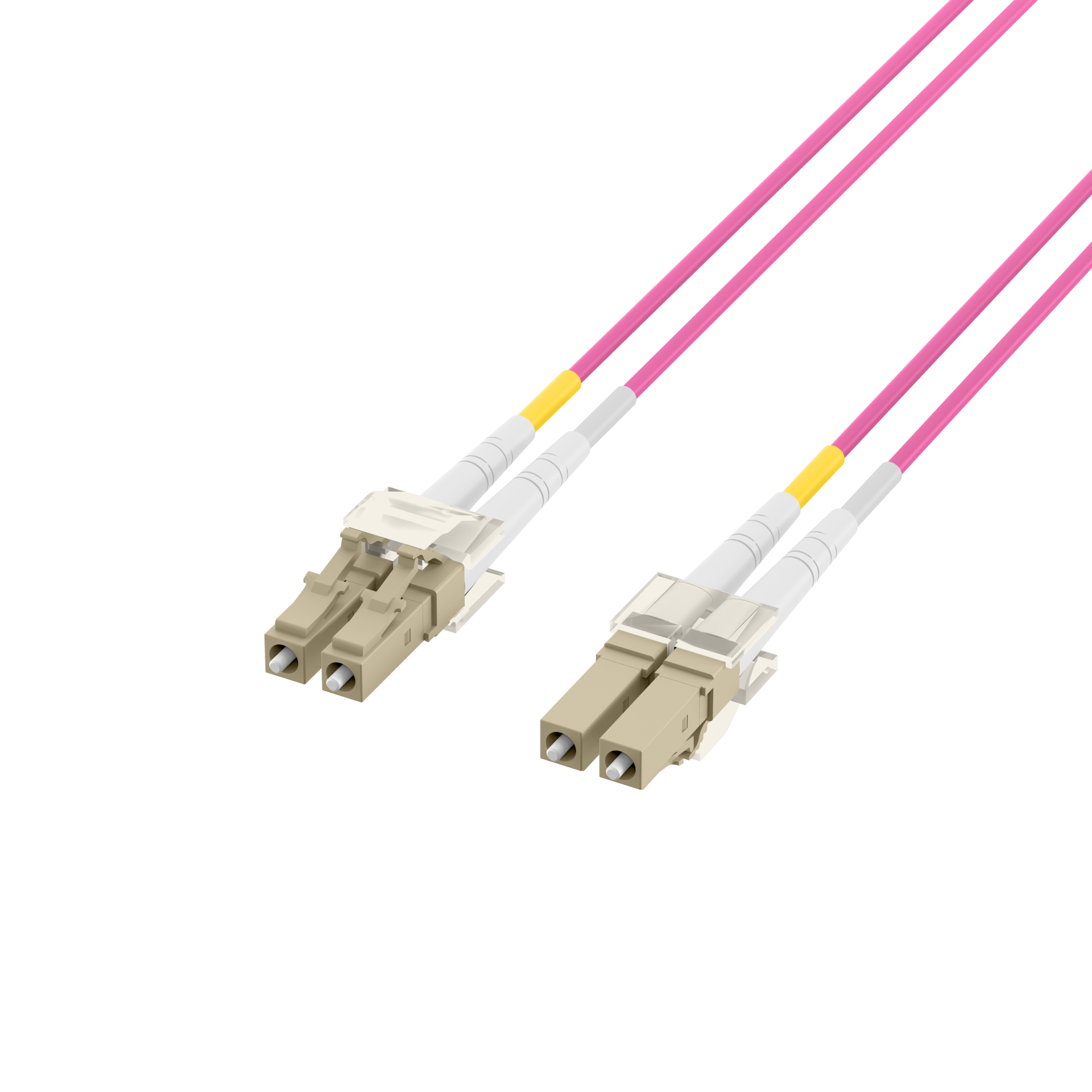

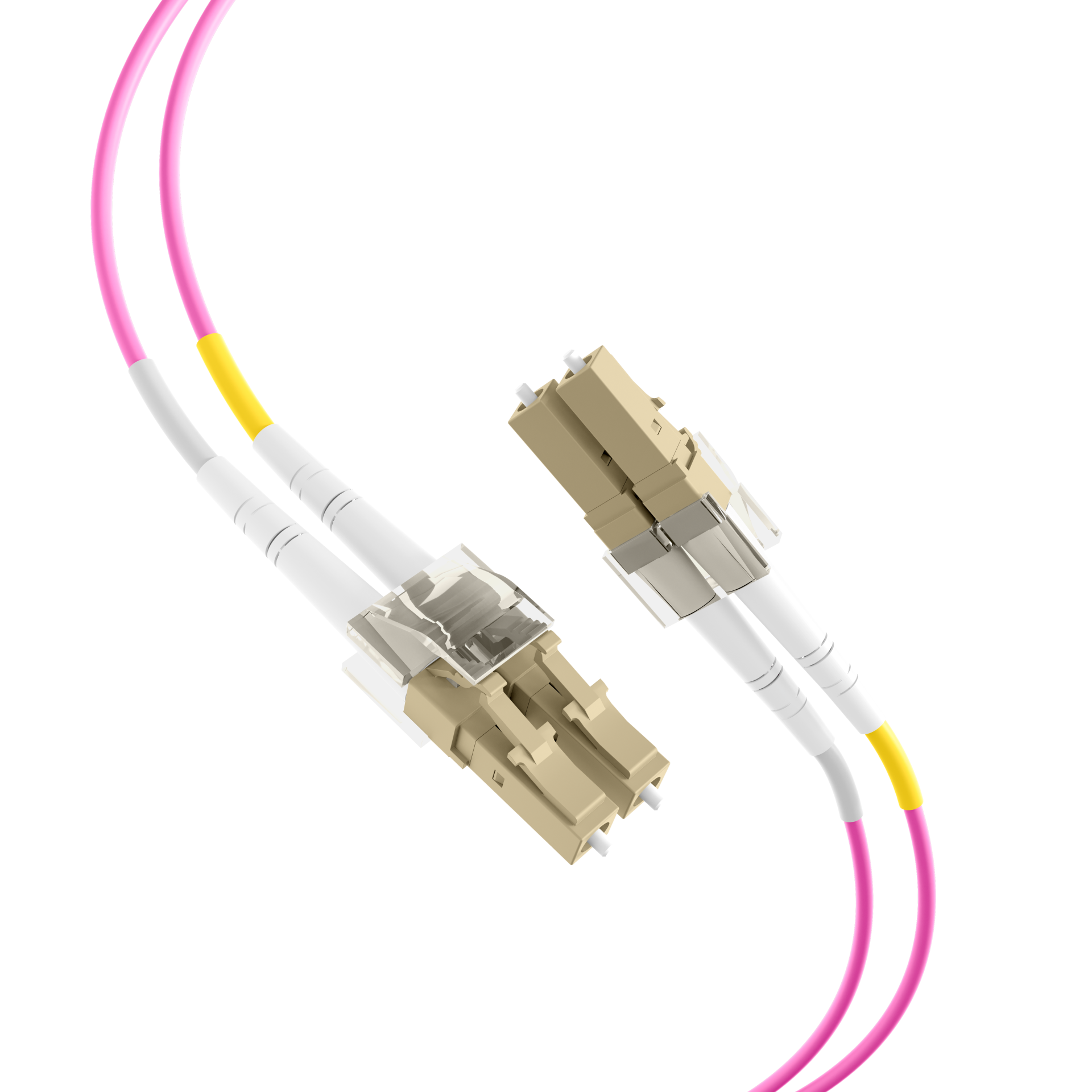

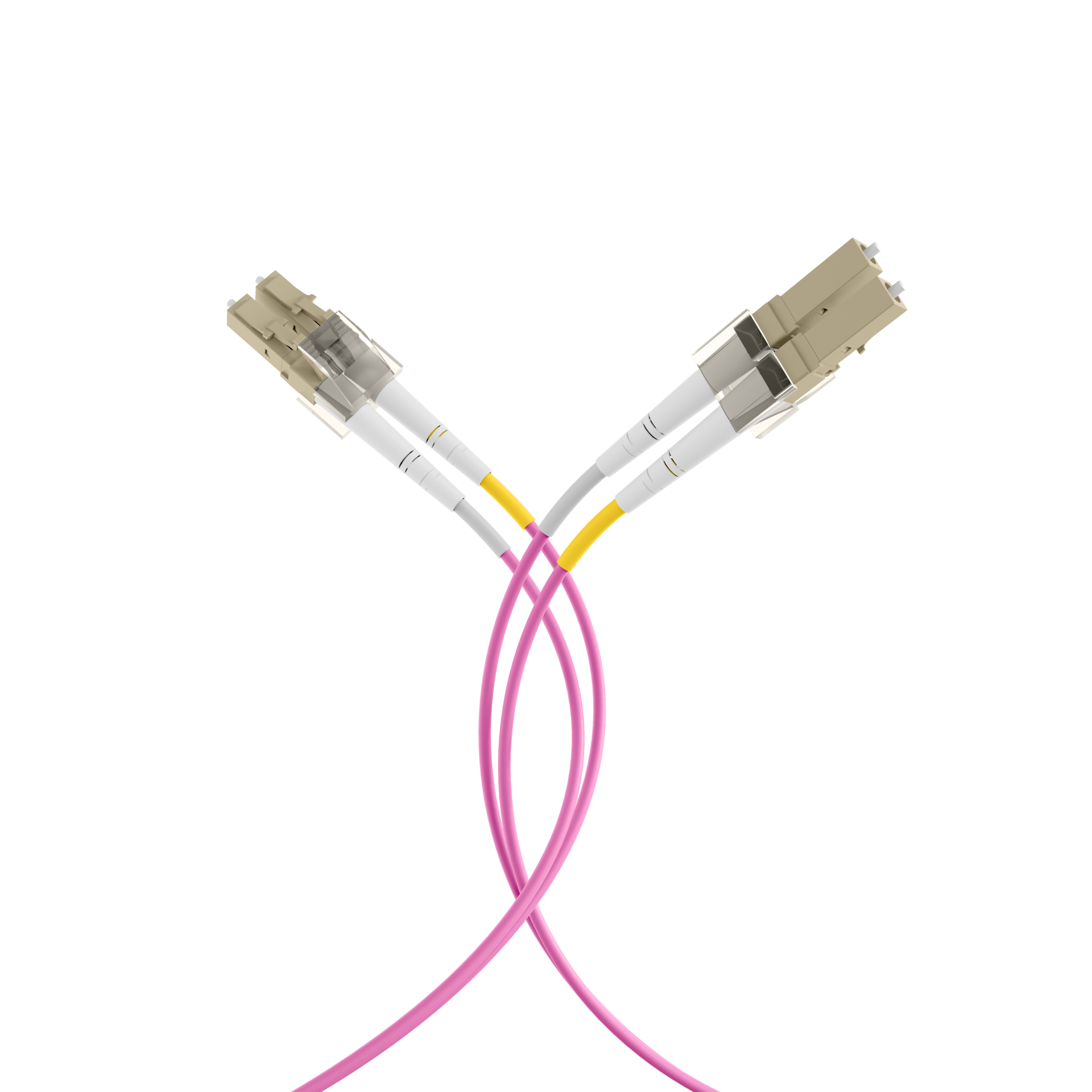

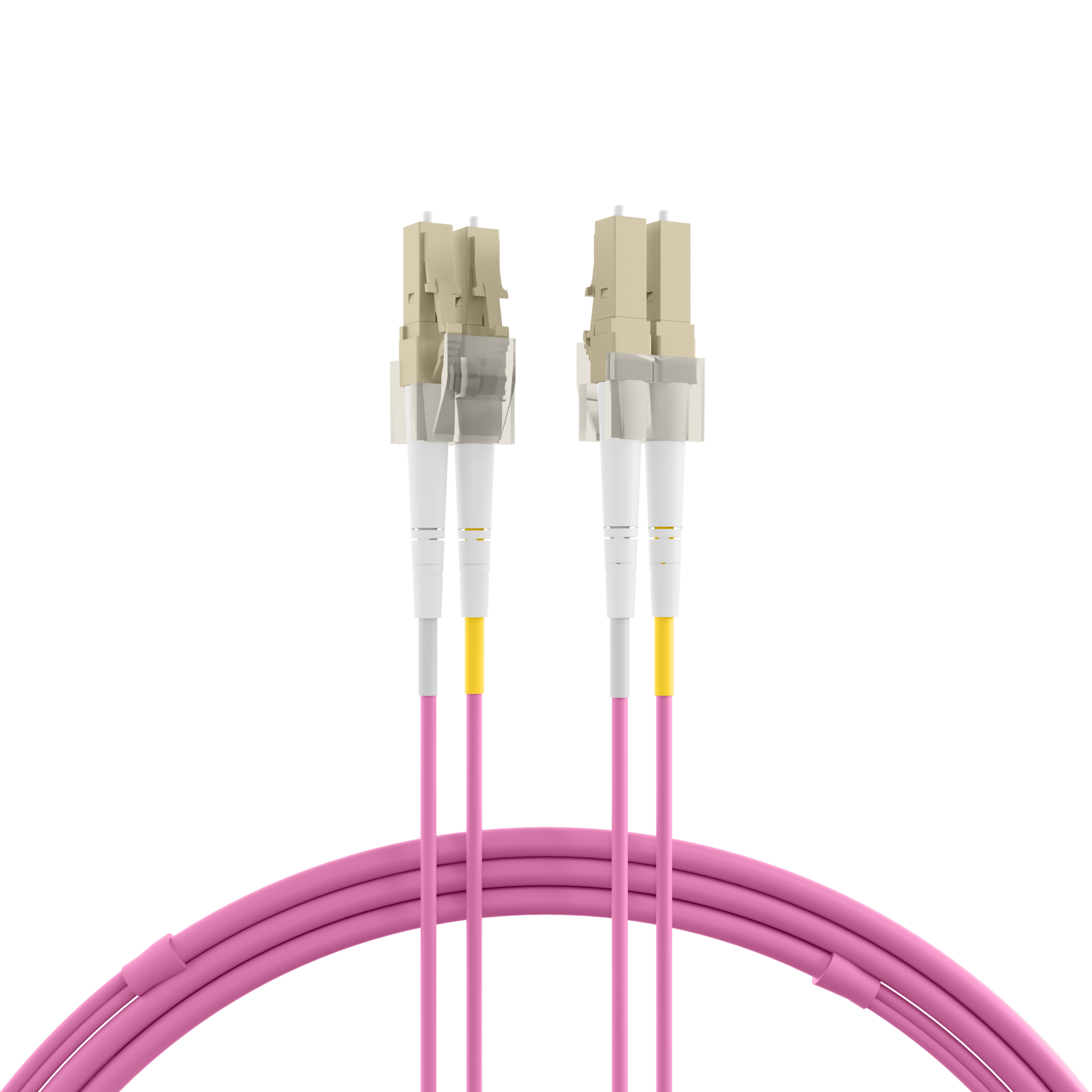

Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin
Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin
Varenummer:
O0319FT.0,5
EAN Nr.:
4049759157593
Produktinformation til Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin
The Flat Twin Duplex Jumper have a higher stability due to the additional added outer jacket and can be installed much easier than standard jumper. Also the jacket material is made of LSZH.
Characteristics
Additional outer jacket for higher stability and easier installation
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Characteristics
Additional outer jacket for higher stability and easier installation
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Cable whip length of 150 mm inclusive connector
Same colour of Cable whip and jacket material
Compact cable diameter of 3x5 mm
Simple allocation of the fibers with boots in different colours or A/B markers
Possibility of coding with clips enclosed to the delivery
Tekniske egenskaber
| APC Ausführung: | Nein |
|---|---|
| Anzahl der Fasern: | 2 |
| Arbeitstemperatur: | -40 – 70 °C |
| Biegeoptimierte Faser: | OM4 nach IEC60793-2-10 type A1a.2 und A1a.3 |
| Einfügedämpfung 850nm: | < 0,2 dB |
| Faserart: | Multimode 50/125 |
| Flammwidrig: | nach EN 50265-2-1 |
| Halogenfrei nach EN 50267-2-3: | Ja |
| Kabel Konform zu Standard: | IEC 60793-2 |
| Kabelaufbau: | Duplex |
| Kabeltyp: | I-V(ZN) HH |
| Kabel Ø: | 3x5 mm |
| Kategorie: | OM4 |
| Knickschutztülle: | aufgesteckt |
| Lagertemperatur: | -40 – 85 °C |
| Mantel-Farbe: | erika-violett |
| Mantel-Material: | LSZH |
| Qualitätsklasse Multimode: | A/1 nach IEC-61753-222-2 |
| Stecker Konform zu Standard: | IEC 61754-20 |
| Steckverbinderanschluss 1 Farbe: | beige |
| Steckverbinderanschluss 2 Farbe: | beige |
| Steckverbindertyp Anschluss 1: | LC-Duplex |
| Steckverbindertyp Anschluss 2: | LC-Duplex |
| Verkabelungsstandard: | EN-50173-1 |
| Verkabelungsstandard: | ISO/IEC 11801 |
Varianten
| Art. Nr. | Bezeichnung | Länge | Längentoleranz | |
|---|---|---|---|---|
| O0319FT.10 | Duplex Patchcable Flat-Twin LC-LC OM4 10m LSZH 3x5mm heatherviolet | 10,0 m | ±5 % | |
| O0319FT.35 | Duplex Patchcable Flat-Twin LC-LC OM4 35m LSZH 3x5mm heatherviolet | 35,0 m | ±5 % | |
| O0319FT.50 | Duplex Patchcable Flat-Twin LC-LC OM4 50m LSZH 3x5mm heatherviolet | 50.0 m | ±5 % | |
| O0319FT.0,5 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 0.5 m | ±5 % | |
| O0319FT.1 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 1,0 m | ±5 % | |
| O0319FT.15 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 15,0 m | ±5 % | |
| O0319FT.2 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 2,0 m | ±5 % | |
| O0319FT.20 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 20.0 m | ±5 % | |
| O0319FT.25 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 25.0 m | ±5 % | |
| O0319FT.3 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 3,0 m | ±5 % | |
| O0319FT.30 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 30,0 m | ±5 % | |
| O0319FT.40 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 40.0 m | ±5 % | |
| O0319FT.5 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 5.0 m | ±5 % | |
| O0319FT.7,5 | Duplex Patchcable LC-LC 50/125µ, OM4, Flat Twin | 7.5 m | ±5 % |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
