Duplex Patchcable LC-LC 50/125µ, OM4, 1.2mm

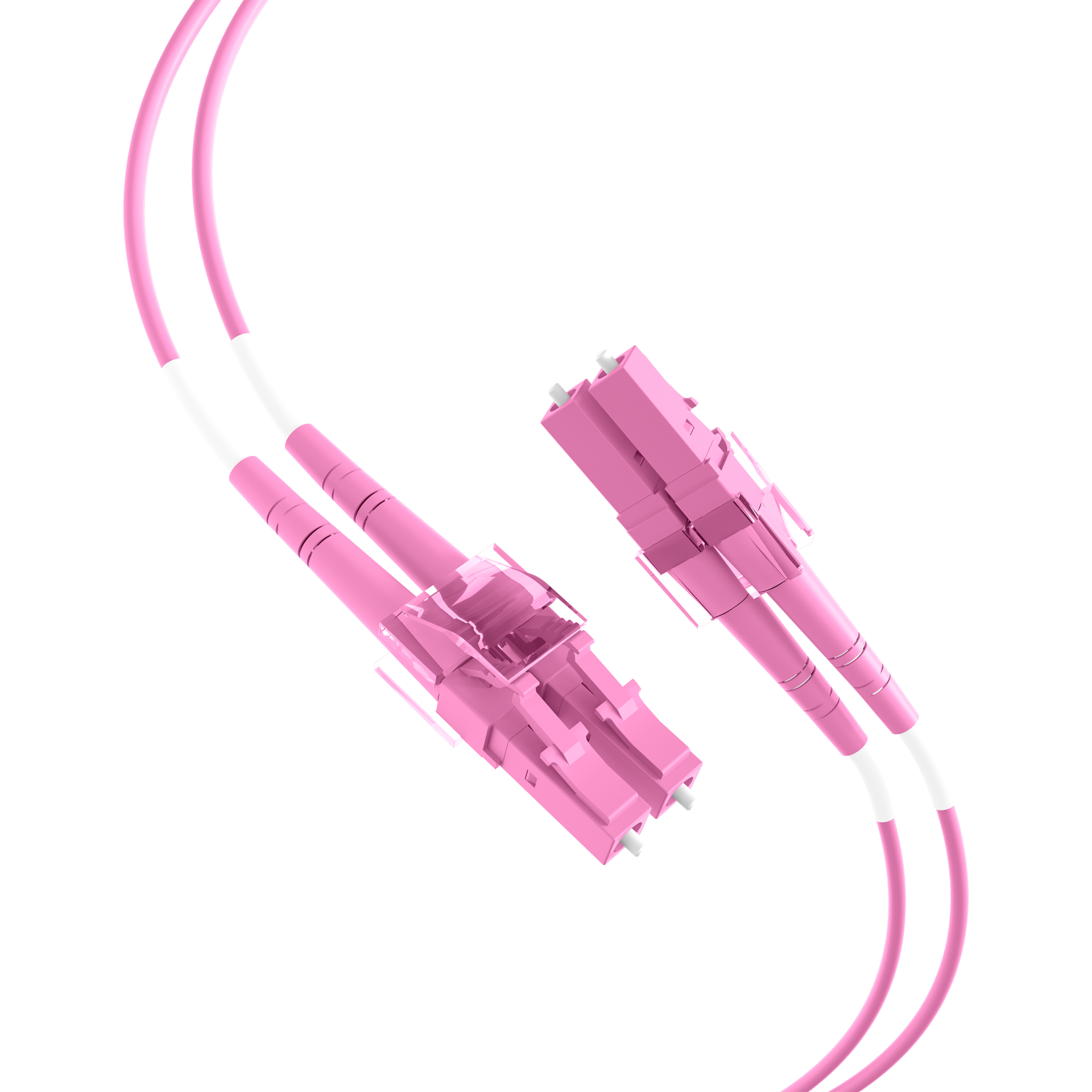

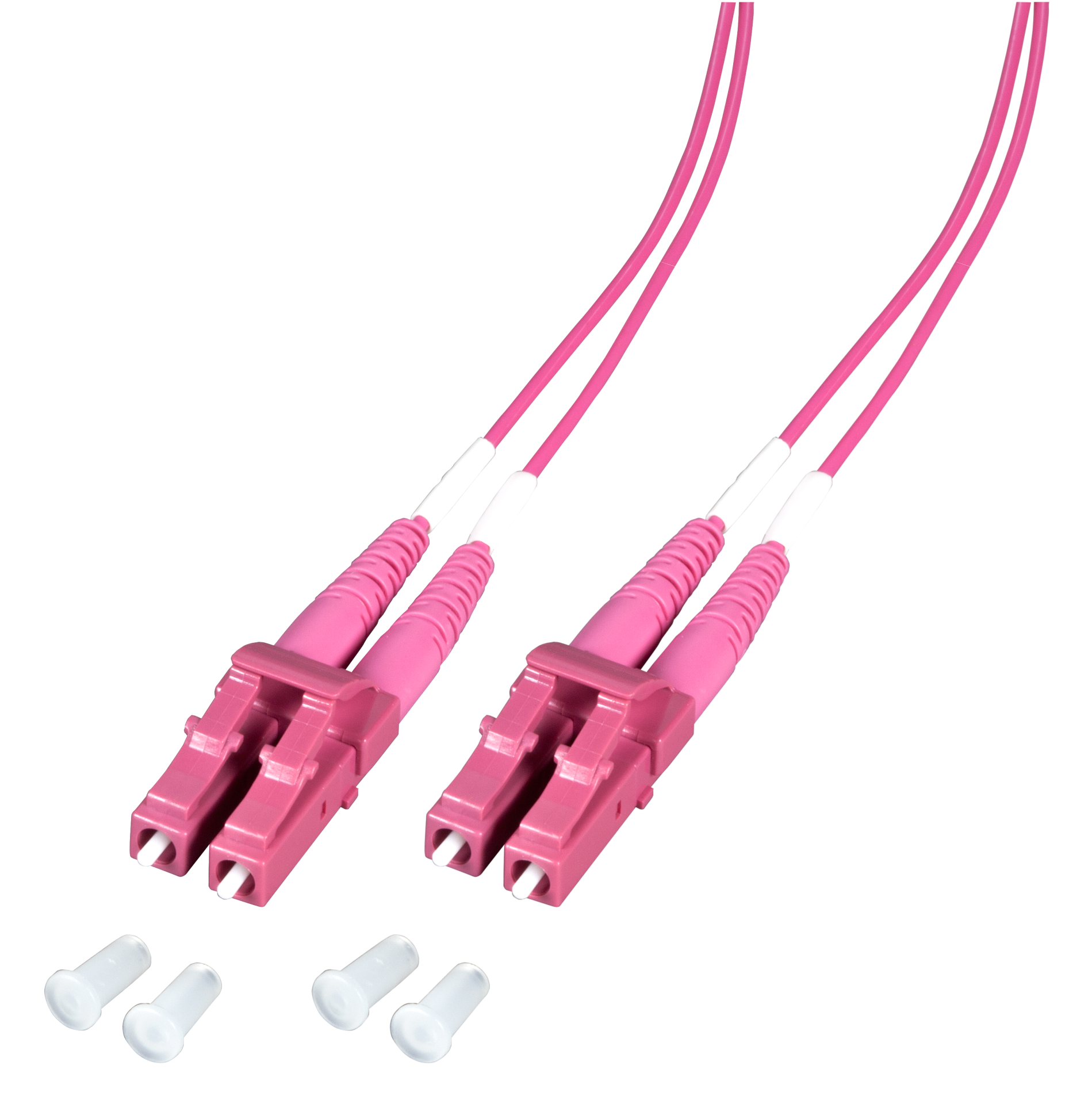

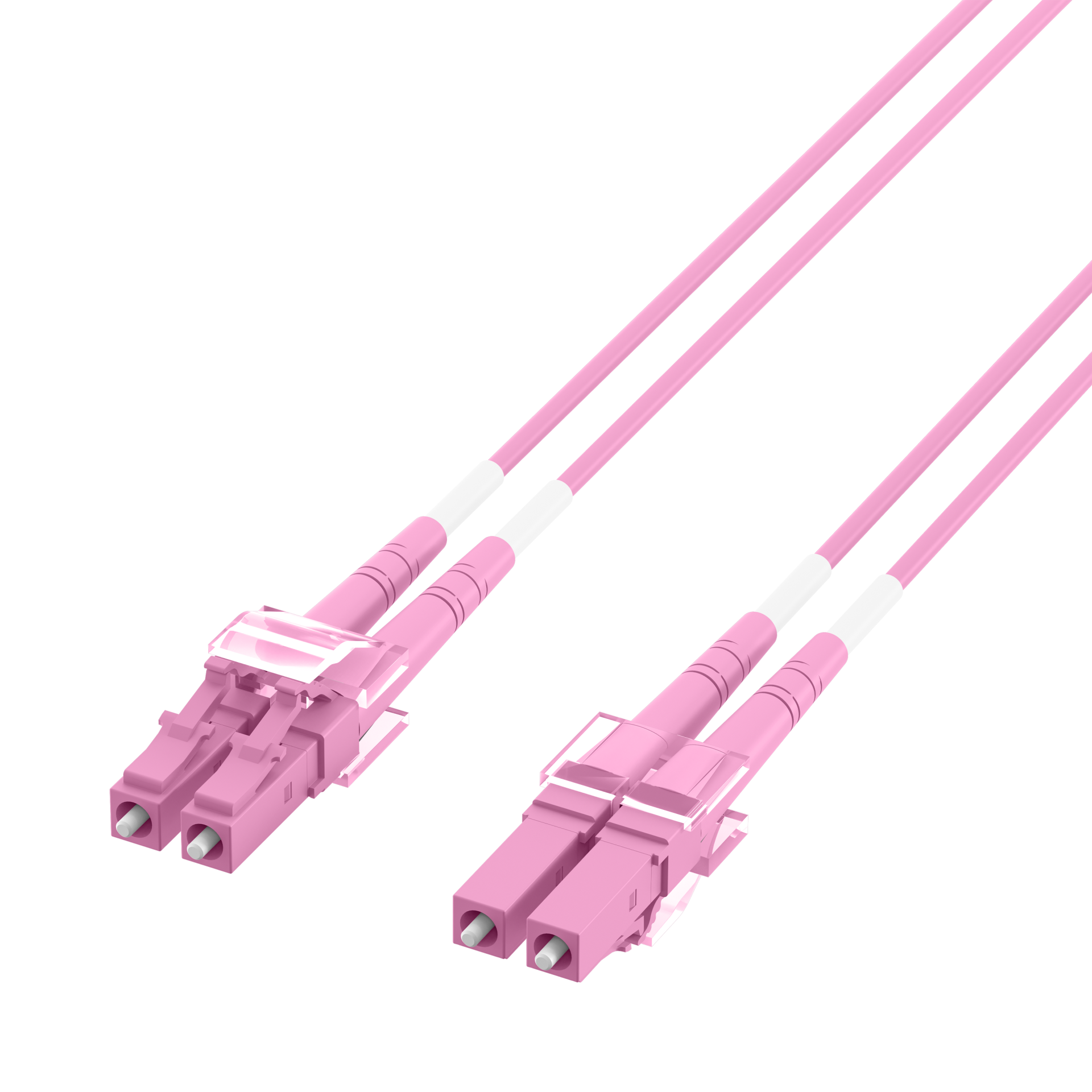

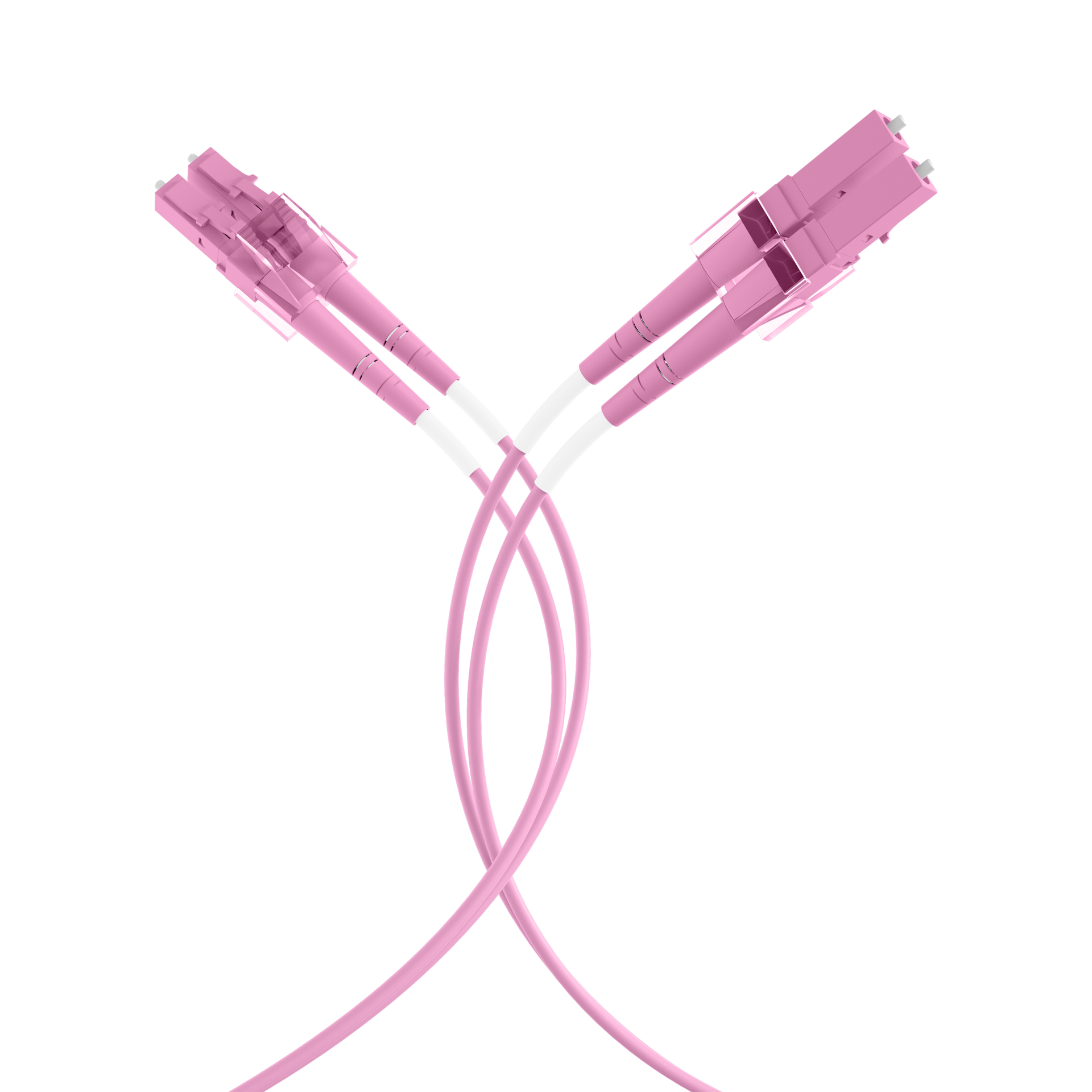

Duplex Patchcable LC-LC OM4 20m LSZH 1,2mm heatherviolet
Varenummer:
O0319.20-1.2
EAN Nr.:
4049759262136
Produktinformation til Duplex Patchcable LC-LC OM4 20m LSZH 1,2mm heatherviolet
The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.
Characteristics
Space-saving installation due to the small outer diameter
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Connector in colour of category (aqua, erika-violet or blue)
LC connector in Compact design
EFB fiber connectors meet the quality classes
Grade B/2 according to IEC-61753-1 for Singlemode
Grade A/1 according to IEC-61753-122-2 (Draft) for Multimode
pre-coded
100% tested and with individuell measuring protocol
Characteristics
Space-saving installation due to the small outer diameter
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Connector in colour of category (aqua, erika-violet or blue)
LC connector in Compact design
EFB fiber connectors meet the quality classes
Grade B/2 according to IEC-61753-1 for Singlemode
Grade A/1 according to IEC-61753-122-2 (Draft) for Multimode
pre-coded
100% tested and with individuell measuring protocol
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 1.2 mm |
| Cabling standard: | EN-50173-1 |
| Cabling standard: | ISO/IEC 11801 |
| Category: | OM4 |
| Colour outer sheath: | erica violet |
| Connector Conform to Standard: | IEC 61754-20 |
| Connector colour 1: | erica-violet |
| Connector colour 2: | erica-violet |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | according to EN 50265-2-1 |
| Halogen free: | acc. IEC60754-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 850nm: | < 0.25 dB |
| Jacket material: | LSZH |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibers: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | LC-Duplex |
| Type of connector connection 2: | LC-Duplex |
Varianten
| Art. Nr. | Bezeichnung | Outer diameter sheath single fibre | Length | Length tolerance | |
|---|---|---|---|---|---|
| O0319.0,5-1.2 | Duplex Patchcable LC-LC OM4 0,5m LSZH 1,2mm heatherviolet | 1.2 mm | 0.5 m | ±5 % | |
| O0319.1-1.2 | Duplex Patchcable LC-LC OM4 1m LSZH 1,2mm heatherviolet | 1.2 mm | 1.0 m | ±5 % | |
| O0319.1,5-1.2 | Duplex Patchcable LC-LC OM4 1,5m LSZH 1,2mm heatherviolet | 1.2 mm | 1.5 m | ±5 % | |
| O0319.2-1.2 | Duplex Patchcable LC-LC OM4 2m LSZH 1,2mm heatherviolet | 1.2 mm | 2.0 m | ±5 % | |
| O0319.3-1.2 | Duplex Patchcable LC-LC OM4 3m LSZH 1,2mm heatherviolet | 1.2 mm | 3.0 m | ±5 % | |
| O0319.5-1.2 | Duplex Patchcable LC-LC OM4 5m LSZH 1,2mm heatherviolet | 1.2 mm | 5.0 m | ±5 % | |
| O0319.10-1.2 | Duplex Patchcable LC-LC OM4 10m LSZH 1,2mm heatherviolet | 1.2 mm | 10.0 m | ±5 % | |
| O0319.15-1.2 | Duplex Patchcable LC-LC OM4 15m LSZH 1,2mm heatherviolet | 1.2 mm | 15.0 m | ±5 % | |
| O0319.20-1.2 | Duplex Patchcable LC-LC OM4 20m LSZH 1,2mm heatherviolet | 1.2 mm | 20.0 m | ±5 % | |
| O0319.25-1.2 | Duplex Patchcable LC-LC OM4 25m LSZH 1,2mm heatherviolet | 1.2 mm | 25.0 m | ±5 % |
Sikkerhedsanvisninger
Warning: Proper disposal of fiberglass residues! Fiberglass residues must be disposed of immediately and with due care in the containers provided for them. If handled improperly, there is a risk of injury due to fiber residues penetrating the skin.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
