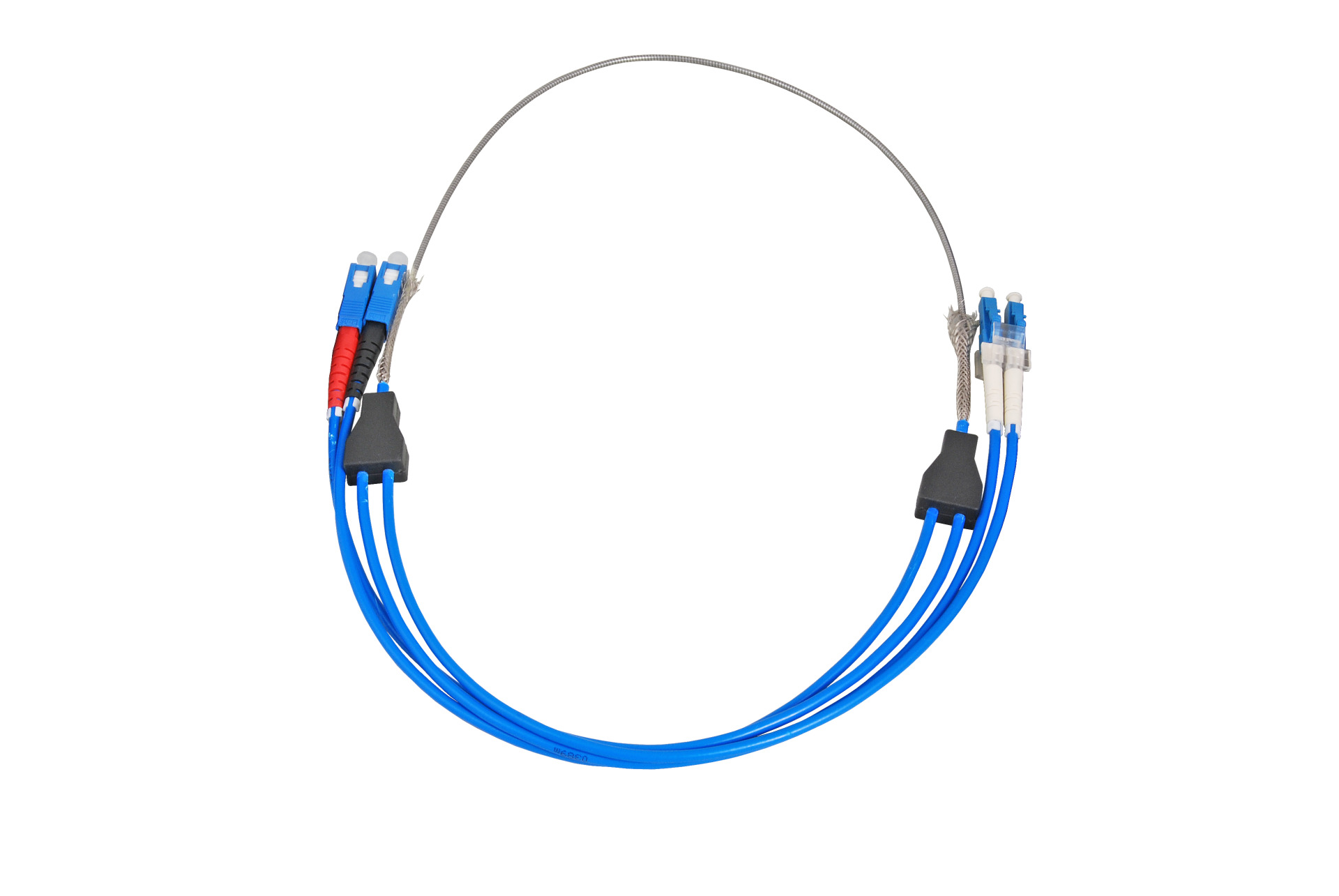

Duplex Patchcable LC-LC, 9/125µ, OS2, steel armored

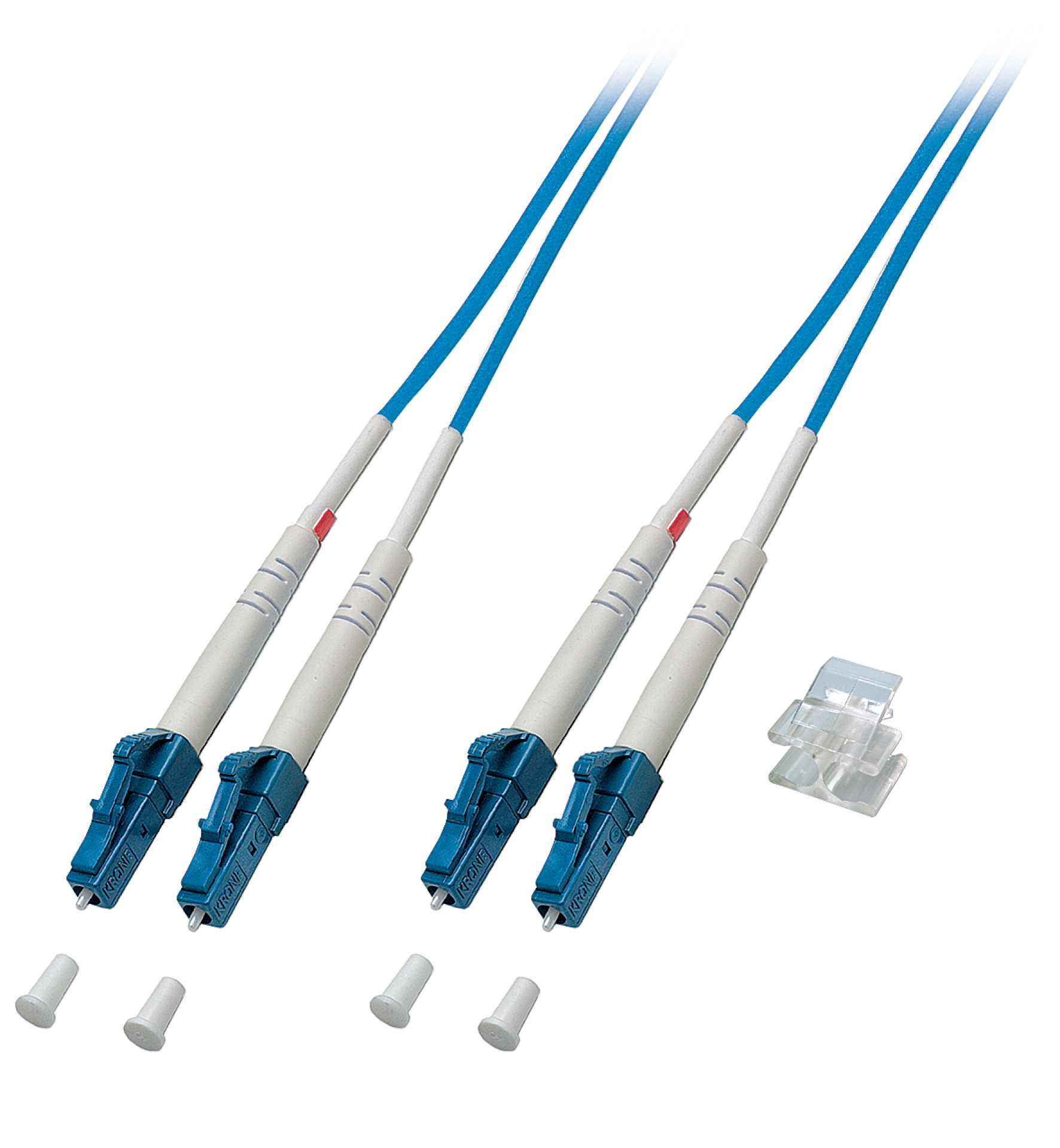

Duplex Patchcable LC-LC OS2 G652D 1m LSZH 3mm blue
Varenummer:
O6505.1
EAN Nr.:
4049759027506
Produktinformation til Duplex Patchcable LC-LC OS2 G652D 1m LSZH 3mm blue
SOLID!
Crush-resistance = 30.000 N per square centimeter
equals 3 tons / cm2
Stainless steel spiral coil and stainless steel braid for high mechanical protection
Non-crushable, shock-proof, bend-resistant
Very high flexibility
High lateral pressure and tensile resistance
Crush-resistance = 30.000 N per square centimeter
equals 3 tons / cm2
Stainless steel spiral coil and stainless steel braid for high mechanical protection
Non-crushable, shock-proof, bend-resistant
Very high flexibility
High lateral pressure and tensile resistance
Tekniske egenskaber
| APC Ausführung: | False |
|---|---|
| Anzahl der Fasern: | 2 |
| Arbeitstemperatur: | -20 – 75 °C |
| Biegeoptimierte Faser: | no |
| Faserart: | Single mode 9/125 |
| Flammwidrig: | according to EN 50265-2-1 |
| Halogenfrei nach EN 50267-2-3: | True |
| Kabel Konform zu Standard: | IEC 60793-2 |
| Kabelaufbau: | Duplex |
| Kabeltyp: | I-V(ZN) H |
| Kabel Ø: | 3.0 mm |
| Kategorie: | OS2 G652D |
| Knickschutztülle: | put-on |
| Lagertemperatur: | -20 – 85 °C |
| Mantel-Farbe: | blue |
| Mantel-Material: | LSZH |
| Qualitätsklasse Singlemode: | B/2 acc. IEC 61753-1 |
| Steckverbinderanschluss 1 Farbe: | blue |
| Steckverbinderanschluss 2 Farbe: | blue |
| Steckverbindertyp Anschluss 1: | LC-Duplex |
| Steckverbindertyp Anschluss 2: | LC-Duplex |
| Verkabelungsstandard: | EN-50173-1 |
| Verkabelungsstandard: | ISO/IEC 11801 |
Varianten
| Art. Nr. | Bezeichnung | Länge | Length tolerance | |
|---|---|---|---|---|
| O6505.1 | Duplex Patchcable LC-LC OS2 G652D 1m LSZH 3mm blue | 1,0 m | ±5 % | |
| O6505.2 | Duplex Patchcable LC-LC OS2 G652D 2m LSZH 3mm blue | 2,0 m | ±5 % | |
| O6505.3 | Duplex Patchcable LC-LC OS2 G652D 3m LSZH 3mm blue | 3,0 m | ±5 % | |
| O6505.5 | Duplex Patchcable LC-LC OS2 G652D 5m LSZH 3mm blue | 5.0 m | ±5 % |
