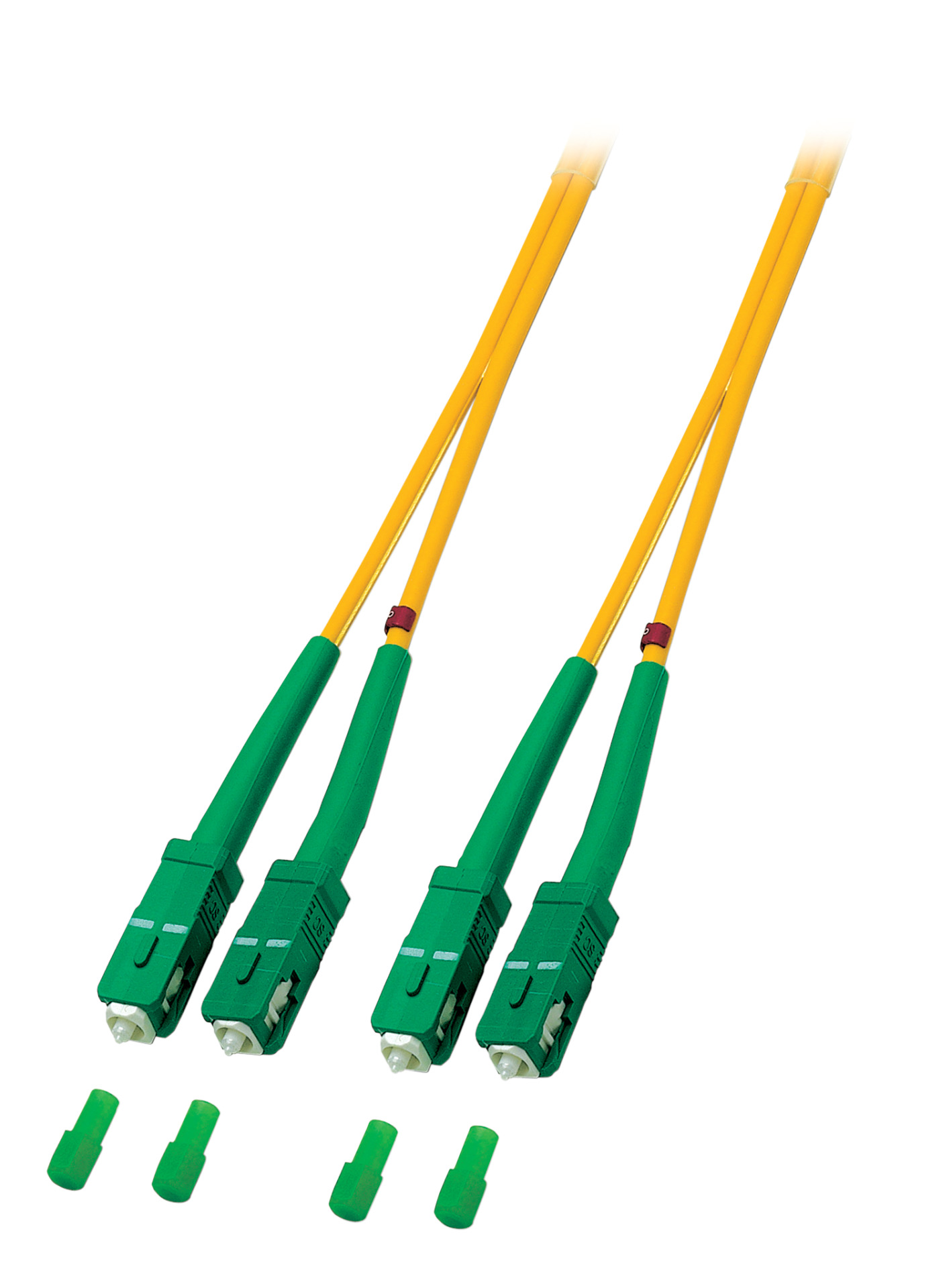

Duplex Patchcable SC/APC-SC/APC, 9/125µ, OS2

Duplex Patchcable SC/APC-SC/APC OS2 G652D 0,5m LSZH 3mm yellow
Varenummer: O2561.0,5
EAN Nr.: 4049759113148

Produktinformation til Duplex Patchcable SC/APC-SC/APC OS2 G652D 0,5m LSZH 3mm yellow

Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.

Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper

Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report

Tekniske egenskaber

(Halogenfree): acc. IEC60754-1
APC-version: True
APC version Connector 1:
APC version Connector 2:
Anti-kink sleeve: put-on
Bend optimized fiber: no
Cable Conform to Standard: IEC 60793-2
Cable Construction: Duplex
Cable type: I-V(ZN) H
Cable Ø: 3.0 mm
Category: OS2 acc. to ITU-T G.652.D
Colour outer sheath: yellow
Connector Conform to Standard: IEC 61754-4
Connector colour 1: green
Connector colour 2: green
Fibre type: Single mode 9/125
Flame-retardant: According to EN 50265-2-1
Halogen free (according to EN 50267-2-3): True
Jacket Material: LSZH
Low smoke: acc. IEC61034-1
Max. Tension: 160 N
Min. Bending radius (Dynamic): 20xOD
Min. Bending radius (Static): 10xOD
Number of fibres: 2
Operating Temperature: -20 – 75 °C
Quality class singlemode: B/2 acc. IEC 61753-1
Storage Temperature: -20 – 85 °C
Type of connector connection 1: SC duplex
Type of connector connection 2: SC duplex

Varianten

Art. Nr. Bezeichnung Length Length tolerance
O2561.0,5 Duplex Patchcable SC/APC-SC/APC OS2 G652D 0,5m LSZH 3mm yellow 0.5 m ±5 %
O2561.1 Duplex Patchcable SC/APC-SC/APC OS2 G652D 1m LSZH 3mm yellow 1.0 m ±5 %
O2561.2 Duplex Patchcable SC/APC-SC/APC OS2 G652D 2m LSZH 3mm yellow 2.0 m ±5 %
O2561.3 Duplex Patchcable SC/APC-SC/APC OS2 G652D 3m LSZH 3mm yellow 3.0 m ±5 %
O2561.5 Duplex Patchcable SC/APC-SC/APC OS2 G652D 5m LSZH 3mm yellow 5.0 m ±5 %
O2561.7,5 Duplex Patchcable SC/APC-SC/APC OS2 G652D 7,5m LSZH 3mm yellow 7.5 m ±5 %
O2561.10 Duplex Patchcable SC/APC-SC/APC OS2 G652D 10m LSZH 3mm yellow 10.0 m ±5 %
O2561.15 Duplex Patchcable SC/APC-SC/APC OS2 G652D 15m LSZH 3mm yellow 15.0 m ±5 %
O2561.20 Duplex Patchcable SC/APC-SC/APC OS2 G652D 20m LSZH 3mm yellow 20.0 m ±5 %
