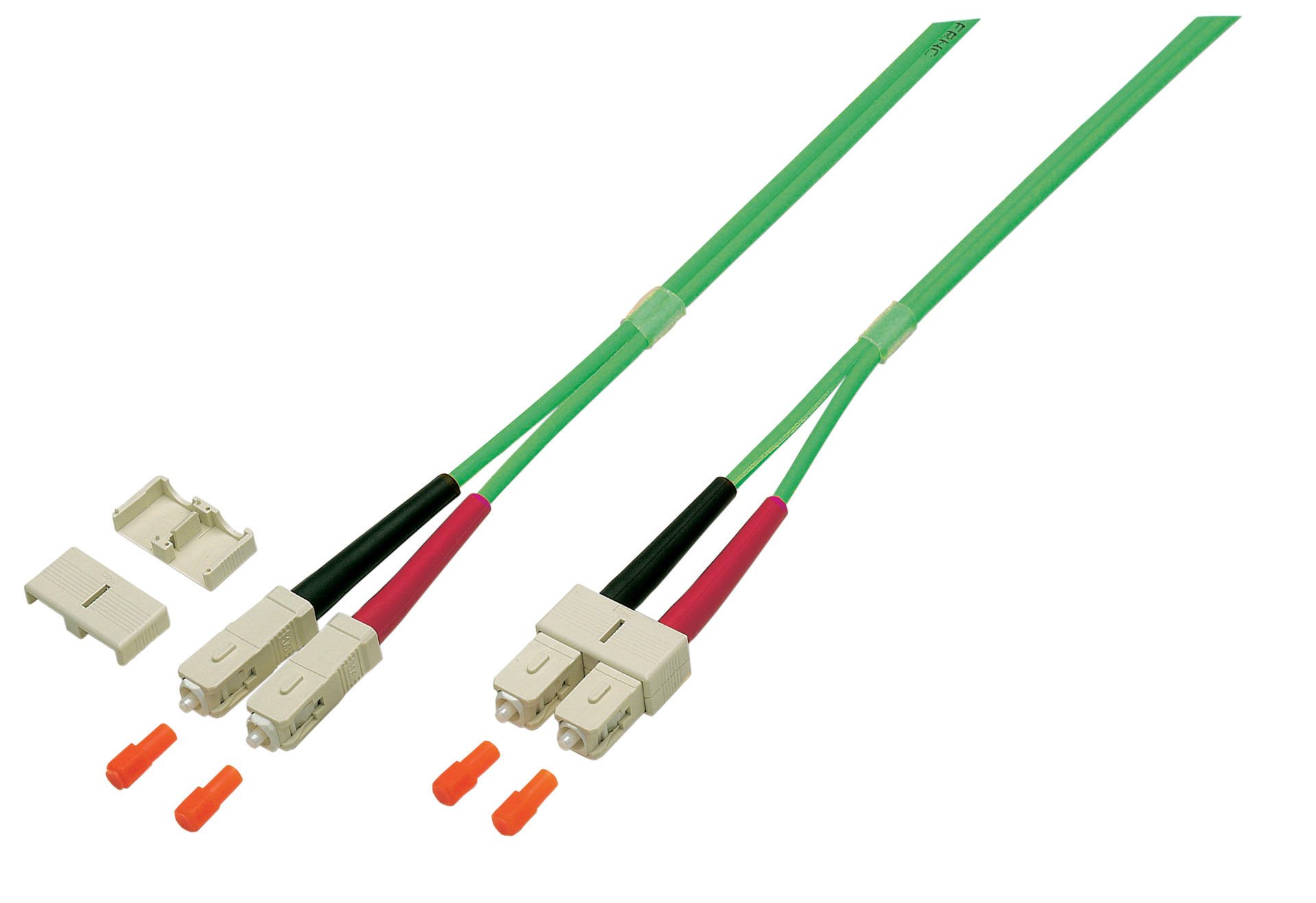

Duplex Patchcable SC-SC 50/125µ, OM5, 3.0mm
Duplex Patchcable SC-SC OM5 0,5m LSZH 3mm limegreen
Varenummer:
O0318.0,5OM5
EAN Nr.:
4049759178451
Produktinformation til Duplex Patchcable SC-SC OM5 0,5m LSZH 3mm limegreen
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | OM5 acc. to IEC60793-2-10 type A1a.4 |
| Cable Conform to Standard: | IEC 60793-2 |
| Cable structure: | Duplex |
| Cable type: | I-V(ZN) H |
| Cable Ø: | 3.0 mm |
| Category: | OM5 |
| Colour outer sheath: | lime green |
| Connector Conform to Standard: | IEC 61754-4 |
| Connector colour 1: | beige |
| Connector colour 2: | beige |
| Fibre type: | Multimode 50/125 |
| Flame retardant: | according to EN 50265-2-1 |
| Halogen free: | acc. IEC60754-1 |
| Halogen free (according to EN 50267-2-3): | True |
| Insertion loss 850nm: | < 0.2 dB |
| Jacket material: | LSZH |
| Low smoke: | acc. IEC61034-1 |
| Max. Tension: | 160 N |
| Min. Bending radius (Dynamic): | 20xOD |
| Min. Bending radius (Static): | 10xOD |
| Number of fibers: | 2 |
| Operating Temperature: | -20 – 75 °C |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Storage Temperature: | -20 – 85 °C |
| Type of connector connection 1: | SC duplex |
| Type of connector connection 2: | SC duplex |
Varianten
| Art. Nr. | Bezeichnung | Length | Length tolerance | |
|---|---|---|---|---|
| O0318.0,5OM5 | Duplex Patchcable SC-SC OM5 0,5m LSZH 3mm limegreen | 0.5 m | ±5 % | |
| O0318.1OM5 | Duplex Patchcable SC-SC OM5 1m LSZH 3mm limegreen | 1.0 m | ±5 % | |
| O0318.2OM5 | Duplex Patchcable SC-SC OM5 2m LSZH 3mm limegreen | 2.0 m | ±5 % | |
| O0318.3OM5 | Duplex Patchcable SC-SC OM5 3m LSZH 3mm limegreen | 3.0 m | ±5 % | |
| O0318.5OM5 | Duplex Patchcable SC-SC OM5 5m LSZH 3mm limegreen | 5.0 m | ±5 % | |
| O0318.7,5OM5 | Duplex Patchcable SC-SC OM5 7,5m LSZH 3mm limegreen | 7.5 m | ±5 % | |
| O0318.10OM5 | Duplex Patchcable SC-SC OM5 10m LSZH 3mm limegreen | 10.0 m | ±5 % | |
| O0318.15OM5 | Duplex Patchcable SC-SC OM5 15m LSZH 3mm limegreen | 15.0 m | ±5 % | |
| O0318.20OM5 | Duplex Patchcable SC-SC 50/125µ, OM5, 3.0mm | 20.0 m | ±5 % | |
| O0318.25OM5 | Duplex Patchcable SC-SC 50/125µ, OM5, 3.0mm | 25.0 m | ±5 % | |
| O0318.30OM5 | Duplex Patchcable SC-SC 50/125µ, OM5, 3.0mm | 30.0 m | ±5 % | |
| O0318.35OM5 | Duplex Patchcable SC-SC 50/125µ, OM5, 3.0mm | 35.0 m | ±5 % | |
| O0318.40OM5 | Duplex Patchcable SC-SC 50/125µ, OM5, 3.0mm | 40.0 m | ±5 % | |
| O0318.50OM5 | Duplex Patchcable SC-SC 50/125µ, OM5, 3.0mm | 50.0 m | ±5 % |
Sikkerhedsanvisninger
Warning: Proper disposal of fiberglass residues! Fiberglass residues must be disposed of immediately and with due care in the containers provided for them. If handled improperly, there is a risk of injury due to fiber residues penetrating the skin.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
