Duplex Patchcable SC-SC 9/125µ, OS2, 1.2mm

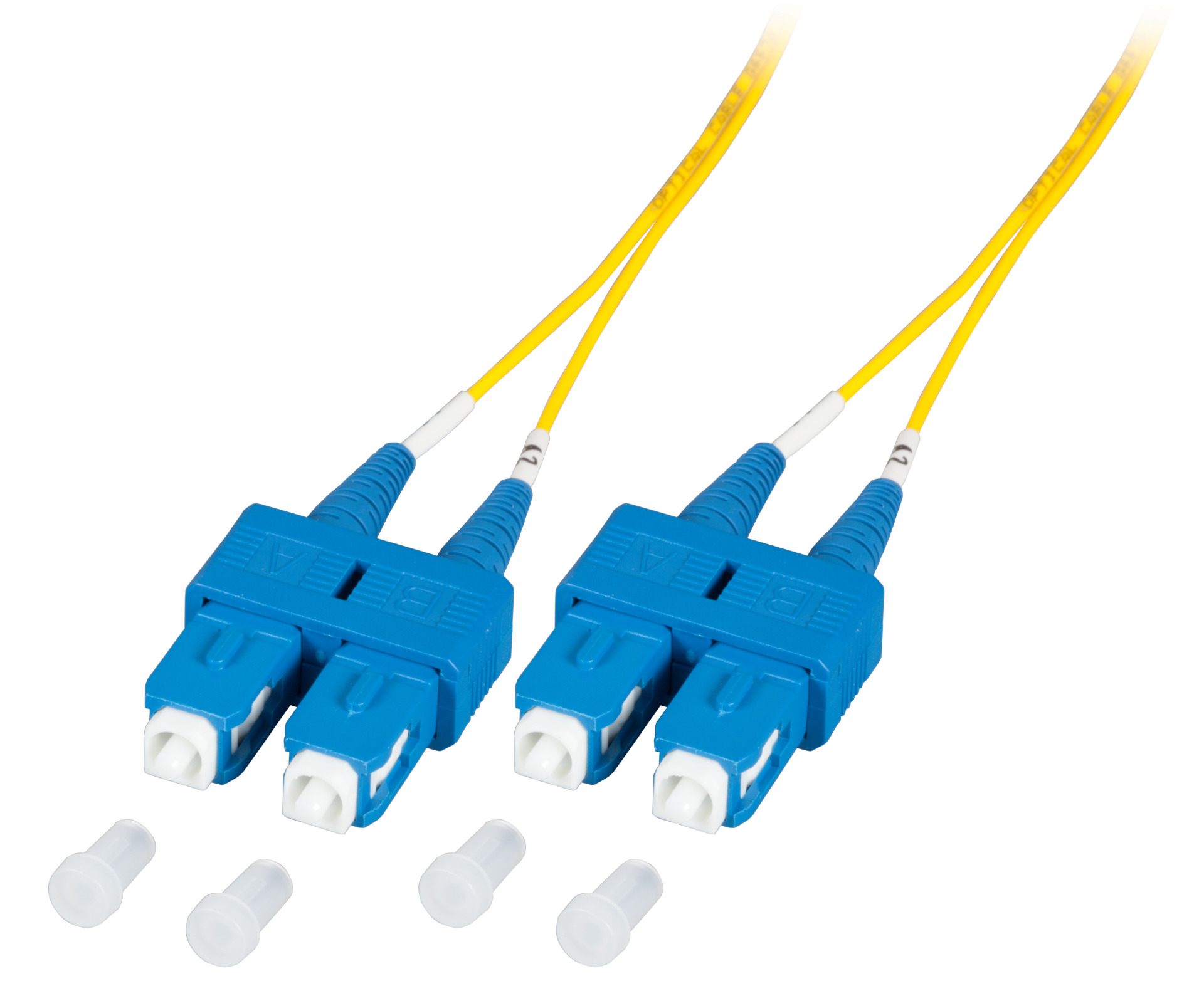

Duplex Patchcable SC-SC OS2 G652D 0,5m LSZH 1,2mm yellow
Varenummer:
O2513.0,5-1.2
EAN-nr.:
4049759169961
Produktinformation til Duplex Patchcable SC-SC OS2 G652D 0,5m LSZH 1,2mm yellow
The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.
Characteristics
Space-saving installation due to the small outer diameter
Halogen free and flame retardant according to IEC-60754-2, IEC-60332-1 and IEC-61034
Connector in colour of category (OS2 is blue)
EFB fiber connectors meet the quality class Grade B/2 for multimode according to IEC-61753-122-2 (Draft)
pre-coded
100% tested and with individuell measuring protocol
Characteristics
Space-saving installation due to the small outer diameter
Halogen free and flame retardant according to IEC-60754-2, IEC-60332-1 and IEC-61034
Connector in colour of category (OS2 is blue)
EFB fiber connectors meet the quality class Grade B/2 for multimode according to IEC-61753-122-2 (Draft)
pre-coded
100% tested and with individuell measuring protocol
Tekniske egenskaber
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Cable structure: | Duplex |
| Cable type: | Simplex |
| Cable Ø: | 1.2 mm |
| Category: | OS2 G652D |
| Colour outer sheath: | yellow |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to IEC 60332-1-2 |
| Halogen free: | acc. to IEC 62821 |
| Insertion loss 1310nm: | ≤0,15 dB |
| Jacket material: | LSZH |
| Low smoke: | acc. to IEC 61034 |
| Min. Bending radius (Dynamic): | 20xOD mm |
| Min. Bending radius (Static): | 10xOD mm |
| Number of fibers: | 2 |
| Operating Temperature: | -20 – 60 °C |
| Packaging: | EFB-Electronics poly bag (resealable) |
| Reinforcment: | Aramid |
| Return loss 1310nm: | ≥45 dB |
| Return loss 1550nm: | ≥45 dB |
| Scope of delivery: | 1x Patchcable, 2x Duplex Clip, 1x Measurement Report, 1x Information Sheet |
| Storage Temperature: | -20 – 70 °C |
| Type of connector connection 1: | SC |
| Type of connector connection 2: | SC |
Variants
| ON | Label | Length | Length tolerance | |
|---|---|---|---|---|
| O2513.0,5-1.2 | Duplex Patchcable SC-SC OS2 G652D 0,5m LSZH 1,2mm yellow | 0.5 m | ±5 % | |
| O2513.1-1.2 | Duplex Patchcable SC-SC OS2 G652D 1m LSZH 1,2mm yellow | 1.0 m | ±5 % | |
| O2513.2-1.2 | Duplex Patchcable SC-SC OS2 G652D 2m LSZH 1,2mm yellow | 2.0 m | ±5 % | |
| O2513.3-1.2 | Duplex Patchcable SC-SC OS2 G652D 3m LSZH 1,2mm yellow | 3.0 m | ±5 % | |
| O2513.5-1.2 | Duplex Patchcable SC-SC OS2 G652D 5m LSZH 1,2mm yellow | 5.0 m | ±5 % | |
| O2513.10-1.2 | Duplex Patchcable SC-SC OS2 G652D 10m LSZH 1,2mm yellow | 10.0 m | ±5 % |
Sikkerhedsanvisninger
Warning: Proper disposal of fiberglass residues! Fiberglass residues must be disposed of immediately and with due care in the containers provided for them. If handled improperly, there is a risk of injury due to fiber residues penetrating the skin. Warning: Danger of swallowing The product must not be put in the mouth. If swallowed, there is a risk of suffocation, internal blockage of the digestive tract and a possible risk of poisoning from ingredients that may be contained in the products.
