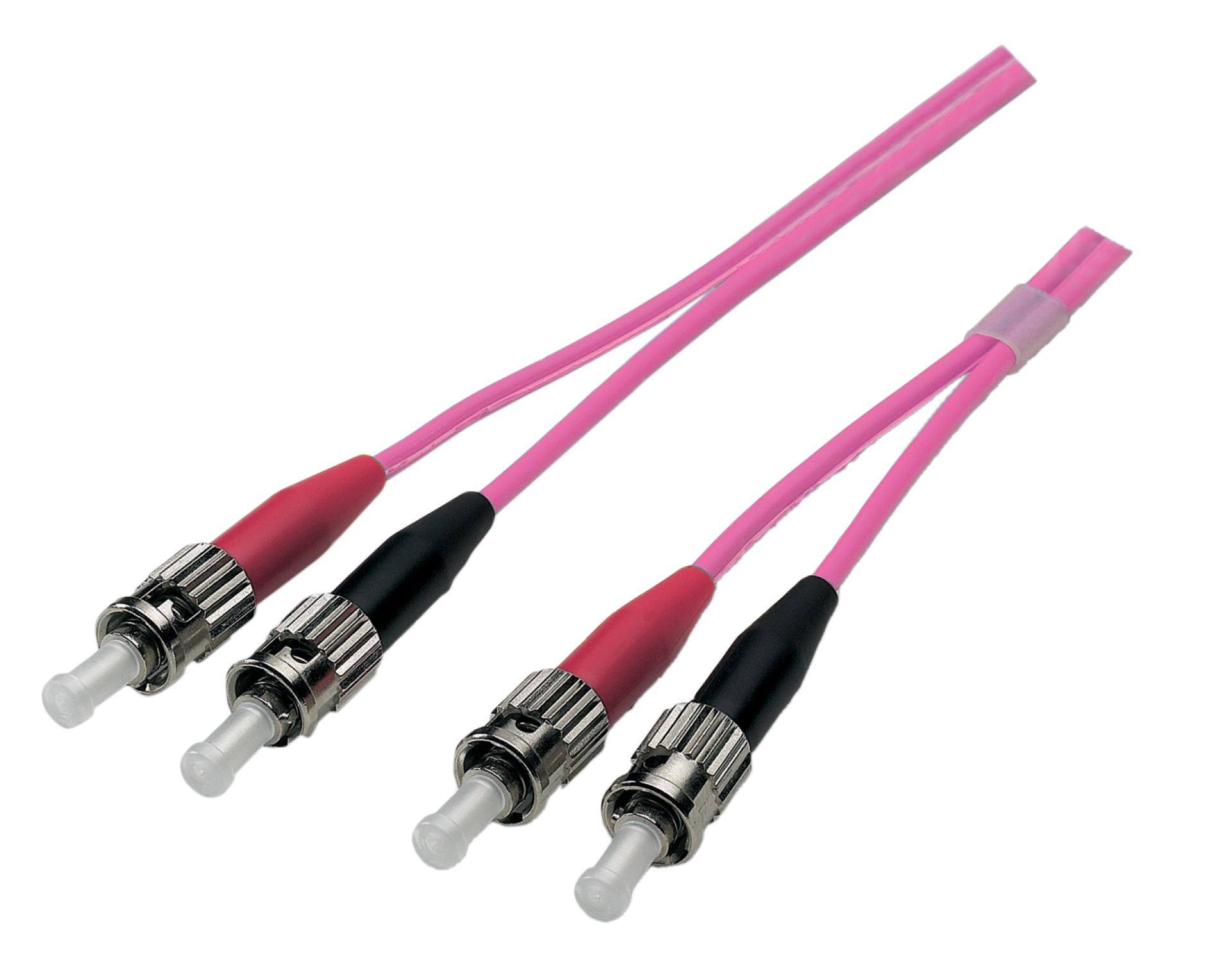

Duplex Patchcable ST-ST, 50/125µ, OM4

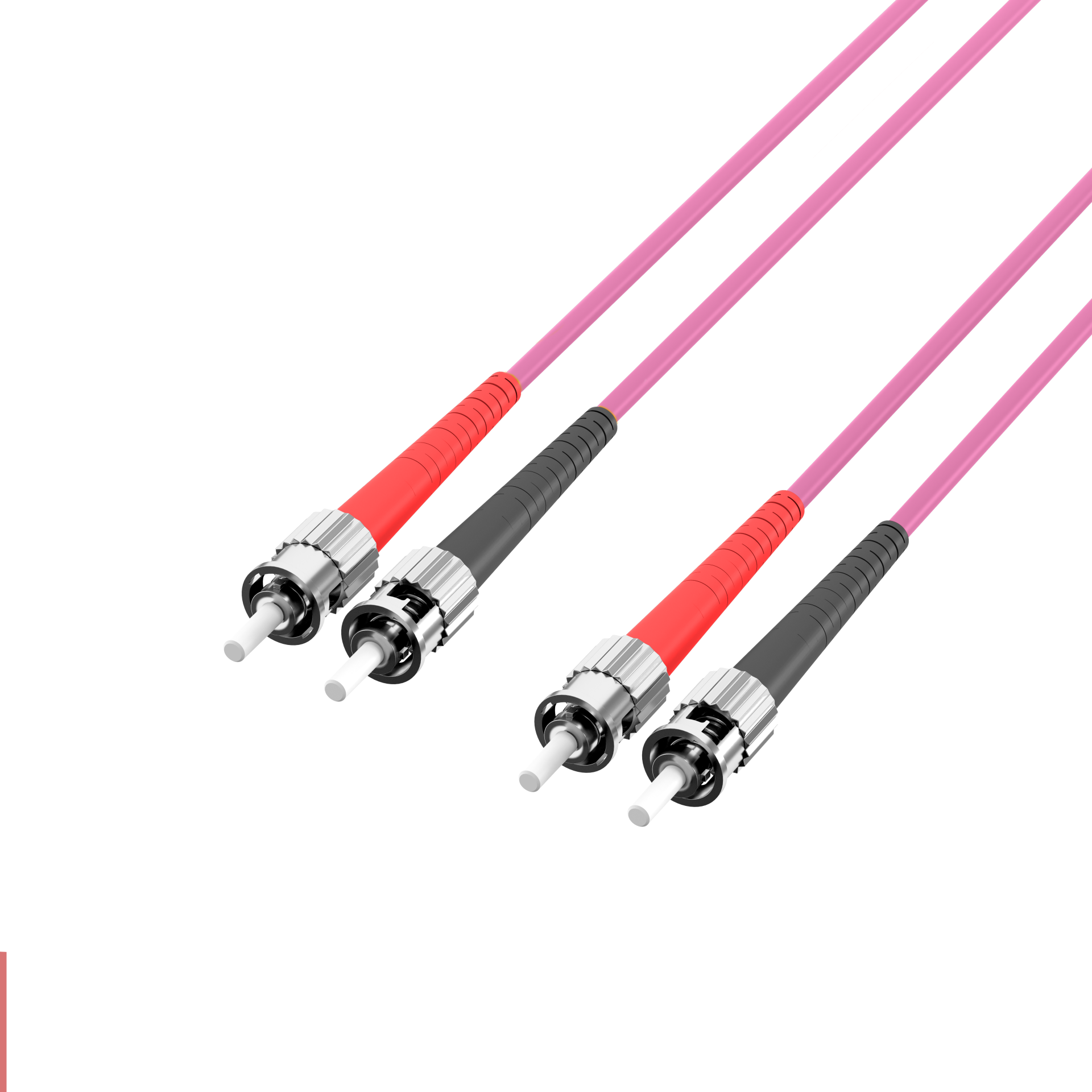

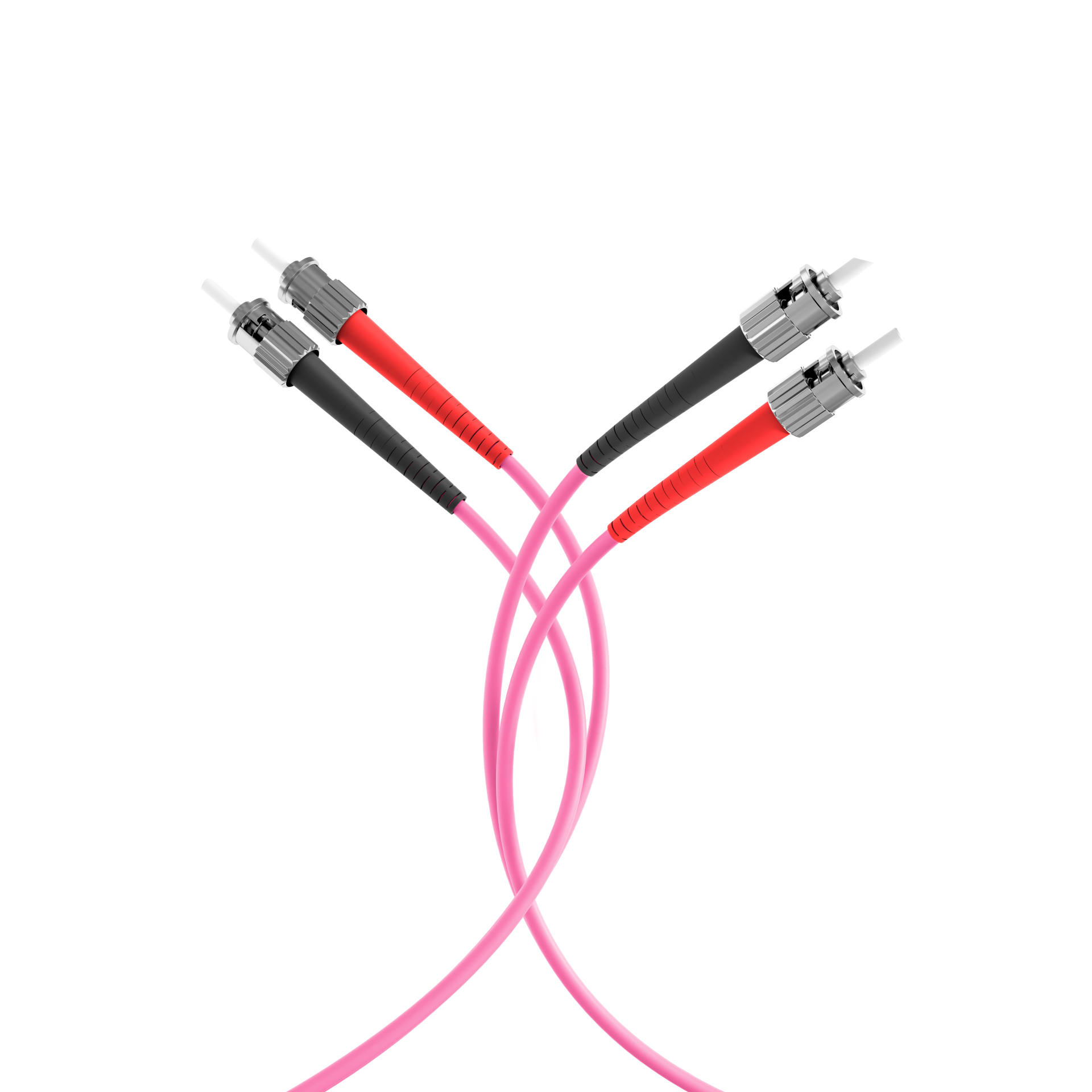

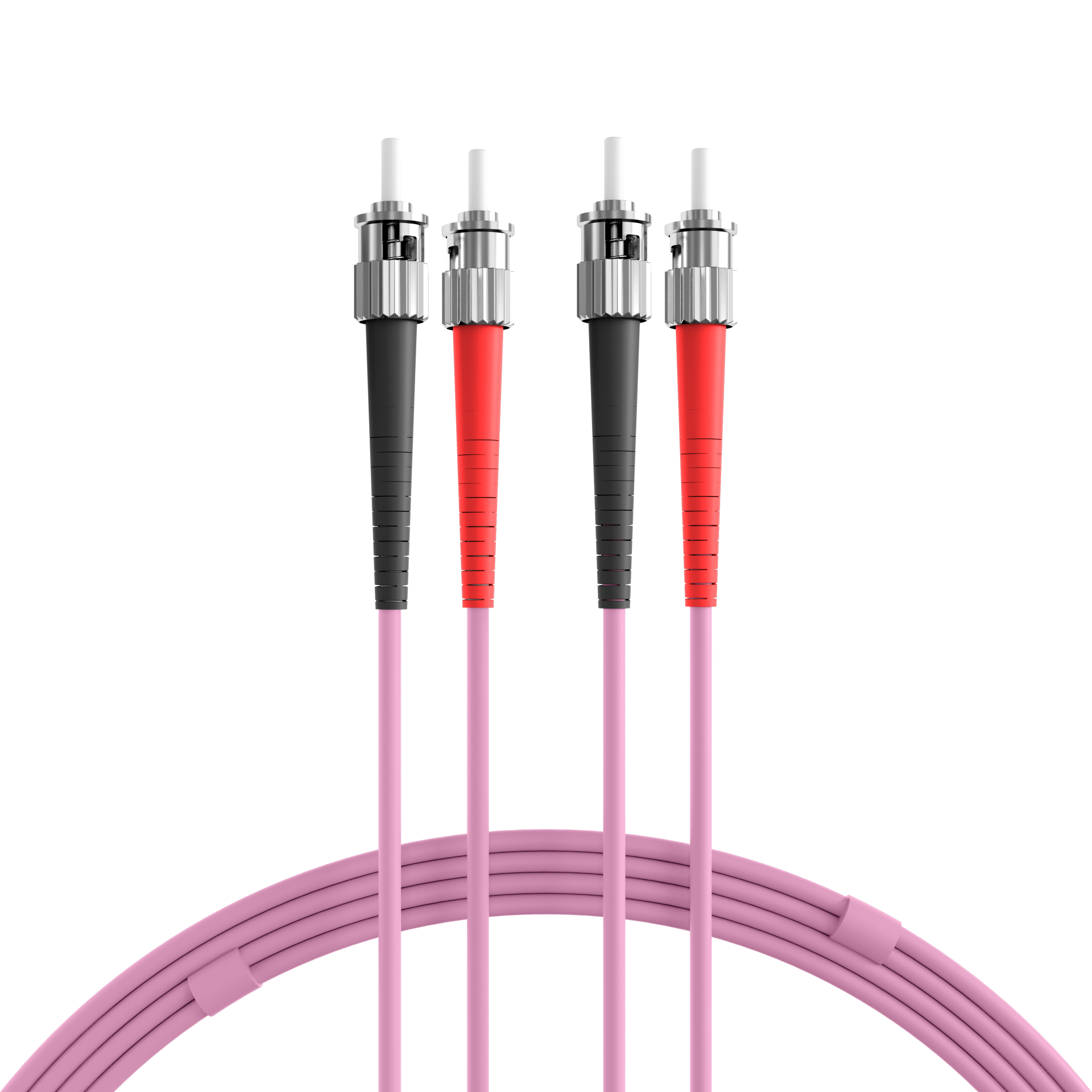

Duplex Patchcable ST-ST OM4 0,5m LSZH 3mm heatherviolet
Varenummer:
O0348.0,5
EAN Nr.:
4049759065379
Produktinformation til Duplex Patchcable ST-ST OM4 0,5m LSZH 3mm heatherviolet
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade A/1 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Tekniske egenskaber
(Halogenfree): | acc. IEC60754-1 |
---|---|
APC-version: | False |
Anti-kink sleeve: | put-on |
Bend optimized fiber: | OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 |
Cable Conform to Standard: | IEC 60793-2 |
Cable Construction: | Duplex |
Cable type: | I-V(ZN) H |
Cable Ø: | 3.0 mm |
Category: | OM4 |
Colour outer sheath: | erica violet |
Connector Conform to Standard: | IEC 61754-2 |
Fibre type: | Multi mode 50/125 |
Flame-retardant: | According to EN 50265-2-1 |
Halogen free (according to EN 50267-2-3): | True |
Insertion loss 850nm: | < 0.3 dB |
Jacket Material: | LSZH |
Low smoke: | acc. IEC61034-1 |
Max. Tension: | 160 N |
Min. Bending radius (Dynamic): | 20xOD |
Min. Bending radius (Static): | 10xOD |
Number of fibres: | 2 |
Operating Temperature: | -20 – 75 °C |
Quality class Multimode: | A/1 according to IEC-61753-222-2 |
Storage Temperature: | -20 – 85 °C |
Type of connector connection 1: | ST |
Type of connector connection 2: | ST |
Varianten
Art. Nr. | Bezeichnung | Length | Length tolerance | |
---|---|---|---|---|
O0348.0,5 | Duplex Patchcable ST-ST OM4 0,5m LSZH 3mm heatherviolet | 0.5 m | ±5 % | |
O0348.1 | Duplex Patchcable ST-ST OM4 1m LSZH 3mm heatherviolet | 1.0 m | ±5 % | |
O0348.2 | Duplex Patchcable ST-ST OM4 2m LSZH 3mm heatherviolet | 2.0 m | ±5 % | |
O0348.3 | Duplex Patchcable ST-ST OM4 3m LSZH 3mm heatherviolet | 3.0 m | ±5 % | |
O0348.5 | Duplex Patchcable ST-ST OM4 5m LSZH 3mm heatherviolet | 5.0 m | ±5 % | |
O0348.7,5 | Duplex Patchcable ST-ST OM4 7,5m LSZH 3mm heatherviolet | 7.5 m | ±5 % | |
O0348.10 | Duplex Patchcable ST-ST OM4 10m LSZH 3mm heatherviolet | 10.0 m | ±5 % | |
O0348.15 | Duplex Patchcable ST-ST OM4 15m LSZH 3mm heatherviolet | 15.0 m | ±5 % | |
O0348.20 | Duplex Patchcable ST-ST OM4 20m LSZH 3mm heatherviolet | 20.0 m | ±5 % |
