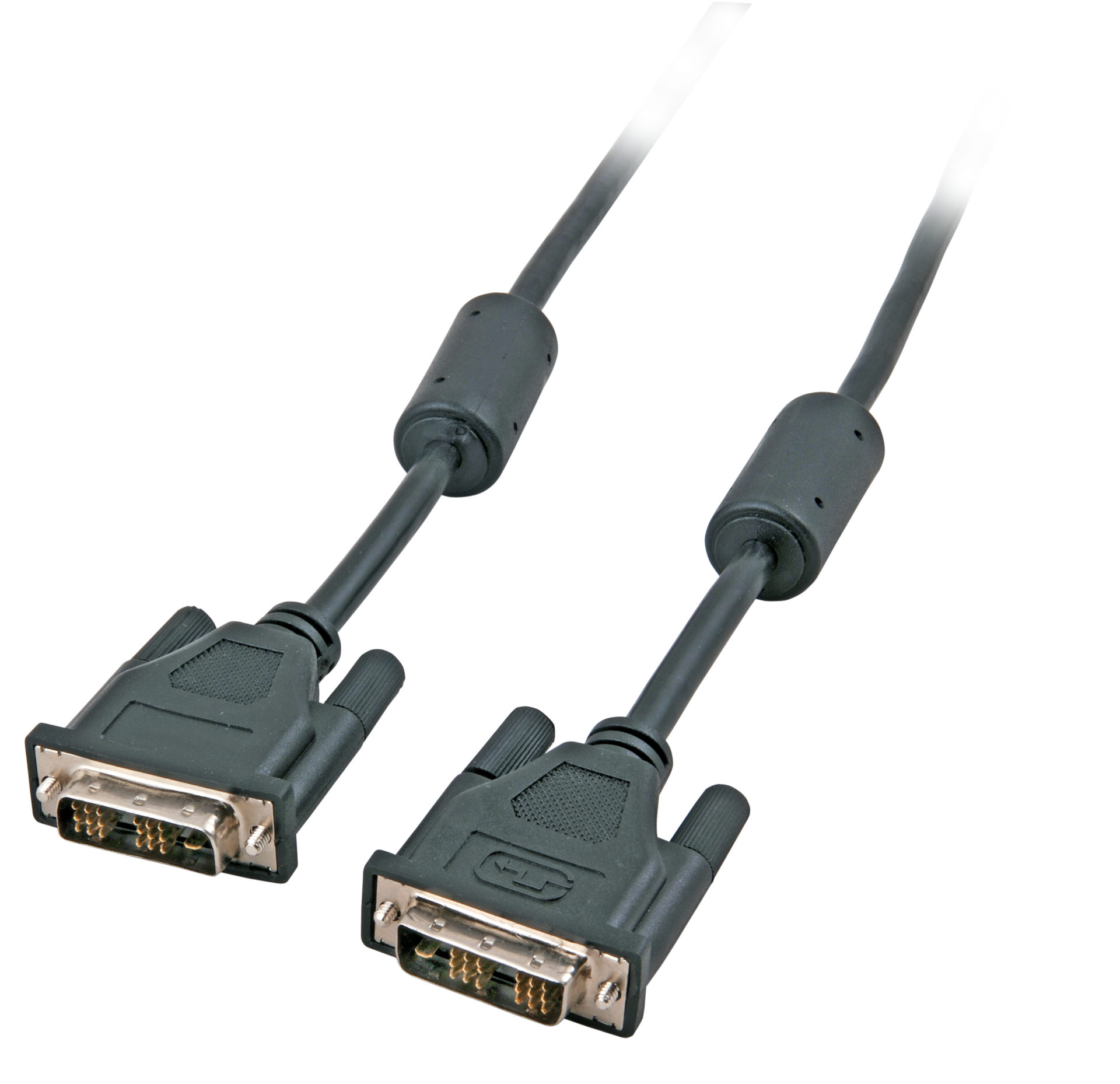

DVI 18+1 Single Link Connection Cable

DVI-D Single Link Cable, 2x DVI-D 18+1, M-M, AWG 30, 2,0m, black
Varenummer:
K5433.2
EAN Nr.:
4049759069551
Produktinformation til DVI-D Single Link Cable, 2x DVI-D 18+1, M-M, AWG 30, 2,0m, black
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated and moulded
Both sides assembled with ferrite core to dejam signals in the cable (better EMV characteristics)
Cable length up to 20m!
Single Link cable
Support resolutions up to 1920 x 1200
Conductor: bare copper, Jacket: PVC
Plugs and contacts gold plated and moulded
Both sides assembled with ferrite core to dejam signals in the cable (better EMV characteristics)
Cable length up to 20m!
Single Link cable
Support resolutions up to 1920 x 1200
Tekniske egenskaber
3D: | False |
---|---|
ARC: | False |
Backwards compatible: | True |
Bandwith: | 3.96 Gbit/s |
Beding radius (dynamic/static): | 25,4 mm |
CEC: | False |
Cable set: | True |
Cable type (passive/active/optical): | passive |
Chip: | False |
Color depth: | 8-Bit |
Compliant with: |
Gaming Monitor Laptop Monitor Webcams gaming console home cinema |
Connection type connection 1: | Plug |
Connection type connection 2: | Plug |
Connector 1 angulation: | 180° |
Connector 2 angulation: | 180° |
Contact Plating: | Nickel-plated |
DSC: | False |
Dust cover: | false |
HDCP Version: | HDCP 1.0 |
HDMI Power: | False |
HDMI certified: | False |
HEC (Ethernet channel): | False |
Halogenfree: | No |
Kink protection: | False |
MSA: | False |
MST: | False |
Material Connector Housing: | SPCC |
Material Inner Conductor: | BC |
Material jacket: | PVC |
Max. Transfer Rate: | 3,96 Gbit/s |
Max. mating cycles: | 1000 |
Max. resolution: | 1080p@60Hz |
Model: | Round Cable |
Number of poles connection 1: | 19 |
Number of poles connection 2: | 19 |
Number of shieldings: | triple |
Operating temperature: | -5 – 45 |
PCIe Data transfer: | False |
Plug dimensions Side 1: | 39.5*15.3*47.7mm |
Plug dimensions Side 2: | 39.5*15.3*47.7mm |
Plug imprint: | DVI LOGO |
Printing: | DVI Cable STYLE 20276 80℃ 30V VW-1 |
Scope of delivery: | 1 x DVI Cable |
Shielded: | True |
Storage Temperature: | -20 – 60 |
Supported video standards: | 1600x1200 |
Tensile strength (short/long): | 39,2 N |
Type of connector connection 1: | DVI-D 18+1 |
Type of connector connection 2: | DVI-D 18+1 |
Type of packaging: | plastic bag |
Type of signal: | Digital |
VESA certified: | False |
VRR: | False |
Various lengths cable set: | 1*2.0m |
Warranty: | 12 months |
With termination resistor: | False |
eARC: | False |
Varianten
Art. Nr. | Bezeichnung | Colour | Length | Diameter | AWG | |
---|---|---|---|---|---|---|
K5433.2 | DVI-D Single Link Cable, 2x DVI-D 18+1, M-M, AWG 30, 2,0m, black | Black | 2.0 m | 6.0 mm | 30AWG | |
K5433.3 | DVI-D Single Link Cable, 2x DVI-D 18+1, M-M, AWG 30, 3,0m, black | Black | 3.0 m | 6.0 mm | 30AWG | |
K5433.5V2 | DVI-D Single Link Cable, 2x DVI-D 18+1, M-M, AWG 28, 5,0m, black | Black | 5.0 m | 6.0 mm | 28AWG |
