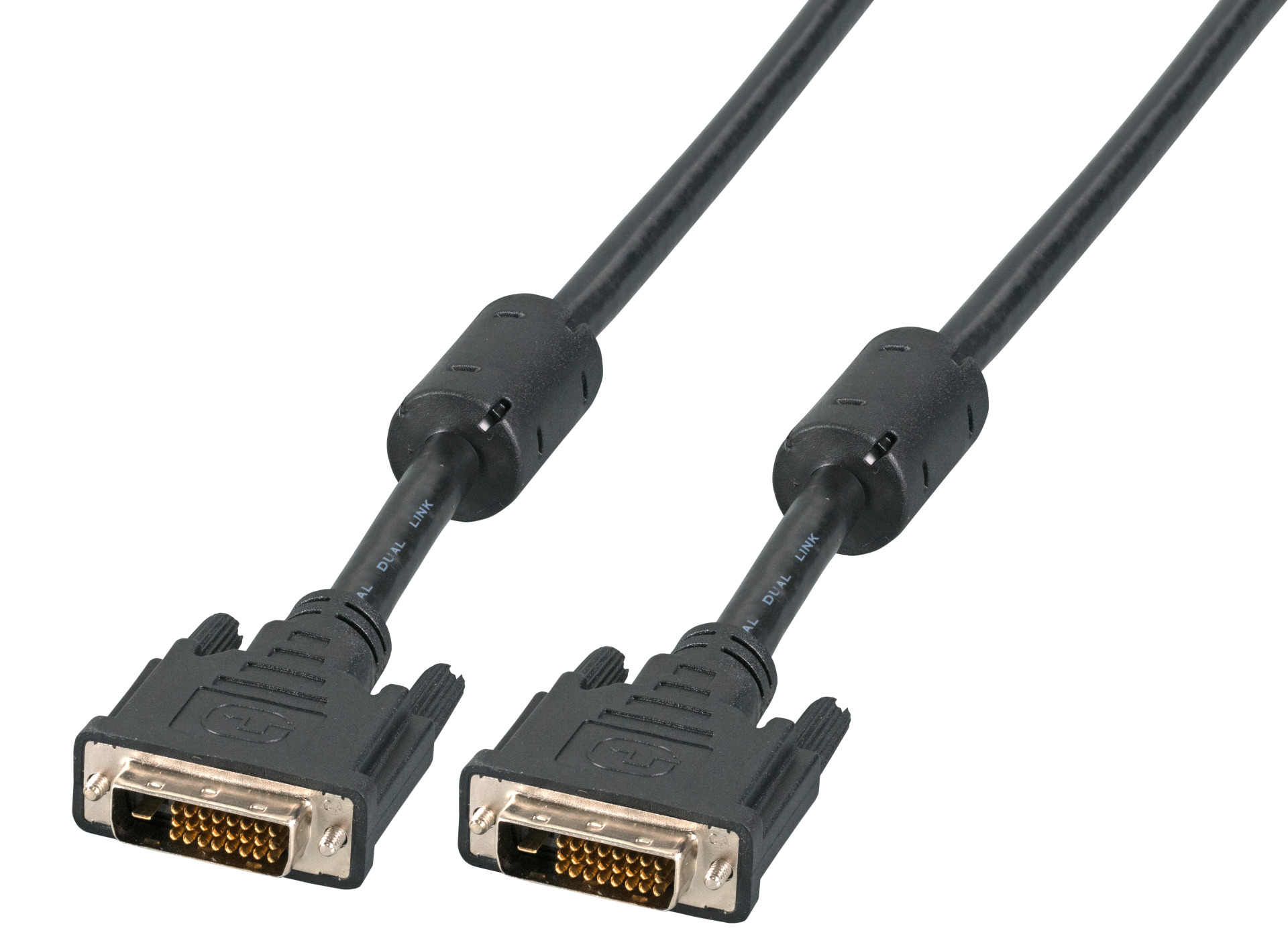

DVI 24+1 Dual Link Industrial Connection Cable
DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 2m
Varenummer:
K5434IND.2
EAN Nr.:
4049759119546
Produktinformation til DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 2m
Shielding: foil + braiding
Conductor: bare copper, Jacket: PVC
Tinned plugs and gold plated contacts, housing with full-metal shielding and moulded, for ideal shielding characteristics in rough industrial environment.
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Dual link cable
Support for resolution up to 2560 x 1600
Conductor: bare copper, Jacket: PVC
Tinned plugs and gold plated contacts, housing with full-metal shielding and moulded, for ideal shielding characteristics in rough industrial environment.
Both sides assembled with ferrite core to dejam signals in the cable (for better EMC characteristics)
Dual link cable
Support for resolution up to 2560 x 1600
Tekniske egenskaber
| 3D: | False |
|---|---|
| ARC: | False |
| Backwards compatible: | True |
| Bandwith: | 10 Gbit/s |
| Beding radius (dynamic/static): | 86 mm |
| CEC: | False |
| Cable set: | False |
| Chip: | False |
| Compliant with: | HDTV,Projector,Computer monitor,Video editing |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| Crush resistance (short/long): | 1 kg/cm² |
| DSC: | False |

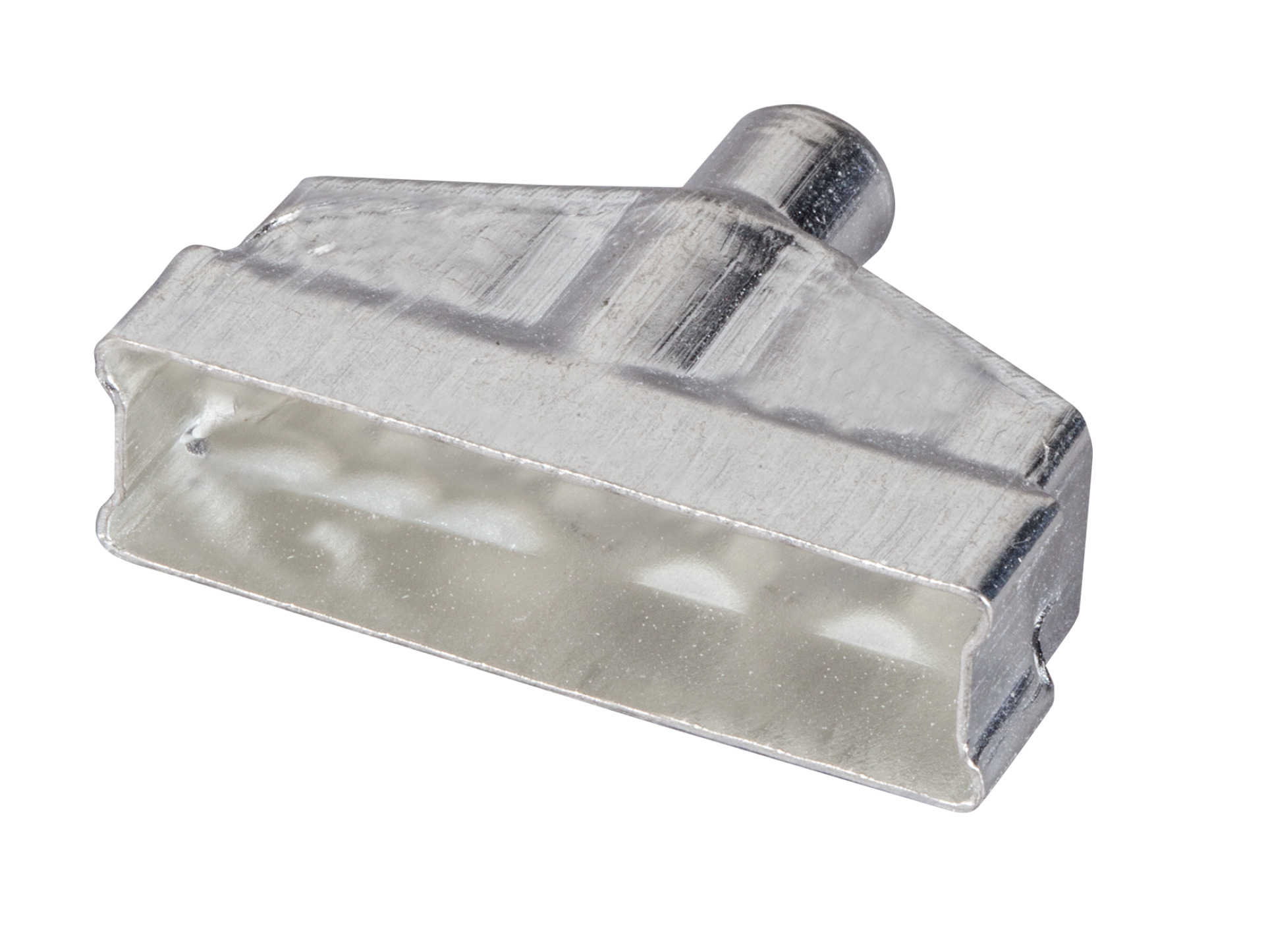

| Dust cover: | true |
| HDMI Power: | False |
| HDMI certified: | False |
| HEC (Ethernet channel): | False |
| Halogenfree: | No |
| Kink protection: | False |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | TC |
| Material jacket: | PVC |
| Max. mating cycles: | 1000 |
| Model: | Round Cable |
| Number of poles connection 1: | 25 |
| Number of poles connection 2: | 25 |
| Number of shieldings: | double |
| Operating temperature: | -10 – 80 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 36.75mm x 24.17mm x 7.9mm |
| Plug dimensions Side 2: | 36.75mm x 24.17mm x 7.9mm |
| Printing: | El19932-T cUL AWM 20276 80℃ 30V VW-1 COPARTNER DVI DIGITAL DUAL LINK |
| Scope of delivery: | 1x DVI Cable |
| Shielded: | True |
| Speed: | 10 Gbit/s |
| Storage Temperature: | -10 – 80 °C |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | DVI-D 24+1 |
| Type of connector connection 2: | DVI-D 24+1 |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Warranty: | 24 months |
| With termination resistor: | False |
| eARC: | False |
Varianten
| Art. Nr. | Bezeichnung | Color | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5434IND.2 | DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 2m | black | 2.0 m | 8.6 mm | 28AWG | |
| K5434IND.3 | DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 3m | black | 3.0 m | 8.6 mm | 28AWG | |
| K5434IND.5 | DVI Monitor cable Dual Link, DVI-Digital 24+1, AWG28, 5m | black | 5.0 m | 8.6 mm | 28AWG |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
