Equipped Front Panel with 6 x SC Duplex Adapter OS2

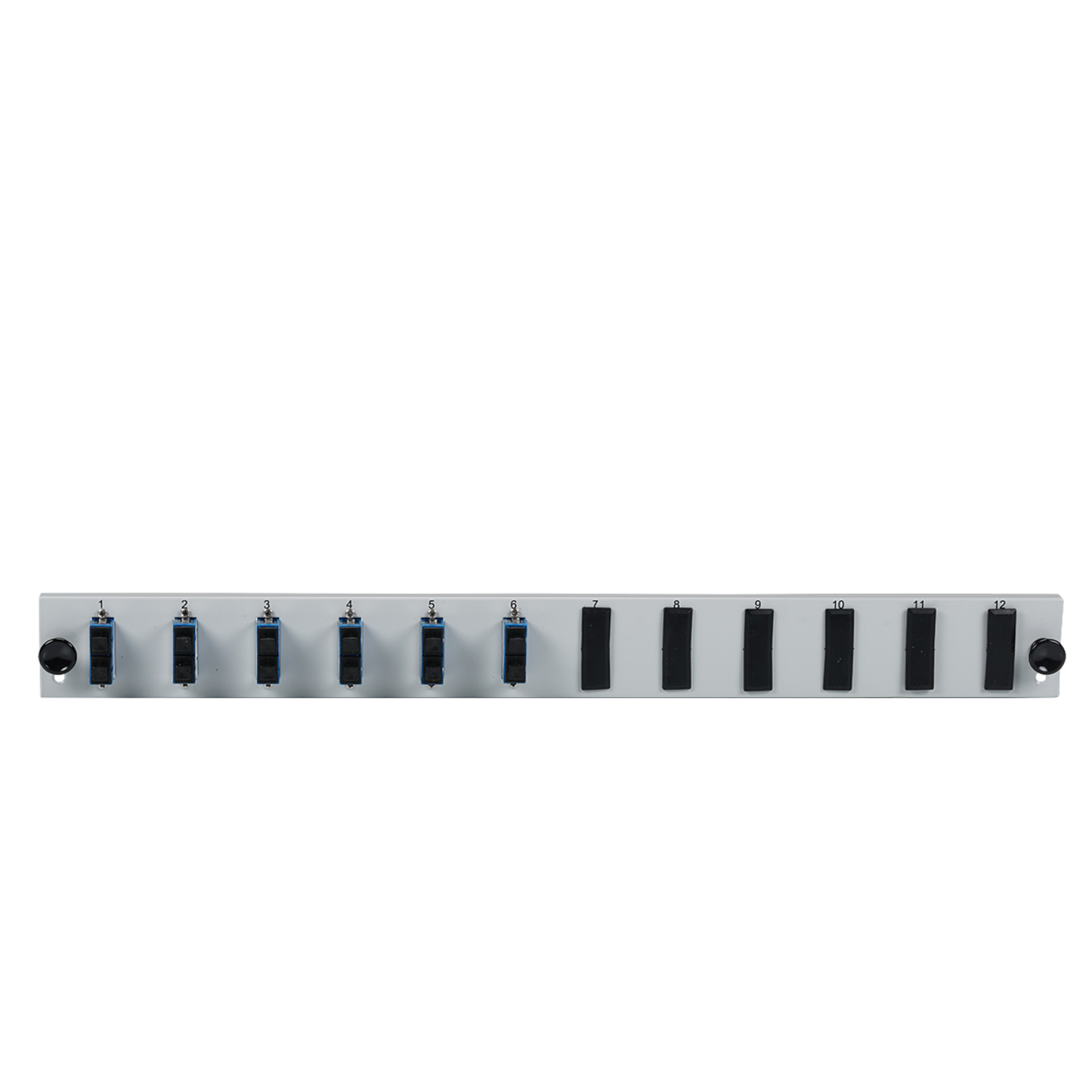

Equiped 12 Port Front Panel with 6x Duplex adapter OS2 vertical, grey
Varenummer:
SB-FP-6SC-D-V-OS2
EAN Nr.:
4049759262419
Produktinformation til Equiped 12 Port Front Panel with 6x Duplex adapter OS2 vertical, grey
Front panel for 19" splice boxes equipped with SC duplex adapters in the categories OM3, OM4 and OS2.
Tekniske egenskaber
| Depth: | 13 mm |
|---|---|
| Height: | 43.5 mm |
| Material: | Metal |
| Number of height units: | 1 U |
| Type of plug-in connector system: | Fiber Optic |
| Width: | 432 mm |
| With buses/couplings: | True |
Varianten
| Art. Nr. | Bezeichnung | Suitable for adapter | Category | Connection type backside | Number of connector holes | Model | Connection type front side | Color | Assembly | RAL number | Note | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB-FP-6SC-D-V-OS2 | Equiped 12 Port Front Panel with 6x Duplex adapter OS2 vertical, grey | SC Duplex/LC Quad | OS2 | SC | 6 | Equiped Front Panel | SC | grey | Adapter | 7035 | holes horizontally | |

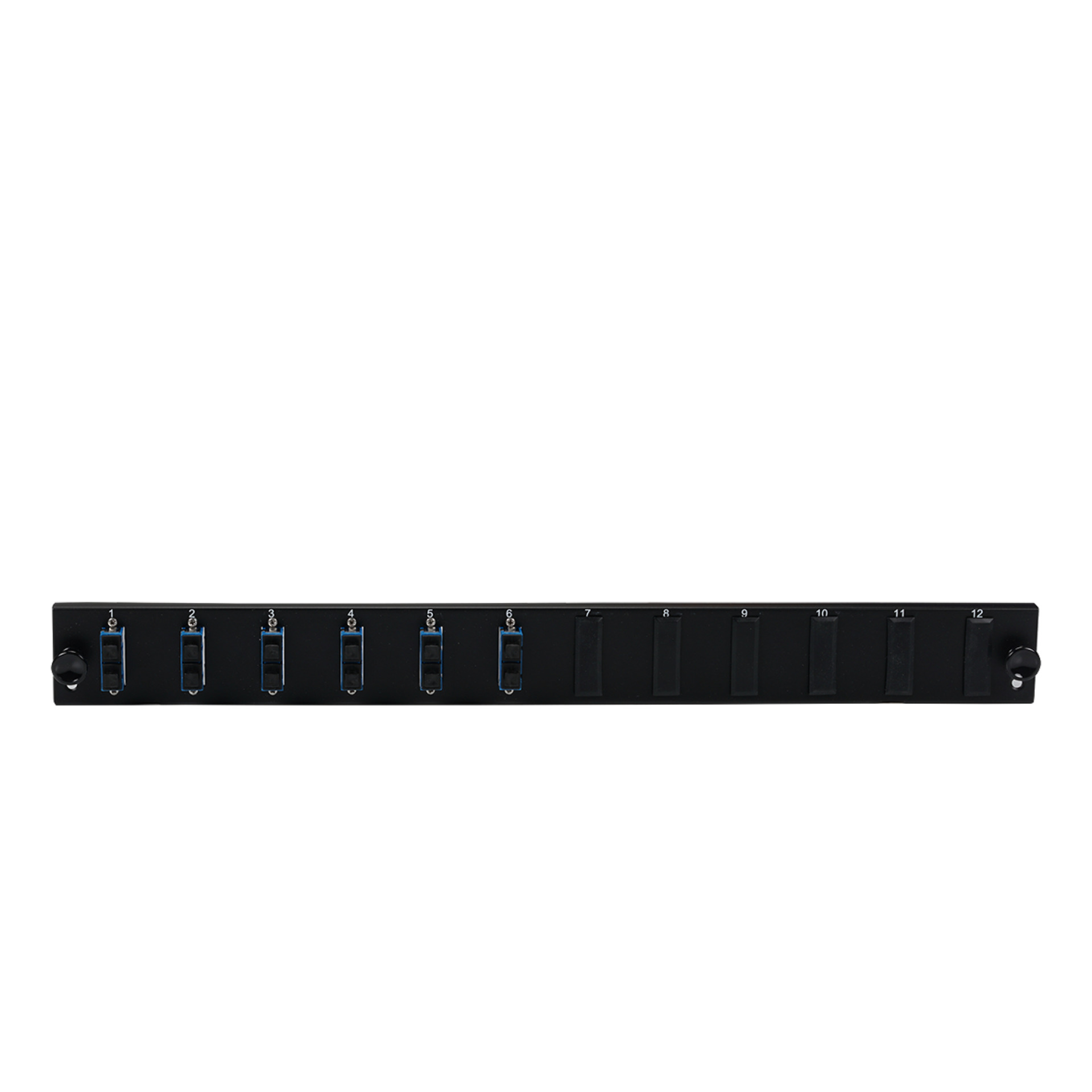

| SB-FP-S-6SC-D-V-OS2 | Equiped 12 Port Front Panel with 6x Duplex adapter OS2 vertical, black | SC Duplex/LC Quad | OS2 | SC | 6 | Equiped Front Panel | SC | black | Adapter | 9005 | holes horizontally |
