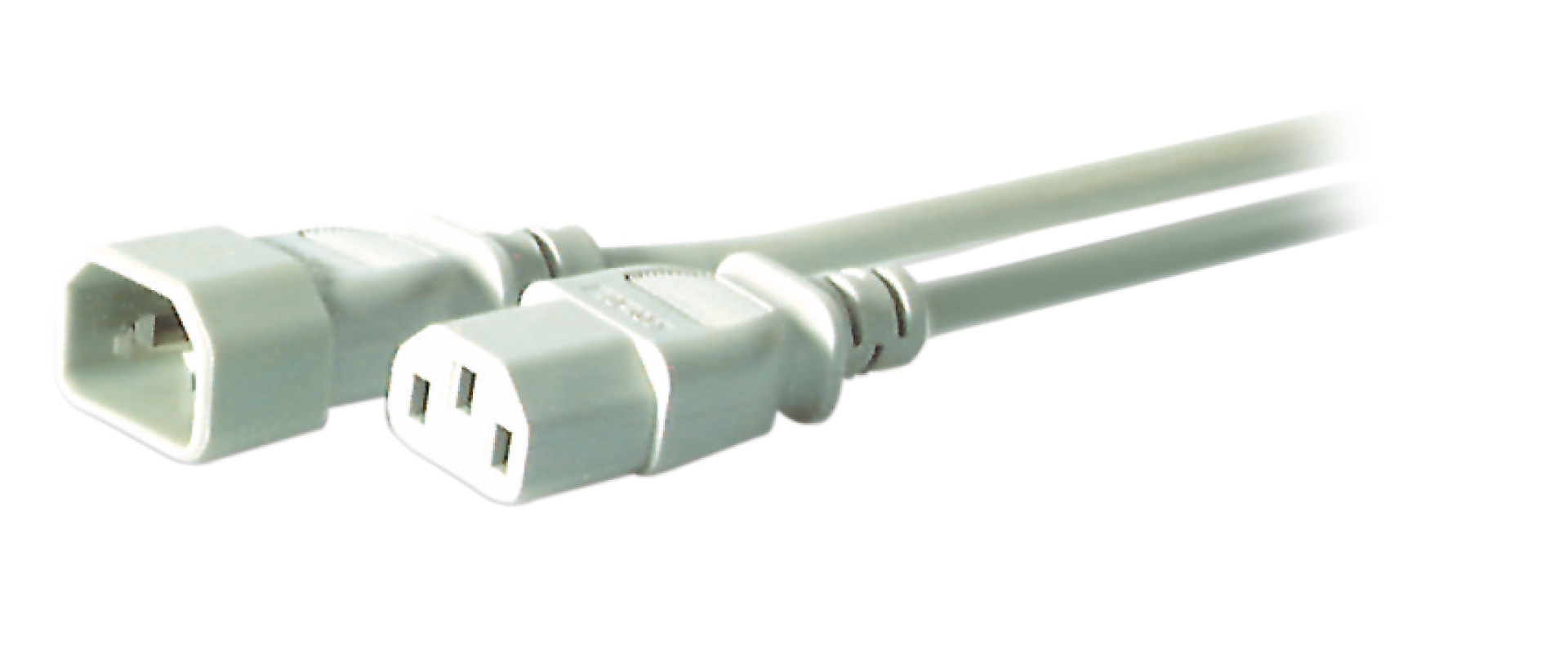

Extension Cable C14 180° - C13 180°, grey
Produktinformation til Extension Cable C14 180° - C13 180°, Grey, 1.8 m, 3 x 0.75 mm²
10 A / 250 V VDE tested
Tekniske egenskaber
| Colour outer sheath: | grey |
|---|---|
| Connection 1: | Cold device plug (IEC 60320) |
| Connection 2: | Cold device plug straight, female |
| Halogen free: | No |
| Jacket material: | Polyvinylchlorid (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 0 70 °C |
| With cord switch: | False |
Variants
| ON | Label | Colour outer sheath | Nominal current | Reaction-to-fire class according to EN 13501-6 | Nominal voltage | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|---|
| EK507.1,8 | Extension Cable C14 180° - C13 180°, Grey, 1.8 m, 3 x 0.75 mm² | grey | 10 A | Dca | 250 V | 1.8 m | 0.75 mm² | 6.8 mm | |
| EK507.3 | Extension Cable C14 180° - C13 180°, Grey, 3.0 m, 3 x 1.00 mm² | grey | 10 A | Dca | 250 V | 3.0 m | 1.00 mm² | 7.1 mm | |
| EK507.5 | Extension Cable C14 180° - C13 180°, Grey, 5.0 m, 3 x 1.00 mm² | grey | 10 A | Dca | 250 V | 5.0 m | 1.00 mm² | 7.1 mm |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation. Warning: Danger of electric shocks and short circuits! Ensure proper earthing to avoid electric shocks. Avoid overloading as this can lead to overheating and short circuits. Check that the housing is undamaged and that there are no exposed contacts or bare wires. Ensure that all electrical connections are made correctly and that the ambient conditions comply with the technical specifications. Always keep a sufficient distance from live devices and avoid misuse.
