Extension Cable Dual-Lock C14 - C13, Red

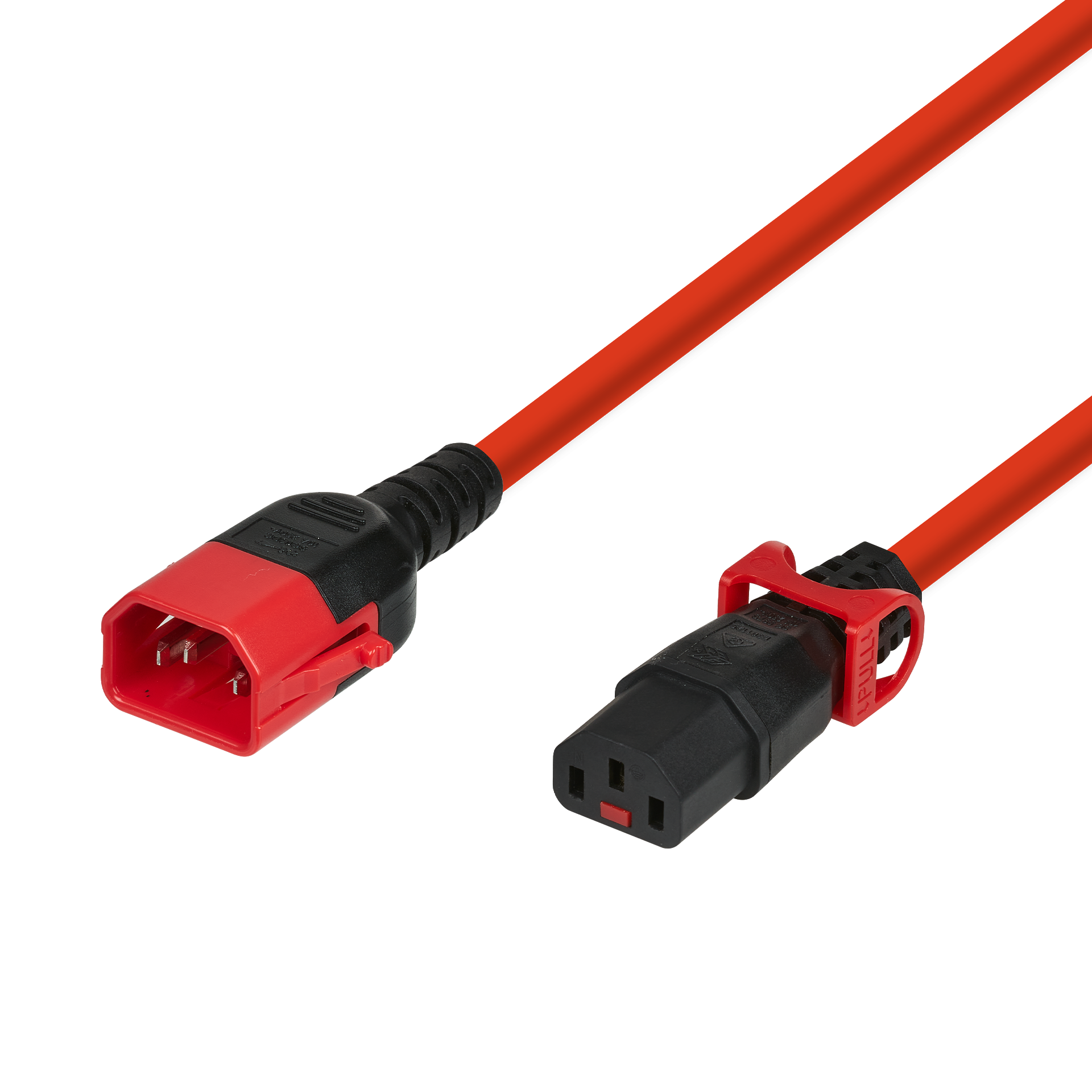

Extension Cable C14 - C13, Dual Lock, Red, 3 m
Varenummer:
EK620RT.3
EAN-nr.:
5056313247255
Produktinformation til Extension Cable C14 - C13, Dual Lock, Red, 3 m
With „Dual-Lock“: prevents accidentally removing of the C13 jack from devices
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested (optional: orange, blue, grey, white)
After connecting, the C13 jack only can be released after sliding back the red latch
10 A / 250 V VDE tested (optional: orange, blue, grey, white)
Tekniske egenskaber
| Colour outer sheath: | black |
|---|---|
| Connection 1: | Cold device plug (IEC 60320) |
| Connection 2: | Cold device plug straight, female |
| Halogen free: | No |
| Jacket material: | Polyvinylchlorid (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 5 70 °C |
| With cord switch: | False |
Variants
| ON | Label | Nominal current | With protective conductor | Colour outer sheath | Degree of protection | Nominal voltage | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|---|---|---|---|
| EK620RT.0,5 | Extension Cable C14 - C13, Dual Lock, Red, 0.5 m | 10 A | Ja | red | IP20 | 250 V | 0.5 m | 1.04 mm² | 8.0 mm | |
| EK620RT.1 | Extension Cable C14 - C13, Dual Lock, Red, 1 m | 10 A | Ja | red | IP20 | 250 V | 1.0 m | 1.04 mm² | 8.0 mm | |
| EK620RT.2 | Extension Cable C14 - C13, Dual Lock, Red, 2 m | 10 A | Ja | red | IP20 | 250 V | 2.0 m | 1.04 mm² | 8.0 mm | |
| EK620RT.3 | Extension Cable C14 - C13, Dual Lock, Red, 3 m | 10 A | Ja | red | IP20 | 250 V | 3.0 m | 1.04 mm² | 8.0 mm |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
