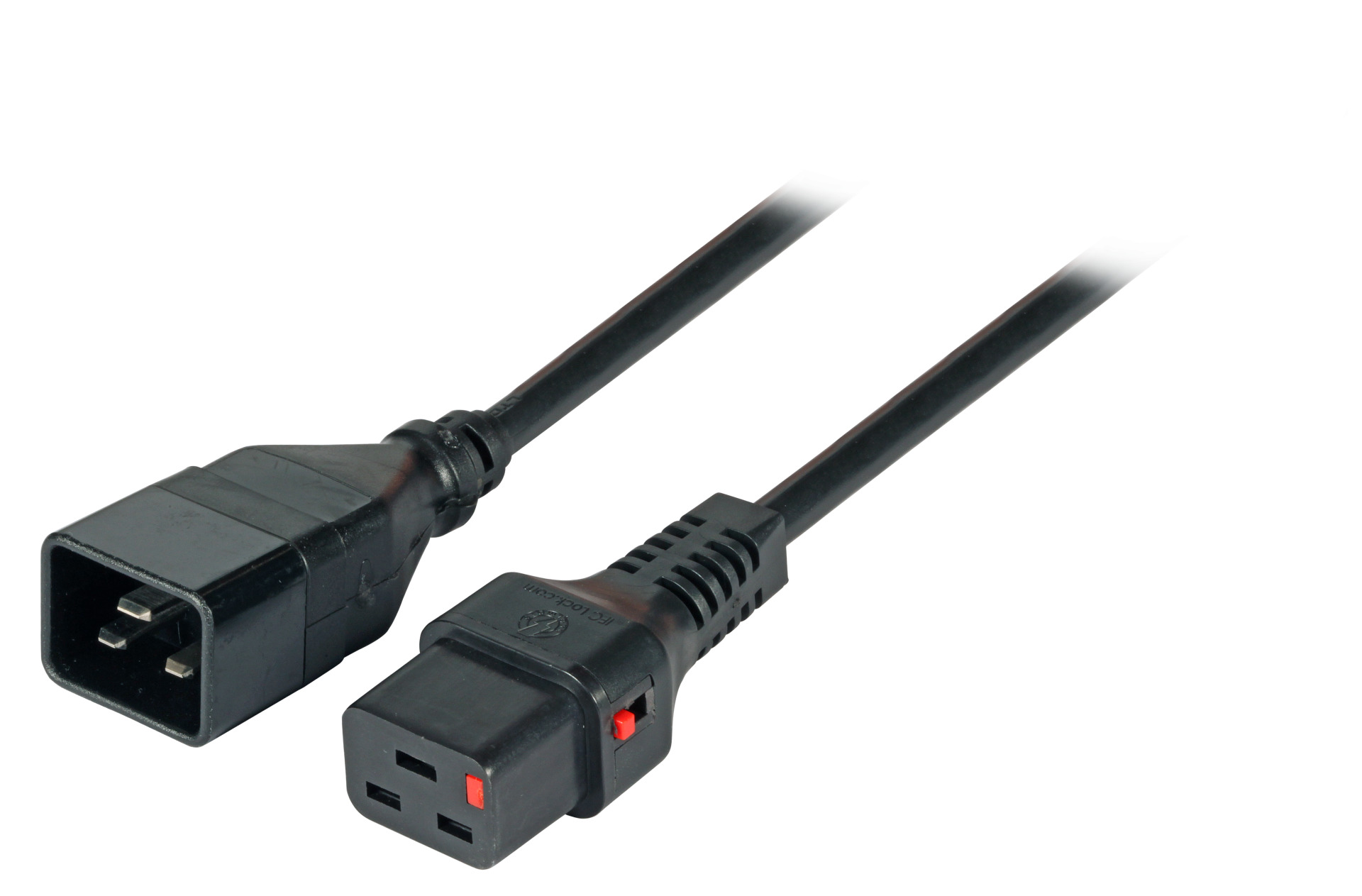

Extension Cable C20 180° - C19 180° with IEC Lock, black
Extension Cable C20 180° - C19 180°, Black, 1.0 m, 3 x 1.50 mm², IEC Lock
Varenummer:
EK607SW.1
EAN Nr.:
5055287005373
Produktinformation til Extension Cable C20 180° - C19 180°, Black, 1.0 m, 3 x 1.50 mm², IEC Lock
With „IEC Lock“: prevents accidentally removing of the C19 jack from devices
After connecting, the C19 jack only can be released after sliding back the red latch
16 A / 250 V VDE geprüft
After connecting, the C19 jack only can be released after sliding back the red latch
16 A / 250 V VDE geprüft
Tekniske egenskaber
| (Halogenfree): | False |
|---|---|
| Colour outer sheath: | black |
| Connection 1: | Cold device plug (IEC 60320) |
| Connection 2: | Cold device plug straight, female |
| Jacket Material: | Polyvinyl chloride (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Oil resistant (according to EN 60811-404): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 0 – 70 °C |
| With cord switch: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|
| EK607SW.1 | Extension Cable C20 180° - C19 180°, Black, 1.0 m, 3 x 1.50 mm², IEC Lock | black | 1.0 m | 1.50 mm² | 8.6 mm | |
| EK607SW.3 | Extension Cable C20 180° - C19 180°, Black, 3.0 m, 3 x 1.50 mm², IEC Lock | black | 3.0 m | 1.50 mm² | 8.6 mm | |
| EK607SW.2 | Extension Cable C20 180° - C19 180°, Black, 2.0 m, 3 x 1.50 mm², IEC Lock | black | 2.0 m | 1.50 mm² | 8.6 mm |
