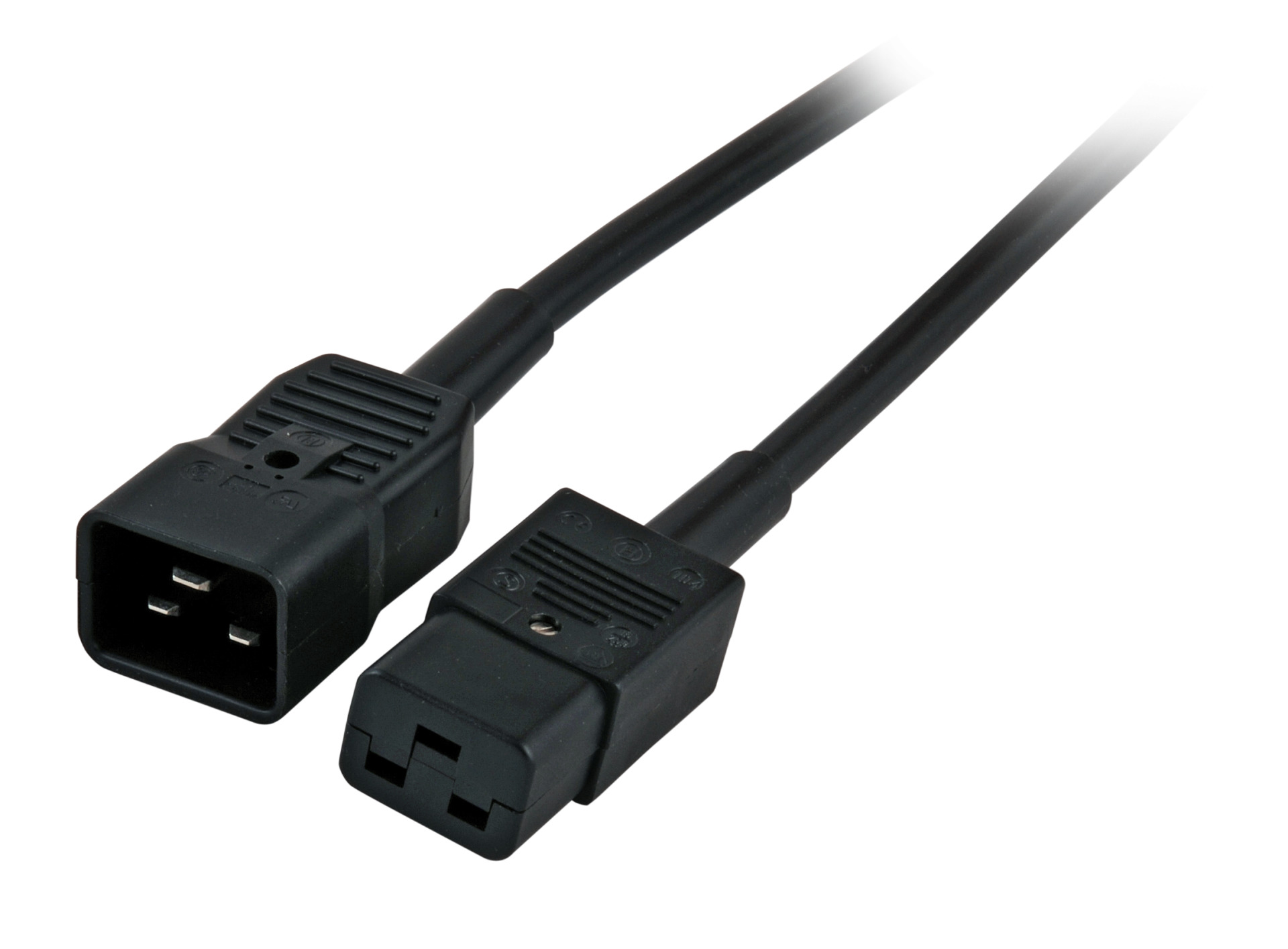

Extension Cable C20 180° - C19 180°, black
Extension Cable C20 180° - C19 180°, Black, 1.0 m, 3 x 1.50 mm²
Varenummer:
EK519.1
EAN Nr.:
4049759095215
Produktinformation til Extension Cable C20 180° - C19 180°, Black, 1.0 m, 3 x 1.50 mm²
Plug IEC60320/C20 to jack IEC60320/C19
16 A / 250 V VDE tested
16 A / 250 V VDE tested
Tekniske egenskaber
| Colour outer sheath: | black |
|---|---|
| Connection 1: | Cold device plug (IEC 60320) |
| Connection 2: | Cold device plug straight, female |
| Jacket Material: | Polyvinyl chloride (PVC) |
| Nominal voltage: | 250 V |
| Number of cores: | 3 |
| Oil resistant (acc. EN 60811-2-1): | False |
| Protective conductor: | True |
| Spiralized cable: | False |
| Temperature resistance: | 0 – 70 °C |
| With cord switch: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour outer sheath | Length | Nominal cross section conductor | Outer diameter approx. | |
|---|---|---|---|---|---|---|
| EK519.1 | Extension Cable C20 180° - C19 180°, Black, 1.0 m, 3 x 1.50 mm² | black | 1.0 m | 1.50 mm² | 8.6 mm | |
| EK519.1,8 | Extension Cable C20 180° - C19 180°, Black, 1.8 m, 3 x 1.50 mm² | black | 1.8 m | 1.50 mm² | 8.6 mm | |
| EK519.2,5 | Extension Cable C20 180° - C19 180°, Black, 2.5 m, 3 x 1.50 mm² | black | 2.5 m | 1.50 mm² | 8.6 mm | |
| EK519.5 | Extension Cable C20 180° - C19 180°, Black, 5.0 m, 3 x 1.50 mm² | black | 5.0 m | 1.50 mm² | 8.6 mm |
