Fiber Pigtail ST OM2 -colored set - 12 pieces
Fiber Pigtail ST OM2 -colored set 2m - 12 pieces
Varenummer:
O3304.2
EAN-nr.:
4049759026684
Produktinformation til Fiber Pigtail ST OM2 -colored set 2m - 12 pieces

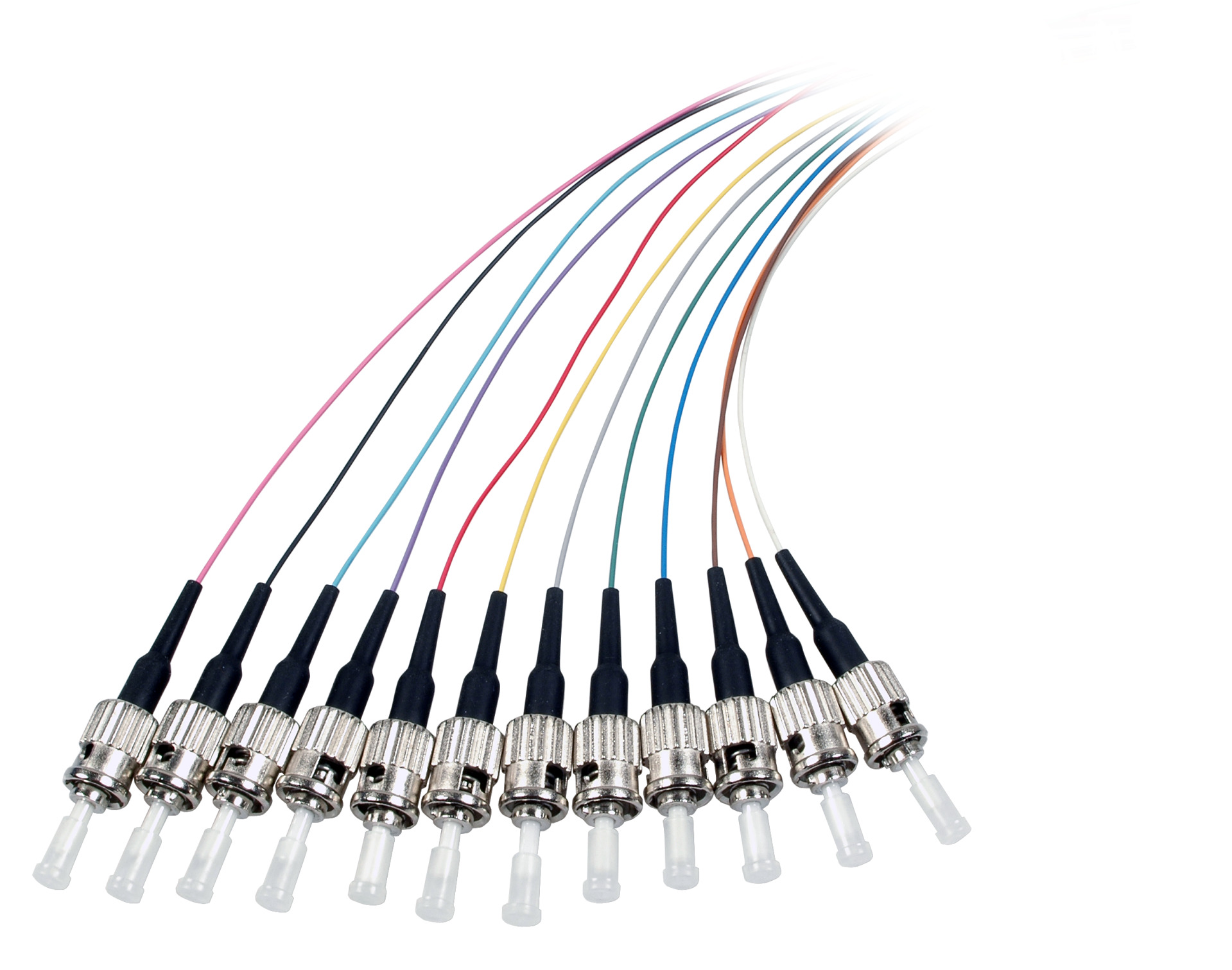

The ST fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | aufgesteckt |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OM2 |
| Color: | DIN-Farbcode |
| Colour code: | VDE-0888 |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Kompaktader |
| Fibre type: | Multi mode 50/125 |
| Insertion loss 850nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0,9 mm |
| Packaging: | Polybag |
| Quality class multimode: | A/1 according to IEC-61753-222-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Aderpigtail |
| Type of connector: | ST |
