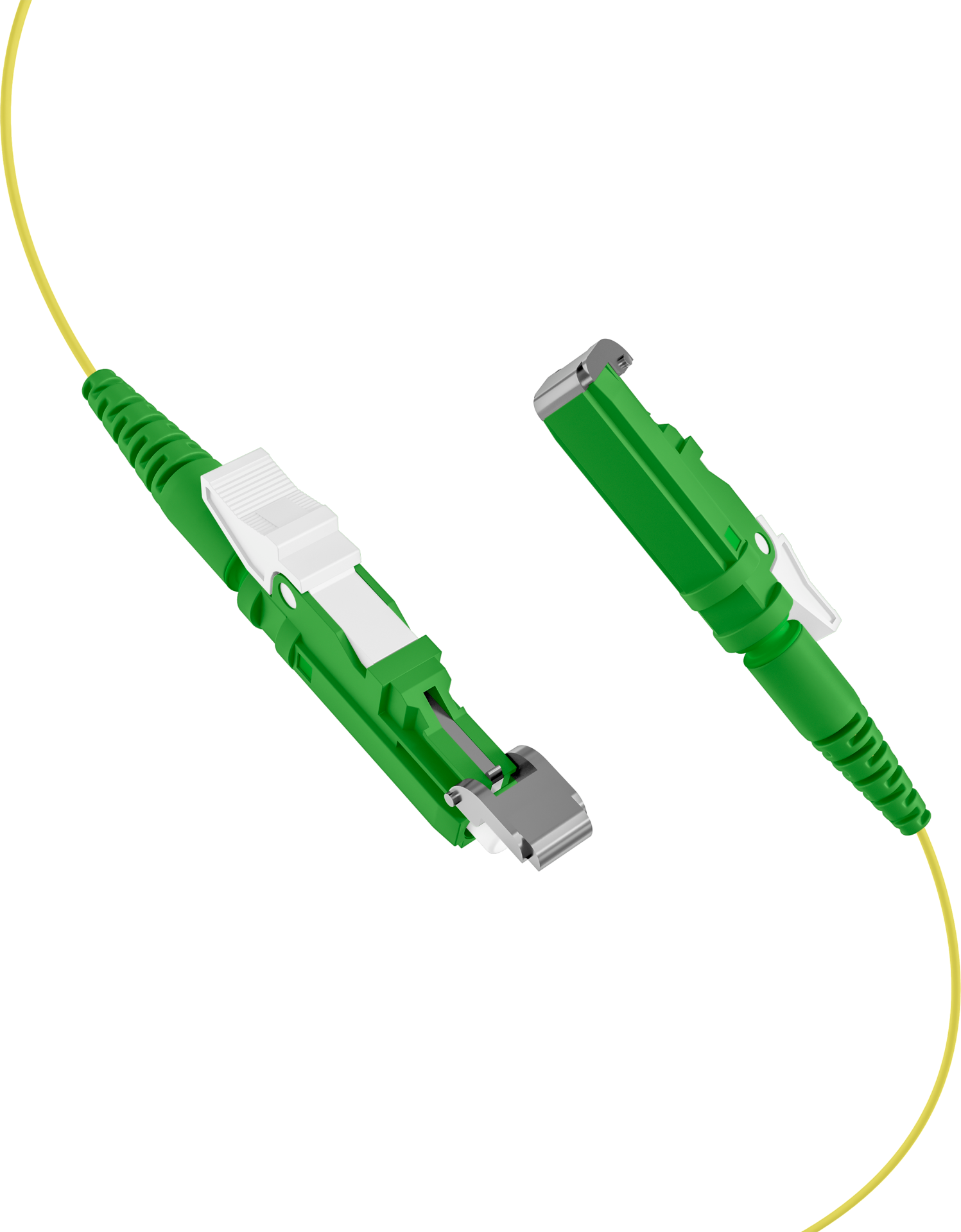

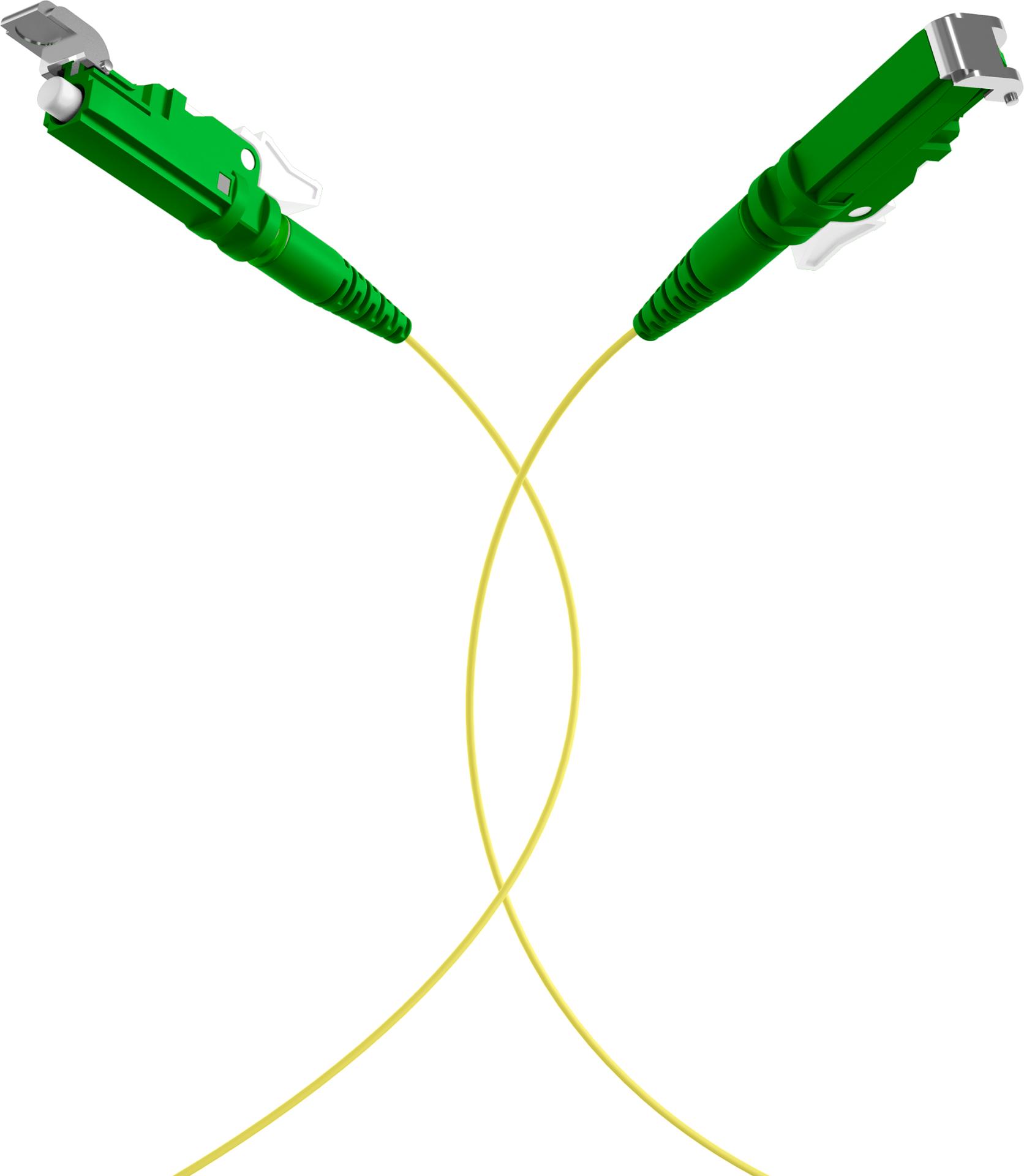

Fiber Pigtail E2000®/APC OS2 G652D-Yellow - 1 piece

Fiber Pigtail E2000®/APC OS2 G652D-Yellow 2m - 1 piece
Varenummer: O0770.2
EAN nr.: 4049759025731

Produktinformation für Fiber Pigtail E2000®/APC OS2 G652D-Yellow 2m - 1 piece

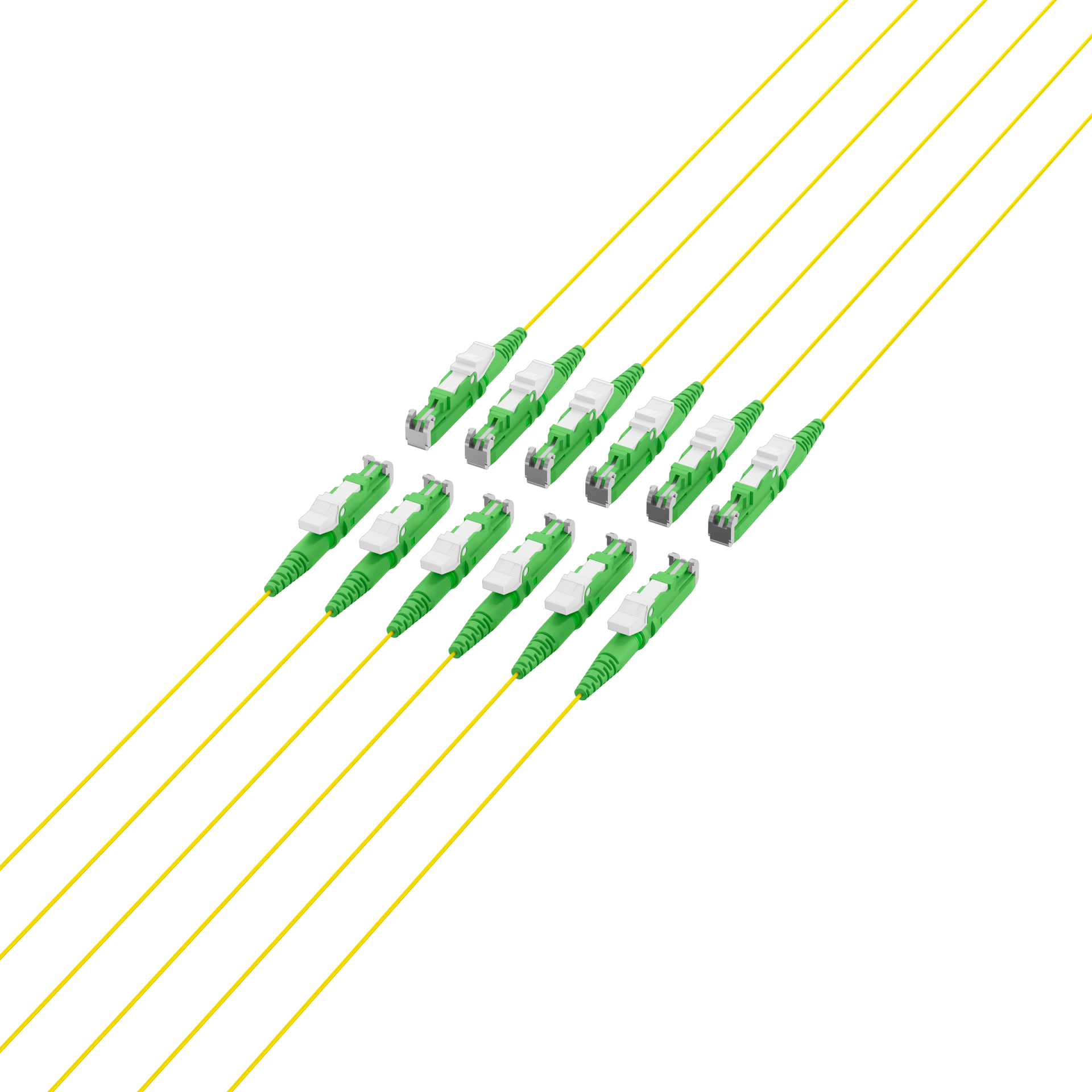

The E2000® fibre pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Every PU contains an individual measuring protocol.

Tekniske egenskaber

APC-version: True
Anti-kink sleeve: Put-on
Category: OS2 acc. to ITU-T G.652.D
Colour: yellow
Connector Colour: green
Connector Conform to Standard: IEC61754-15
Core type: Semi tight
Fibre type: Single mode 9/125
Jacket material: LSZH
Length: 2.0 m
Max. Tension: 3 N
Minimaler Biegeradius Dynamic: 20xOD
Mion. Bending Radius Static: 10xOD
Operating Temperature: -20 – 60 °C
Outer Diameter: 0.9 mm
Quality class singlemode: C/1 acc. to IEC 61753-1
Type: Conductor pigtail
Type of connector: E2000®/APC

used with

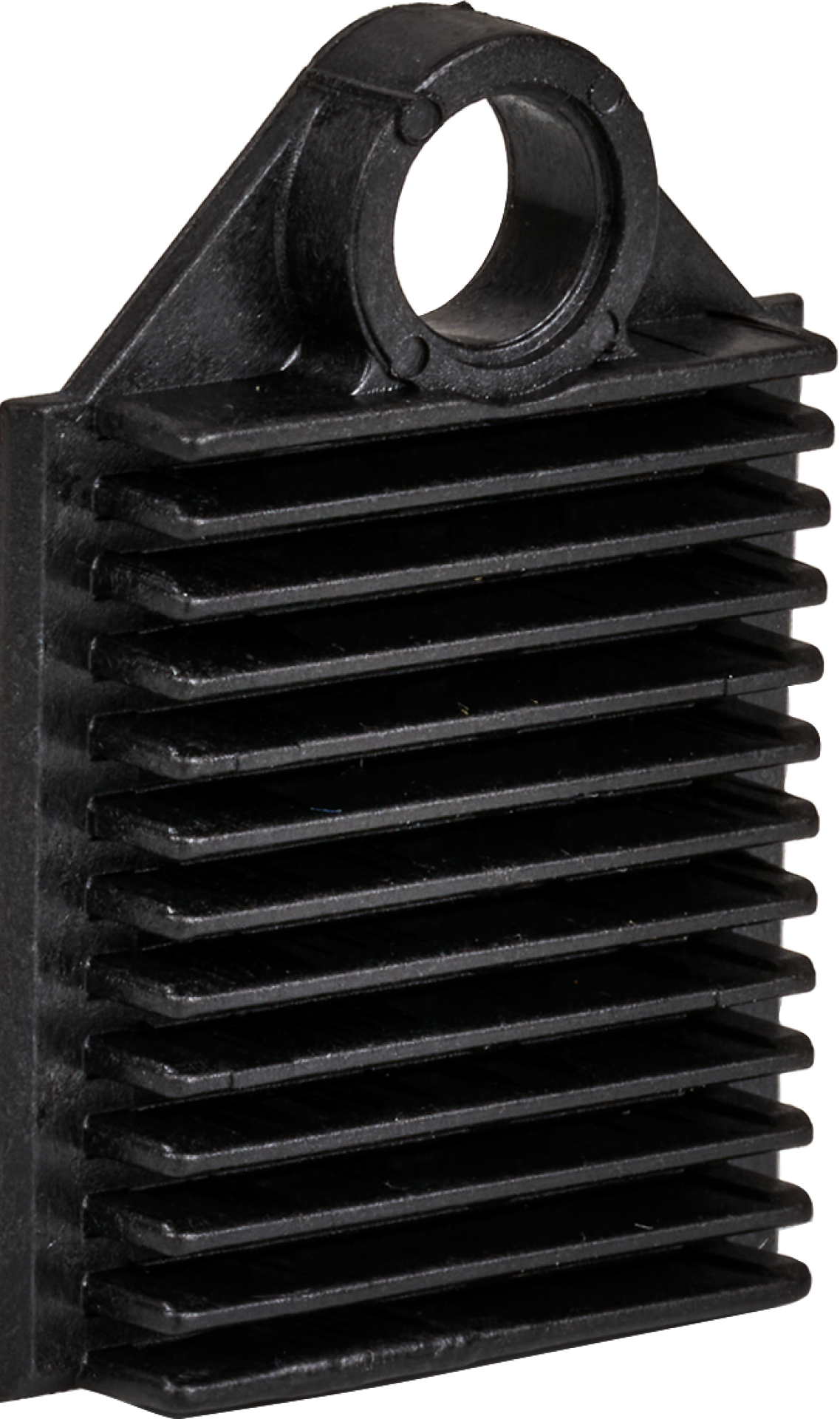

Spliceholder for 12 arc splices

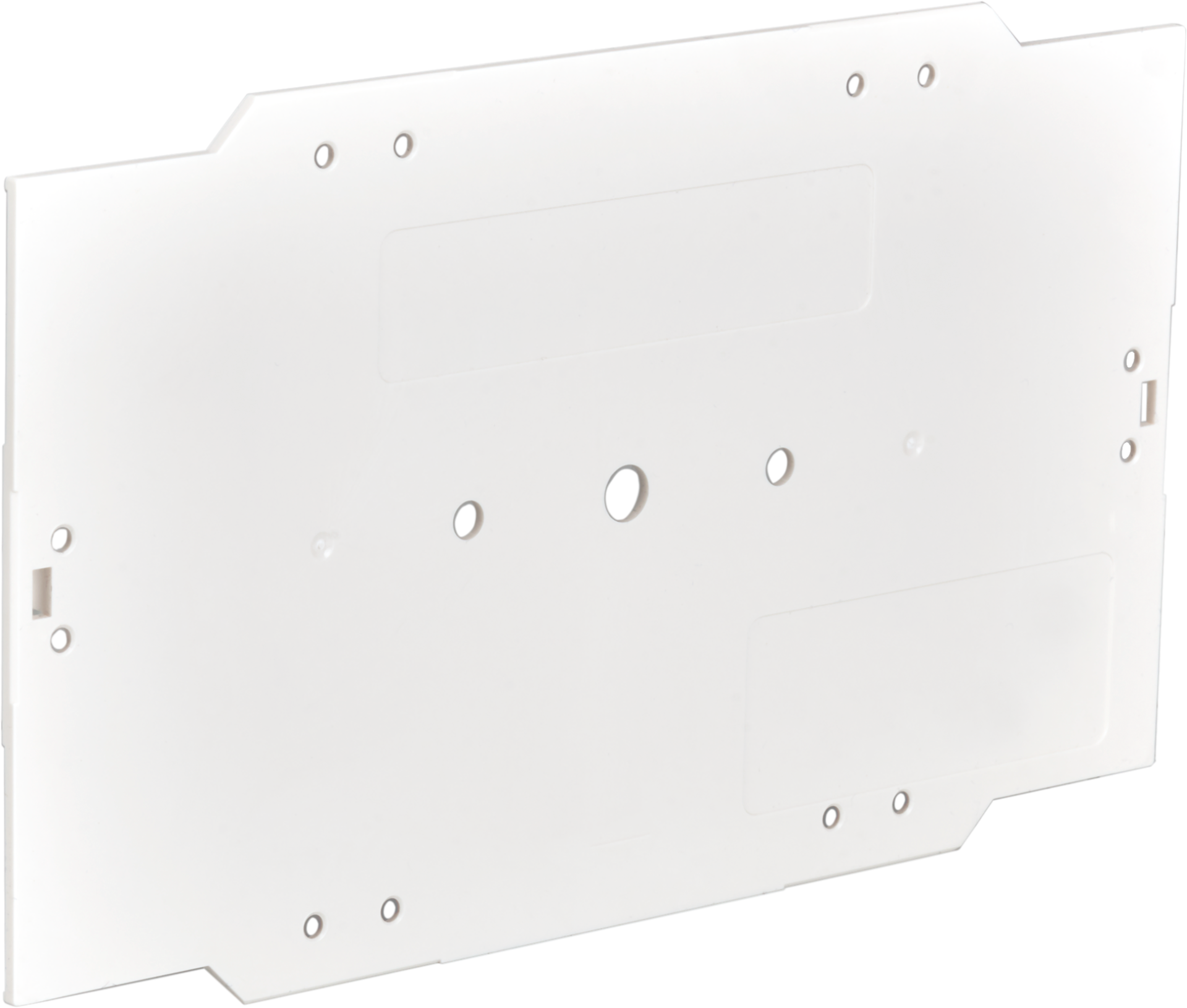

Splice cassette cover, white

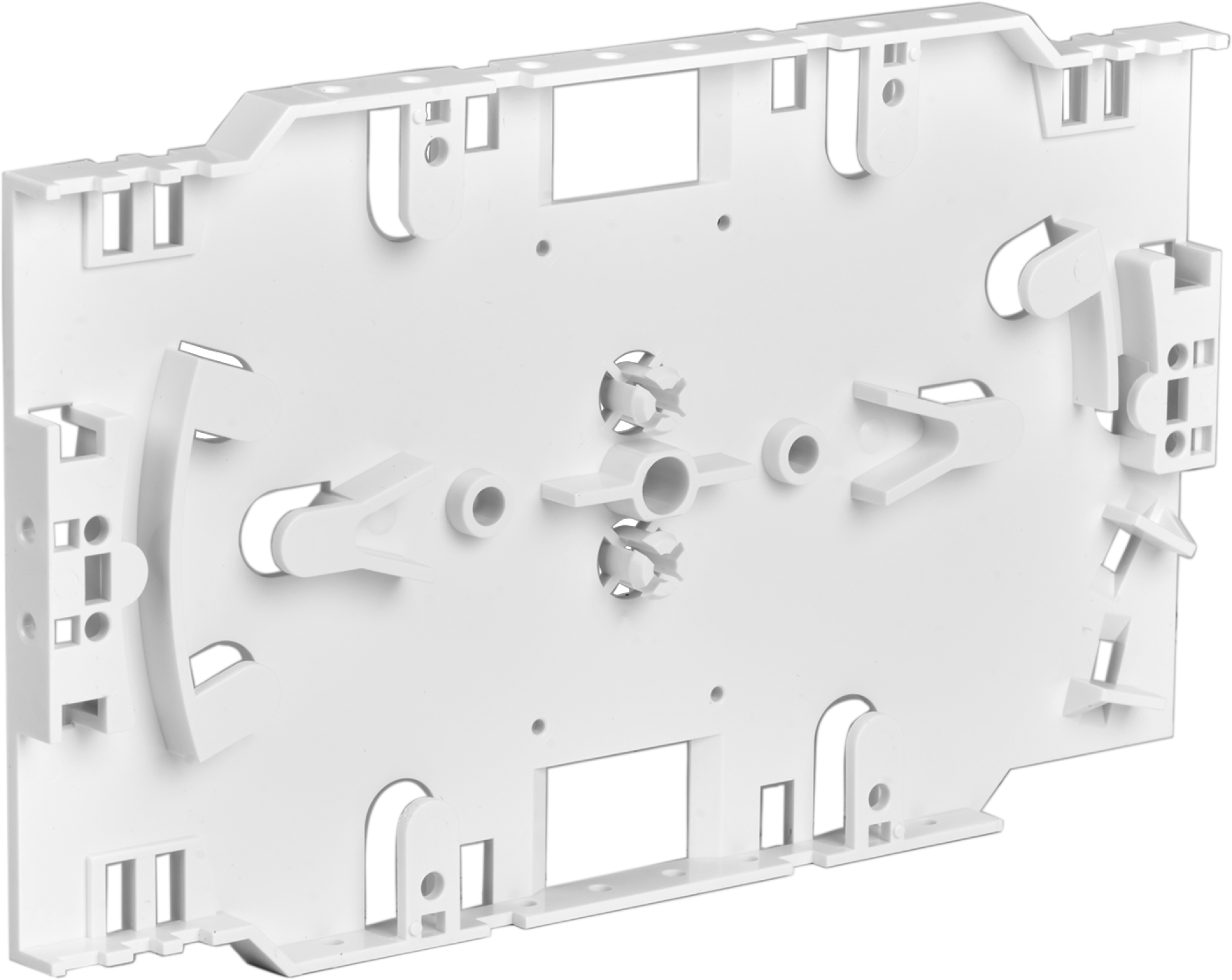

Splice cassette w/o Logo white
