Fiber Pigtail FC OS2 G652D-Yellow - 1 piece
Fiber Pigtail FC OS2 G652D-Yellow 2m - 1 piece
Varenummer:
O1133.2
EAN nr.:
4049759026233
Produktinformation til Fiber Pigtail FC OS2 G652D-Yellow 2m - 1 piece
The FC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-13 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |

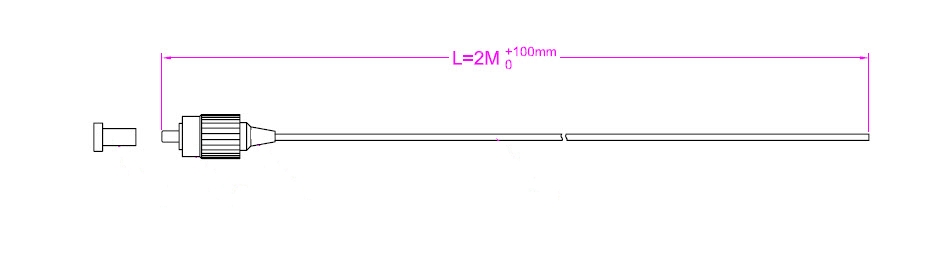

| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | FC |
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-13 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | FC |
Produktinformation til Fiber Pigtail FC OS2 G652D-Yellow 2m - 1 piece
The FC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-13 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | FC |
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-13 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | FC |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
Spring produktgalleriet over
used with
Spring produktgalleriet over
accessory
Art. nr. 53344.3

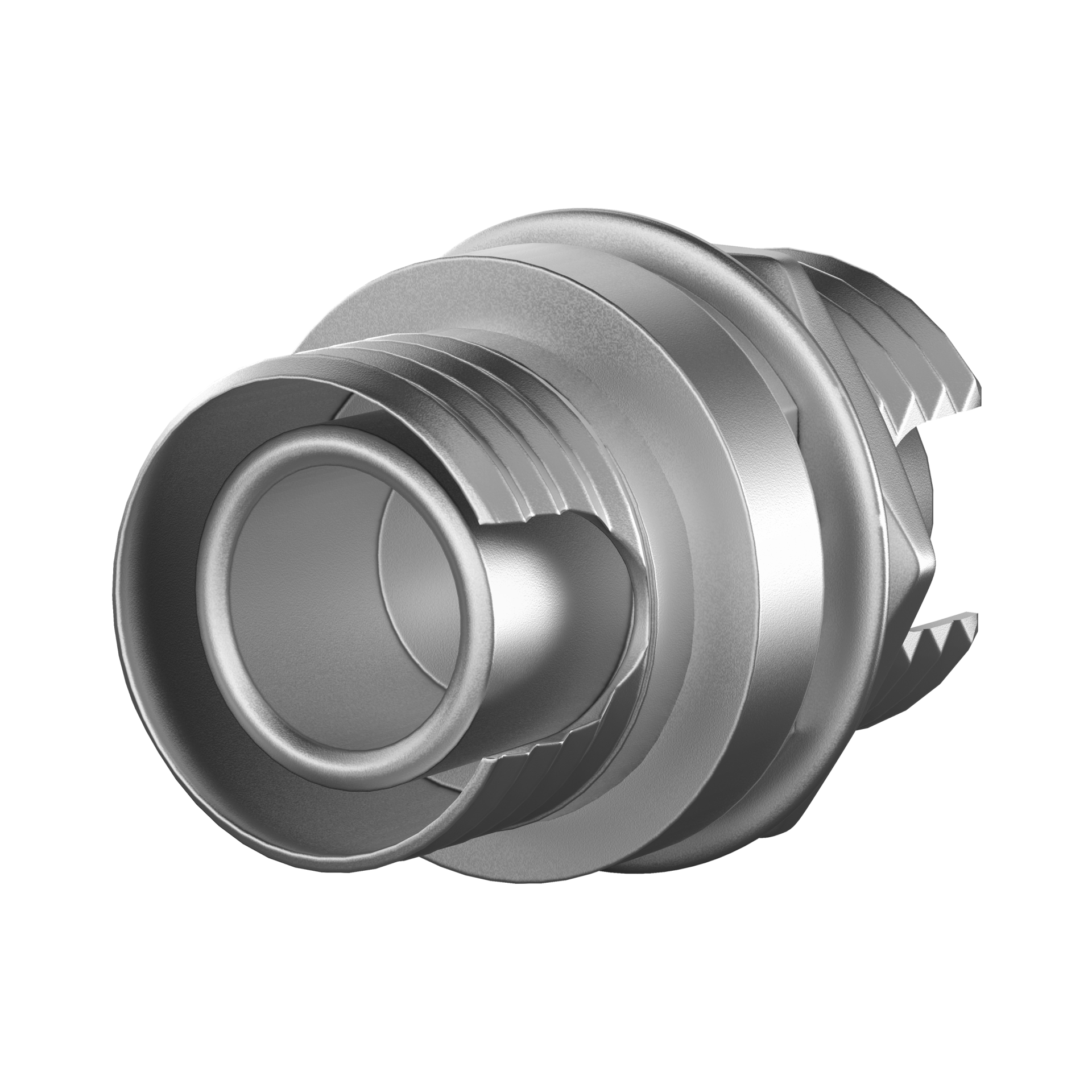

Adapter FC Simplex OS2 metal housing
