LC Fiber Pigtails

Priser kun synlige for indloggede brugere

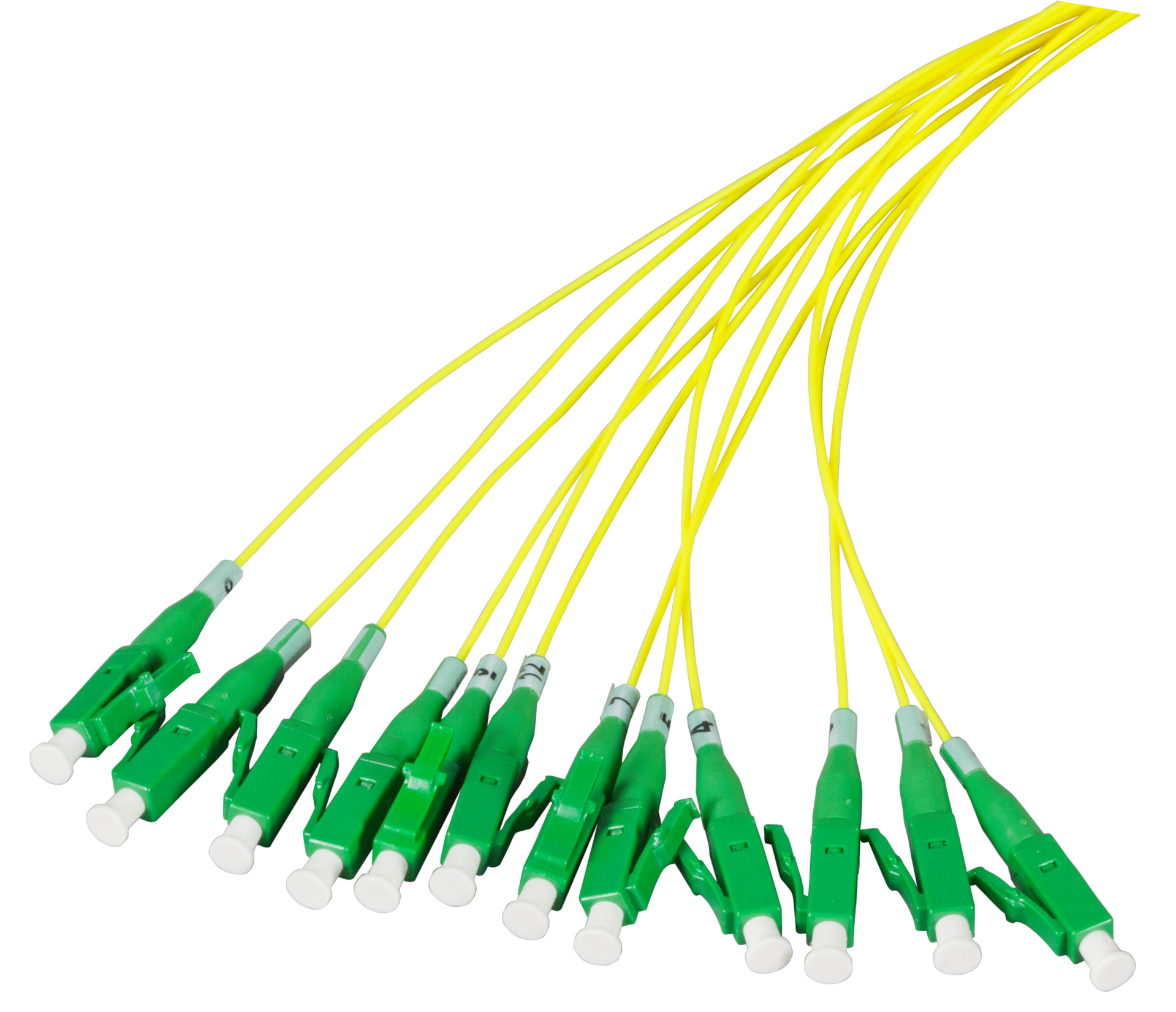

Fiber pigtail LC-APC 8° 9/125µ OS2, 2m
Varenummer: O0485.2
EAN nr.: 4049759025175
Stück

Produktinformation für Fiber pigtail LC-APC 8° 9/125µ OS2, 2m

The LC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.

Tekniske egenskaber

Anti-kink sleeve: Put-on
Cable Conform to Standard: IEC60793-2
Connector Conform to Standard: IEC61754-20
Core type: Semi tight
Insertion loss 850nm: -
Jacket material: LSZH
Length: 2.0 m
Max. Tension: 3 N
Minimaler Biegeradius Dynamic: 20xOD
Mion. Bending Radius Static: 10xOD
Operating Temperature: -20 – 70 °C
Outer Diameter: 0.9 mm
Quality class multimode: -
Type: Conductor pigtail

Varianter

Art. Nej. Betegnelse APC-version Quality class multimode Category Colour Type of connector Bend optimized fiber Fibre type Insertion loss 1310nm Quality class singlemode Insertion loss 850nm Connector Colour
O0485.2 Fiber pigtail LC-APC 8° 9/125µ OS2, 2m True - OS2 acc. to ITU-T G.652.D yellow LC/APC no Single mode 9/125 < 0.3 dB B/2 acc. IEC 61753-1 - green
O3491.2 Fiber pigtail LC 62,5/125µ 2m, False A/1 according to IEC-61753-222-2 OM1 blue LC - Multi mode 62.5/125 - - < 0.3 dB beige
O3481.2 Fiber pigtail LC 50/125µ, OM2, 2m, False A/1 according to IEC-61753-222-2 OM2 green LC OM2 acc. to IEC60793-2-10 type A1a.1 Multi mode 50/125 - - < 0.3 dB beige
O3686.2 Fiber pigtail LC 50/125µ OM4 2m, erika-violet False A/1 according to IEC-61753-222-2 OM4 erica-violet LC OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 Multi mode 50/125 - - < 0.3 dB beige
O3686.2OM5 Fiber pigtail LC 50/125µ OM5, lime green,2m False A/1 according to IEC-61753-222-2 OM5 lime green LC OM5 acc. to IEC60793-2-10 type A1a.4 Multi mode 50/125 - - < 0.3 dB beige

used with

Splice cassette w/o Logo white
Spliceholder for 12 arc splices
Splice cassette cover, white

accessory

Adapter LC Duplex OM4 one piece, erica violet, ceramic sleeve, SC Simplex
Adapter LC Quad OM4 one piece, erica violet, ceramic sleeve, SC Duplex
LC Quad adapter full metal singlemode, sleeve ceramic
LC duplex adapter full metal singlemode, sleeve ceramic
