LC Fiber Pigtail Set 12-colours

Priser kun synlige for indloggede brugere

Fiber pigtail LC-APC 9/125µ 12er Set, coul., 2m OS2
Varenummer: O0482.2
EAN nr.: 4049759063900
Stück

Produktinformation für Fiber pigtail LC-APC 9/125µ 12er Set, coul., 2m OS2

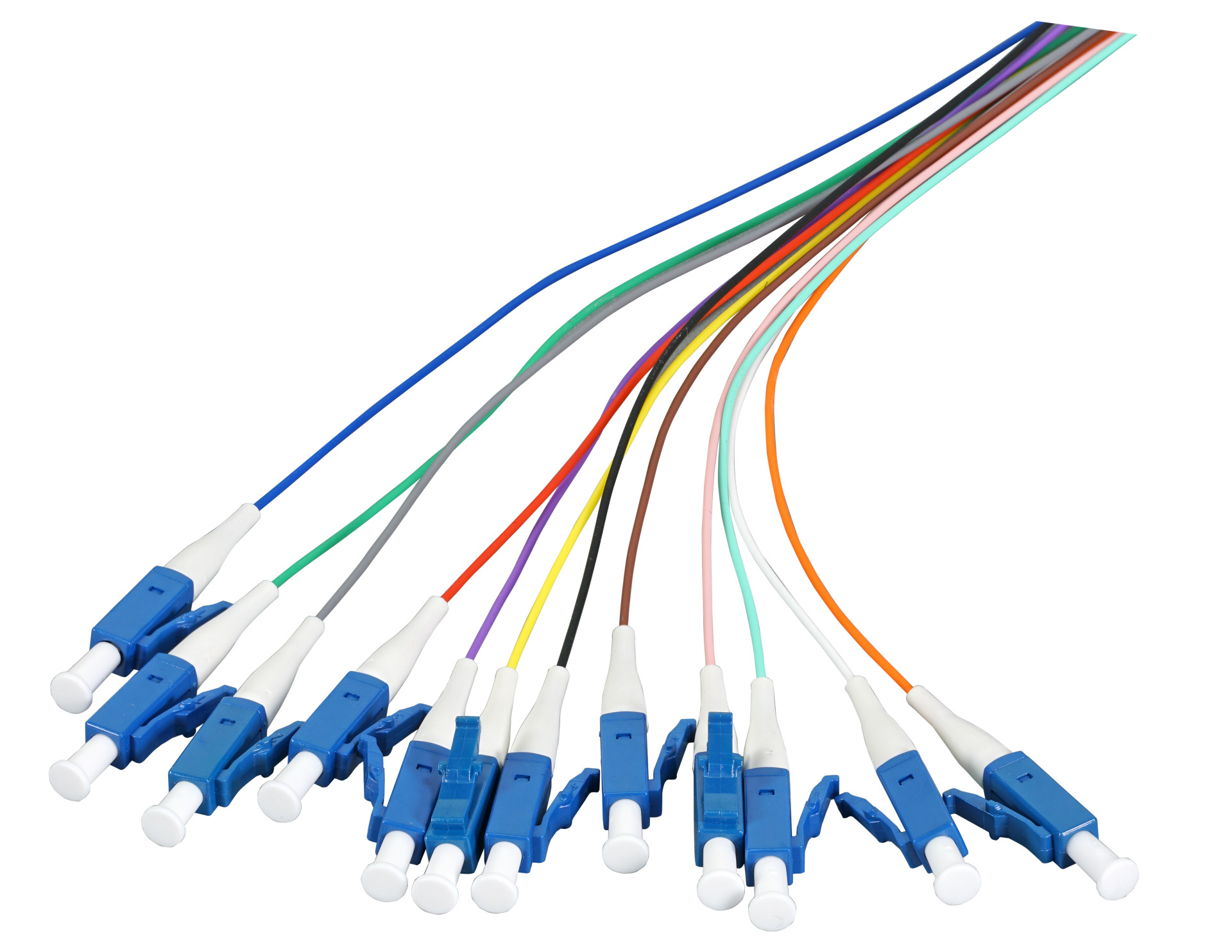

The LC fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.

Tekniske egenskaber

Anti-kink sleeve: Put-on
Cable Conform to Standard: IEC60793-2
Colour Code: VDE-0888
Connector Conform to Standard: IEC61754-20
Core type: Semi tight
Insertion loss 850nm: -
Jacket material: LSZH
Length: 2.0 m
Max. Tension: 3 N
Minimaler Biegeradius Dynamic: 20xOD
Mion. Bending Radius Static: 10xOD
Operating Temperature: -20 – 70 °C
Outer Diameter: 0.9 mm
Quality class multimode: -
Type: Conductor pigtail

Varianter

Art. Nej. Betegnelse Colour APC-version Type of connector Quality class multimode Category Fibre type Bend optimized fiber Insertion loss 1310nm Quality class singlemode Insertion loss 850nm Connector Colour
O0481.2 Fiber pigtail set LC 9/125µ OS2, 2m, 12-colours False LC - OS2 acc. to ITU-T G.652.D Single mode 9/125 no < 0.3 dB B/2 acc. IEC 61753-1 - blue Vælg
O0482.2 Fiber pigtail LC-APC 9/125µ 12er Set, coul., 2m OS2 12-colours True LC/APC - OS2 acc. to ITU-T G.652.D Single mode 9/125 no < 0.3 dB B/2 acc. IEC 61753-1 - green Vælg
O3482.2 Fiber pigtail 12 set LC 50/125µ, OM3, 2m, 12-colours False LC A/1 according to IEC-61753-222-2 OM3 Multi mode 50/125 OM3 acc. to IEC60793-2-10 type A1a.2 and A1a.3 - - < 0.3 dB aqua Vælg
O3483.2 Fiber pigtail 12 set LC 50/125µ, OM4, 2m 12-colours False LC A/1 according to IEC-61753-222-2 OM4 Multi mode 50/125 OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 - - < 0.3 dB erika-violet Vælg
O3484.2 Fiber pigtail 12 set LC 50/125µ, OM2, 2m, 12-colours False LC A/1 according to IEC-61753-222-2 OM2 Multi mode 50/125 OM2 acc. to IEC60793-2-10 type A1a.1 - - < 0.3 dB beige Vælg
