SC Fiber Pigtail

Priser kun synlige for indloggede brugere

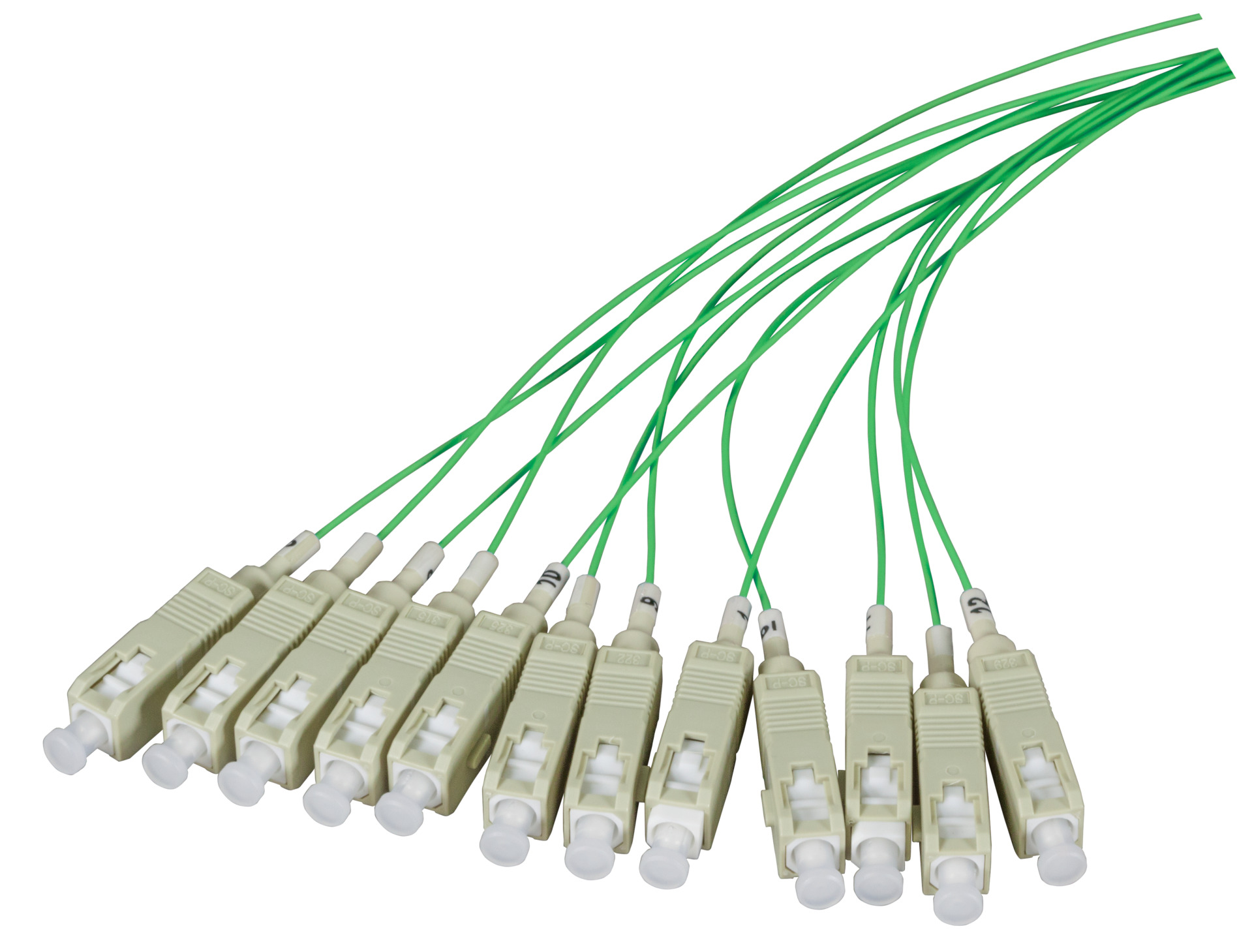

Fiber pigtail SC 50/125µ OM5, lime green, 2m
Varenummer: O3685.2OM5
EAN nr.: 4049759181390
Stück

Produktinformation für Fiber pigtail SC 50/125µ OM5, lime green, 2m

The SC fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. A numeric connector coding 1 .. 12 simplifies the allocation of the ports. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.

Tekniske egenskaber

Anti-kink sleeve: Put-on
Cable Conform to Standard: IEC60793-2
Connector Conform to Standard: IEC61754-4
Core type: Semi tight
Jacket material: LSZH
Length: 2.0 m
Max. Tension: 3 N
Minimaler Biegeradius Dynamic: 20xOD
Mion. Bending Radius Static: 10xOD
Operating Temperature: -20 – 70 °C
Outer Diameter: 0.9 mm
Type: Conductor pigtail

Varianter

Art. Nej. Betegnelse Quality class multimode APC-version Type of connector Fibre type Bend optimized fiber Colour Category Insertion loss 850nm Connector Colour
O3323.2 Fiber pigtail SC 50/125µ OM2 2m, A/1 according to IEC-61753-222-2 False SC Multi mode 50/125 OM2 acc. to IEC60793-2-10 type A1a.1 green OM2 < 0.3 dB beige Vælg
O3333.2 Fiber pigtail SC 62,5/125µ 2m, A/1 according to IEC-61753-222-2 False SC Multi mode 62.5/125 - blue OM1 < 0.3 dB beige Vælg
O3685.2 Fiber pigtail SC 50/125µ OM4 2m A/1 according to IEC-61753-222-2 False SC Multi mode 50/125 OM4 acc. to IEC60793-2-10 type A1a.2 and A1a.3 erica-violet OM4 < 0.3 dB beige Vælg
O3685.2OM5 Fiber pigtail SC 50/125µ OM5, lime green, 2m A/1 according to IEC-61753-222-2 False SC Multi mode 50/125 OM5 acc. to IEC60793-2-10 type A1a.4 lime green OM5 < 0.3 dB beige Vælg
