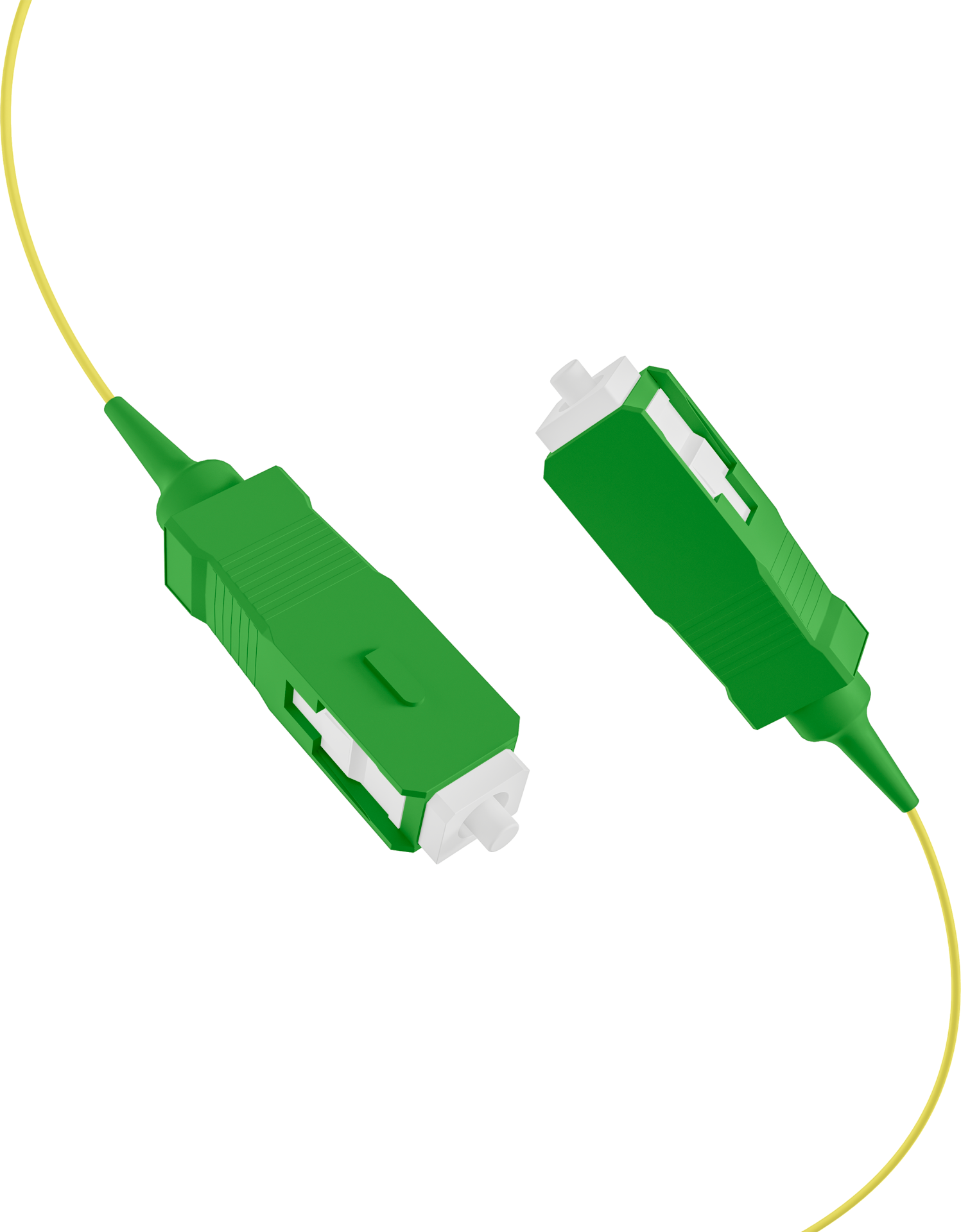

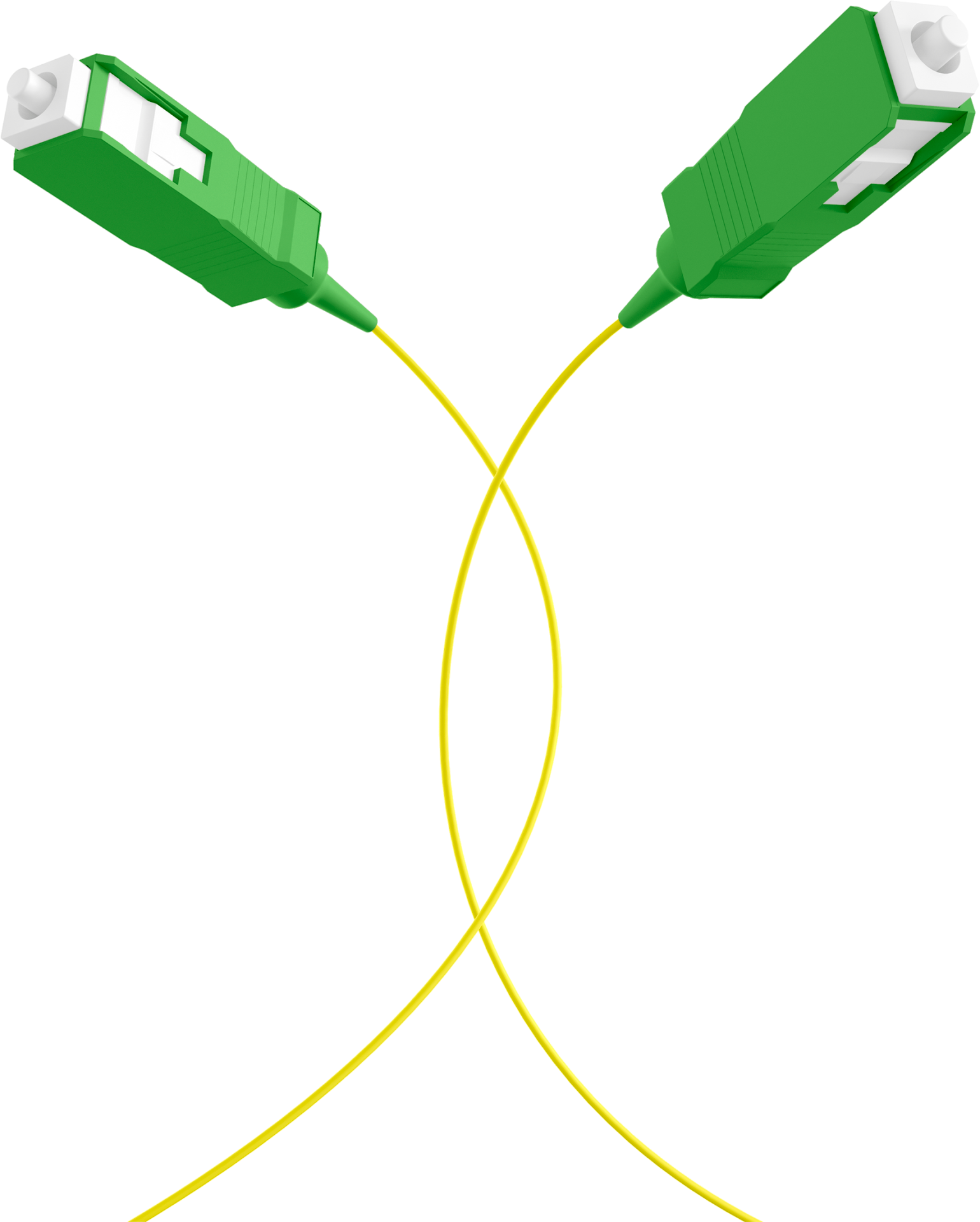

Fiber Pigtail SC/APC OS2 G652D-Yellow - 1 piece
Fiber Pigtail SC/APC OS2 G652D-Yellow 2m - 1 piece
Varenummer:
O1019.2
EAN nr.:
4049759026202
Produktinformation für Fiber Pigtail SC/APC OS2 G652D-Yellow 2m - 1 piece
The SC fibrer pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC-version: | True |
|---|---|
| Anti-kink sleeve: | Put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour: | yellow |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-4 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Type: | Conductor pigtail |
| Type of connector: | SC/APC |
