Fiber Pigtail ST OS2 G652D-colored set - 12 pieces
Priser kun synlige for indloggede brugere
Fiber Pigtail ST OS2 G652D-colored set 2m - 12 pieces
Varenummer:
O1004.2
EAN nr.:
4049759026196
Produktinformation für Fiber Pigtail ST OS2 G652D-colored set 2m - 12 pieces

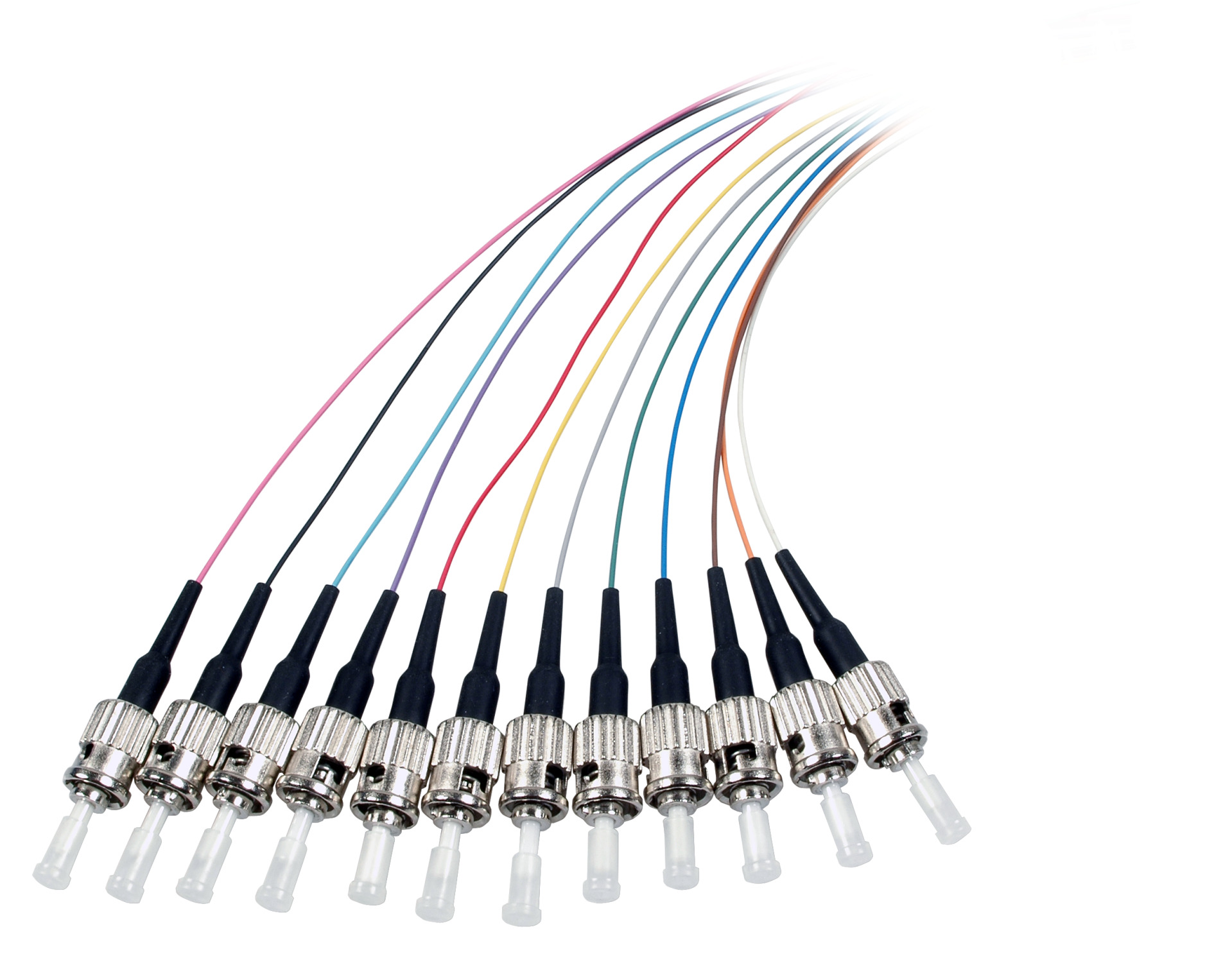

The ST fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
Tekniske egenskaber
| APC-version: | False |
|---|---|
| Anti-kink sleeve: | Put-on |
| Bend optimized fiber: | no |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 acc. to ITU-T G.652.D |
| Colour: | DIN-Colorcode |
| Colour Code: | VDE-0888 |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Semi tight |
| Fiber type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension: | 3 N |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating Temperature: | -20 – 70 °C |
| Outer Diameter: | 0.9 mm |
| Quality class singlemode: | B/2 acc. IEC 61753-1 |
| Type: | Conductor pigtail |
| Type of connector: | ST |
