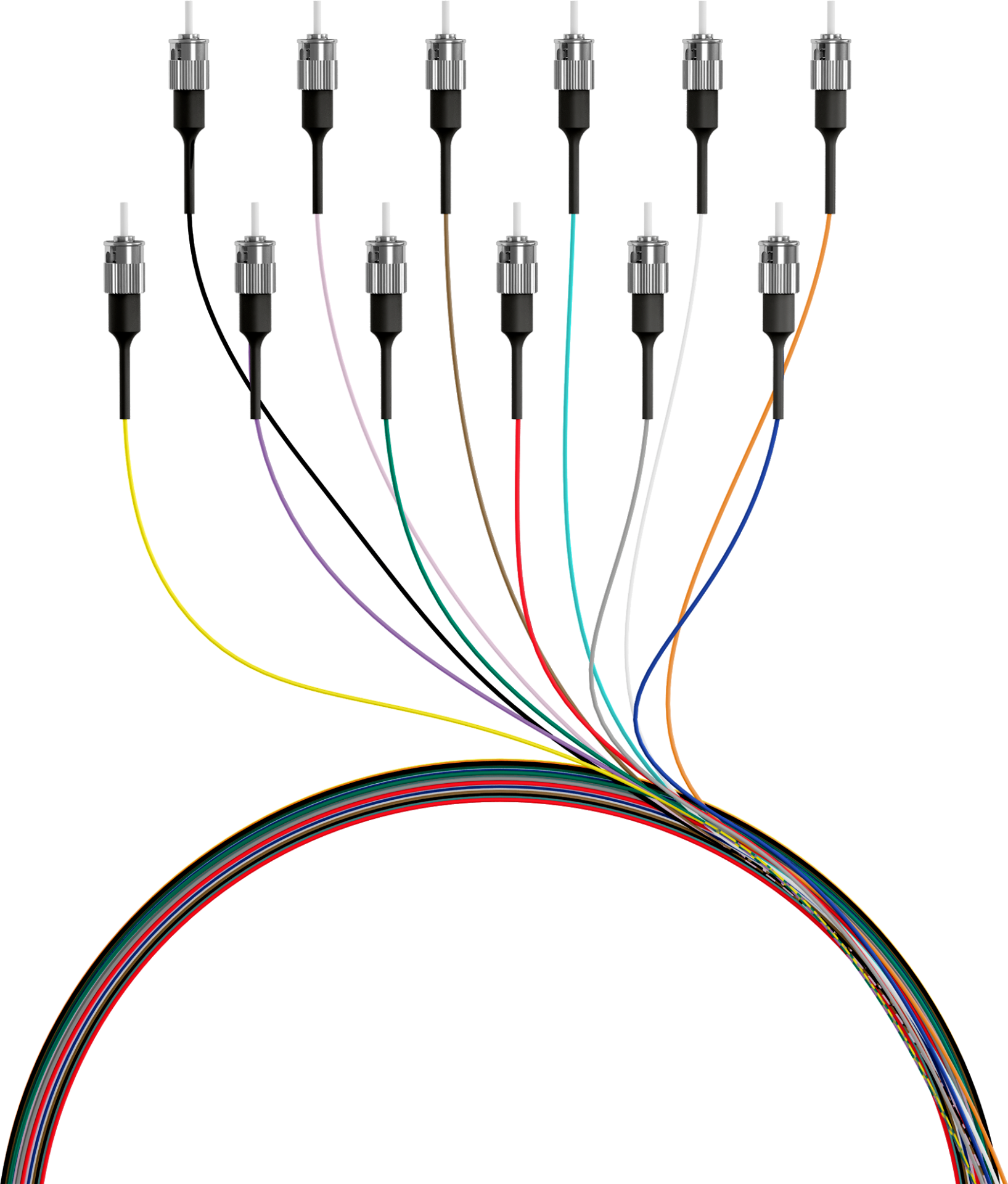

Fiber Pigtail ST OS2 G652D-colored set - 12 pieces
Fiber Pigtail ST OS2 G652D-colored set 2m - 12 pieces
Varenummer:
O1004.2
EAN nr.:
4049759026196
Produktinformation til Fiber Pigtail ST OS2 G652D-colored set 2m - 12 pieces

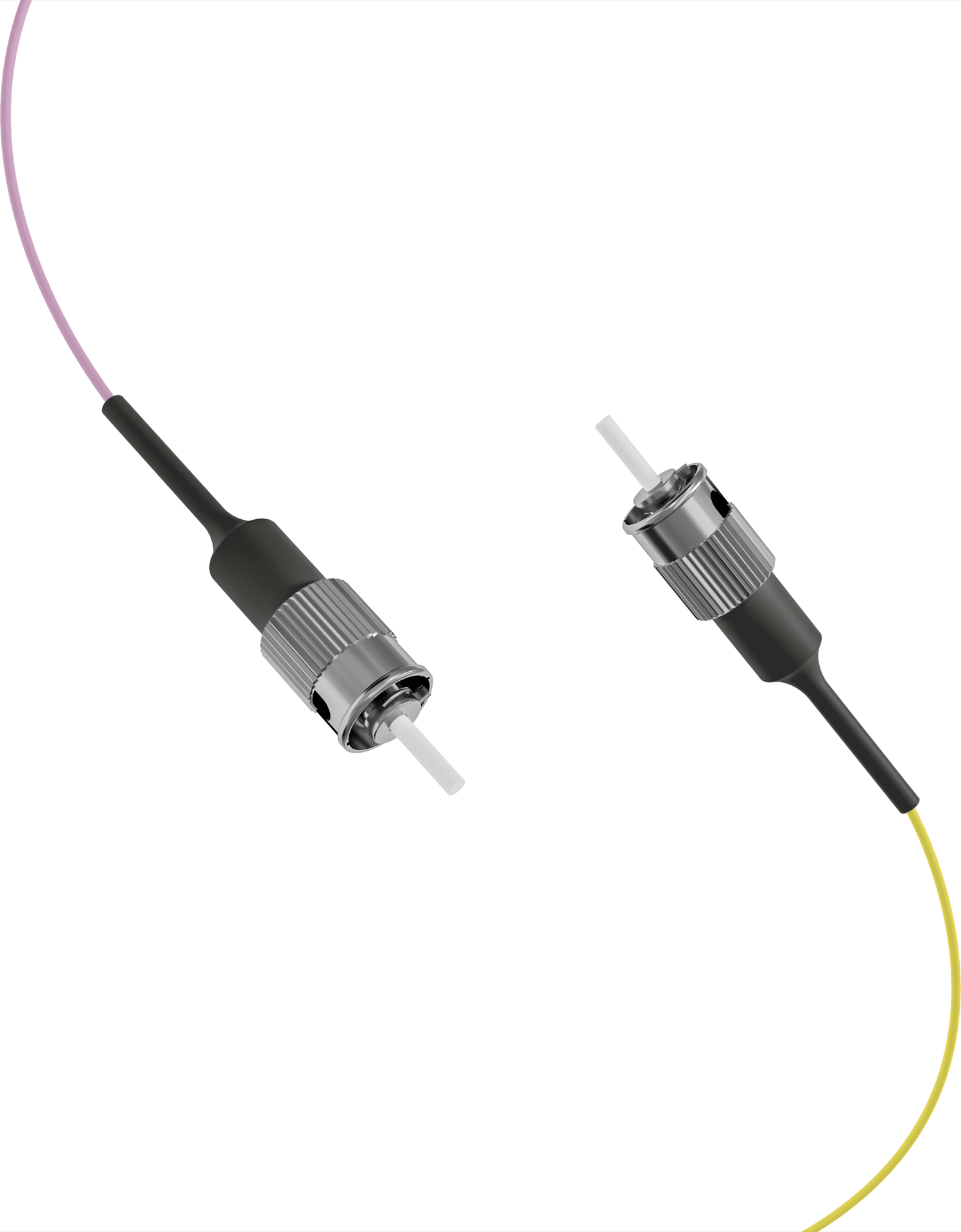

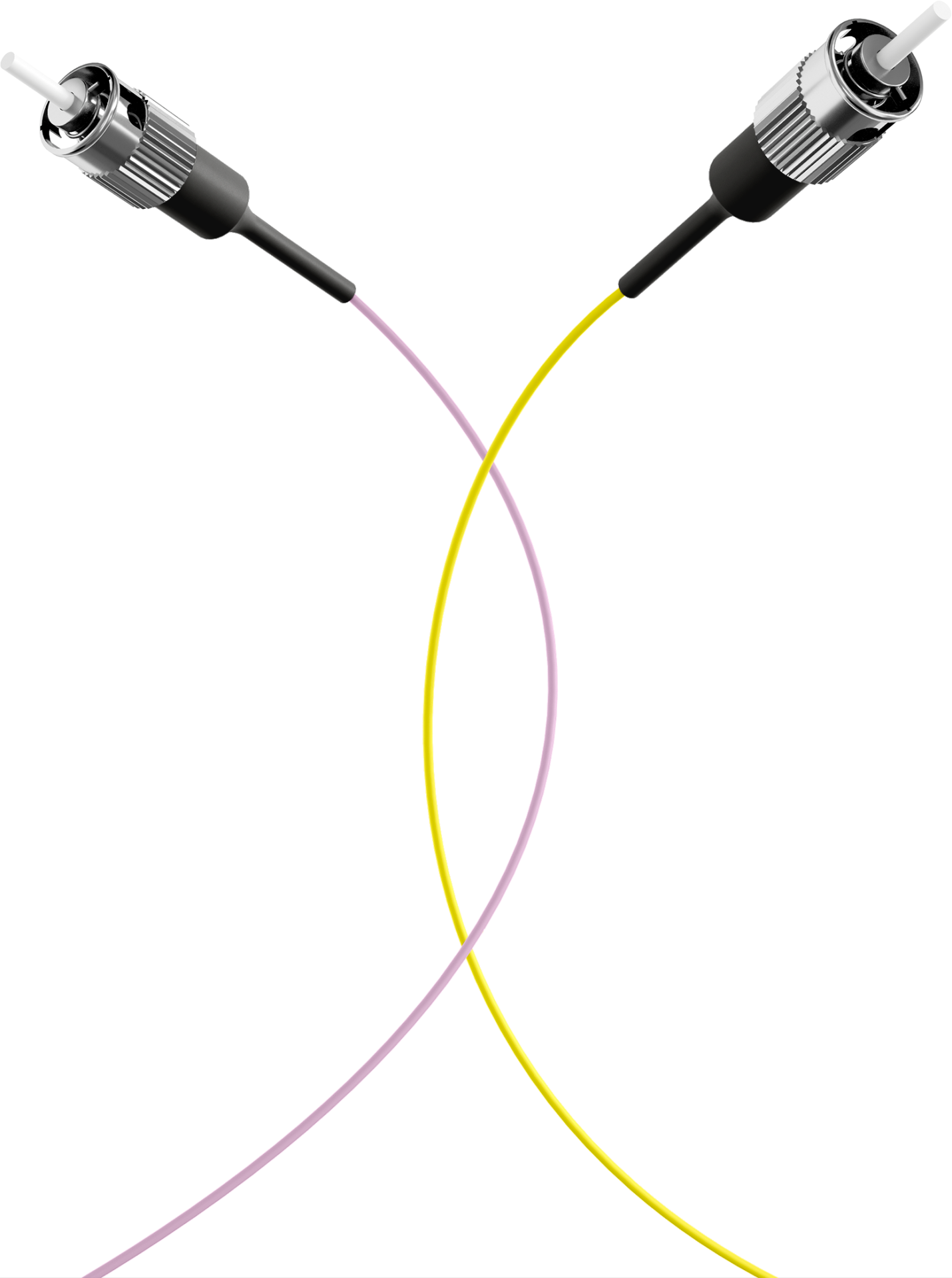

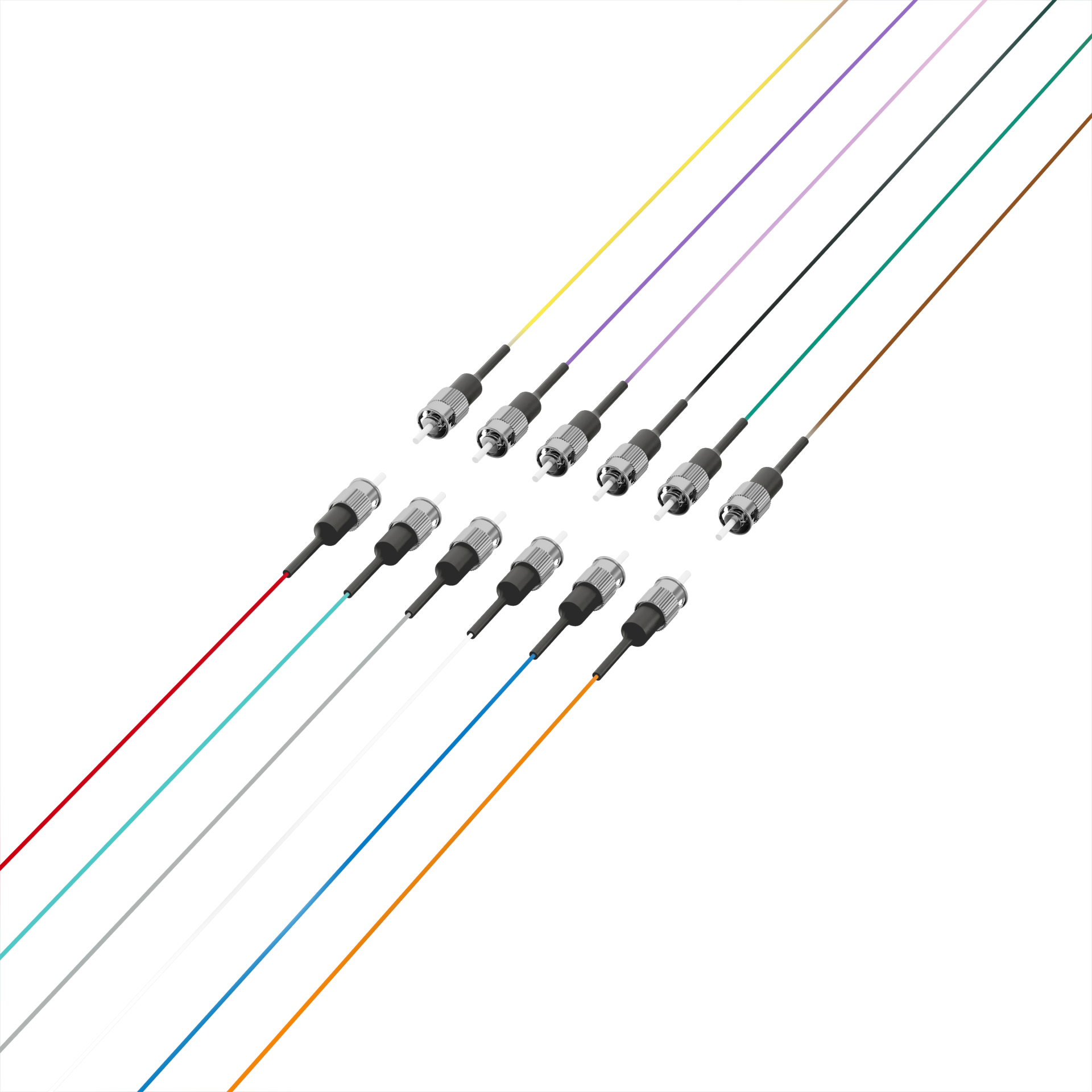

The ST fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | ST |
Tekniske egenskaber
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | ST |
Produktinformation til Fiber Pigtail ST OS2 G652D-colored set 2m - 12 pieces
The ST fiber pigtail set consists of 12 pigtails. The 12 pigtails are coloured according to colour code DIN VDE 0888 red, green, blue, yellow, white, grey, brown, violet, turquoise, black, orange and pink. The colour of the 900µ jacket is equal to the colour of the 250µ jacket. All 12 pigtails are packed in a polybag. Each connector is packed separatly for an easy remove of each pigtail. Every PU contains an individual measuring protocol.
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | ST |
| APC version: | False |
|---|---|
| Anti-kink sleeve: | put-on |
| Bend optimized fiber: | no |
| Buffer: | loose |
| Cable Conform to Standard: | IEC60793-2 |
| Category: | OS2 G652D |
| Color: | DIN-Colorcode |
| Colour code: | VDE-0888 |
| Connector Colour: | silver |
| Connector Conform to Standard: | IEC61754-2 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.3 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | Yes |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 70 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | B/2 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Set (12 Pigtails) |
| Type: | Conductor pigtail |
| Type of connector: | ST |
