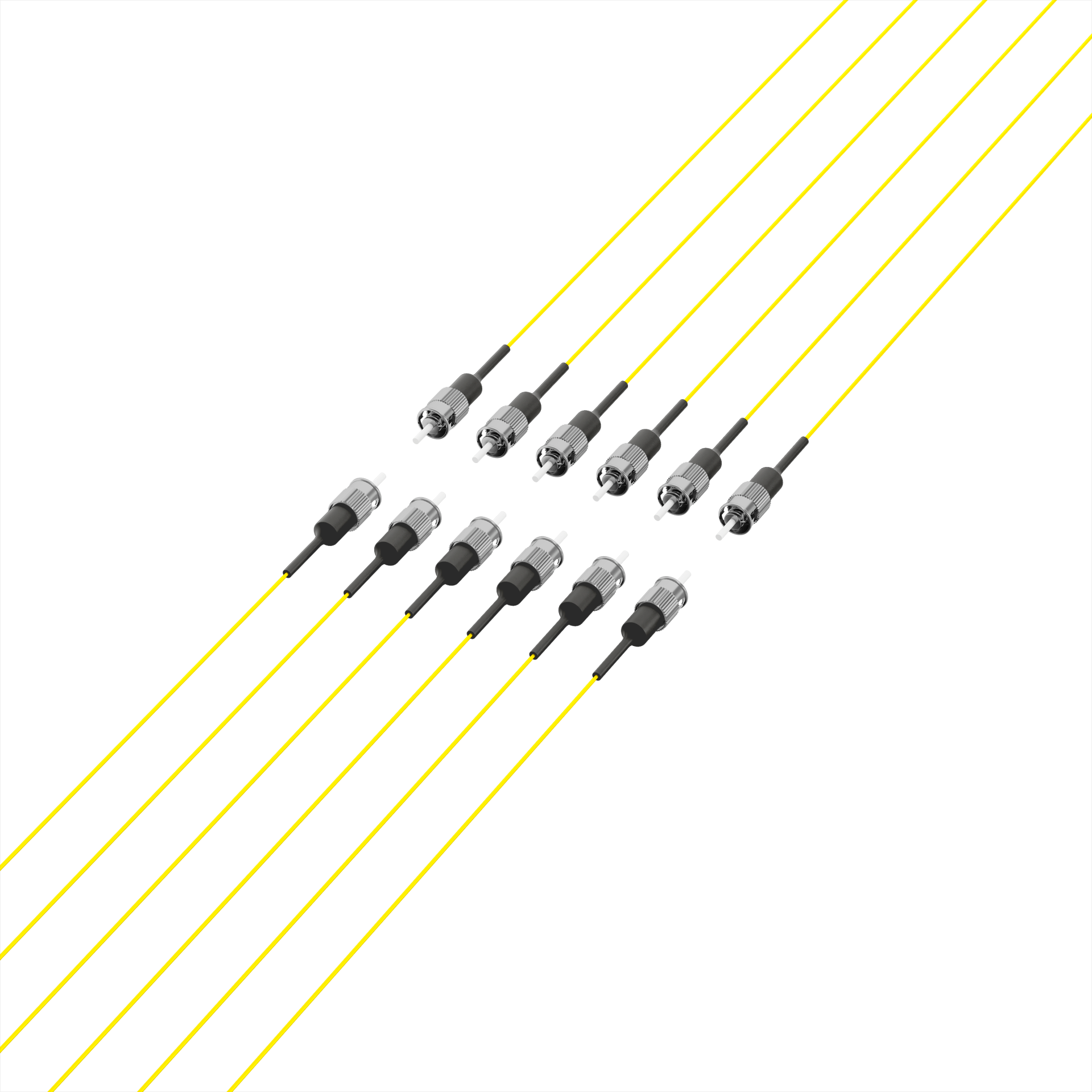

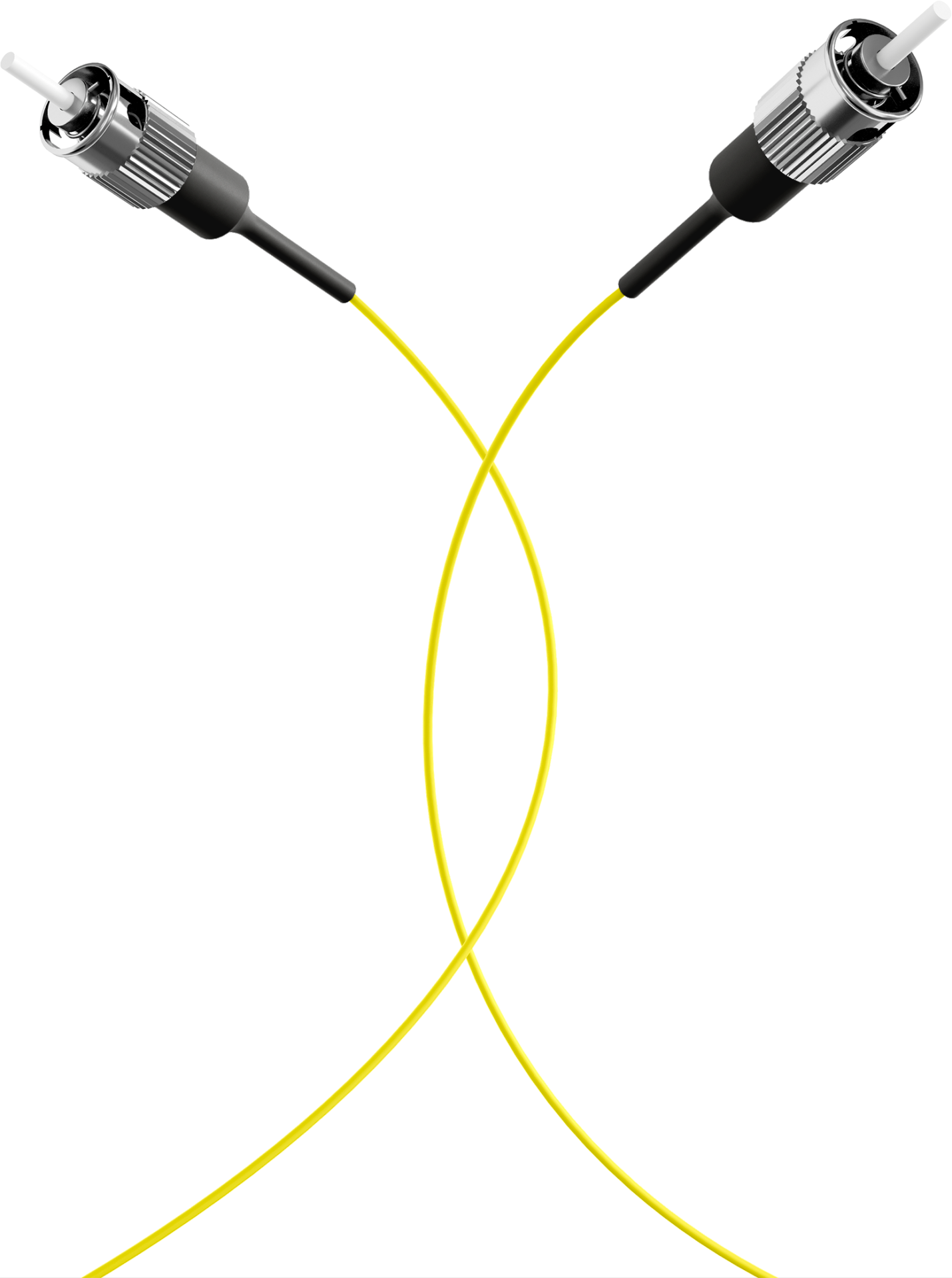

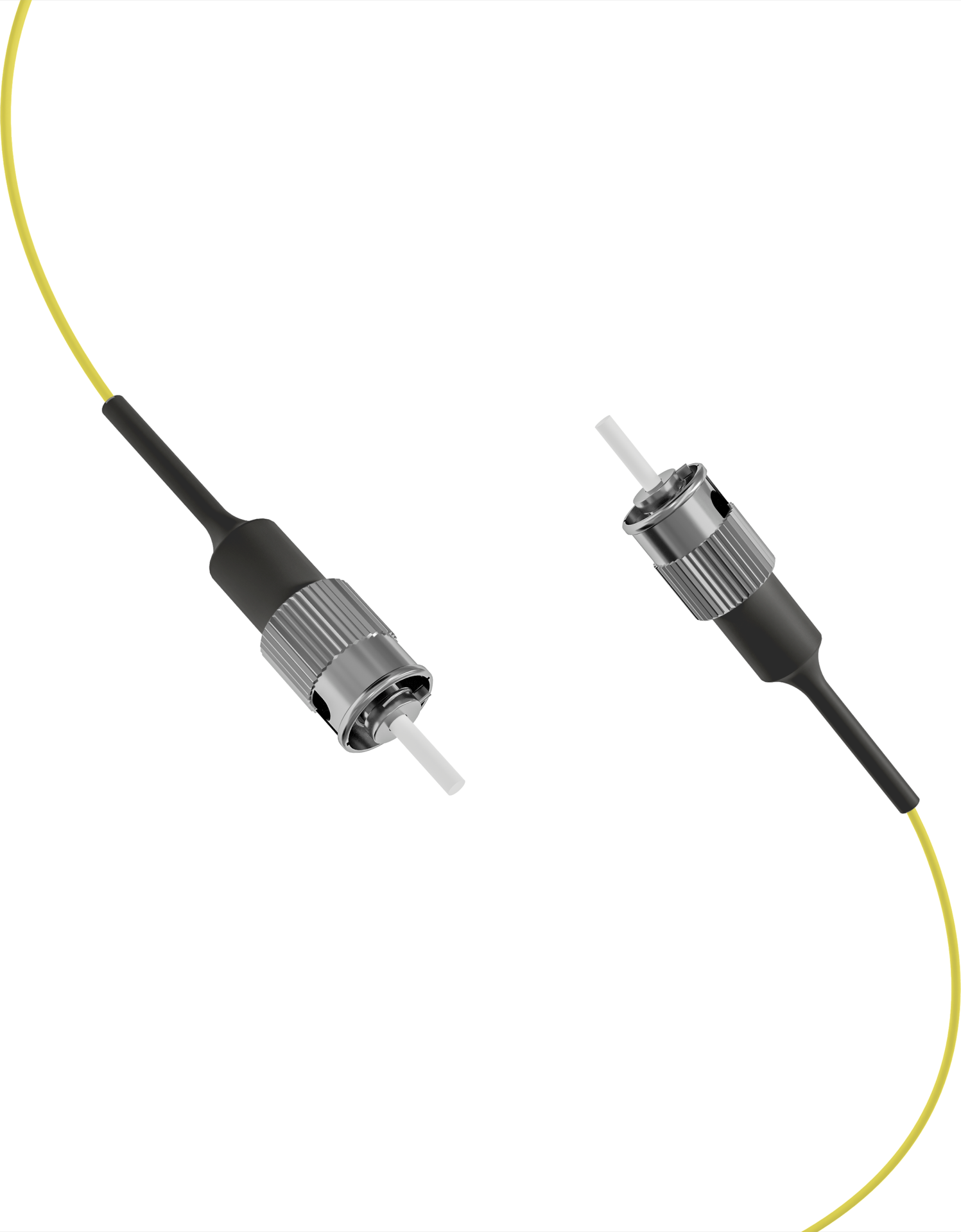

Fiber Pigtail ST OS2 G652D-Yellow - 1 piece
Fiber Pigtail ST OS2 G652D-Yellow 2m - 1 piece
Varenummer:
O1003.2
EAN Nr.:
4049759026189
Produktinformation til Fiber Pigtail ST OS2 G652D-Yellow 2m - 1 piece
The ST fiber pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. Every PU contains an individual measuring protocol.
Tekniske egenskaber
APC-version: | False |
---|---|
Anti-kink sleeve: | Put-on |
Bend optimized fiber: | no |
Cable Conform to Standard: | IEC60793-2 |
Category: | OS2 acc. to ITU-T G.652.D |
Colour: | yellow |
Connector Conform to Standard: | IEC61754-2 |
Core type: | Semi tight |
Fibre type: | Single mode 9/125 |
Insertion loss 1310nm: | < 0.3 dB |
Jacket Material: | LSZH |

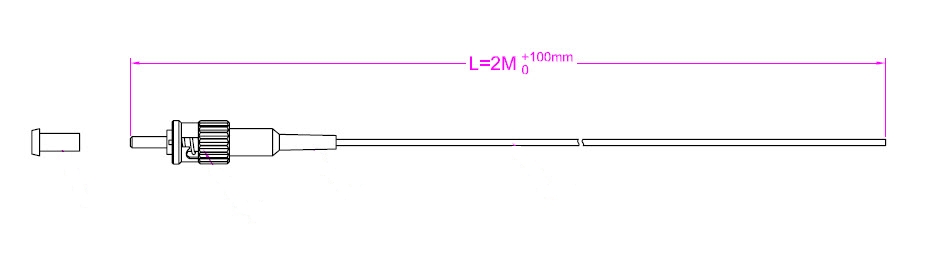

Length: | 2.0 m |
Max. Tension: | 3 N |
Minimaler Biegeradius Dynamic: | 20xOD |
Mion. Bending Radius Static: | 10xOD |
Operating Temperature: | -20 – 70 °C |
Outer Diameter: | 0.9 mm |
Quality class singlemode: | B/2 acc. IEC 61753-1 |
Type: | Conductor pigtail |
Type of connector: | ST |
