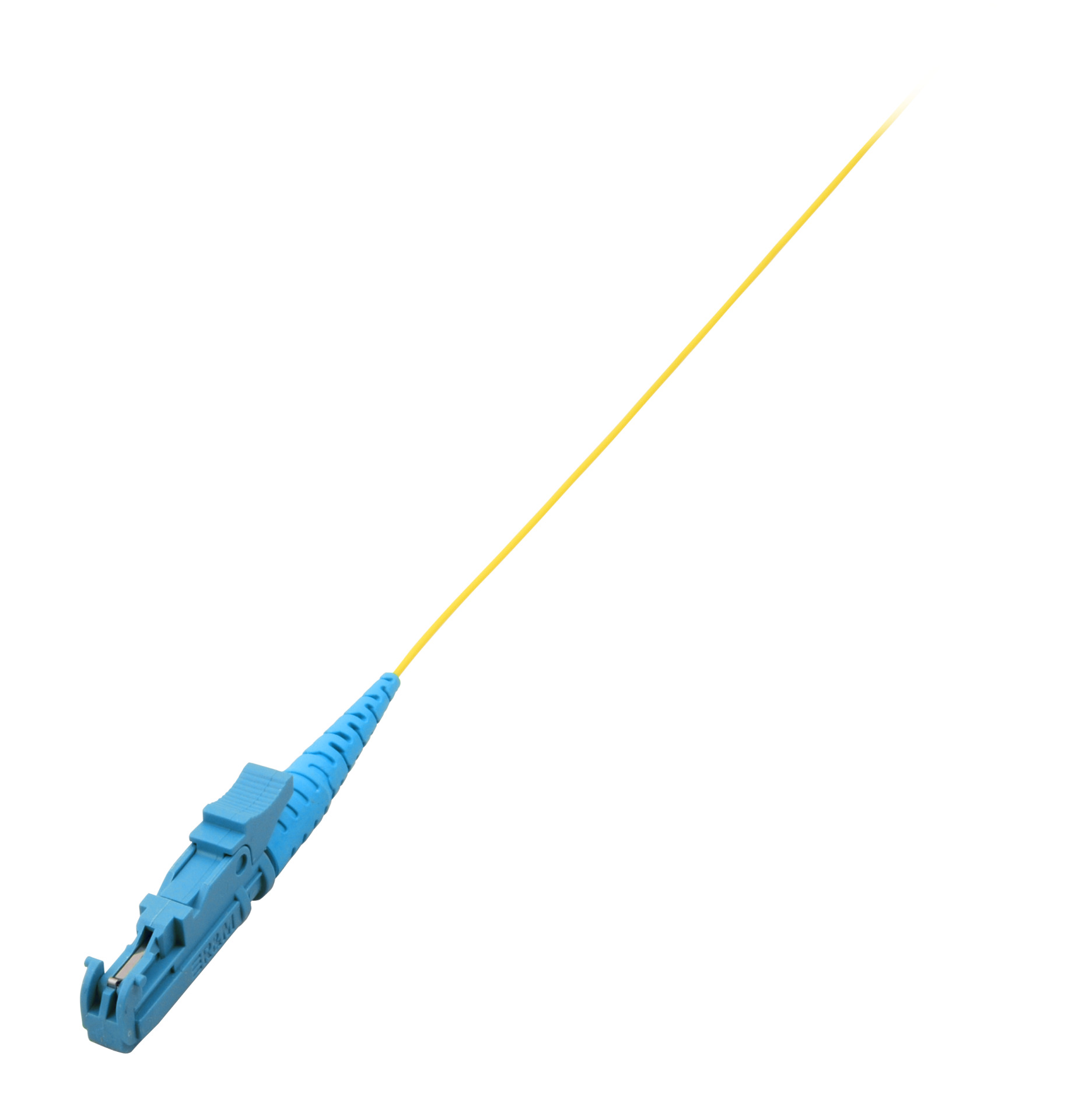

Fiber Pigtail E2000®/APC OS2 G652D-Yellow - 1 piece
Fiber Pigtail E2000®/APC OS2 G652D-Yellow 2m - 1 piece
Varenummer:
O0770.2
EAN nr.:
7611821077848
Produktinformation til Fiber Pigtail E2000®/APC OS2 G652D-Yellow 2m - 1 piece

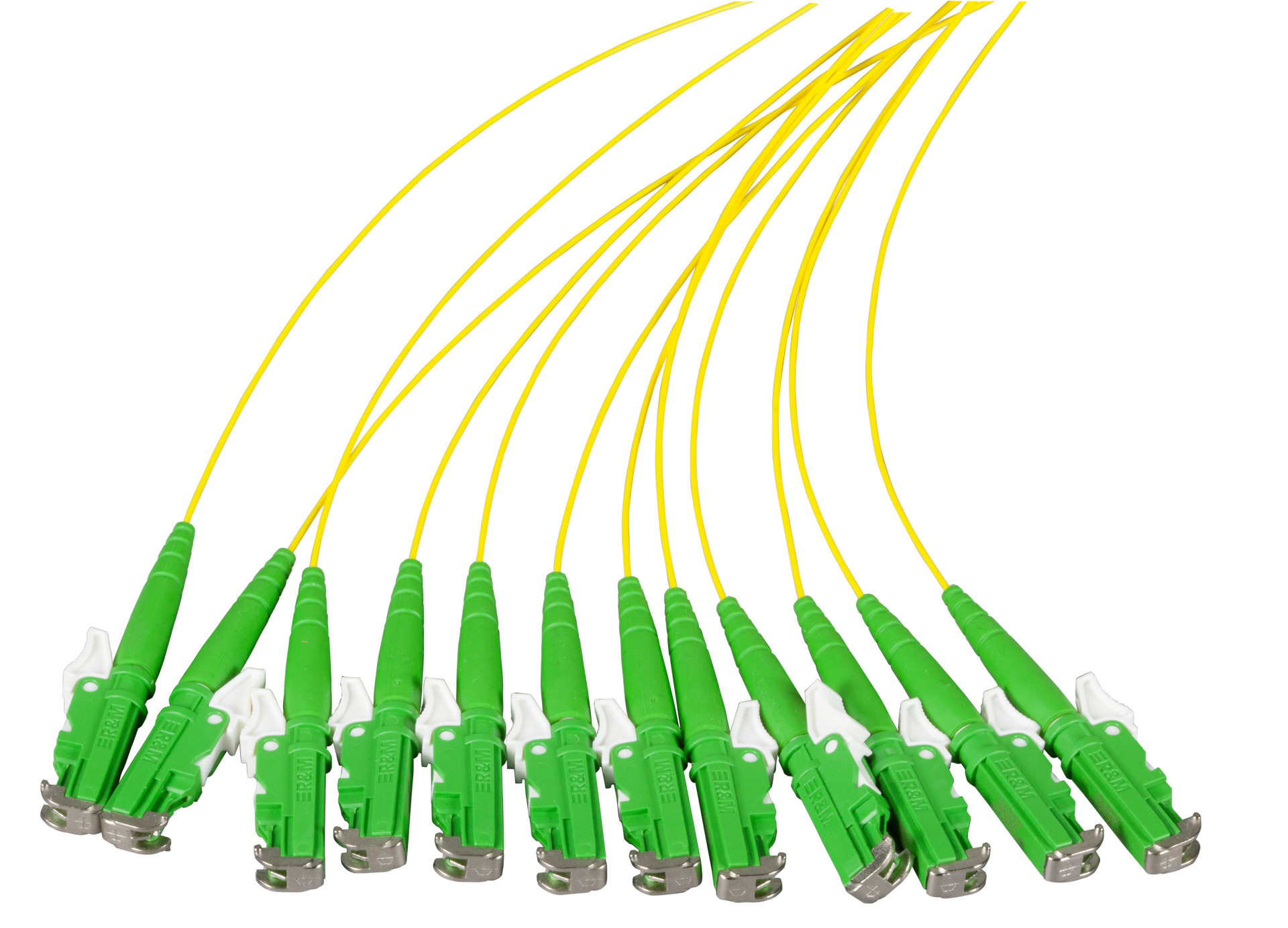

The E2000® fibre pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Every PU contains an individual measuring protocol.
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | 900µm |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-15 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.35 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | No, QR code for demand |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | C/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | E2000®/APC |
Tekniske egenskaber
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | 900µm |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-15 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.35 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | No, QR code for demand |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | C/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | E2000®/APC |
Produktinformation til Fiber Pigtail E2000®/APC OS2 G652D-Yellow 2m - 1 piece
The E2000® fibre pigtail has a primary coating (900µ) in the colour of the respective category (see table). The colour of the primary coating is equal to the colour of the secondary coating. The pigtails can be ordered separately. Because the standard batch size for ordering pigtails is 12, in a polybag are 12 pigtails. Every PU contains an individual measuring protocol.
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | 900µm |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-15 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.35 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | No, QR code for demand |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | C/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | E2000®/APC |
| Anti-kink sleeve: | put-on |
|---|---|
| Bend optimized fiber: | no |
| Buffer: | 900µm |
| Category: | OS2 G652D |
| Color: | yellow |
| Colour code: | one colour |
| Connector Colour: | green |
| Connector Conform to Standard: | IEC61754-15 |
| Core type: | Semi tight |
| Fibre type: | Single mode 9/125 |
| Insertion loss 1310nm: | < 0.35 dB |
| Jacket material: | LSZH |
| Length: | 2.0 m |
| Max. Tension (long term): | 3 N |
| Measurement protocol available: | No, QR code for demand |
| Minimaler Biegeradius Dynamic: | 20xOD |
| Mion. Bending Radius Static: | 10xOD |
| Operating temperature: | -20 – 60 °C |
| Outer diameter: | 0.9 mm |
| Packaging: | Polybag |
| Quality class singlemode: | C/1 acc. IEC 61753-021-2 |
| Scope of delivery: | 1 Pigtail |
| Type: | Conductor pigtail |
| Type of connector: | E2000®/APC |
