Field Installable LC Connector
Priser kun synlige for indloggede brugere
Field installable LC connectors OS2 blue
Varenummer:
53196.2
EAN nr.:
4049759161880
Produktinformation für Field installable LC connectors OS2 blue
Compatible with all standard LC connectors and adapter
Easy installation in less than 2 minutes
No need for glue
No need of electrical power

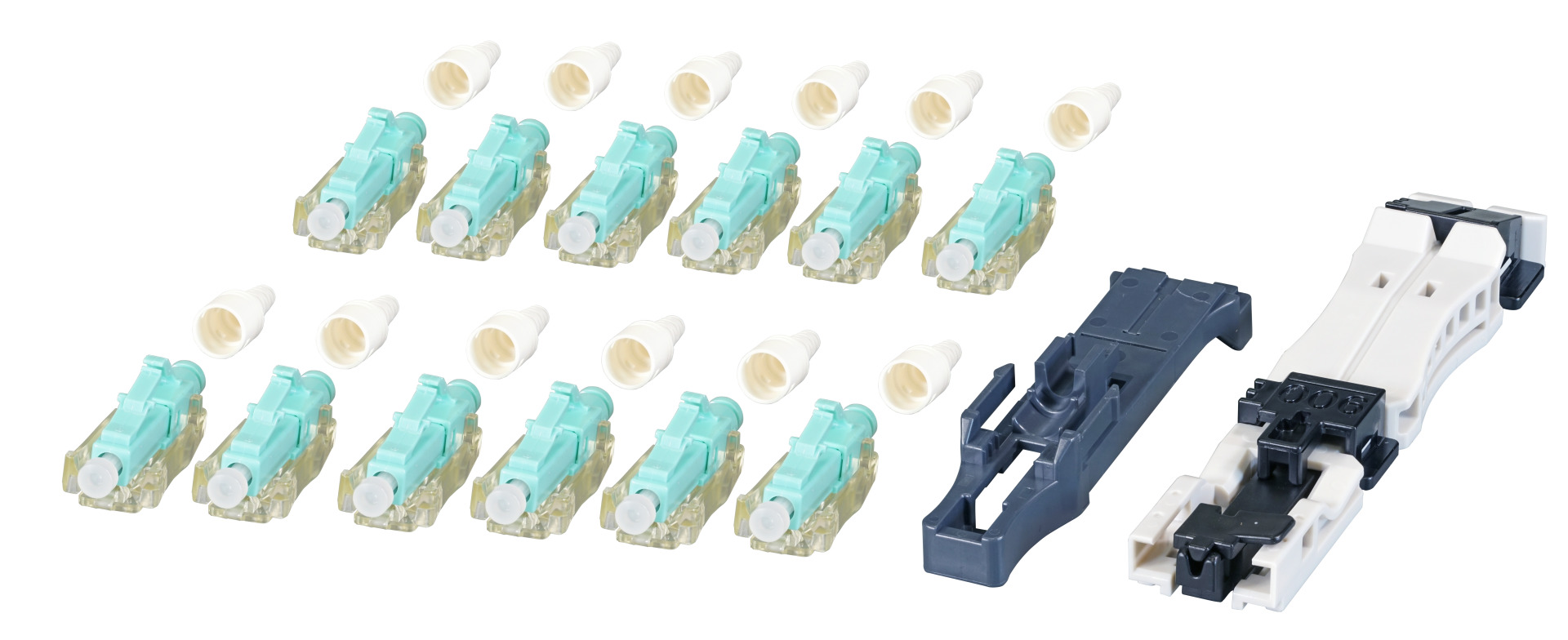

Scope of delivery:
1 x connector with wedge
1 x boot
1x protection tube for 250µ fiber
Typical specification values are at 23°C ±5°C
Recommended Tools (not included in scope of delivery):
HS18-CLEAVER - Cleaver
39901.1 - Miller® Fiber Stripper "Tri-Hole"

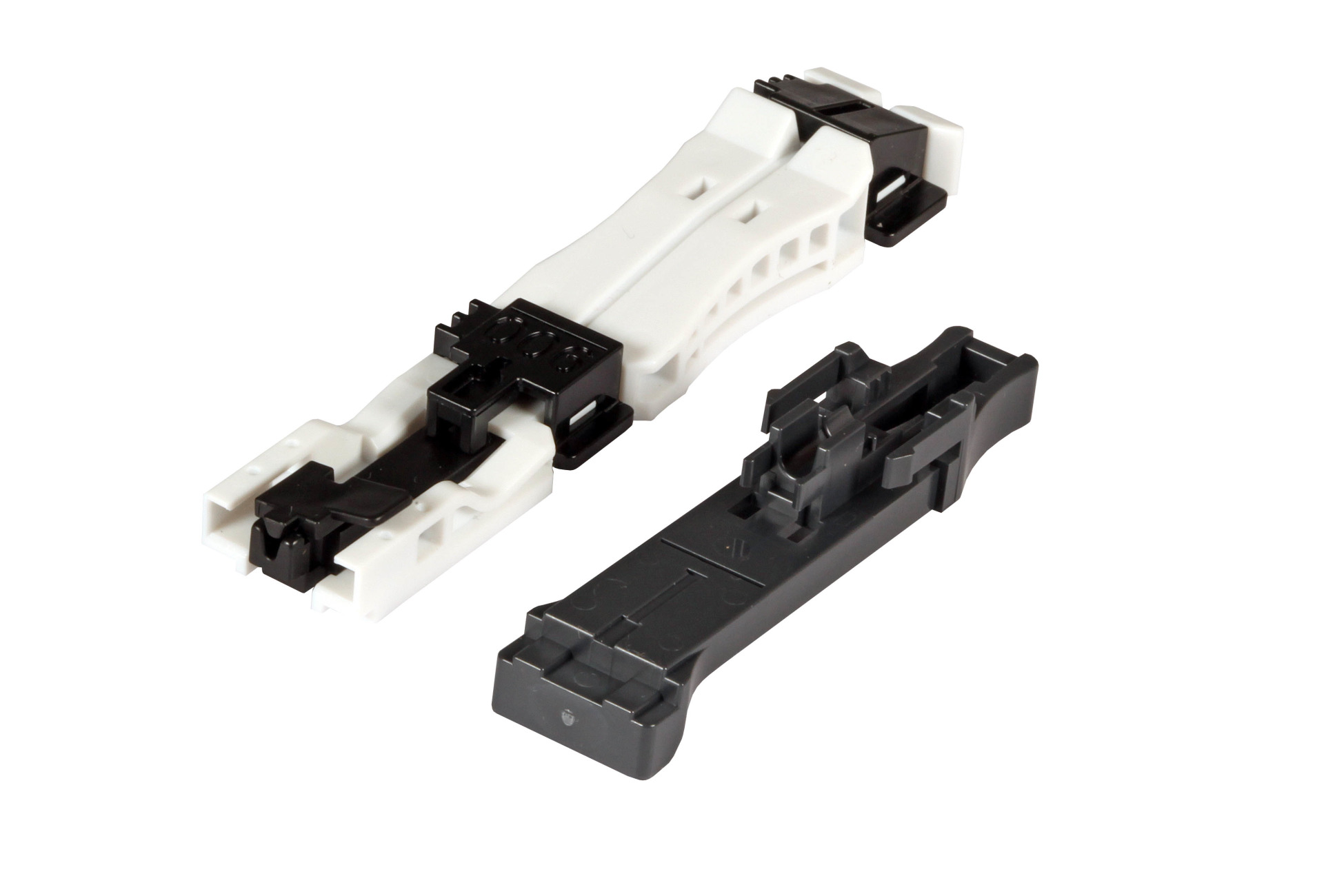

53170.1 - Fiber holder + Jig base LC
Easy installation in less than 2 minutes
No need for glue
No need of electrical power
Scope of delivery:
1 x connector with wedge
1 x boot
1x protection tube for 250µ fiber
Typical specification values are at 23°C ±5°C
Recommended Tools (not included in scope of delivery):
HS18-CLEAVER - Cleaver
39901.1 - Miller® Fiber Stripper "Tri-Hole"
53170.1 - Fiber holder + Jig base LC
Tekniske egenskaber
| Connection type: | Clamping |
|---|---|
| Durability: | < 0.1dB change, 500 matings |
| Material of ferrule: | Ceramics |
| Model: | Plug |
| Operating Temperature: | -40 – 75 °C |
| Plug: | IEC 61754-20 |
| Tensile: | TIA/EIA 568-C.3 |
| Type of connector: | LC |
Varianter
| Art. Nej. | Betegnelse | APC-version | Fibre class | Colour | Suitable for type of fibre | Insertion Loss | Return Loss | |
|---|---|---|---|---|---|---|---|---|
| 53196.2 | Field installable LC connectors OS2 blue | False | OS2 | blue | Single mode | 0.2 dB | 55 dB | |
| 53197.2 | Field installable LC connectors OM3 aqua | False | OM3 | other | Multi mode | 0.1 dB | 35 dB | |
| 53198.2 | Field installable LC connectors OM2 black | False | OM2 | black | Multi mode | 0.1 dB | 35 dB |
necessary tools
