Fiber Optic Frame Set
FO Frame Set 2x E2000®, SC-Simplex, LC-Duplex, RAL9010
Varenummer:
ET-25085FO
EAN Nr.:
4049759102401
Produktinformation til FO Frame Set 2x E2000®, SC-Simplex, LC-Duplex, RAL9010
For holding 2 adapters
2 Ports for E2000®simplex, SC simplex or LC duplex
40° slanted outlet
Outer ring 80 x 80 mm and central plate 50 x 50 mm with labeling field 12 x 40 mm according to DIN49075
Compatible to common switch programs with adapter plate

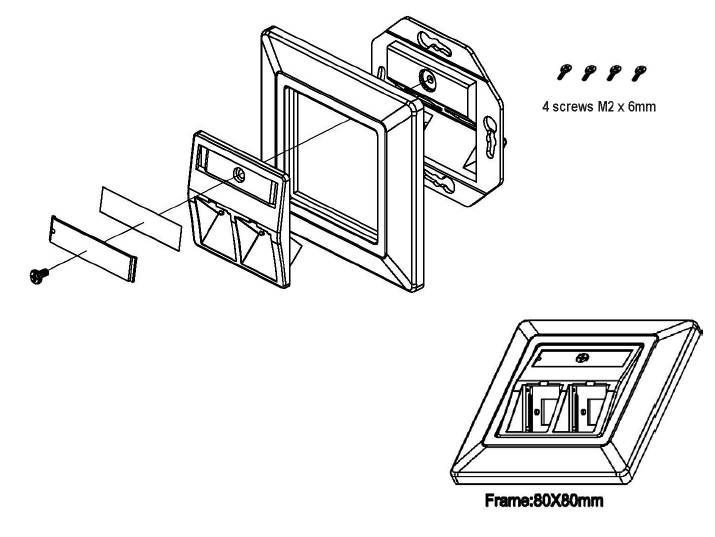

Delivery unassembled

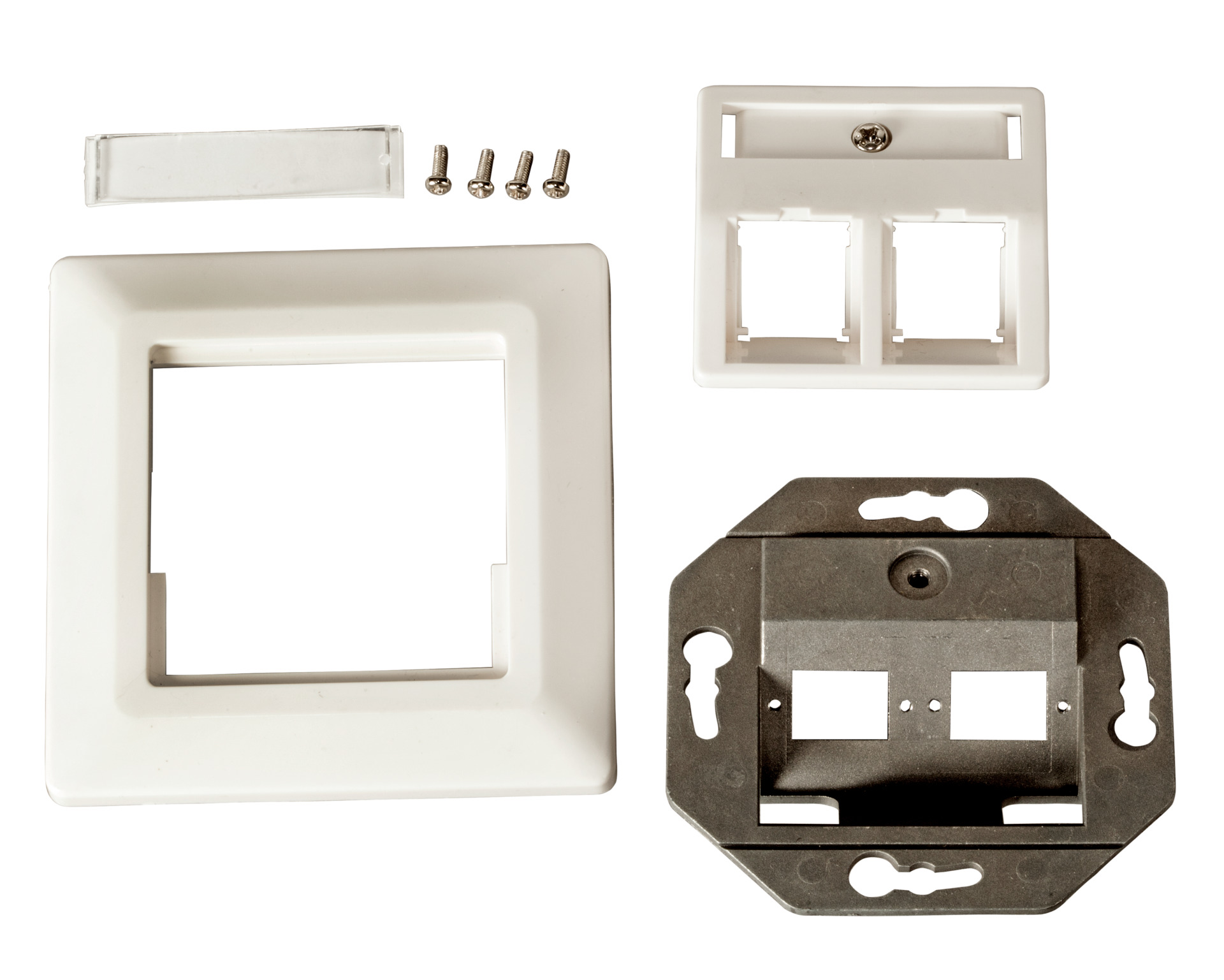

Included:
1 x metal frame
1 x plastic cover
1 x plastic central plate
4 x M2-screws
2 Ports for E2000®simplex, SC simplex or LC duplex
40° slanted outlet
Outer ring 80 x 80 mm and central plate 50 x 50 mm with labeling field 12 x 40 mm according to DIN49075
Compatible to common switch programs with adapter plate
Delivery unassembled
Included:
1 x metal frame
1 x plastic cover
1 x plastic central plate
4 x M2-screws
Tekniske egenskaber
Cable strain relief: | False |
---|---|
Central plate according to: | DIN 49075 |
Centre plate: | True |
Cover frame: | True |
Dimensions: | 80 x 80 mm |
Duct installation: | True |
Dust protection cap: | None |
Floor box/sub-floor mounted: | True |
Flush mounted (plaster): | True |
Material bearing ring: | Zinc alloy |
Material central plate: | ABS plastic |
Max. Assembly (Adapter): | 2 |
Number of buses/couplings: | 0 |
Outlet direction: | Angled |
Suitable for adapter: | SC Simplex/LC Duplex/E2000® |
Surface mounting: | True |
Type of connector: | Other |
Type of fastening: | Screw |
Wire stock: | False |
With bus/coupling: | False |
With label space: | True |
