Front Door Glass for Wall Housings 1-/2-Part

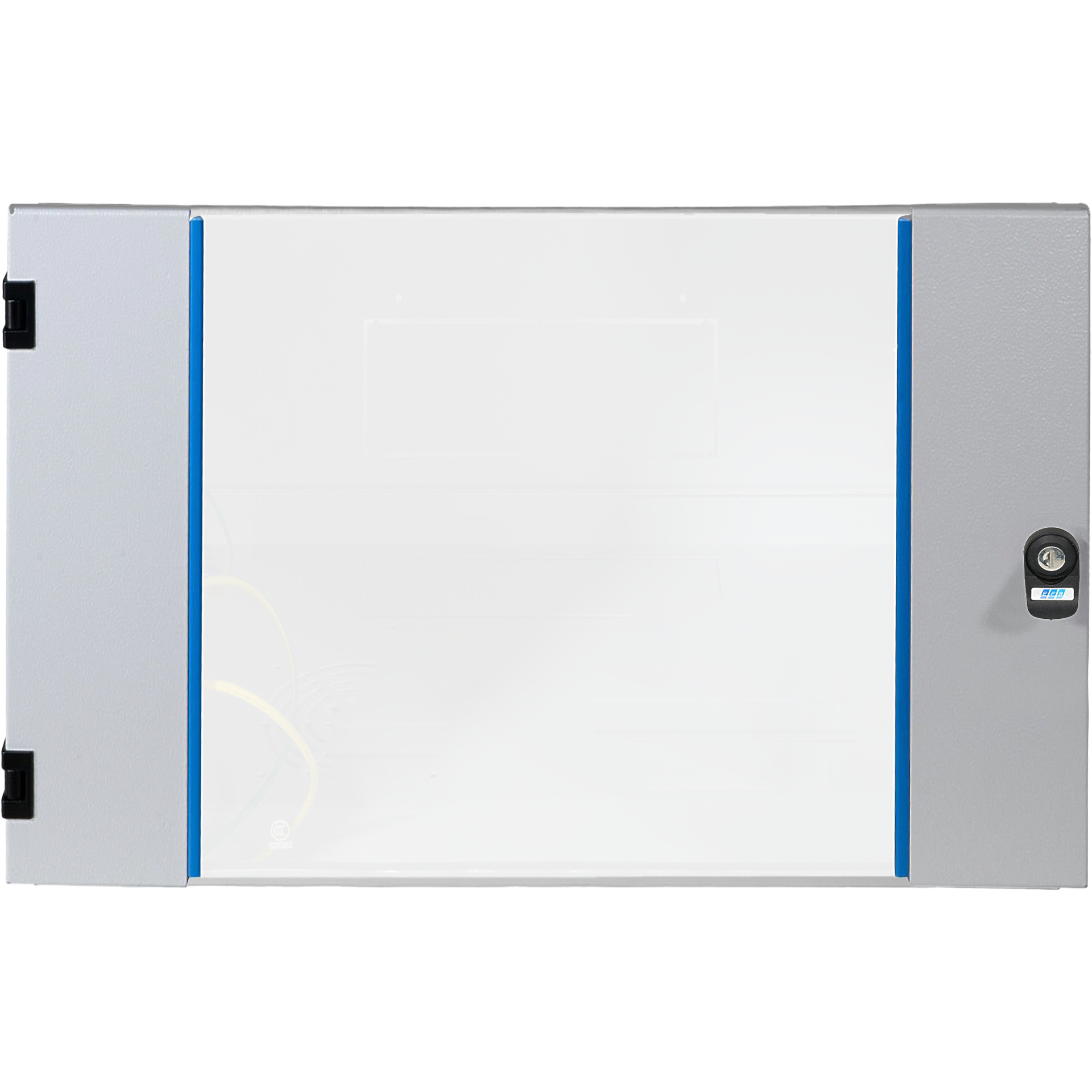

Front Door for Wall Housings 18U, Glass, RAL7035
Varenummer:
102130GR.18
EAN Nr.:
4049759212377
Produktinformation til Front Door for Wall Housings 18U, Glass, RAL7035
Door for wall housing 1-part resp. 2-part
With window made of certified safety glass (4 mm)
1-point latch locking T3/1333
Suitable for compact turning handle for profile half-cylinder (Art.-No. 699989)
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery incl. 2 x key, hinges, earthing cable
With window made of certified safety glass (4 mm)
1-point latch locking T3/1333
Suitable for compact turning handle for profile half-cylinder (Art.-No. 699989)
Paint finish RAL7035, light grey / RAL9005, jet black
Delivery incl. 2 x key, hinges, earthing cable
Tekniske egenskaber
| Cabinet Series: | Wall Housings 1/2-part |
|---|---|
| Degree of protection: | IP20 |
| Material: | Glass |
| Model: | Stop door |
| Profile half-cylinder exchangeable: | True |
| Surface finishing: | Powder coating |
| Type of closure: | Single-point latch locking |
| Version as glazed door: | True |
Varianten
| Art. Nr. | Bezeichnung | Color | Building width for cabinet build in | Width | RAL-number | EMC-version | Version as door for disconnecting switch interlocking | |
|---|---|---|---|---|---|---|---|---|
| 102130GR.04 | Front Door for Wall Housings 4U, Glass, RAL7035 | grey | 600 mm | 600 mm | 7035 | False | False | |
| 102130GR.06 | Front Door for Wall Housings 6U, Glass, RAL7035 | grey | 600 mm | 600 mm | 7035 | False | False | |
| 102130GR.09 | Front Door for Wall Housings 9U, Glass, RAL7035 | grey | 600 mm | 600 mm | 7035 | False | False | |
| 102130GR.12 | Front Door for Wall Housings 12U, Glass, RAL7035 | grey | 600 mm | 600 mm | 7035 | False | False | |
| 102130GR.15 | Front Door for Wall Housings 15U, Glass, RAL7035 | grey | 600 mm | 600 mm | 7035 | False | False | |
| 102130GR.18 | Front Door for Wall Housings 18U, Glass, RAL7035 | grey | 600 mm | 600 mm | 7035 | False | False | |
| 102130GR.21 | Front Door for Wall Housings 21U, Glass, RAL7035 | grey | 600 mm | 600 mm | 7035 | False | False |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
