FTTx Compact-Connection box

FTTx compact junction box, connection: 2x SC-Simplex/LC-Duplex
Varenummer: 53700.2
EAN nr.: 4049759171926

Produktinformation für FTTx compact junction box, connection: 2x SC-Simplex/LC-Duplex

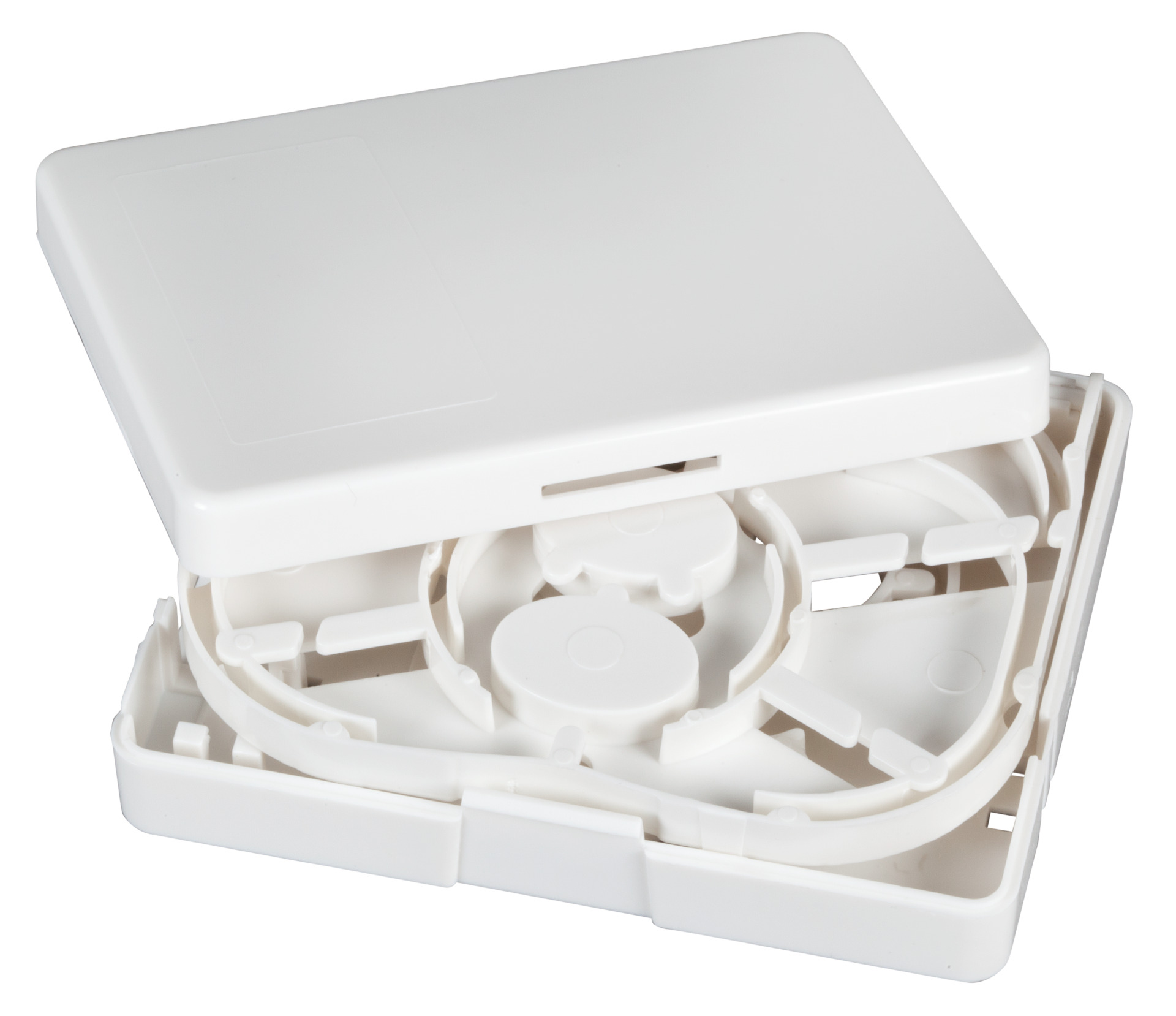

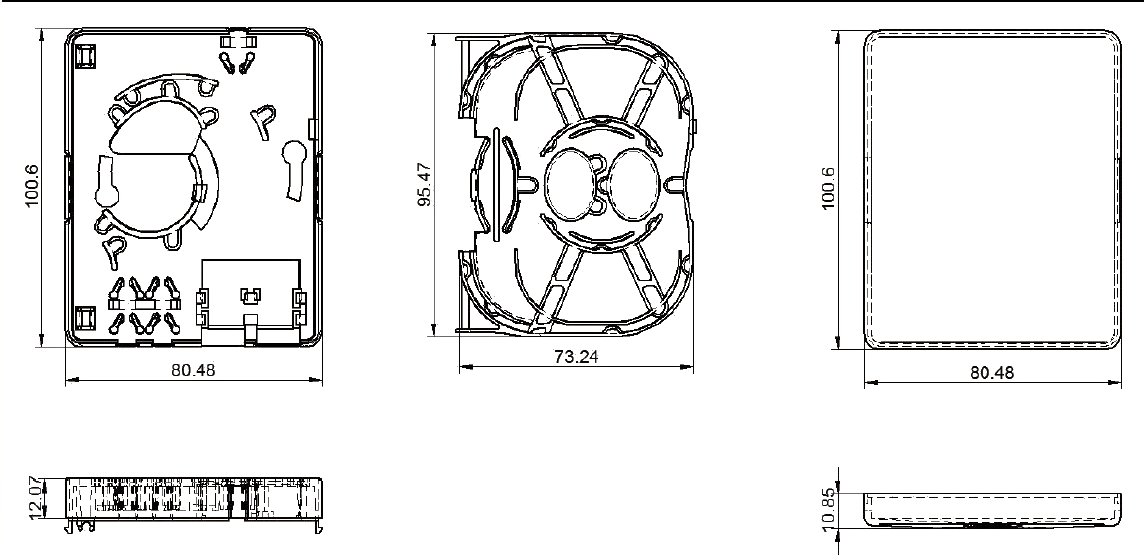

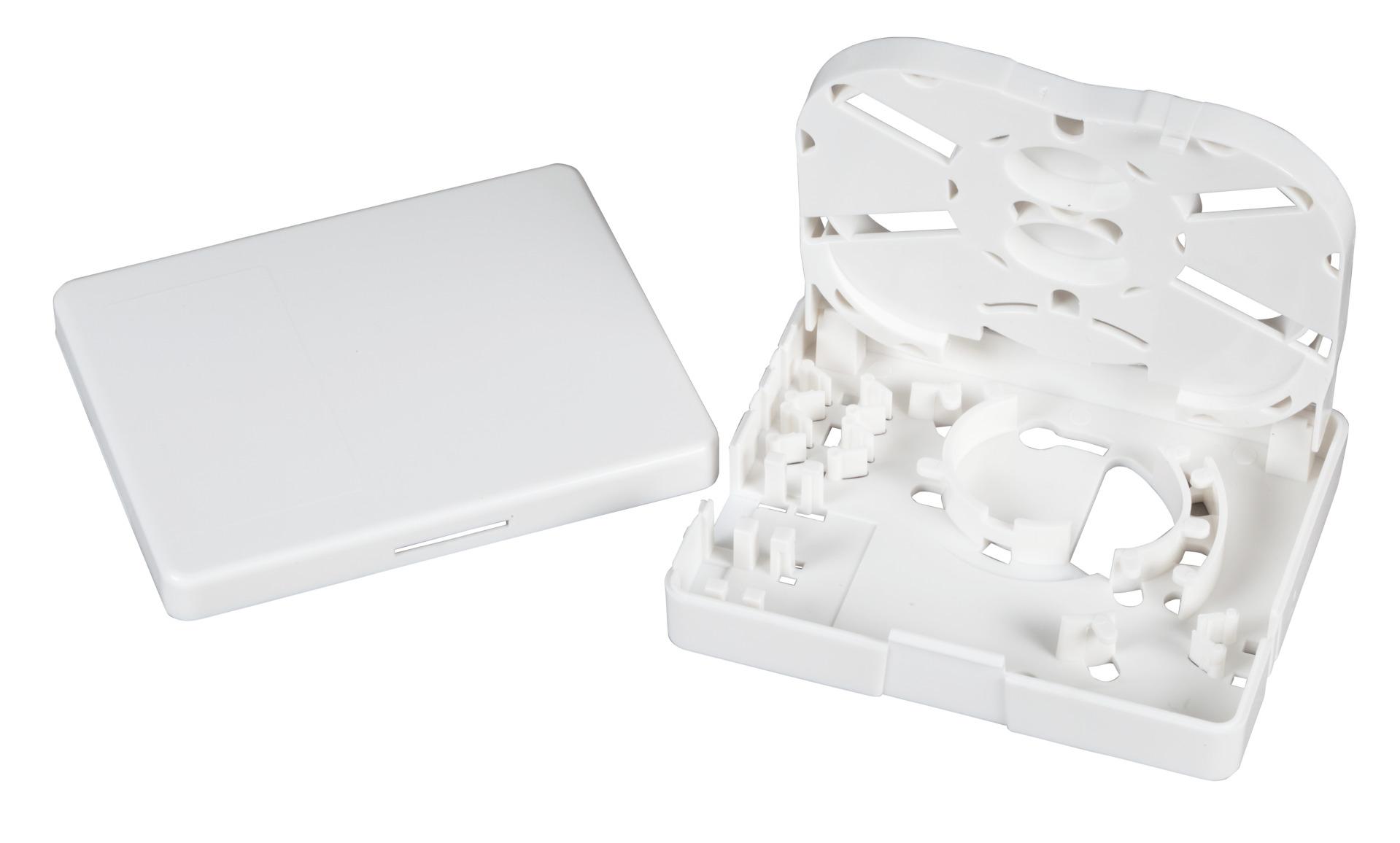

FTTX compact junction box with dimensions 100 x 80 x 23 mm
An adjustable fiber overlength cassette is mounted in the box for an easier work on cable inlets or connecting an adapter. The splice protection holder is also in the fiber overlength cassette. There are breakouts for 2 cable inlets in the box and also 2 breakouts for flangeless SC-Simplex or LC-Duplex adapters.

Tekniske egenskaber

Cable entry without cable gland: 2
Cable sheath support: False
Colour: white
Dimensions: 100x80x22 mm
Foreign body and contact protection: Protection against medium-sized foreign bodies
Hinged splice cassette: True
Holder for gas blocker: False
Holder for splitter: False
IP Protection: IP20
Material: Plastic
Max. Assembly (Adapter): 2
Mounting method: Wall mounting
Number of Fibres: 4
Possibility of mast mounting: False
Scope of application: Indoor
Suitable for adapter: SC Simplex/LC Duplex/E2000®
Temperature range: -20 – 60 °C
Type of Splice protection: Thermo
Water protection: Without protection
With Fiber overlength cassette: True
With plug protection: False
