Full Metal Cover E-MHDM 180° cable outlet
Priser kun synlige for indloggede brugere

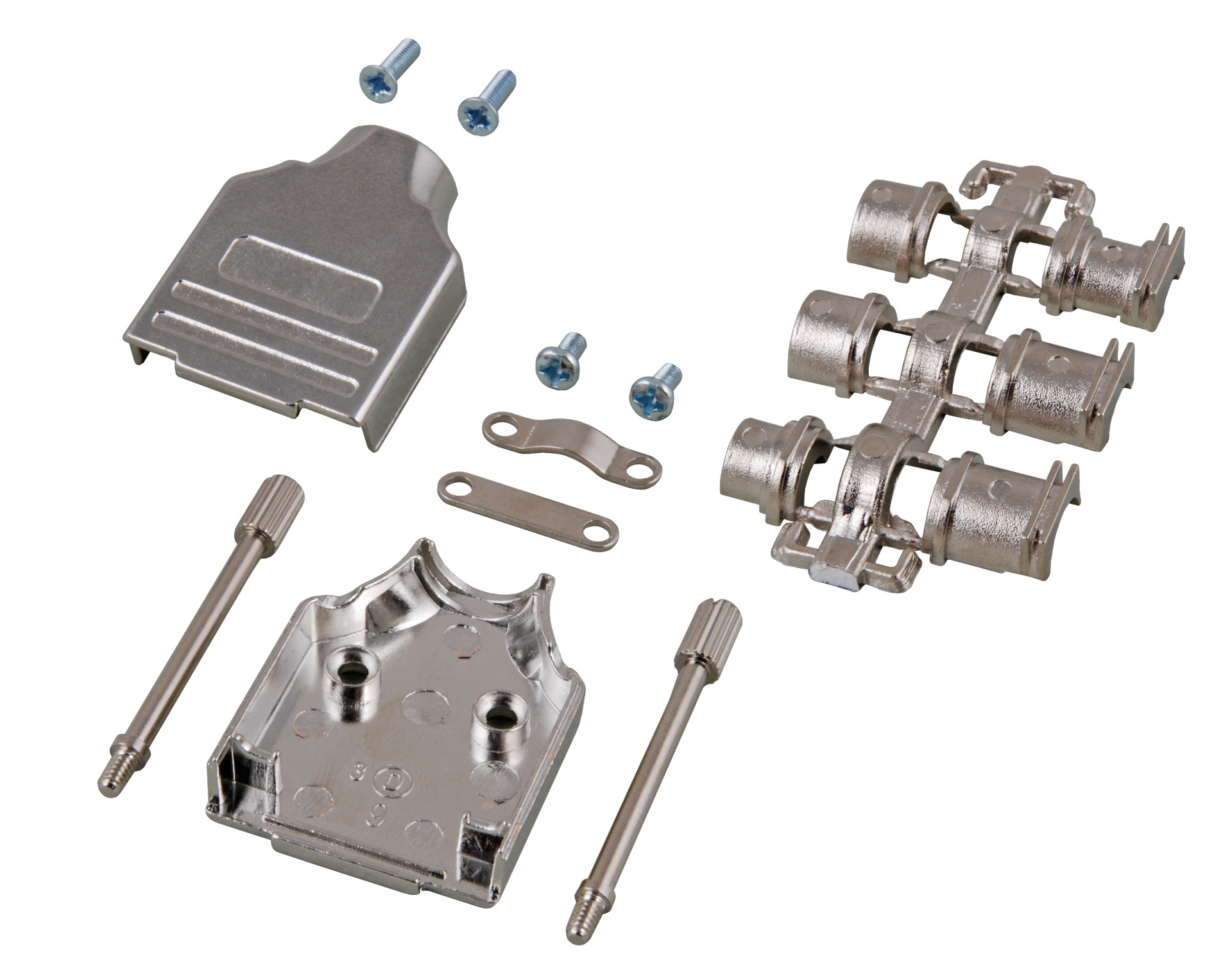

Full Metal Cover 180°, E-MHDM 09-K
Varenummer:
29470.1
EAN nr.:
4049759066338
Produktinformation für Full Metal Cover 180°, E-MHDM 09-K
• Full metal housing 180° cable outlet
• Thumb screws UNC 4-40
• For cable diameter up to 13.0 mm
• Attenuation: > 40 dB between 30 MHz and 1 GHz
• Incl. HF shielded boots for cable diameters 4 - 6 mm, 6 - 8 mm, 8 - 10 mm,
6 - 8 mm, 8 - 10 mm
• Thumb screws UNC 4-40
• For cable diameter up to 13.0 mm
• Attenuation: > 40 dB between 30 MHz and 1 GHz
• Incl. HF shielded boots for cable diameters 4 - 6 mm, 6 - 8 mm, 8 - 10 mm,
6 - 8 mm, 8 - 10 mm
Tekniske egenskaber
| Locking mechanism: | screw |
|---|---|
| Material: | zinc die-cast |
| Separable: | True |
| Two piece: | True |
Varianter
| Art. Nej. | Betegnelse | Colour | Suitable for number of poles | Type | |
|---|---|---|---|---|---|
| 29470.1 | Full Metal Cover 180°, E-MHDM 09-K | silver | 9 | E-MHDM 09-K | |
| 29471.1 | Full Metal Cover 180°, E-MHDM 15-K | silver | 15 | E-MHDM 15-K | |
| 29472.1 | Full Metal Cover 180°, E-MHDM 25-K | silver | 25 | E-MHDM 25-K | |
| 29473.1 | Full Metal Cover 180°, E-MHDM 37-K | silver | 37 | E-MHDM 37-K |
