Full Metal Cover E-MHDM35 35° cable outlet
Full Metal Cover 35°, E-MHDM35 09-K
Varenummer:
29560.1
EAN Nr.:
4049759066383
Produktinformationen für Full Metal Cover 35°, E-MHDM35 09-K

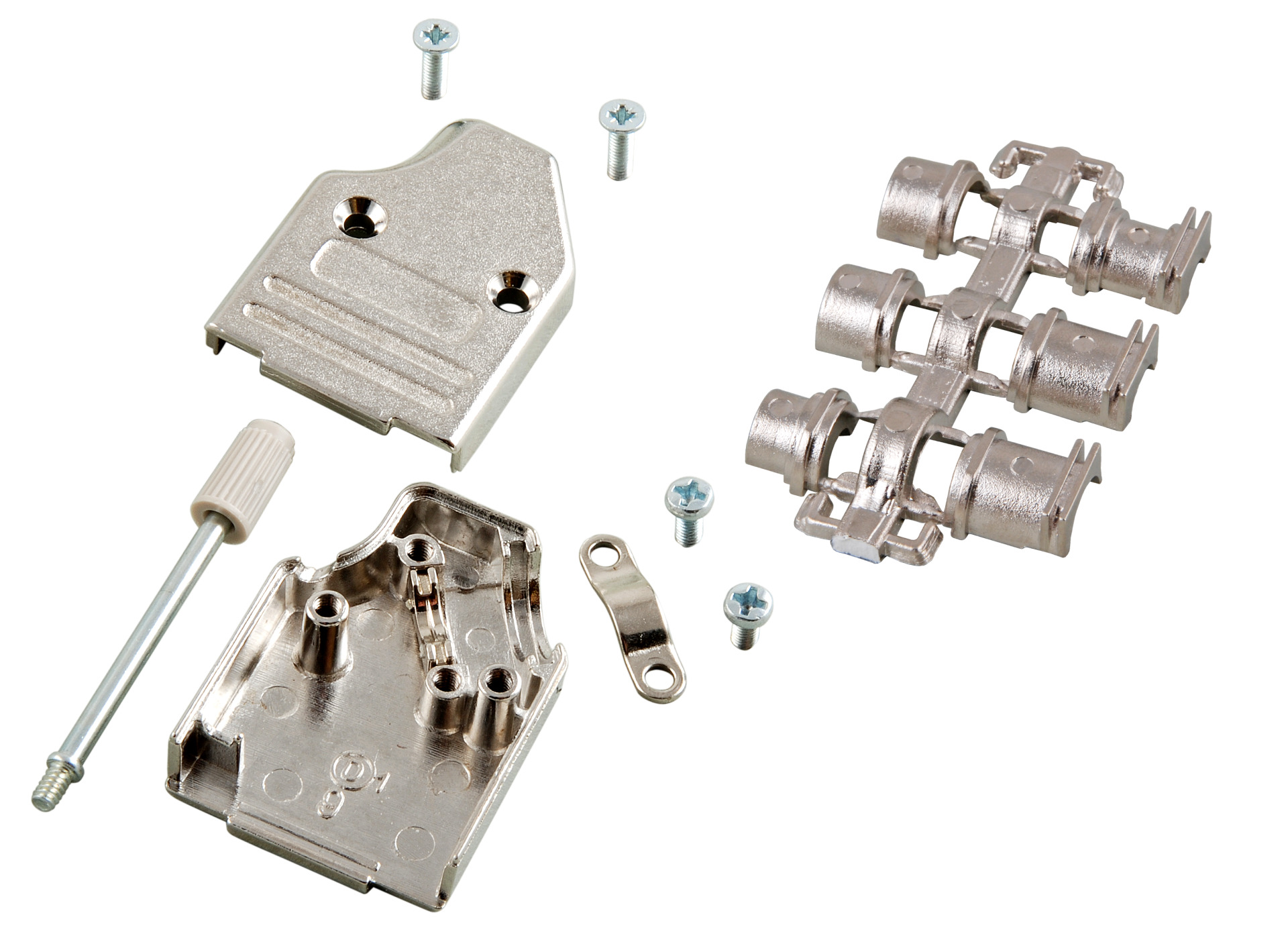

• Full metal housing, 35° cable outlet
• Thumb screws UNC 4-40
• For cable diameter up to 13.0 mm
• Attenuation: > 40 dB between 30 MHz and 1 GHz
• Incl. HF shielded boots for cable diameters 4 - 6 mm, 6 - 8 mm, 8 - 10 mm
• Thumb screws UNC 4-40
• For cable diameter up to 13.0 mm
• Attenuation: > 40 dB between 30 MHz and 1 GHz
• Incl. HF shielded boots for cable diameters 4 - 6 mm, 6 - 8 mm, 8 - 10 mm
Technische Eigenschaften
| Locking mechanism: | screw |
|---|---|
| Material: | zinc die-cast |
| Separable: | True |
| Two piece: | True |
Varianten
| Art. Nr. | Bezeichnung | Colour | Suitable for number of poles | Type | |
|---|---|---|---|---|---|
| 29560.1 | Full Metal Cover 35°, E-MHDM35 09-K | silver | 9 | E-MHDM35 09-K | |
| 29561.1 | Full Metal Cover 35°, E-MHDM35 15-K | silver | 15 | E-MHDM35 15-K | |
| 29562.1 | Full Metal Cover 35°, E-MHDM35 25-K | silver | 25 | E-MHDM35 25-K | |
| 29563.1 | Full Metal Cover 35°, E-MHDM35 37-K | silver | 37 | E-MHDM35 37-K |
