HDMI 4K 60Hz AOC Fiber Optic Cable

HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
HDMI 4K 60Hz AOC Fiber Optic Cable 10m
Varenummer: ICOC-HDMI-HY2-010
EAN Nr.: 8051128103977
Forudbestil det ønskede antal nu, eller få besked, når det er tilgængeligt:
Piece
Log ind som kunde
Giv mig besked, når produktet er på lager igen.
Beskrivelse

Produktinformation til HDMI 4K 60Hz AOC Fiber Optic Cable 10m

  • The active High Speed HDMI audio video cable is characterized by copper and fiber conductors, offering a lighter and more flexible structure ideal for installation in confined spaces and longer distances: the ideal solution for conference rooms, classrooms, illuminated signs and much more.
  • The hybrid HDMI cable enables the transmission of high quality video and audio signals for long-distance signal transmission without loss of quality. Signals from sources such as Blu-ray, media players, DVD, SAT etc. they are received by TV UHD and FullHD and projectors with a resolution up to 4Kx2K. The HDMI High Speed fiber optic cable supports 4Kx2K / UHD video resolutions (max 3840x2160 and 4096x2160 @ 60Hz), 1080p / FullHD, 1080i, 720p, 480p.
  • Supports Deep Color rye, HDCP 2.2, EDID, CEC and transmits Audio Return Channel (ARC).

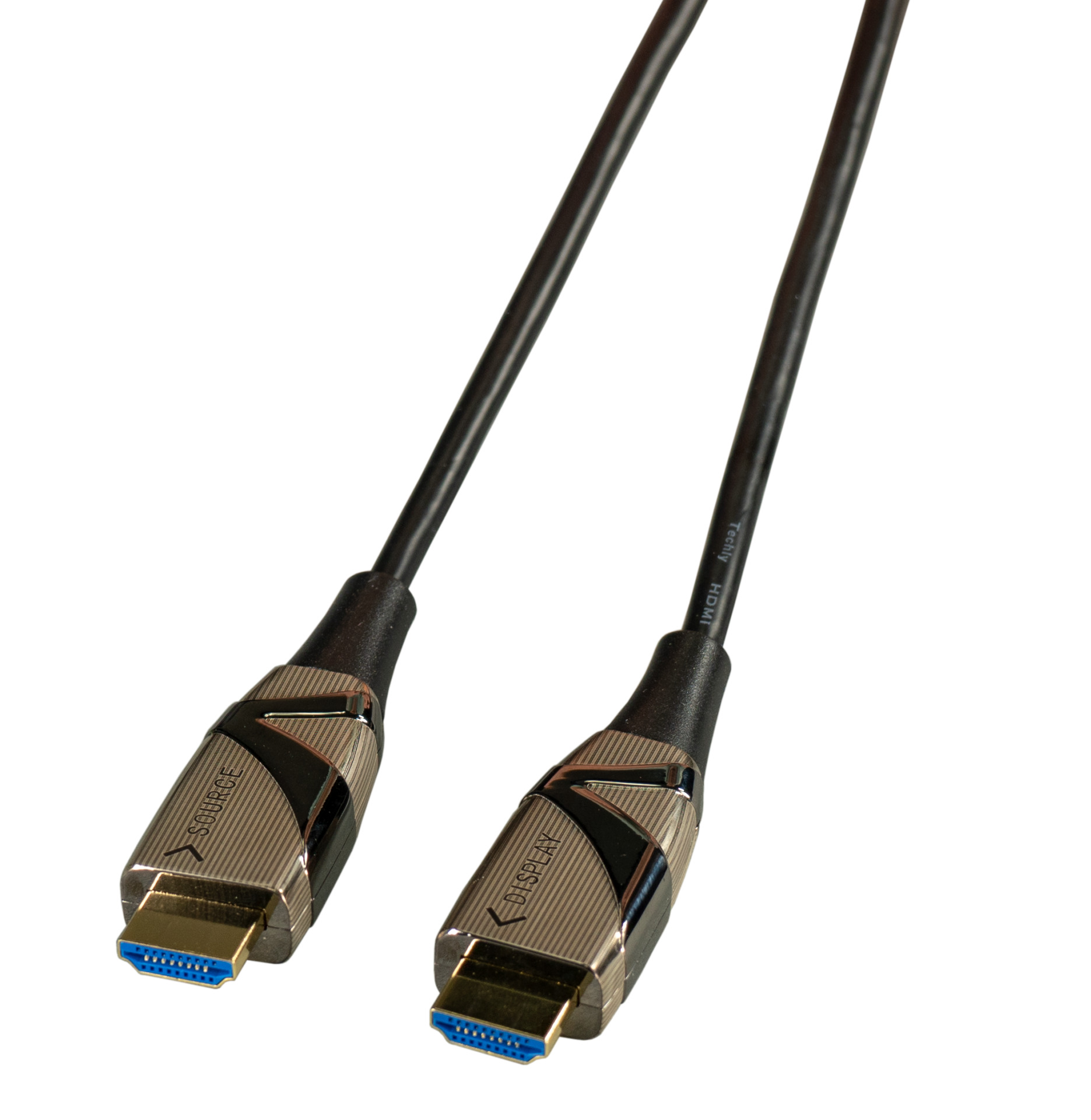

  • NB:This cable has a uni-directional architecture that requires the cable to be installed in the correct direction. Check the "source" and "display" labels on the HDMI connectors to verify that the device and the HDMI source are connected properly.

    • Features
  • Thinner, lighter and softer than the traditional copper cable
  • Supports long transmission distance
  • Highly resistant with EMI and RFI
  • Supports high resolutions: 4K @ 60Hz Ultra HD
  • Compliant with connection to all type A HDMI connector devices
  • Compatible with HDMI 2.0 / 1.4 version
  • Supports devices in HDR 4K format
  • Data rate: 18 Gbps
  • Easy to install; Plug and play
  • Low power consumption and no need for external power supply
  • Supports 60Hz HDR / 3D / 1080p / 1080i / 720p 4K2K format
  • Supports HDCP / EDID / CEC / DDC
  • Audio support
  • Thanks to its flexible and thin design it is ideal for installations where space is limited or limited
  • Black colour

    • Applications
  • Home theater
  • High definition videoconferencing system
  • Medical Video System
  • High definition video surveillance system
  • Digital signal and TV Wall

    • Technical specifications
  • Supported resolution: 3840 * 2160 (4K * 2K)
  • FPS: 60 max.
  • YGB: 4: 2: 0 or 4: 4: 4
  • HDCP: Pass (2.2)
  • Meets HDMI 2.0 requirements

    • Package Contents
  • HDMI cable on optical fiber
    • Tekniske egenskaber

    Tekniske egenskaber

    Anzahl der Pole Anschluss 1: 19
    Anzahl der Pole Anschluss 2: 19
    Ausführung Anschluss 1: Stecker
    Ausführung Anschluss 2: Stecker
    Steckverbindertyp Anschluss 1: HDMI Typ A
    Steckverbindertyp Anschluss 2: HDMI Typ A
    Varianten

    Varianten

    Art. Nr. Bezeichnung Farbe Länge
    ICOC-HDMI-HY2-010 HDMI 4K 60Hz AOC Fiber Optic Cable 10m schwarz 10,0 m
    Vælg varianter
    ICOC-HDMI-HY2-020 HDMI 4K 60Hz AOC Fiber Optic Cable 20m schwarz 20.0 m
    Vælg varianter
    ICOC-HDMI-HY2-030 HDMI 4K 60Hz AOC Fiber Optic Cable 30m schwarz 30,0 m
    Vælg varianter
    ICOC-HDMI-HY2-050 HDMI 4K 60Hz AOC Fiber Optic Cable 50m schwarz 50.0 m
    Vælg varianter
    ICOC-HDMI-HY2-100 HDMI 4K 60Hz AOC Fiber Optic Cable 100m schwarz 100,0 m
    Vælg varianter
    ICOC-HDMI-HY2-015 HDMI 4K 60Hz AOC LWL Kabel 15m, schwarz 15,0 m
    Vælg varianter
    Downloads

    Downloads

    Sikkerhedsanvisninger

    Warnung: Gefahr durch elektrische Schläge und Kurzschlüsse! Achten Sie auf eine ordnungsgemäße Erdung, um elektrische Schläge zu vermeiden. Vermeiden Sie eine Überlastung, da diese zu Überhitzung und Kurzschlüssen führen kann. Überprüfen Sie, dass das Gehäuse unbeschädigt ist und keine freiliegenden Kontakte oder blanken Leitungen vorhanden sind. Stellen Sie sicher, dass alle elektrischen Anschlüsse korrekt ausgeführt sind und die Umgebungsbedingungen den technischen Vorgaben entsprechen. Halten Sie immer ausreichenden Abstand zu stromführenden Geräten und vermeiden Sie Fehlanwendungen.

    Producentangivelse

    IC Intracom Italia S.p.A.
    Viale Europa, 33
    33077 Sacile - Pordenone
    info@techly.com
    https://www.techly.com
