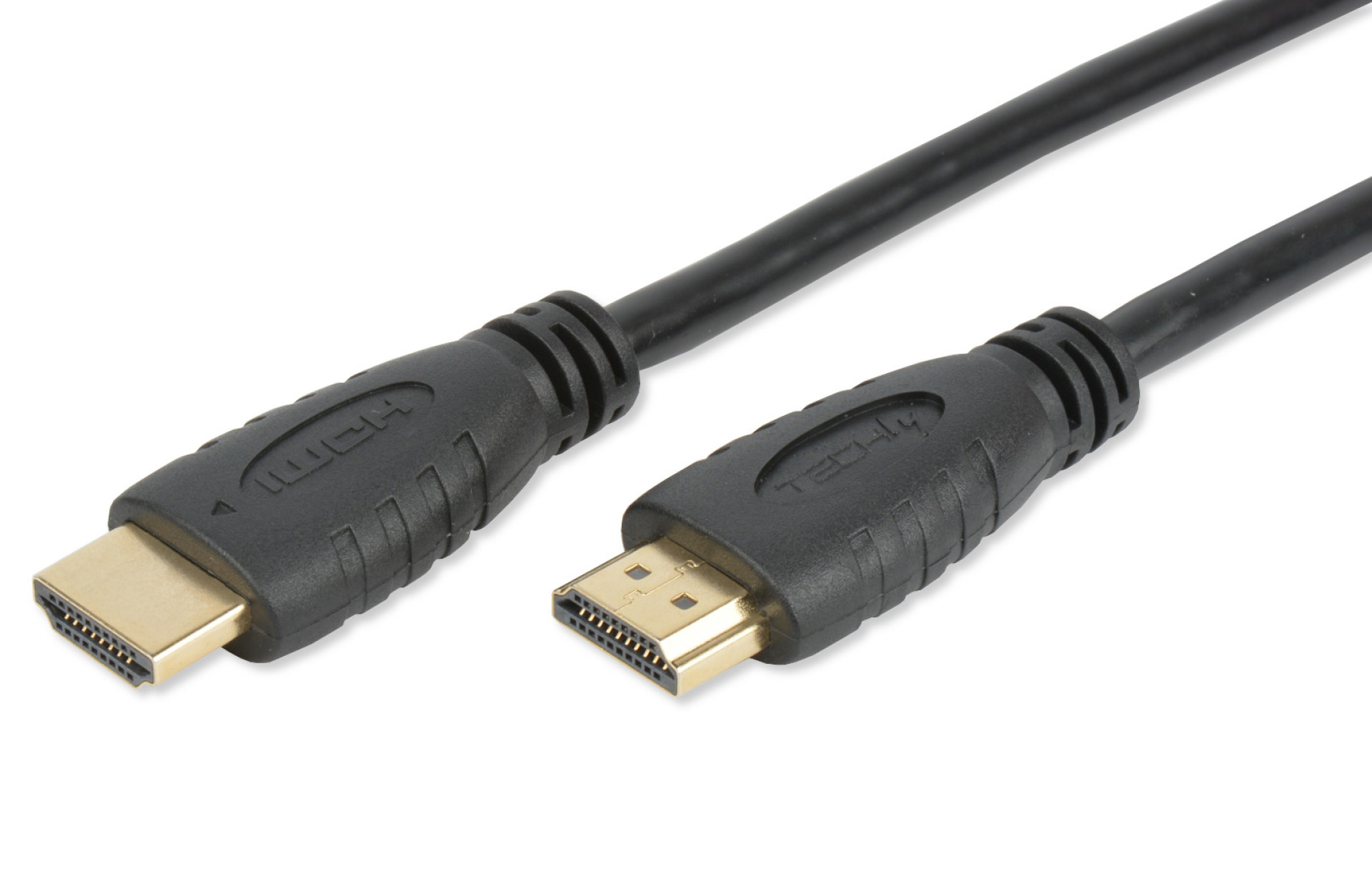

HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black

HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 3m
HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 3m
HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 3m
HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 3m
HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 3m
Varenummer: ICOC-HDMI2-4-030
EAN Nr.: 8054529025923
Piece
Log ind som kunde
Beskrivelse

Produktinformation til HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 3m

  • Triple shielded with resistant connectors for a better performance
  • This cable fully meets the requirements of world standard HDMI. All cable materials are 100% RoHS compliant and lead-free
  • Connections: HDMI 19-pin male to HDMI 19-pin male
  • High-speed, two-way communication up to 100 Mbps
  • Supports HD resolutions beyond 1080p and Deep Color
  • Compliant with HDMI High Speed
  • Molded PVC
  • HDMI Ethernet Channel: supports Internet via HDMI (HEC)
  • Audio Return Channel: Allows a HDMI-connected TV with a built-in tuner to send audio data "upstream" to a surround audio system
  • No need of a separate audio cable
  • Supports 3D: defines protocols input/output for major 3D video formats, even for games and 3D home theater applications
  • Supports a resolution of Ultra HD (4K)

    • General information
  • Bandwidth: 18 Gbps
  • Maximum resolution: 4096×2160 @ 60 Hz
  • 600 MHz
  • Supports HEC

    • Cable and connectors
  • 2x HDMI 19-pin male
  • Gold-plated contacts
  • Molded PVC
  • Braid and aluminium foil
  • Internal conductor: AWG 30
  • Cable diameter: 6.0 mm

    • Features
  • Supports YCbCr 4:2:0
  • Supports 32 audio channels
  • Supports 1536 kHz audio
  • Supports 4 audio streams
  • Supports display 21:9

    • Electrical information
  • Current rating: 0.5 A DC
  • Supports a voltage of 300 V DC
  • Insulation resistance: 50 MOhm
  • Conductive resistance: 2 Ohm

    • Standards and Certifications
  • UL 20276
  • ISO 9002
  • RU
  • EC

    • Package Contents

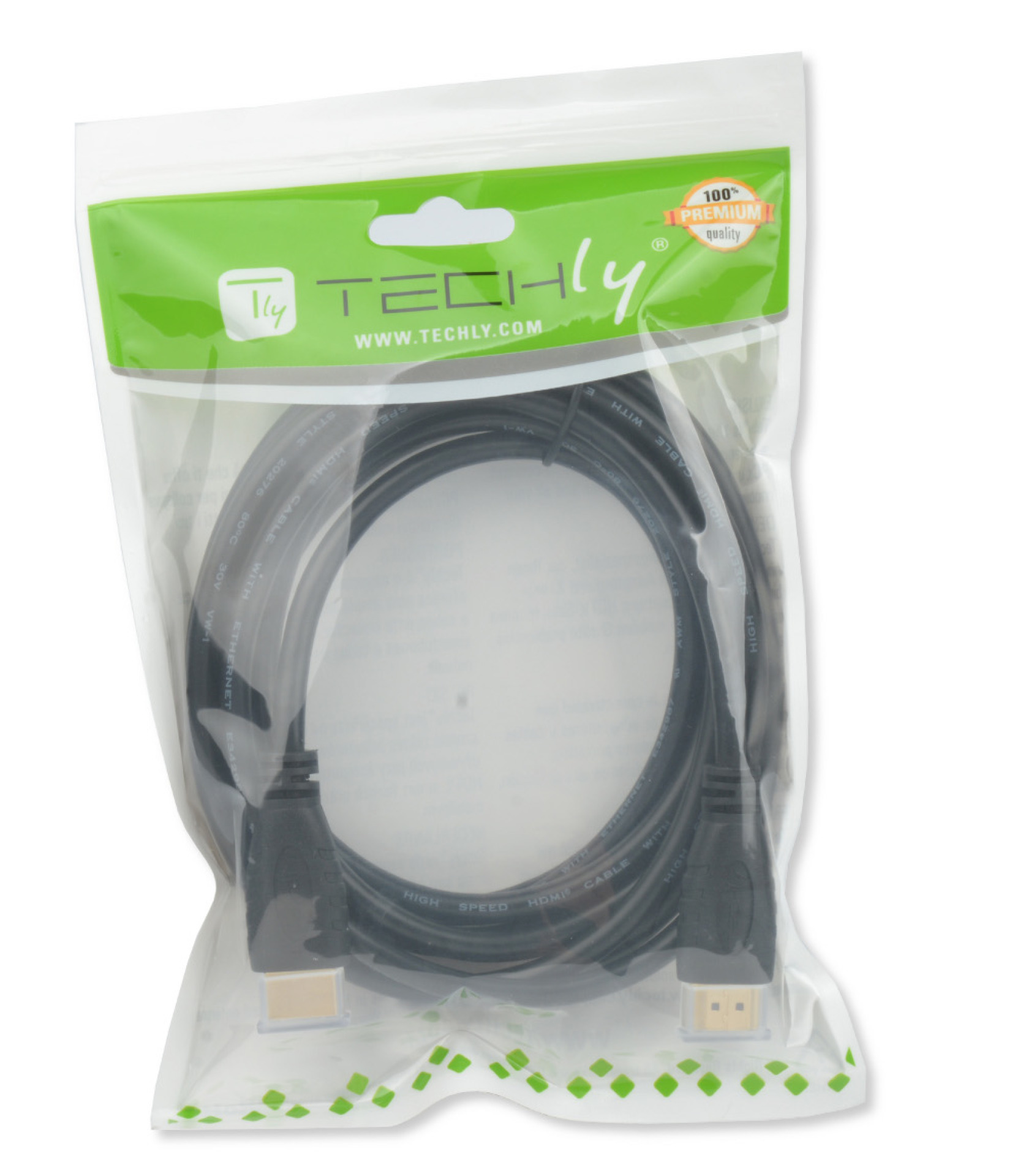

  • 1x HDMI Cable
    • Tekniske egenskaber

    Tekniske egenskaber

    Connection type connection 1: Plug
    Connection type connection 2: Plug
    Number of poles connection 1: 19
    Number of poles connection 2: 19
    Type of connector connection 1: HDMI Type A
    Type of connector connection 2: HDMI Type A
    Varianten

    Varianten

    Art. Nr. Bezeichnung Length Colour AWG
    ICOC-HDMI2-4-005 HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 0,5 m 0.5 m black 30
    Vælg varianter
    ICOC-HDMI2-4-010 HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 1 m 1.0 m black 30
    Vælg varianter
    ICOC-HDMI2-4-020 HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 2 m 2.0 m black 30
    Vælg varianter
    ICOC-HDMI2-4-030 HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 3m 3.0 m black 30
    Vælg varianter
    ICOC-HDMI2-4-060 HDMI 4K 60Hz High Speed Connection Cable with Ethernet, black, 6 m 6.0 m black 30
    Vælg varianter
