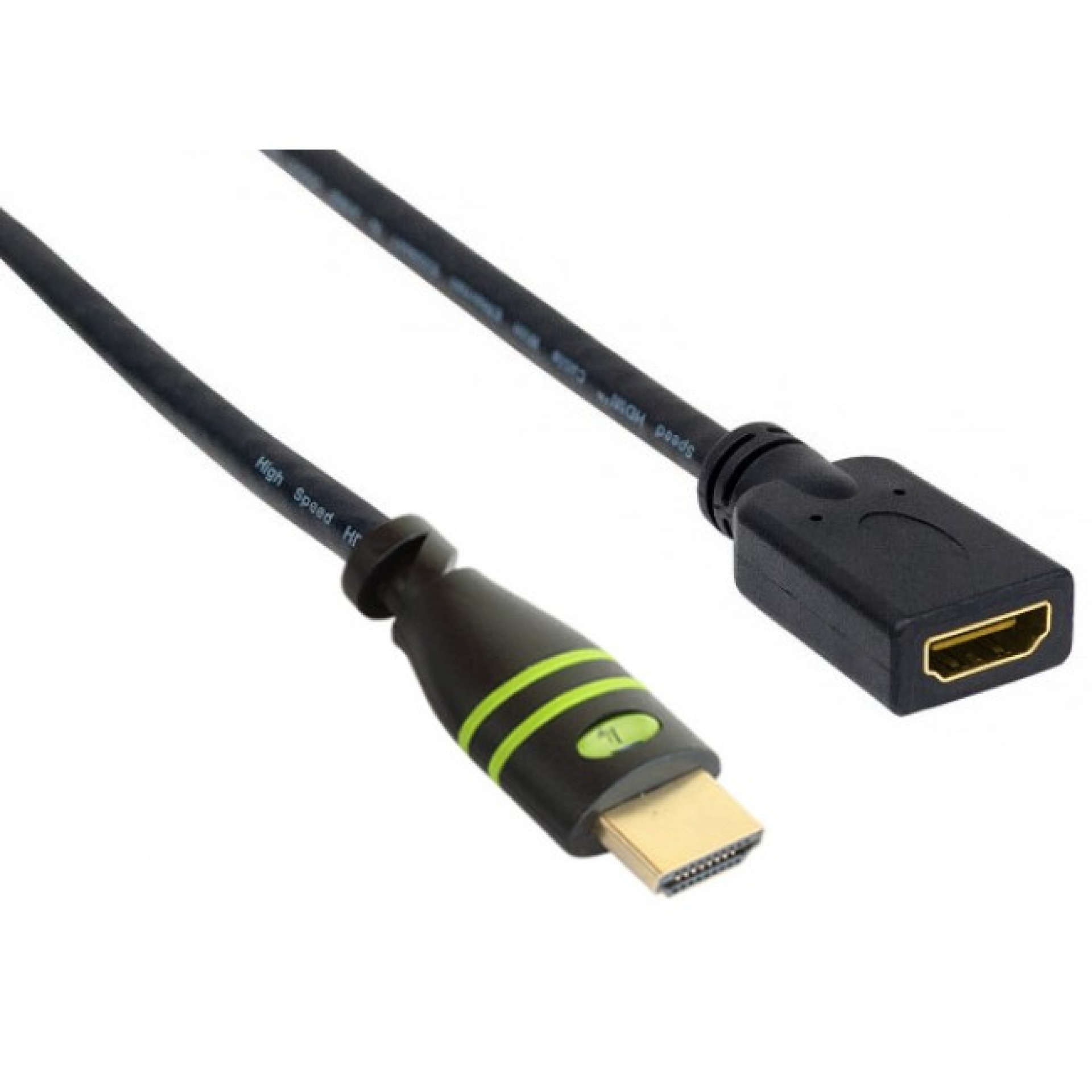

HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F
HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 5.0 m
Varenummer:
ICOC-HDMI2-4-EXT050
EAN Nr.:
8051128106862
Produktinformation til HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 5.0 m
• HDMI 19-pin male to HDMI 19-pin female
• Ensures signal integrity between HDMI devices
• Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 60Hz video resolution and Deep Color
• Conforms to HDMI High Speed specifications with Ethernet
• Up to 10.2 Gbps at 340 MHz bandwidth
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Die-cast PVC connector cover
Standards and certifications:
• UL 20276
• RoHS
• EC
General Information:
• Bandwidth: 10.2 Gbps
• 340 MHz
• Compliant or superior to existing HDMI standards
• Length: 1.8 m
Contacts:
• 1 x HDMI 19-pin male
• 1 x HDMI 19-pin female
• Gold contacts
• PVC die-cast connector covers
• Shielded, braided and aluminum foil
• 30 AWG connectors
Electrical Information:
• Current index: 0.5 A DC
• Voltage: 300 V DC
• Insulation resistance: 10 MOhms
• Conductive resistance: 2 Ohms
Package Contents:
• High Speed HDMI extension cable with Ethernet M / F
• Ensures signal integrity between HDMI devices
• Supports HDMI Ethernet, Audio Return, 3D Video, 4K @ 60Hz video resolution and Deep Color
• Conforms to HDMI High Speed specifications with Ethernet
• Up to 10.2 Gbps at 340 MHz bandwidth
• Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
• Die-cast PVC connector cover
Standards and certifications:
• UL 20276
• RoHS
• EC
General Information:
• Bandwidth: 10.2 Gbps
• 340 MHz
• Compliant or superior to existing HDMI standards
• Length: 1.8 m
Contacts:
• 1 x HDMI 19-pin male
• 1 x HDMI 19-pin female
• Gold contacts
• PVC die-cast connector covers
• Shielded, braided and aluminum foil
• 30 AWG connectors
Electrical Information:
• Current index: 0.5 A DC
• Voltage: 300 V DC
• Insulation resistance: 10 MOhms
• Conductive resistance: 2 Ohms
Package Contents:
• High Speed HDMI extension cable with Ethernet M / F
Tekniske egenskaber
| Anzahl der Pole Anschluss 1: | 19 |
|---|---|
| Anzahl der Pole Anschluss 2: | 19 |
| Ausführung Anschluss 1: | Stecker |
| Ausführung Anschluss 2: | Buchse |
| Steckverbindertyp Anschluss 1: | HDMI Typ A |
| Steckverbindertyp Anschluss 2: | HDMI Typ A |
Varianten
| Art. Nr. | Bezeichnung | Farbe | Länge | |
|---|---|---|---|---|
| ICOC-HDMI2-4-EXT010 | HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 1.0 m | schwarz | 1,0 m | |
| ICOC-HDMI2-4-EXT018 | HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 1.8 m | schwarz | 1,8 m | |
| ICOC-HDMI2-4-EXT030 | HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 3.0 m | schwarz | 3,0 m | |
| ICOC-HDMI2-4-EXT050 | HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 5.0 m | schwarz | 5.0 m | |
| ICOC-HDMI2-4-EXT075 | HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F 7.5 m | schwarz | 7.5 m | |
| ICOC-HDMI2-4-EXT002 | HDMI High Speed with Ethernet Extension Cable 4K 60Hz M / F | schwarz | 0,2 m |
