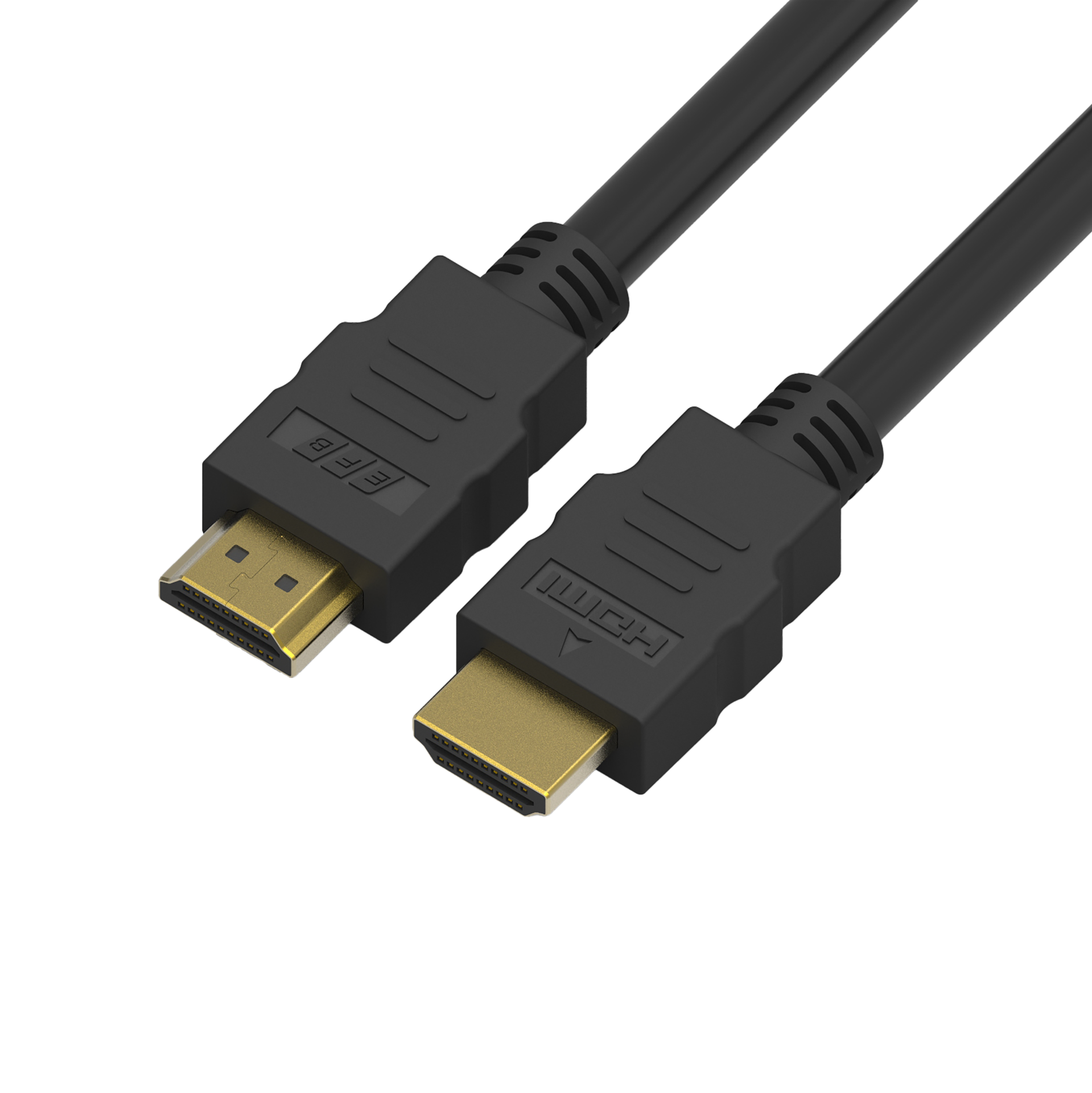

HighSpeed HDMI Connection cable with Ethernet 4K30Hz, Plug Type A - Plug Type A, black
HighSpeed HDMI Cable with Ethernet 4K30Hz, A-A M-M, 5.0m, black
Varenummer:
K5430SW.5
EAN Nr.:
4049759223854
Produktinformation til HighSpeed HDMI Cable with Ethernet 4K30Hz, A-A M-M, 5.0m, black
Shielding: foil + shielded pairs
Jacket: PVC
HDMI™ plugs and contacts gold plated and moulded
Cable length up to 15m
Supported resolutions: Full HD@60Hz and 4K@30Hz
HEC: HDMI™ Ethernet Channel, ARC: Audio Return Channel
Jacket: PVC
HDMI™ plugs and contacts gold plated and moulded
Cable length up to 15m
Supported resolutions: Full HD@60Hz and 4K@30Hz
HEC: HDMI™ Ethernet Channel, ARC: Audio Return Channel
Tekniske egenskaber
| 3D: | True |
|---|---|
| ARC: | True |
| Backwards compatible: | True |
| Beding radius (dynamic/static): | 40 mm |
| CEC: | True |
| Cable and plug compatibility: | Standard HDMI |
| Cable set: | False |
| Cable type (passive/active/optical): | passive |
| Chip: | False |
| Color depth: | 10-Bit |
| Compliant with: | TV |
| Connection type connection 1: | Plug |
| Connection type connection 2: | Plug |
| Connector 1 angulation: | 180° |
| Connector 2 angulation: | 180° |
| Contact Plating: | gold-plated |
| DSC: | False |
| Dust cover: | true |
| Enhanced Color: | Deep Color |
| HDMI Power: | True |
| HDMI certified: | True |
| HEC (Ethernet channel): | True |
| Halogenfree: | No |
| Kink protection: | True |
| MSA: | False |
| MST: | False |
| Material Connector Housing: | PVC molded |
| Material Inner Conductor: | CCS |
| Material jacket: | PVC |
| Max. Transfer Rate: | 10,2 Gbit/s |
| Max. mating cycles: | 5000 |
| Max. resolution: | 4K@30Hz |
| Model: | Round Cable |
| Number of poles connection 1: | 19 |
| Number of poles connection 2: | 20 |
| Number of shieldings: | double |
| Operating temperature: | -5 – 45 °C |
| PCIe Data transfer: | False |
| Plug dimensions Side 1: | 19.3*9.9*37.3mm |
| Plug dimensions Side 2: | 19.3*9.9*37.3mm |
| Printing: | HIGH SPEED HDMI® CABLE WITH ETHERNET www.efb-elektronik.de |
| Scope of delivery: | 1 x HDMI Cable |
| Shielded: | True |
| Storage Temperature: | -20 – 70 °C |
| Supported audio formats: | compressed Audio format (Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio, Dolby Atmos) |
| Supported video standards: | HD - High Definition |
| Tensile strength (short/long): | 98,1 N |
| Type of connector connection 1: | HDMI Type A |
| Type of connector connection 2: | HDMI Type A |
| Type of packaging: | plastic bag |
| Type of signal: | Digital |
| VESA certified: | False |
| VRR: | False |
| Various lengths cable set: | 1x0.5m |
| Version: | HDMI Version 1.4 |
| Warranty: | 36 months |
| With termination resistor: | False |
| eARC: | False |
Varianten
| Art. Nr. | Bezeichnung | Colour | Length | Diameter | AWG | |
|---|---|---|---|---|---|---|
| K5430SW.1 | HighSpeed HDMI Cabel with Ethernet 4K30Hz ,A-A M-M, 1m, black | black | 1.0 m | 5.5 mm | 30AWG | |
| K5430SW.2 | HighSpeed HDMI Cable with Ethernet 4K30Hz ,A-A M-M, 2.0m, black | black | 2.0 m | 5.5 mm | 30AWG | |
| K5430SW.3 | HighSpeed HDMI Cable with Ethernet 4K30Hz, A-A M-M, 3.0m, black | black | 3.0 m | 5.5 mm | 30AWG | |
| K5430SW.5 | HighSpeed HDMI Cable with Ethernet 4K30Hz, A-A M-M, 5.0m, black | black | 5.0 m | 6.0 mm | 30AWG | |
| K5430SW.10 | HighSpeed HDMI Cable with Ethernet 4K30Hz, A-A M-M, 10.0m, black | black | 10.0 m | 7.3 mm | 28AWG | |
| K5430SW.15 | HighSpeed HDMI Cable with Ethernet 4K30Hz, A-A M-M, 15.0m, black | black | 15.0 m | 8.0 mm | 26AWG |
