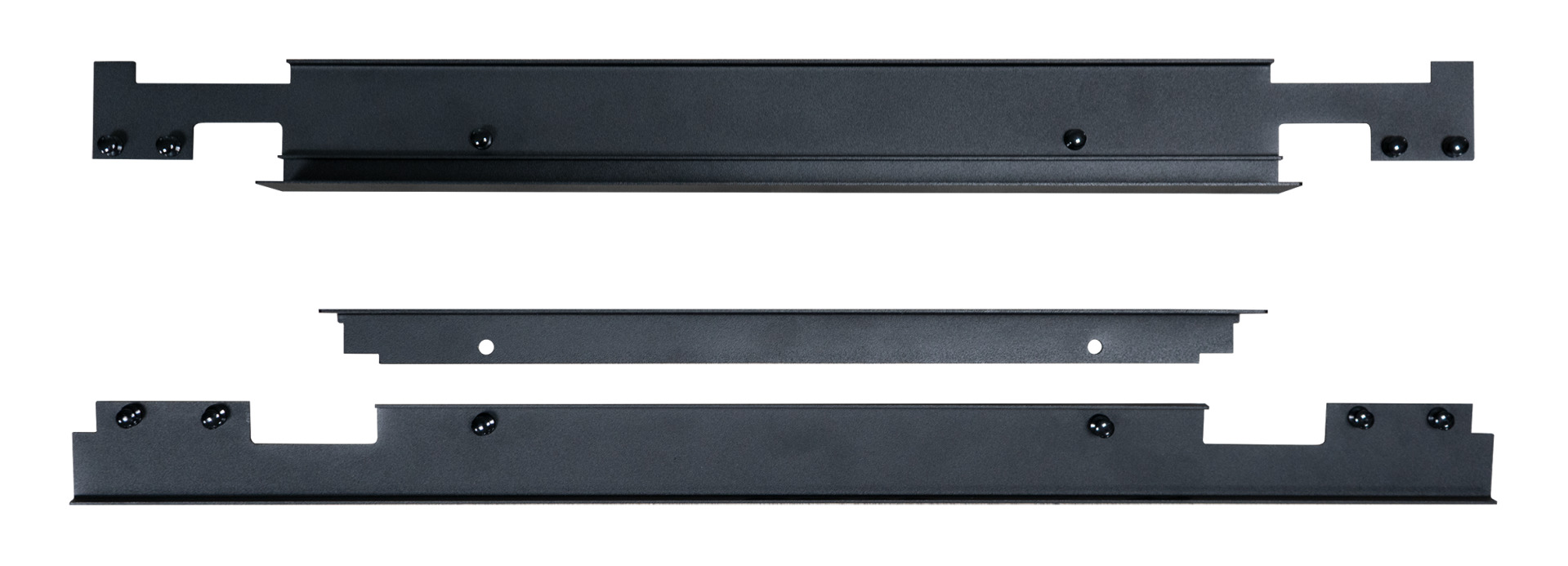

Horizontal Cover/Air Routing for EFB-Server W=800
Horizontal Cover/Air Routing for ESV 42U B=800, Set 2 Stück, RAL7035
Varenummer:
ESV-HAB428.GR
EAN Nr.:
4049759244224
Produktinformation til Horizontal Cover/Air Routing for ESV 42U B=800, Set 2 Stück, RAL7035
Note: for fixing, Side covers ESV-SAExxx are necessary
For covering the area above and below of the 19“ level in cabinets EFB-Server in width 800 mm
Serves as blinding and control of the air flow
Toolless mounting at the side covers
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x panel incl. mounting accessories (toolless)
For covering the area above and below of the 19“ level in cabinets EFB-Server in width 800 mm
Serves as blinding and control of the air flow
Toolless mounting at the side covers
Material steel sheet
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 2 x panel incl. mounting accessories (toolless)
Tekniske egenskaber
| Cabinet Series: | EFB-Server |
|---|---|
| Material: | Metal |
| Model: | Cover |
| Mounting position: | Other |
Varianten
| Art. Nr. | Bezeichnung | For Cabinet Width | Color | Number of height units | Width | RAL-number | |
|---|---|---|---|---|---|---|---|
| ESV-HAB428.GR | Horizontal Cover/Air Routing for ESV 42U B=800, Set 2 Stück, RAL7035 | 800 mm | grey | 42 U | 800 mm | 7035 | |
| ESV-HAB478.GR | Horizontal Cover/Air Routing for ESV 47U B=800, Set 2 Stück, RAL7035 | 800 mm | grey | 47 U | 800 mm | 7035 | |
| ESV-HAB428.TS | Horizontal Cover/Air Routing for ESV 42U B=800, Set 2 Stück, RAL9005 | 800 mm | black | 42 U | 800 mm | 9005 | |
| ESV-HAB478.TS | Horizontal Cover/Air Routing for ESV 47U B=800, Set 2 Stück, RAL9005 | 800 mm | black | 47 U | 800 mm | 9005 |
