Cat.7 outdoor cable UC900 SS23 (L)H + armouring + PE
ICS IE UC900 SS23 Cat.7 (L)H + armouring + PE, UV-resistant, black
Varenummer:
99739.1
EAN nr.:
8717511645584
Produktinformation til ICS IE UC900 SS23 Cat.7 (L)H + armouring + PE, UV-resistant, black

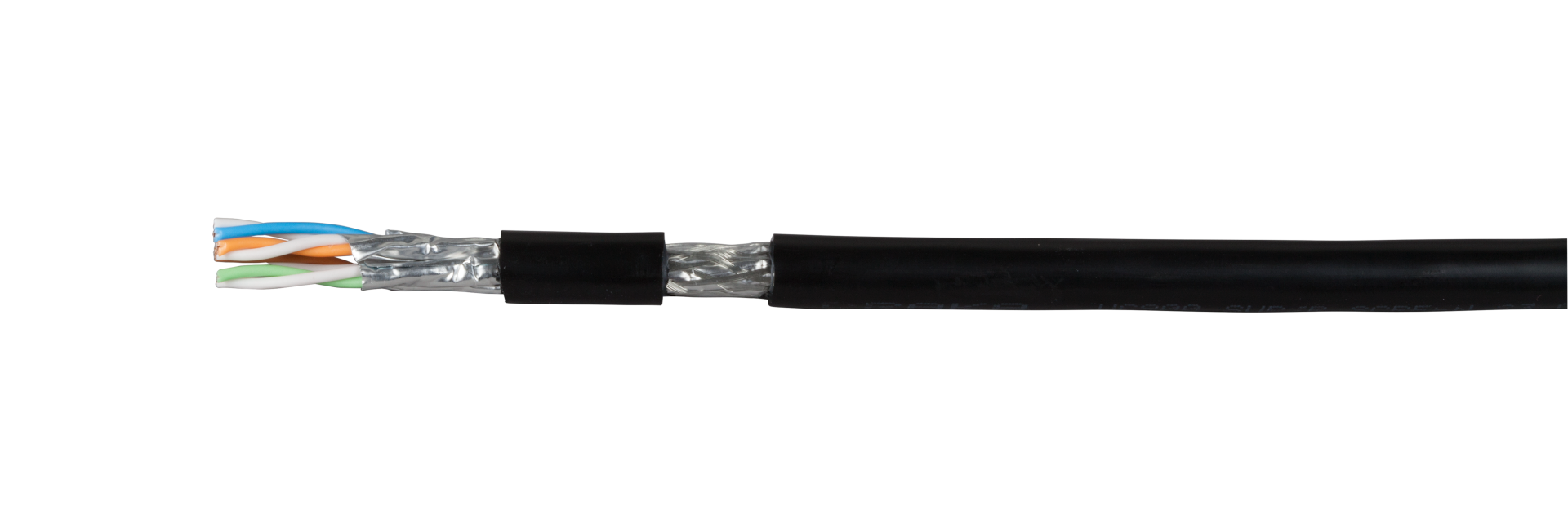

The data cable is an installation cable with a thick-walled polyethylene outer sheath and armouring, suitable for direct burial, UV-resistant Suitable for transmission rates up to 1000 MHz. A reinforcement of galvanized steel wire mesh serves as rodent protection. Due to a LSZH-interjacket, the cable is suitable for the use inside the building after removing the PE-jacket. The cable exceeds the requirements of the category 7 and lower with the electrical transmission properties. Suitable for structured cabling of Class E, EA, F according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). With this cable, transmission rates up to 10 GBit according to IEEE 802.3 are possible.

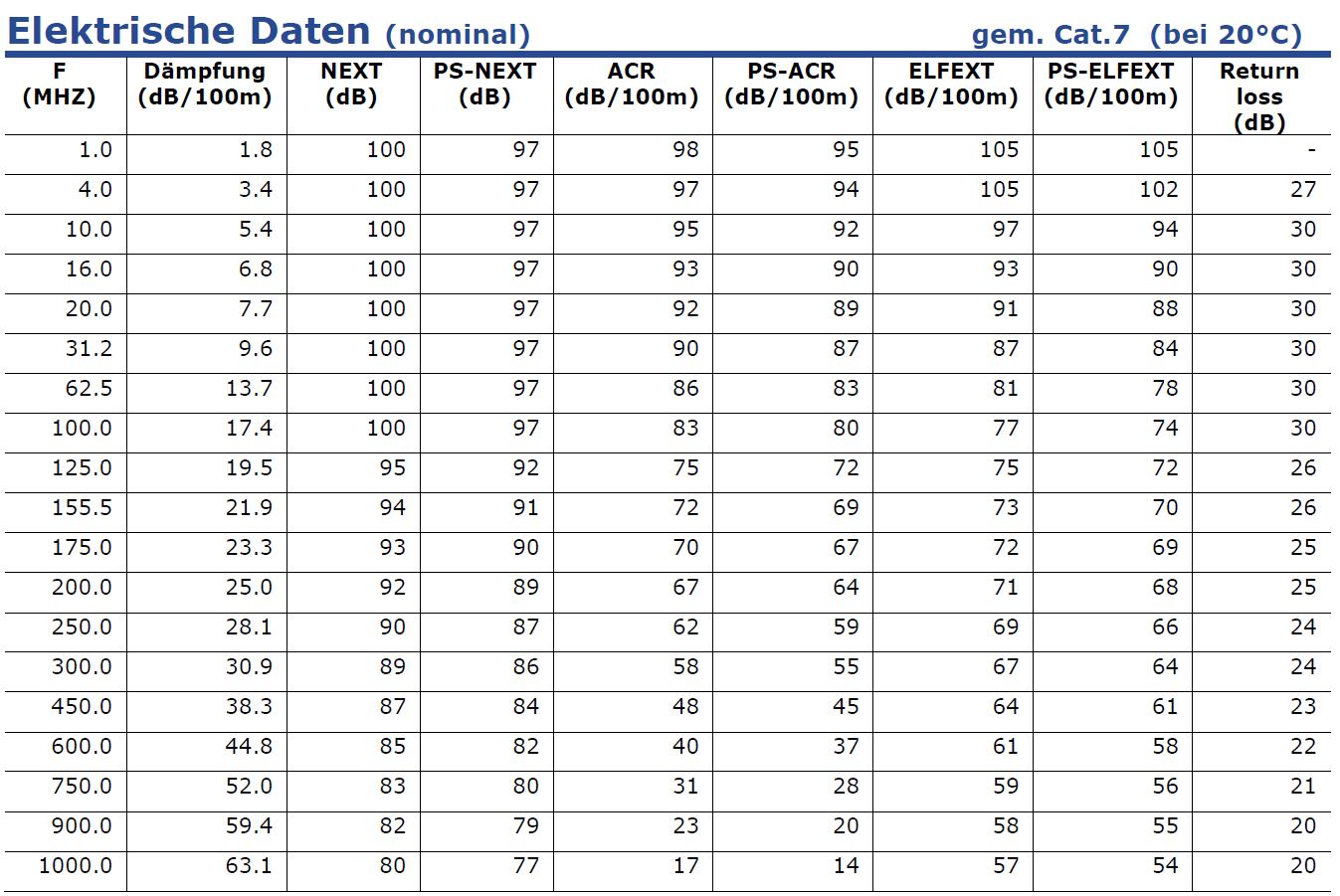

| AWG-size: | 23/1 |
|---|---|
| Armour: | Galvanized steel wire braid |
| Bending radius (dynamic): | 80 mm |
| Bending radius (static): | ≥ 80 mm |
| Cable: | EN 50288-4-1 900, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | Draka UC900 SS23 PE + BW + UV |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 85 dB |
| Delay skew: | ≤ 12 ns/100m |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | False |
| Halogen free: | False |
| Halogen free (acc. EN 50267-2-2): | False |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | Polyethylene (PE) |
| Loop resistance: | 154 Ohm/km |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Max. frequency: | MHz MHz |
| NVP value: | 79 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 20 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | True |
Tekniske egenskaber
| AWG-size: | 23/1 |
|---|---|
| Armour: | Galvanized steel wire braid |
| Bending radius (dynamic): | 80 mm |
| Bending radius (static): | ≥ 80 mm |
| Cable: | EN 50288-4-1 900, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | Draka UC900 SS23 PE + BW + UV |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 85 dB |
| Delay skew: | ≤ 12 ns/100m |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | False |
| Halogen free: | False |
| Halogen free (acc. EN 50267-2-2): | False |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | Polyethylene (PE) |
| Loop resistance: | 154 Ohm/km |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Max. frequency: | MHz MHz |
| NVP value: | 79 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 20 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | True |
Produktinformation til ICS IE UC900 SS23 Cat.7 (L)H + armouring + PE, UV-resistant, black
The data cable is an installation cable with a thick-walled polyethylene outer sheath and armouring, suitable for direct burial, UV-resistant Suitable for transmission rates up to 1000 MHz. A reinforcement of galvanized steel wire mesh serves as rodent protection. Due to a LSZH-interjacket, the cable is suitable for the use inside the building after removing the PE-jacket. The cable exceeds the requirements of the category 7 and lower with the electrical transmission properties. Suitable for structured cabling of Class E, EA, F according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). With this cable, transmission rates up to 10 GBit according to IEEE 802.3 are possible.
| AWG-size: | 23/1 |
|---|---|
| Armour: | Galvanized steel wire braid |
| Bending radius (dynamic): | 80 mm |
| Bending radius (static): | ≥ 80 mm |
| Cable: | EN 50288-4-1 900, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | Draka UC900 SS23 PE + BW + UV |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 85 dB |
| Delay skew: | ≤ 12 ns/100m |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | False |
| Halogen free: | False |
| Halogen free (acc. EN 50267-2-2): | False |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | Polyethylene (PE) |
| Loop resistance: | 154 Ohm/km |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Max. frequency: | MHz MHz |
| NVP value: | 79 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 20 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | True |
| AWG-size: | 23/1 |
|---|---|
| Armour: | Galvanized steel wire braid |
| Bending radius (dynamic): | 80 mm |
| Bending radius (static): | ≥ 80 mm |
| Cable: | EN 50288-4-1 900, IEC 61156-6 |
| Cable silicone free: | True |
| Cable structure: | S/FTP |
| Cable type: | Draka UC900 SS23 PE + BW + UV |
| Cabling standards: | EN 50173-1, ISO/IEC 11801 |
| Category: | 7 |
| Characteristic impedance: | 100 ± 5 Ohm |
| Conductor category: | Class 1 = solid |
| Conductor material: | Copper, bare |
| Core identification: | Colour |
| Core insulation: | Foam-Skin-PE |
| Coupling attenuation: | ≥ 85 dB |
| Delay skew: | ≤ 12 ns/100m |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | none |
| Flame retardant: | False |
| Halogen free: | False |
| Halogen free (acc. EN 50267-2-2): | False |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Installation standard: | EN 50174 |
| Insulation resistance (500V): | ≥ 5000 MOhm/km |
| Jacket material: | Polyethylene (PE) |
| Loop resistance: | 154 Ohm/km |
| Low smoke: | No |
| Low smoke (acc. EN 61034-2): | False |
| Max. frequency: | MHz MHz |
| NVP value: | 79 % |
| Nominal cross section conductor: | 0.26 mm² |
| Operating capacity: | 43 pF/km |
| Operating temperature, fix: | -20 – 75 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| Operating temperature, storage: | -20 – 60 °C |
| PoE: | acc. to IEEE802.3af PoE, acc. to IEEE802.3at PoE+, acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 2 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transfer impedance at 1MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 10MHz: | ≤ 5 mOhm/m |
| Transfer impedance at 30MHz: | ≤ 10 mOhm/m |
| Transfer impedance at 100MHz: | ≤ 20 mOhm/m |
| Transmission standards: | IEEE 802.3 10Mbit bis 10Gbit |
| UV resistant: | True |
