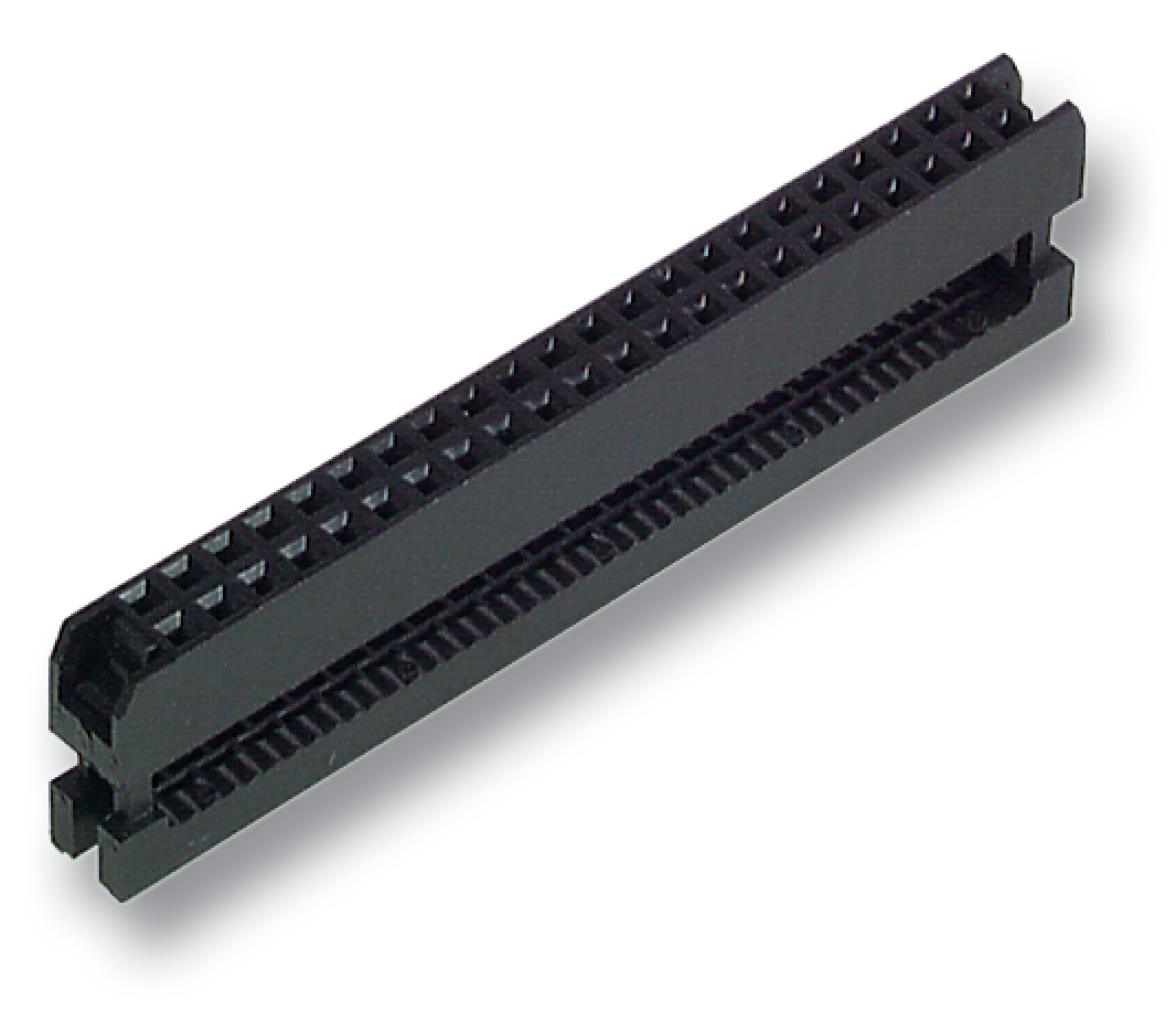

IDC Connector, pitch 2.00 E-WP 44-pole
Varenummer:
30044.1
EAN nr.:
4049759038656
Produktinformation für IDC Connector, pitch 2.00 E-WP 44-pole
IDC Connector, pitch 2.00. For flat cable 92944.30R
Tekniske egenskaber
| Basic colour: | black |
|---|---|
| Closing plate required: | True |
| Connectable conductor cross section fine-strand with cable end sleeve: | 3 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve: | 3 mm² |
| Connectable conductor cross section multi-wired: | 3 mm² |
| Connectable conductor cross section solid-core: | 3 mm² |
| Connection position: | top |
| Height at lowest possible mounting height: | 7 mm |
| Inflammability class of insulation material according to with UL94: | - |
| Length: | 49.2 mm |
| Material insulation body: | other |
| Mounting method: | other |
| N function possible: | False |
| Number of potentials: | 44 |
| Operating Temperature: | 105 °C |
| PE-function: | False |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | plug clamp connection |
| Type of electrical connection 2: | - |
| Width/grid dimension: | - mm |
| With N-disconnect slide: | False |
| With test disconnector: | False |
