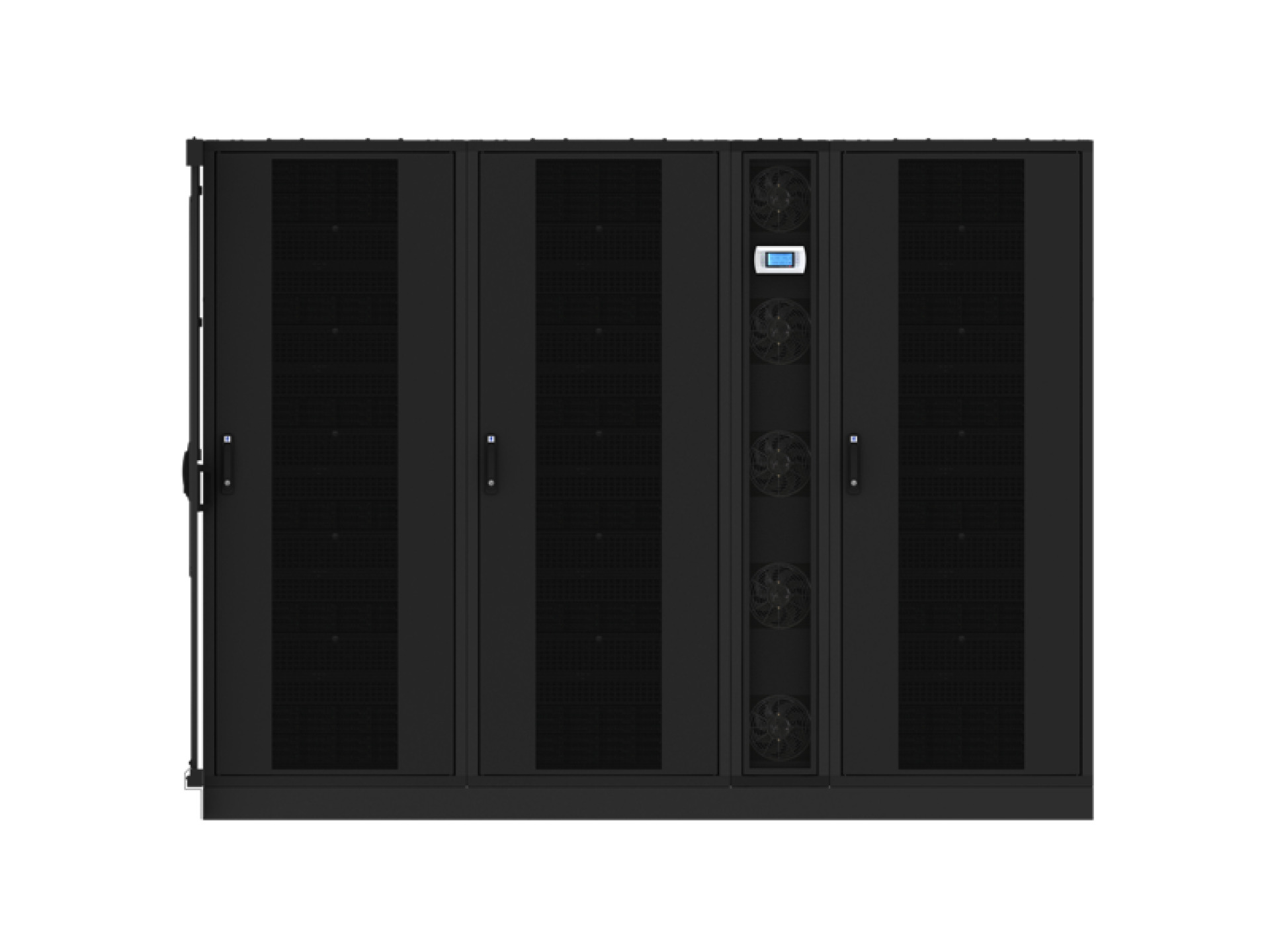

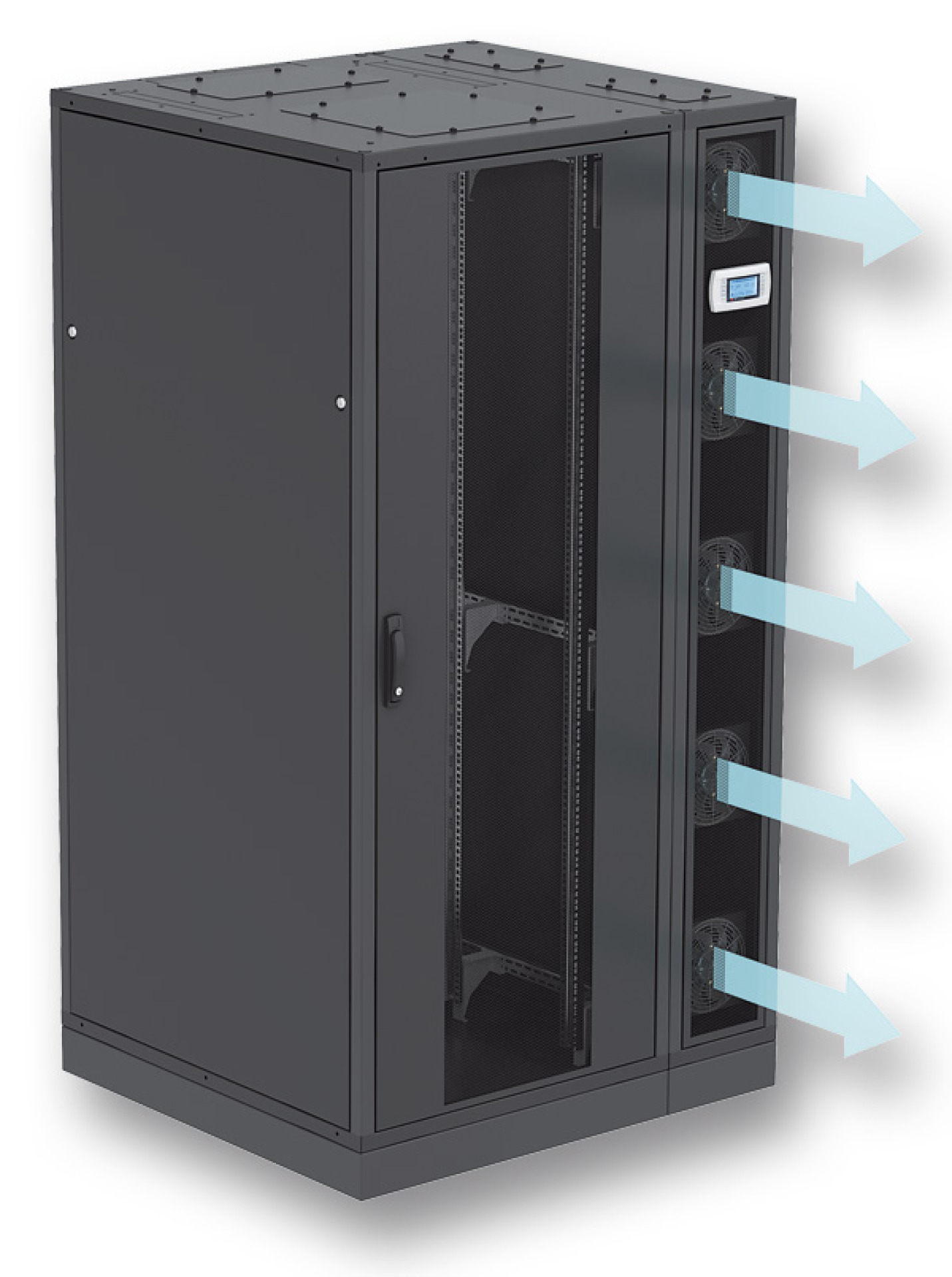

In-Row Cooler 42U, 300x1000, 12.3 / 16 / 19.5 kW, Cold Water
In-Row Cooler 42U, 300x1000, 12.3 kW, Cold Water, RAL9005
Varenummer:
PRO-RKL4230TS.KW1
EAN Nr.:
4049759243463
Produktinformation til In-Row Cooler 42U, 300x1000, 12.3 kW, Cold Water, RAL9005
In-Row coolers suitable for use with cabinet series PRO and EFB-Server (ESV)
Variant for cooling medium cold water in performance steps 12.3 kW, 16 kW or 19.5 kW
Easy installation without access to inside of the cabinet

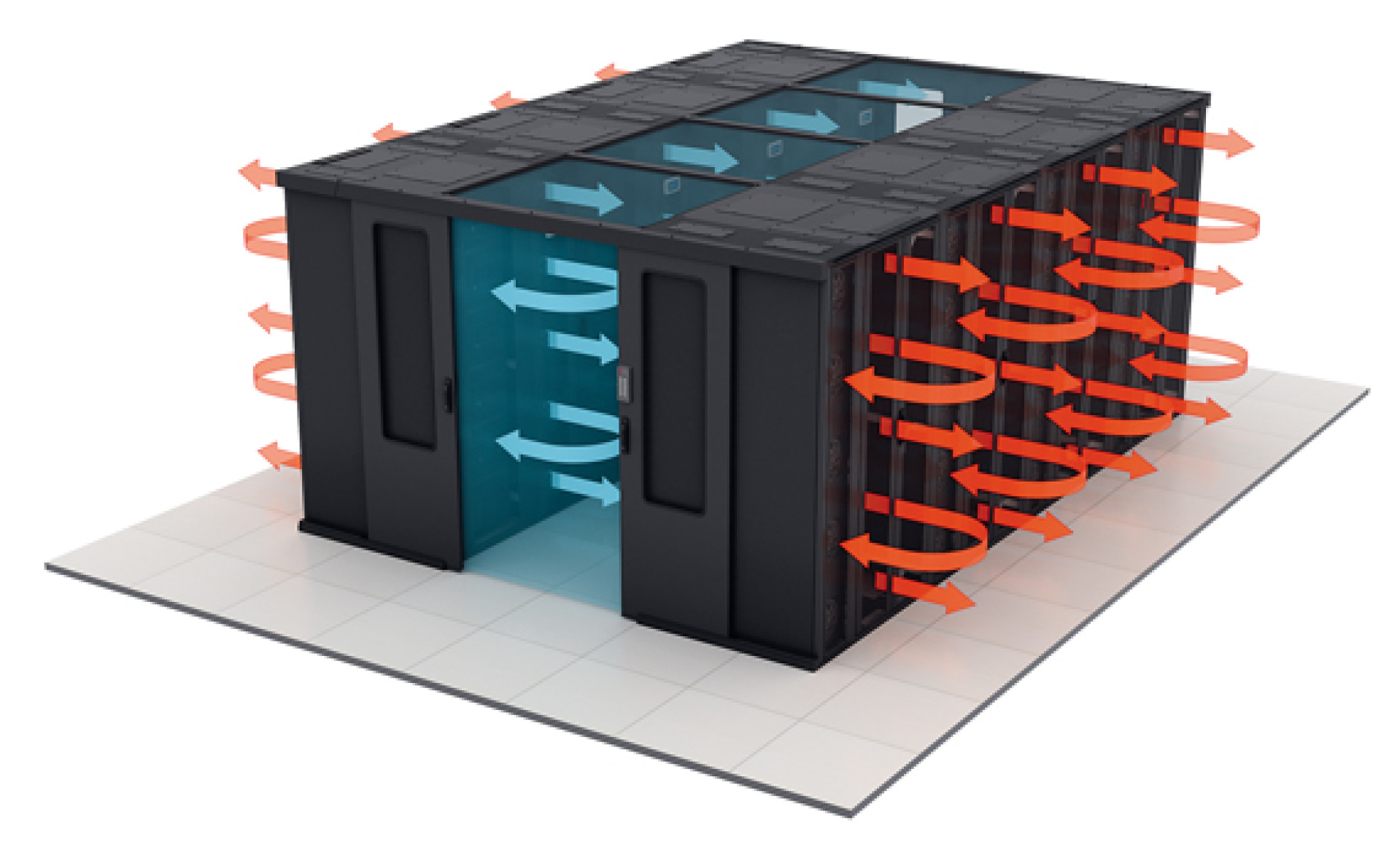

Ensuring a constant air flow and avoiding hot spots
Short distance between cold air supplay and active devices
Immediate discharge of hot air from the active devices
Easy realisation of N+1 redundancy
Supply of the cooling medium from above or below of the heat exchanger
Hydraulic connectors enable the connection at the top or bottom side of the heat exchanger
Different dimensions possible: 42U .. 47U, depths 1000 or 1200 mm
Change of filter possible while operation
Collection and discharge of condensate via condensat pump
Measuring of humidity and temperature
Sophisticated control unit for control of operation modi
Communication via Ethernet
Material steel
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x in-row cooler complete, consiting of heat exchanger, AC-fans, condensate pump, control unit, housing
Delivery in transport packaging on disposable pallet
Variant for cooling medium cold water in performance steps 12.3 kW, 16 kW or 19.5 kW
Easy installation without access to inside of the cabinet
Ensuring a constant air flow and avoiding hot spots
Short distance between cold air supplay and active devices
Immediate discharge of hot air from the active devices
Easy realisation of N+1 redundancy
Supply of the cooling medium from above or below of the heat exchanger
Hydraulic connectors enable the connection at the top or bottom side of the heat exchanger
Different dimensions possible: 42U .. 47U, depths 1000 or 1200 mm
Change of filter possible while operation
Collection and discharge of condensate via condensat pump
Measuring of humidity and temperature
Sophisticated control unit for control of operation modi
Communication via Ethernet
Material steel
Paint finish RAL7035, light grey / RAL9005, jet black
Scope of delivery: 1 x in-row cooler complete, consiting of heat exchanger, AC-fans, condensate pump, control unit, housing
Delivery in transport packaging on disposable pallet
Varianten
| Art. Nr. | Bezeichnung | Cool power | Add-on type | Refrigerant | Voltage type | Options | |
|---|---|---|---|---|---|---|---|
| PRO-RKL4230TS.KW1 | In-Row Cooler 42U, 300x1000, 12.3 kW, Cold Water, RAL9005 | 12.3 kW | Integrated | Cold water | AC | 3 x EC-Fans, Ethernet, HTOP | |
| PRO-RKL4230TS.KW2 | In-Row Cooler 42U, 300x1000, 16 kW, Cold Water, RAL9005 | 16 kW | Integrated | Cold water | AC | 5 x EC-Fans, Ethernet, HTOP | |
| PRO-RKL4230TS.KW3 | In-Row Cooler 42U, 300x1000, 19.5 kW, Cold Water, RAL9005 | 19.5 kW | Integrated | Cold water | AC | 5 x EC-Fans, Ethernet, HTOP |
Sikkerhedsanvisninger
Do not block any ventilation openings to prevent components from overheating. Do not operate the appliance beyond the permissible connected loads to prevent overloading and excessive heat generation. Ensure that the device does not overheat during operation.
