INFRALAN® I-B(ZN)BH 50/125µ, OM3

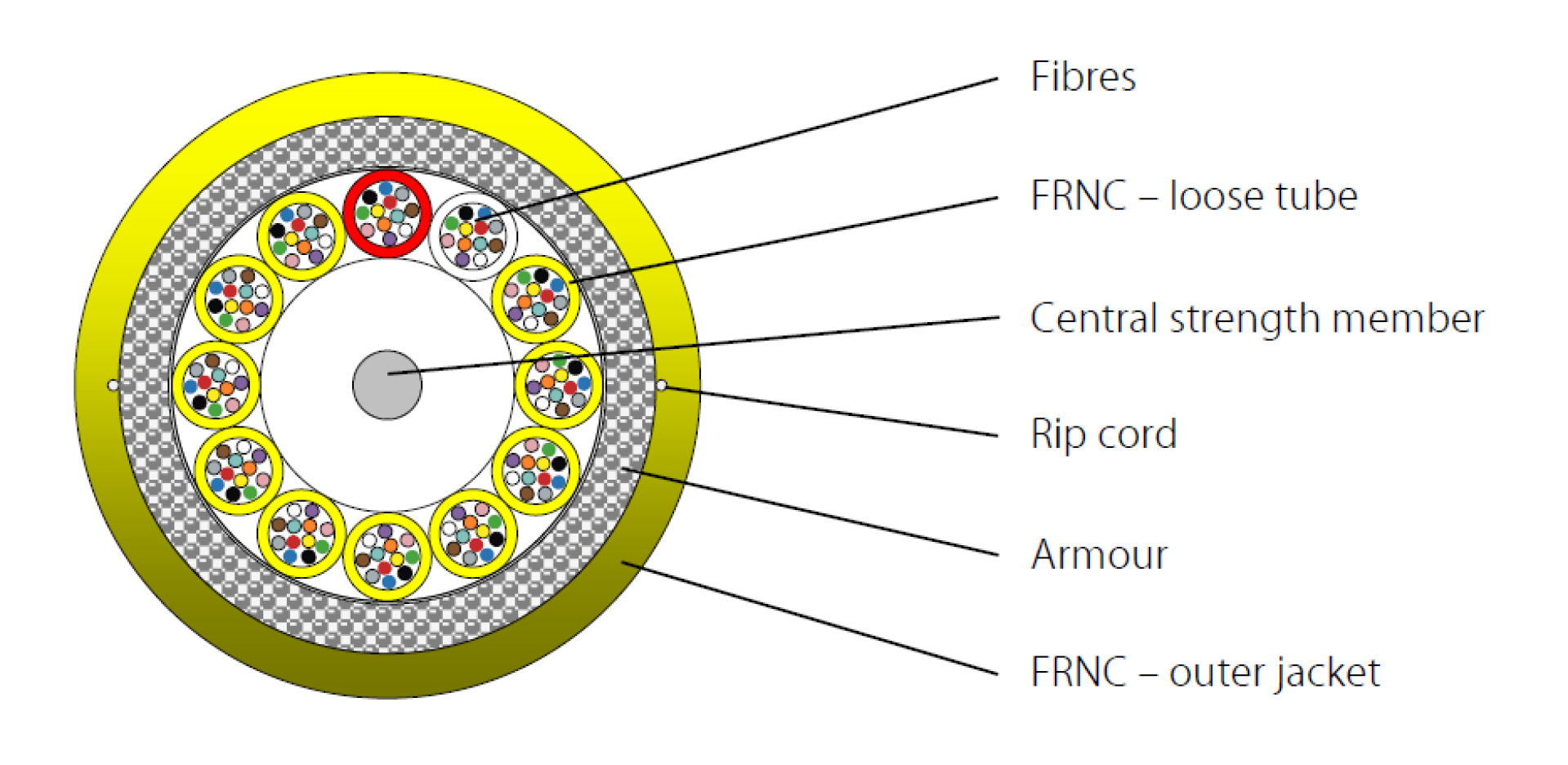

INFRALAN® I-B(ZN)BH OM3 48G (4x12) B2ca 3000N LSZH aqua 8.3mm
Varenummer:
56348.2OM3-CPR
EAN-nr.:
4049759223199
Produktinformation til INFRALAN® I-B(ZN)BH OM3 48G (4x12) B2ca 3000N LSZH aqua 8.3mm
Fields of application:
For building connections
For campus cabling
For use in plastic pipe systems
For installation in cable ducts and on flatbeds
Characteristics:
Easy to use construction
Gel-free cable construction for clean and fast assembly
Small dimensions
High laying stability
Fire behaviour tested and certified according to
Construction Products Regulation (see Euro fire class)
Cable diameter may vary
For building connections
For campus cabling
For use in plastic pipe systems
For installation in cable ducts and on flatbeds
Characteristics:
Easy to use construction
Gel-free cable construction for clean and fast assembly
Small dimensions
High laying stability
Fire behaviour tested and certified according to
Construction Products Regulation (see Euro fire class)
Cable diameter may vary
Tekniske egenskaber
| Application: | Inside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | No |
| Colour outer sheath: | aqua |
| Crush resistance: | 1000 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OM3 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | acc. to EN 60332-3-24 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.7 dB/km |
| IL max. (dB/km) 1300nm: | 0.8 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | False |
| Low smoke: | True |
| Oil resistant: | no |
| Radial water blocking: | False |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable1x Drum |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -10 – 70 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Tube marking: | Colour |
| Tube Ø: | 1.6 mm |
| Type of tube: | Stranded loose tube |
| UV resistant: | no |
| With rodent protection: | Ja |
| With strain relief: | True |
Variants
| ON | Label | Category | Number of fibers | Cable Ø | Tensile force max. | CPR-Class | Number of fibres per tube | Construct | Suitable for underground installation | Outer diameter approx. | Fire load | Bending radius | Minimum bending radius (dynamic) | VDE-Name | Weight | Minimum bending radius (static) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 56324.2OM3-CPR | INFRALAN® I-B(ZN)BH OM3 24G (2x12) B2ca 3000N LSZH aqua 8.3mm | OM3 | 24 | 8.3 mm | 3000 N | B2ca | 12 | (2x12) | False | 8.3 mm | 0.78 MJ/m | 166 mm | 15xOD mm | I-B(ZN)BH 24G50/125 | 75 kg/km | 10xOD mm | |
| 56348.2OM3-CPR | INFRALAN® I-B(ZN)BH OM3 48G (4x12) B2ca 3000N LSZH aqua 8.3mm | OM3 | 48 | 8.3 mm | 3000 N | B2ca | 12 | (4x12) | False | 8.3 mm | 0.78 MJ/m | 166 mm | 15xOD mm | I-B(ZN)BH 48G50/125 | 75 kg/km | 10xOD mm |
