U-DQ(ZN)BH 50/125µ OM4 1750N
INFRALAN® U-DQ(ZN)BH OM4 4G (1x4) Dca 1750N LSZH black 7.0mm
Varenummer:
54504.2L-CPR
EAN nr.:
4049759180577
Produktinformation til INFRALAN® U-DQ(ZN)BH OM4 4G (1x4) Dca 1750N LSZH black 7.0mm
Application:
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
| Application: | Inside/outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | No |
| Colour outer sheath: | black |
| Crush resistance: | 1500 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | acc. to EN 60332-3-24 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.5 dB/km |
| IL max. (dB/km) 1300nm: | 0.7 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Low smoke (acc. EN 61034-2): | True |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | True |
| Rayleigh Backscatter Coefficient 850nm: | 1.483 |
| Rayleigh Backscatter Coefficient 1300nm: | 1.478 |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable1x Drum |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Tube marking: | Colour |

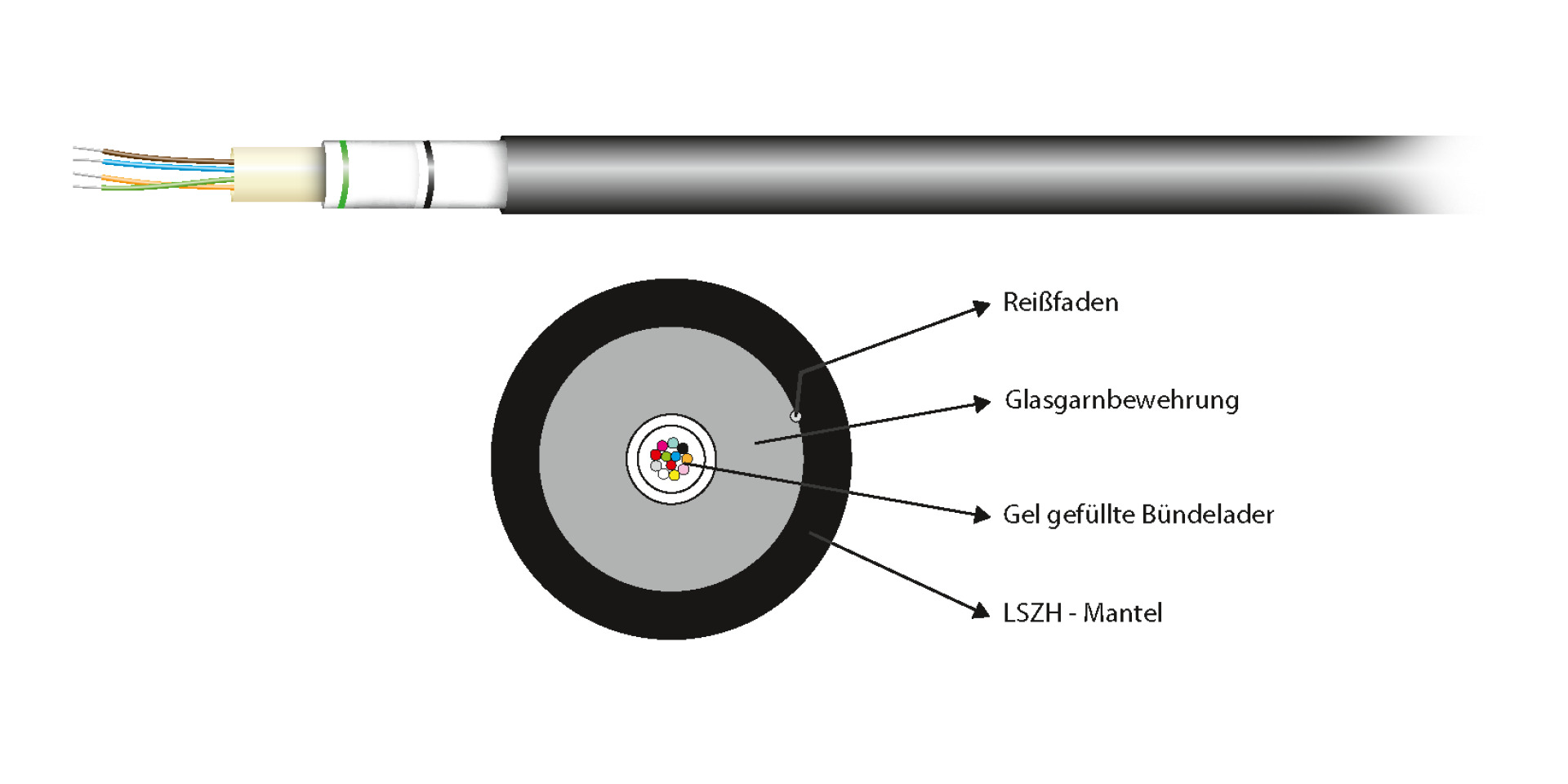

| Tube Ø: | 3.5 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
Tekniske egenskaber
| Application: | Inside/outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | No |
| Colour outer sheath: | black |
| Crush resistance: | 1500 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | acc. to EN 60332-3-24 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.5 dB/km |
| IL max. (dB/km) 1300nm: | 0.7 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Low smoke (acc. EN 61034-2): | True |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | True |
| Rayleigh Backscatter Coefficient 850nm: | 1.483 |
| Rayleigh Backscatter Coefficient 1300nm: | 1.478 |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable1x Drum |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Tube marking: | Colour |
| Tube Ø: | 3.5 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
Varianter
| Art. Nej. | Betegnelse | Cable Ø | Category | Tensile force max. | CPR-Class | Number of fibers | Construct | Outer diameter approx. | Fire load | Bending radius | VDE-Name | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54504.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 4G (1x4) Dca 1750N LSZH black 7.0mm | 7.0 mm | OM4 | 1750 N | Dca | 4 | 4G ( 1 x 4 ) Multimode OM4 | 7.0 mm | 0.71 MJ/m | 140 mm | U-DQ(ZN)BH 4G50/125 | 55 kg/km | |
| 54508.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 8G (1x8) Dca 1750N LSZH black 7.0mm | 7.0 mm | OM4 | 1750 N | Dca | 8 | 8G ( 1 x 8 ) Multimode OM4 | 7.0 mm | 0.71 MJ/m | 140 mm | U-DQ(ZN)BH 8G50/125 | 55 kg/km | |
| 54512.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 12G (1x12) Dca 1750N LSZH black 7.0mm | 7.0 mm | OM4 | 1750 N | Dca | 12 | 12G ( 1 x 12 ) Multimode OM4 | 7.0 mm | 0.71 MJ/m | 140 mm | U-DQ(ZN)BH 12G50/125 | 55 kg/km | |
| 54524.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 24G (1x24) Dca 1750N LSZH black 7.5mm | 7.5 mm | OM4 | 1750 N | Dca | 24 | 24G ( 1 x 24 ) Multimode OM4 | 7.5 mm | - | 150 mm | U-DQ(ZN)BH 24G50/125 | 60 kg/km |
Produktinformation til INFRALAN® U-DQ(ZN)BH OM4 4G (1x4) Dca 1750N LSZH black 7.0mm
Application:
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
| Application: | Inside/outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | No |
| Colour outer sheath: | black |
| Crush resistance: | 1500 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | acc. to EN 60332-3-24 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.5 dB/km |
| IL max. (dB/km) 1300nm: | 0.7 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Low smoke (acc. EN 61034-2): | True |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | True |
| Rayleigh Backscatter Coefficient 850nm: | 1.483 |
| Rayleigh Backscatter Coefficient 1300nm: | 1.478 |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable1x Drum |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Tube marking: | Colour |
| Tube Ø: | 3.5 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
| Application: | Inside/outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Circuit integrity: | No |
| Colour outer sheath: | black |
| Crush resistance: | 1500 N/dm |
| Fiber Colours: | black, blue, brown, green, grey, orange, red, rose, turquoise, violet, white, yellow |
| Fiber marking: | Colour |
| Fibre category: | OM4 |
| Fibre type: | Multi mode 50/125 |
| Flame retardant: | acc. to EN 60332-3-24 |
| Halogen free: | acc. to EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.5 dB/km |
| IL max. (dB/km) 1300nm: | 0.7 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | Yes |
| Low smoke (acc. EN 61034-2): | True |
| Oil resistant: | no |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | True |
| Rayleigh Backscatter Coefficient 850nm: | 1.483 |
| Rayleigh Backscatter Coefficient 1300nm: | 1.478 |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable1x Drum |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Tube marking: | Colour |
| Tube Ø: | 3.5 mm |
| Type of tube: | Central tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
Varianter
| Art. Nej. | Betegnelse | Cable Ø | Category | Tensile force max. | CPR-Class | Number of fibers | Construct | Outer diameter approx. | Fire load | Bending radius | VDE-Name | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54504.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 4G (1x4) Dca 1750N LSZH black 7.0mm | 7.0 mm | OM4 | 1750 N | Dca | 4 | 4G ( 1 x 4 ) Multimode OM4 | 7.0 mm | 0.71 MJ/m | 140 mm | U-DQ(ZN)BH 4G50/125 | 55 kg/km | |
| 54508.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 8G (1x8) Dca 1750N LSZH black 7.0mm | 7.0 mm | OM4 | 1750 N | Dca | 8 | 8G ( 1 x 8 ) Multimode OM4 | 7.0 mm | 0.71 MJ/m | 140 mm | U-DQ(ZN)BH 8G50/125 | 55 kg/km | |
| 54512.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 12G (1x12) Dca 1750N LSZH black 7.0mm | 7.0 mm | OM4 | 1750 N | Dca | 12 | 12G ( 1 x 12 ) Multimode OM4 | 7.0 mm | 0.71 MJ/m | 140 mm | U-DQ(ZN)BH 12G50/125 | 55 kg/km | |
| 54524.2L-CPR | INFRALAN® U-DQ(ZN)BH OM4 24G (1x24) Dca 1750N LSZH black 7.5mm | 7.5 mm | OM4 | 1750 N | Dca | 24 | 24G ( 1 x 24 ) Multimode OM4 | 7.5 mm | - | 150 mm | U-DQ(ZN)BH 24G50/125 | 60 kg/km |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
