U-DQ(ZN)BH 50/125µ OM5 1750N

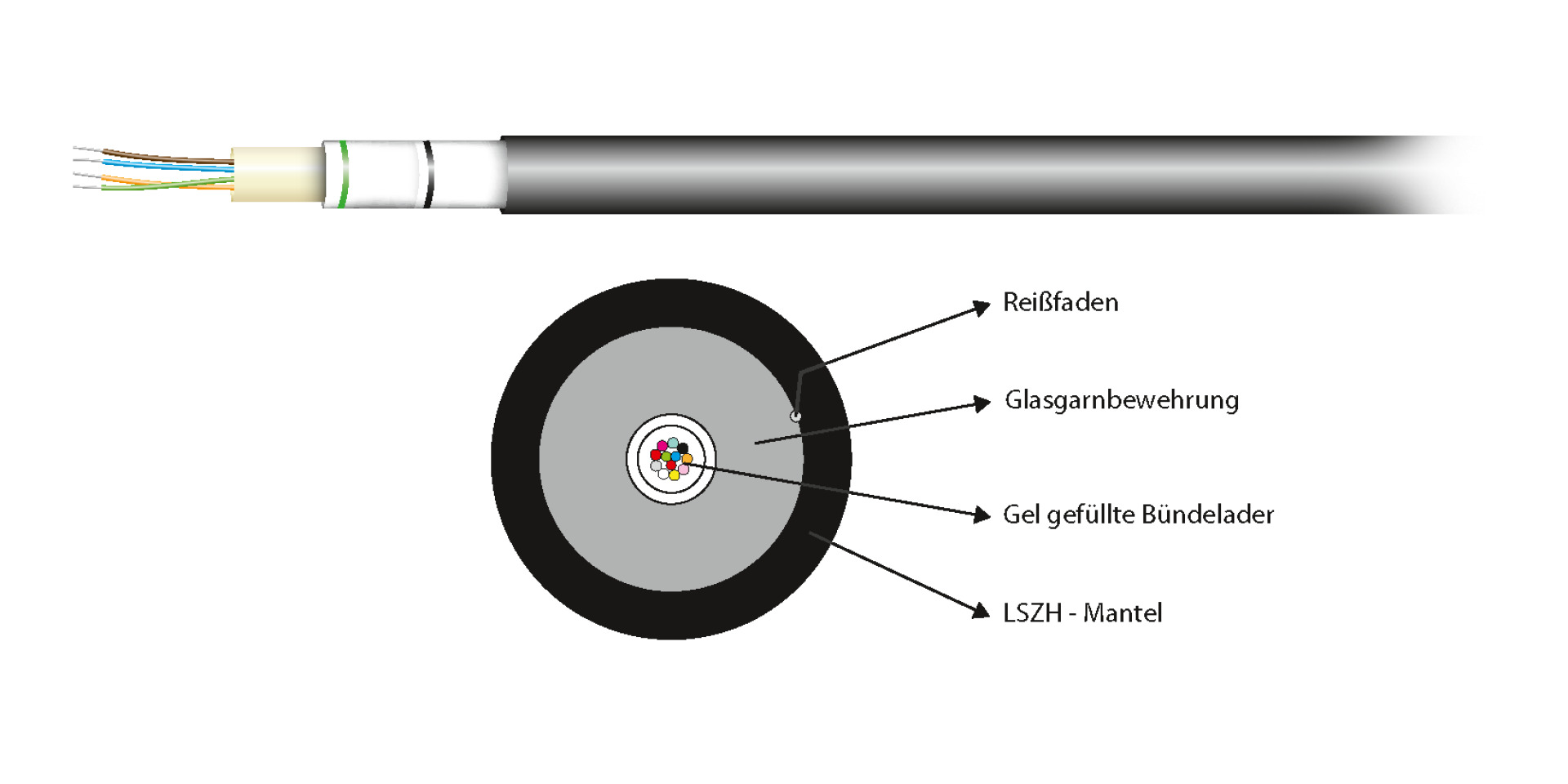

INFRALAN® U-DQ(ZN)BH OM5 4G (1x4) Dca 1750N LSZH black 7.0mm
Varenummer:
54504.1OM5-CPR
EAN nr.:
4049759191481
Produktinformation für INFRALAN® U-DQ(ZN)BH OM5 4G (1x4) Dca 1750N LSZH black 7.0mm
Application:
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
For fixed installation indoor and outdoor
In cable ducts, tubes and interconnections
Mechanical installation by winch is permitted only when using force meters with recording function
Not suitable for underground laying (direct buried)
Characteristics:
Universale cable
Suitable for connector assembly
The cable diameter can vary
Tekniske egenskaber
| (Halogenfree): | acc. EN 60754-1/2 |
|---|---|
| Application: | Inside/outside |
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 1500 N/dm |
| Euro Class: | Dca |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OM5 |
| Fibre type: | Multi mode 50/125 |
| Flame-retardant: | According to EN 60332-1-2 |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 850nm: | 2.5 |
| IL max. (dB/km) 1300nm: | 0.7 |
| Jacket material: | LSZH |
| Longitudinally watertight: | 3/24 m/h |
| Longitudinal water blocking: | True |
| Low smoke: | acc. EN 61034-2 |
| Low smoke (acc. EN 61034-2): | True |
| Oil resistant: | No |
| Oil resistant (acc. EN 60811-2-1): | False |
| Radial water blocking: | False |
| Rayleigh Backscatter Coefficient 850nm: | 1.483 |
| Rayleigh Backscatter Coefficient 1300nm: | 1.478 |
| Resistant to chemicals: | False |
| Temperature Range (Installation): | -5 – 50 °C |
| Temperature Range (Operation): | -20 – 60 °C |
| Temperature Range (Storage): | -25 – 70 °C |
| Transmission standards: | IEEE 802.3 10Mbit to 100Gbit |
| Tube marking: | Colour |
| Tube Ø: |
Up to 12 fibers: 3.5 Up to 24 fibers: 4.0 mm |
| Type of tube: | Central tube |
| UV resistance: | True |
| With rodent protection: | True |
| With strain relief: | True |
Varianter
| Art. Nej. | Betegnelse | Construct | Bending radius | VDE-Name | Cable Ø | Tensile Force | Weight | |
|---|---|---|---|---|---|---|---|---|
| 54504.1OM5-CPR | INFRALAN® U-DQ(ZN)BH OM5 4G (1x4) Dca 1750N LSZH black 7.0mm | 4G ( 1 x 4 ) Multimode OM5 | 140 mm | U-DQ(ZN)BH 4G50/125 | 7.0 mm | 1750 N | 55 kg/km | |
| 54512.1OM5-CPR | INFRALAN® U-DQ(ZN)BH OM5 12G (1x12) Dca 1750N LSZH black 7.0mm | 12G ( 1 x 12 ) Multimode OM5 | 140 mm | U-DQ(ZN)BH 12G50/125 | 7.0 mm | 1750 N | 55 kg/km | |
| 54524.1OM5-CPR | INFRALAN® U-DQ(ZN)BH OM5 24G (1x24) Dca 1750N LSZH black 7.5mm | 24G ( 1 x 24 ) Multimode OM5 | 150 mm | U-DQ(ZN)BH 24G50/125 | 7.5 mm | 1750 N | 60 kg/km |
