INFRALAN® U-DQ(ZN)BH OS2 Eca 5000N LSZH black G657A1
INFRALAN® U-DQ(ZN)BH OS2 96E (8x12) Eca 5000N LSZH black 12.8mm G657A1
Varenummer:
54496.1D-E5
EAN-nr.:
4049759316365
Produktinformation til INFRALAN® U-DQ(ZN)BH OS2 96E (8x12) Eca 5000N LSZH black 12.8mm G657A1
This universal fiber optic cable is ideal for LAN, MAN and WAN backbones, both indoors and outdoors. It can be laid directly in the ground (in a sand bed) or in pipes and offers effective rodent protection.

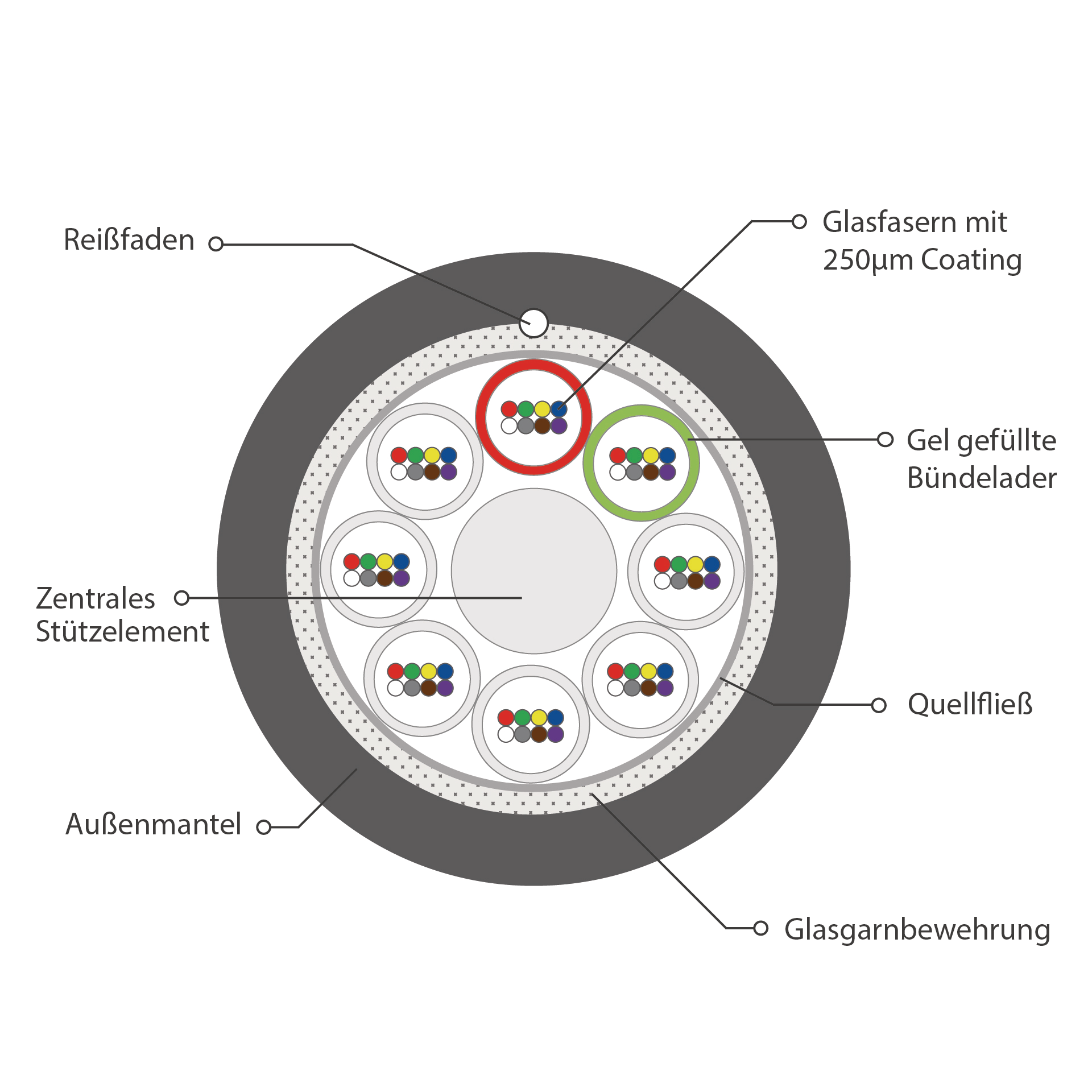

The stranded, gel-filled loose tube ensures reliable, structured cabling. With a metal-free, longitudinally watertight construction and a tensile strength of 5.0 kN, it is particularly robust.
The halogen-free, flame-retardant jacket complies with IEC60332-1 and Eurobrand class Eca, which also makes it safe for indoor use. The cable exceeds the requirements of EN50173-1 and ISO/IEC11801, ideal for high-performance networks.
The stranded, gel-filled loose tube ensures reliable, structured cabling. With a metal-free, longitudinally watertight construction and a tensile strength of 5.0 kN, it is particularly robust.
The halogen-free, flame-retardant jacket complies with IEC60332-1 and Eurobrand class Eca, which also makes it safe for indoor use. The cable exceeds the requirements of EN50173-1 and ISO/IEC11801, ideal for high-performance networks.
Tekniske egenskaber
| Application: | Inside/outside |
|---|---|
| Armouring: | True |
| Blow in: | False |
| Cable metal free: | True |
| Cable silicone free: | True |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Circuit integrity: | False |
| Colour outer sheath: | black |
| Crush resistance: | 3000 N/dm |
| Fiber Colours: |
black blue brown green grey orange red rose turquoise violet white yellow |
| Fiber marking: | Colour |
| Fibre category: | OS2 G657A1 |
| Fibre type: | Single mode 9/125 |
| Flame retardant: | acc. to EN 60332-1-2 |
| Halogen free: | acc. EN 60754-1/2 |
| Harmonised Standard: | EN 50575 |
| IL max. (dB/km) 1310nm: | 0.36 dB/km |
| IL max. (dB/km) 1550nm: | 0.23 dB/km |
| Jacket material: | LSZH |
| Longitudinal water blocking: | True |
| Low smoke: | True |
| Oil resistant: | no |
| Radial water blocking: | True |
| Resistant to chemicals: | False |
| Scope of delivery: | 1x Cable, 1x Drum |
| Temperature Range (Installation): | -15 – 60 °C |
| Temperature Range (Operation): | -40 – 70 °C |
| Temperature Range (Storage): | -30 – 60 °C |
| Tube marking: | Colour |
| Tube Ø: | 2.3 mm |
| Type of tube: | Stranded loose tube |
| UV resistant: | True |
| With rodent protection: | True |
| With strain relief: | True |
Variants
| ON | Label | Category | Tensile force max. | Number of fibers | CPR-Class | Cable Ø | Number of fibres per tube | Construct | Suitable for underground installation | Outer diameter approx. | Fire load | VDE-Name | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 54448.1D-E5 | INFRALAN® U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH black 11.2mm G657A1 | OS2 | 5000 N | 48 | Eca | 11.2 mm | 12 | (4x12) | True | 11.2 mm | 2725 MJ/km | U-DQ(ZN)BH 48E9/125 | 107 kg/km | |
| 54496.1D-E5 | INFRALAN® U-DQ(ZN)BH OS2 96E (8x12) Eca 5000N LSZH black 12.8mm G657A1 | OS2 | 5000 N | 96 | Eca | 12.8 mm | 12 | (8x12) | True | 12.8 mm | 3299 MJ/km | U-DQ(ZN)BH 96E9/125 | 140 kg/km |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Str. 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de
