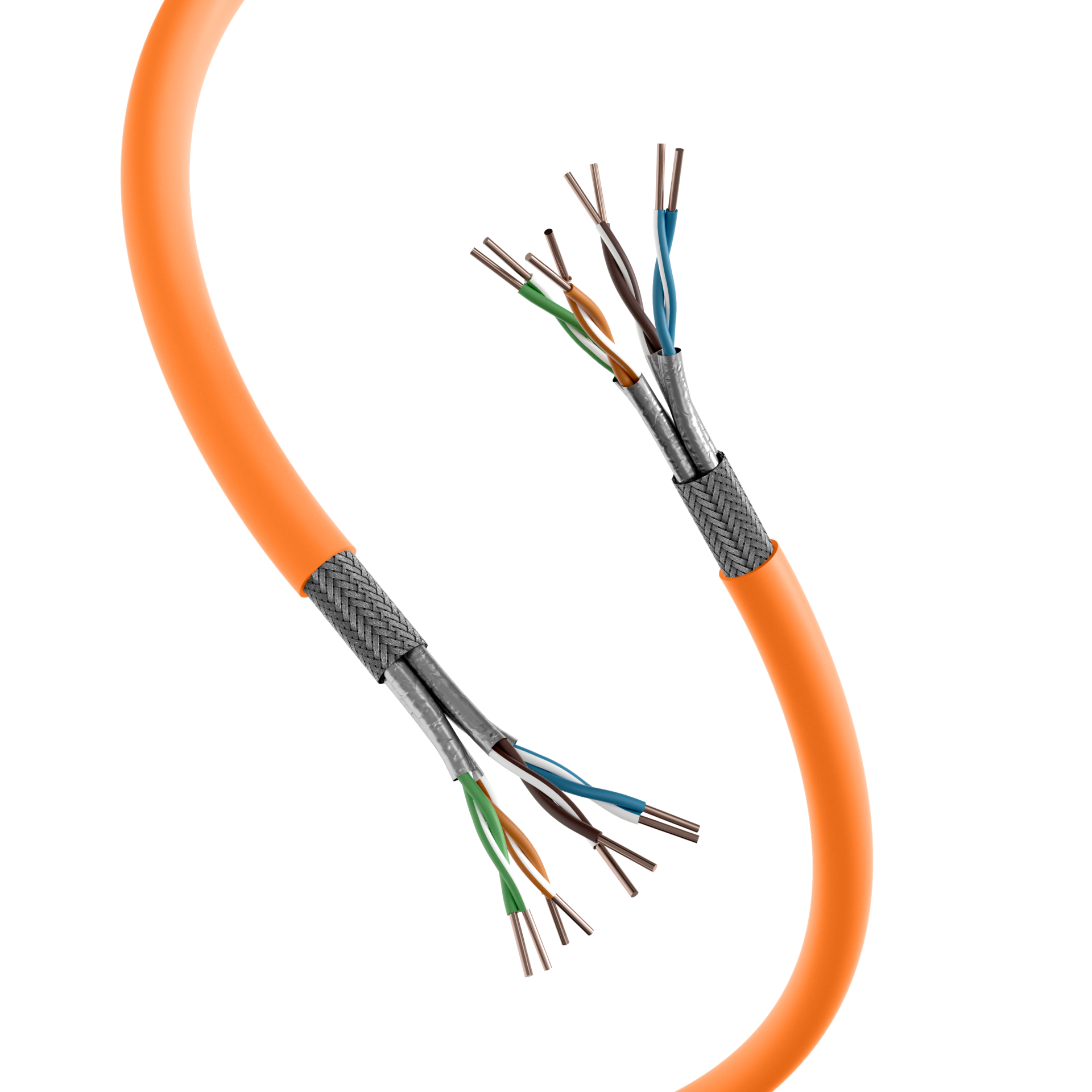

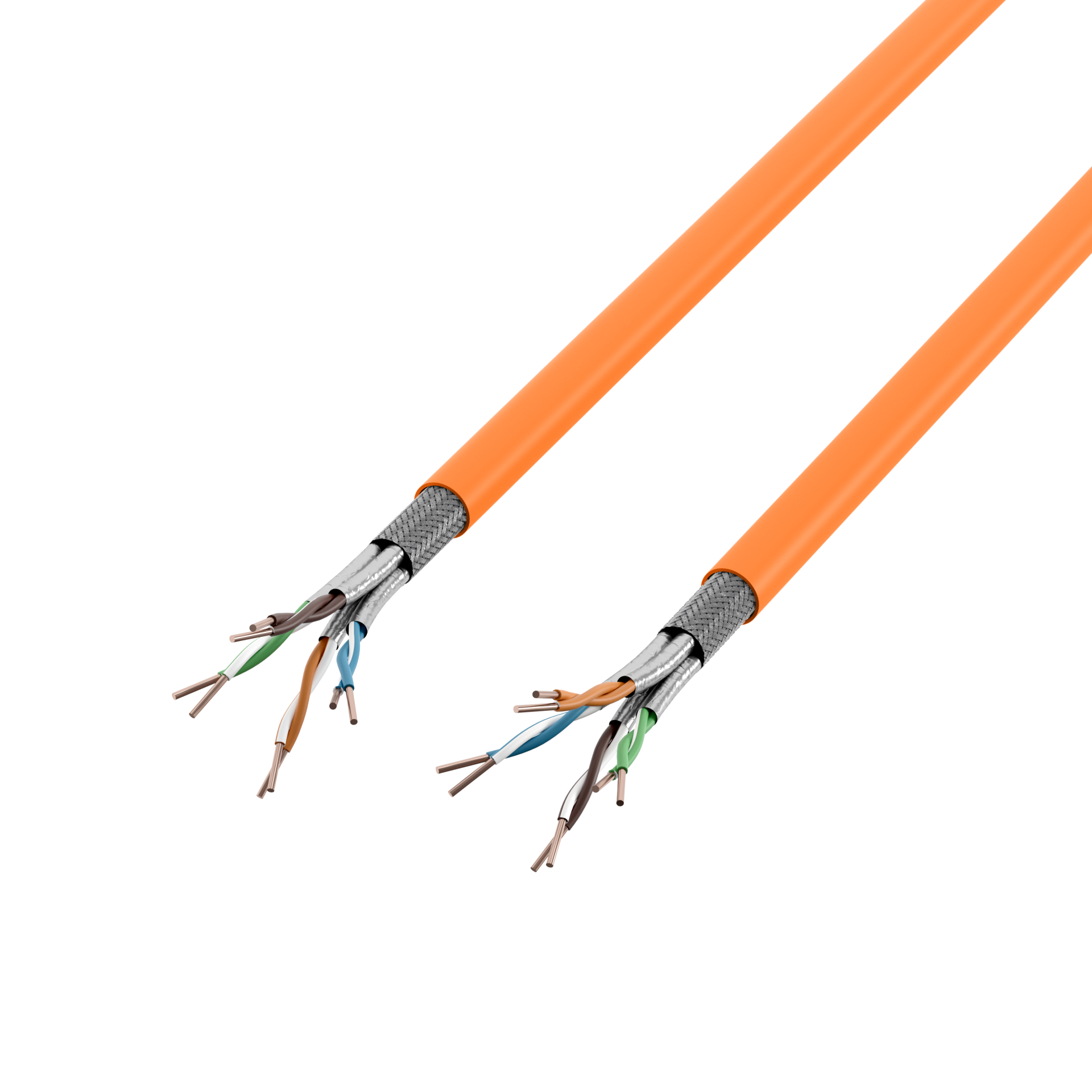

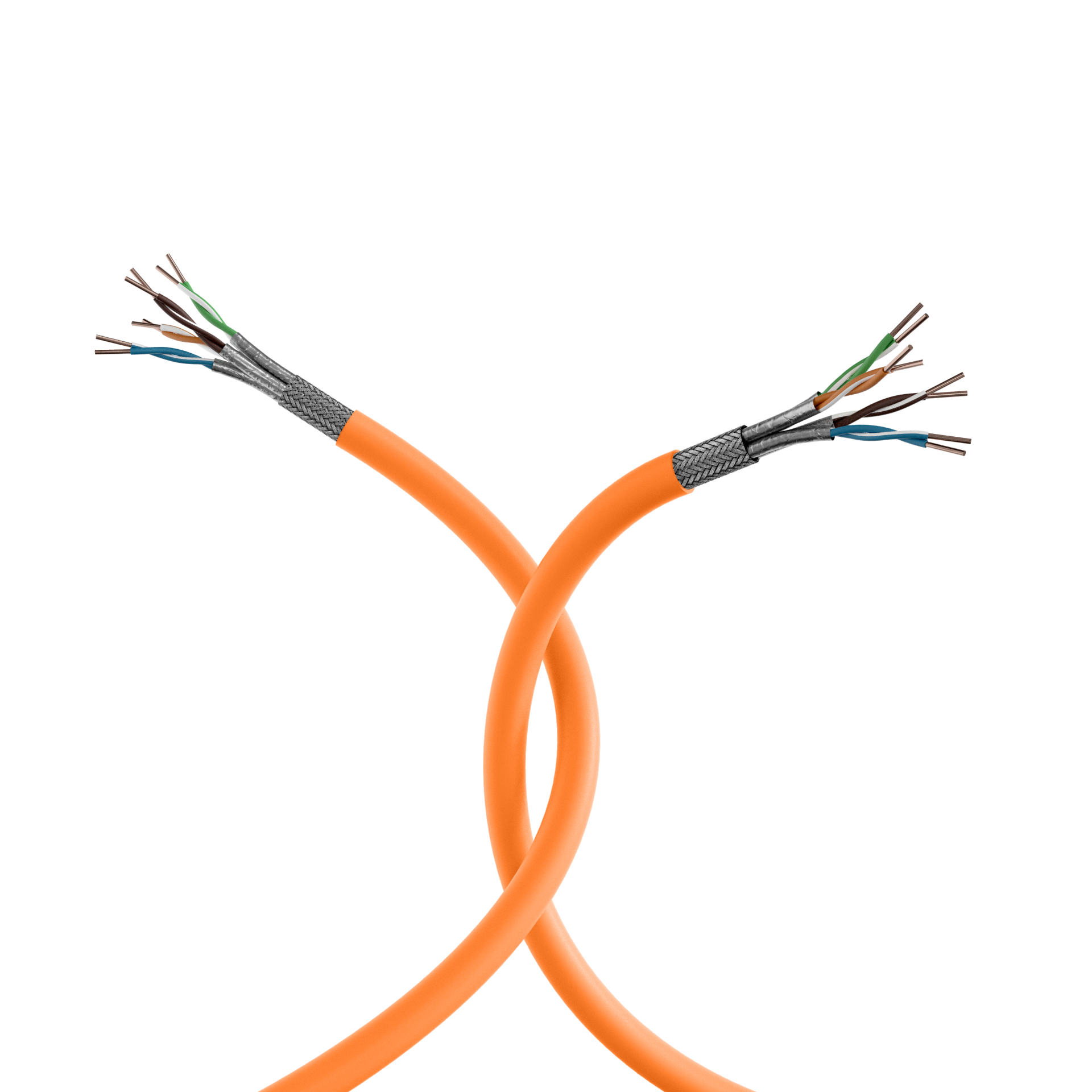

LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 500m
LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 500m
Varenummer:
MK7101.500-CPR
EAN Nr.:
4049759201180
Produktinformation til LAN Cat.7 1000 AWG23 S/FTP,4P, CPR Dca, orange, 500m
The data cable MK7101.x is constructed for transmissions up to 1000 MHz
and exceeds with the electrical transmission properties and requirements of the category
7. With this cable transmission rates up to 10 Gigabit
Ethernet are possible without difficulty.
and exceeds with the electrical transmission properties and requirements of the category
7. With this cable transmission rates up to 10 Gigabit
Ethernet are possible without difficulty.
Tekniske egenskaber
| AWG-size: | 23 |
|---|---|
| Bending radius (dynamic): | 60 mm |
| Bending radius (static): | 30 mm |
| Cable: | IEC 61156-5 |
| Cable Construction: | S/FTP |
| Cabling standards: |
EN 50173-1 ISO/IEC 11801 |
| Category: | 7 |
| Conductor category: | Class 1 = solid |
| Conductor material: | Cu, tinned |
| Core identification: | Colour |
| Core insulation: | foam-skin PE |
| Coupling attenuation: | 80 dB |
| Diameter conductor: | 0.56 mm |
| Directive/Regulation: | RoHS 2011/65/UE |
| Euro class: | DCA |
| Flame-retardant: | According to IEC/EN 60332-1-2 |
| Halogen free (acc. EN 50267-2-2): | True |
| Halogen free (according to EN 60754-1/2): | True |
| Harmonised Standard: | EN 50575 |
| Impedance: | 100 ± 15 Ohm |
| Installation standard: | EN 50174 |
| Jacket Material: | Other |
| Loop resistance: | 191,2 Ohm/km |
| Low smoke: | acc. EN 61034 |
| Low smoke (acc. EN 61034-2): | True |
| Max. Freuqency: | 1000 MHz |
| NVP value: | 76 % |
| Operating temperature, fix: | -20 – 60 °C |
| Operating temperature, flexible: | 0 – 50 °C |
| PoE: |
acc. to IEEE802.3af PoE acc. to IEEE802.3at PoE+ acc. to IEEE802.3bt 4PPoE |
| Resistance unbalance: | 3 % |
| Screen over stranding: | braiding |
| Screen over stranding element: | Foil |
| Separation class acc. EN50174-2: | D |
| Stranding element: | Pairs |
| Test voltage DC, 1 min: | 1000 V |
| Transmission standards: | IEEE 802.3 10Mbit to 10Gbit |
| UV resistance: | no |
