LC / SPC Singlemode
Indhold:
1 Stück
LC / SPC Singlemode
Varenummer:
533680.8
EAN nr.:
4049759165741
Produktinformation til LC / SPC Singlemode
Attenuators are used to increase the attenuation of fiber optic lines. This can be necessary at short distances to prevent overmodulation of the receiver. SPC = Return Loss max. 45 dB
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20

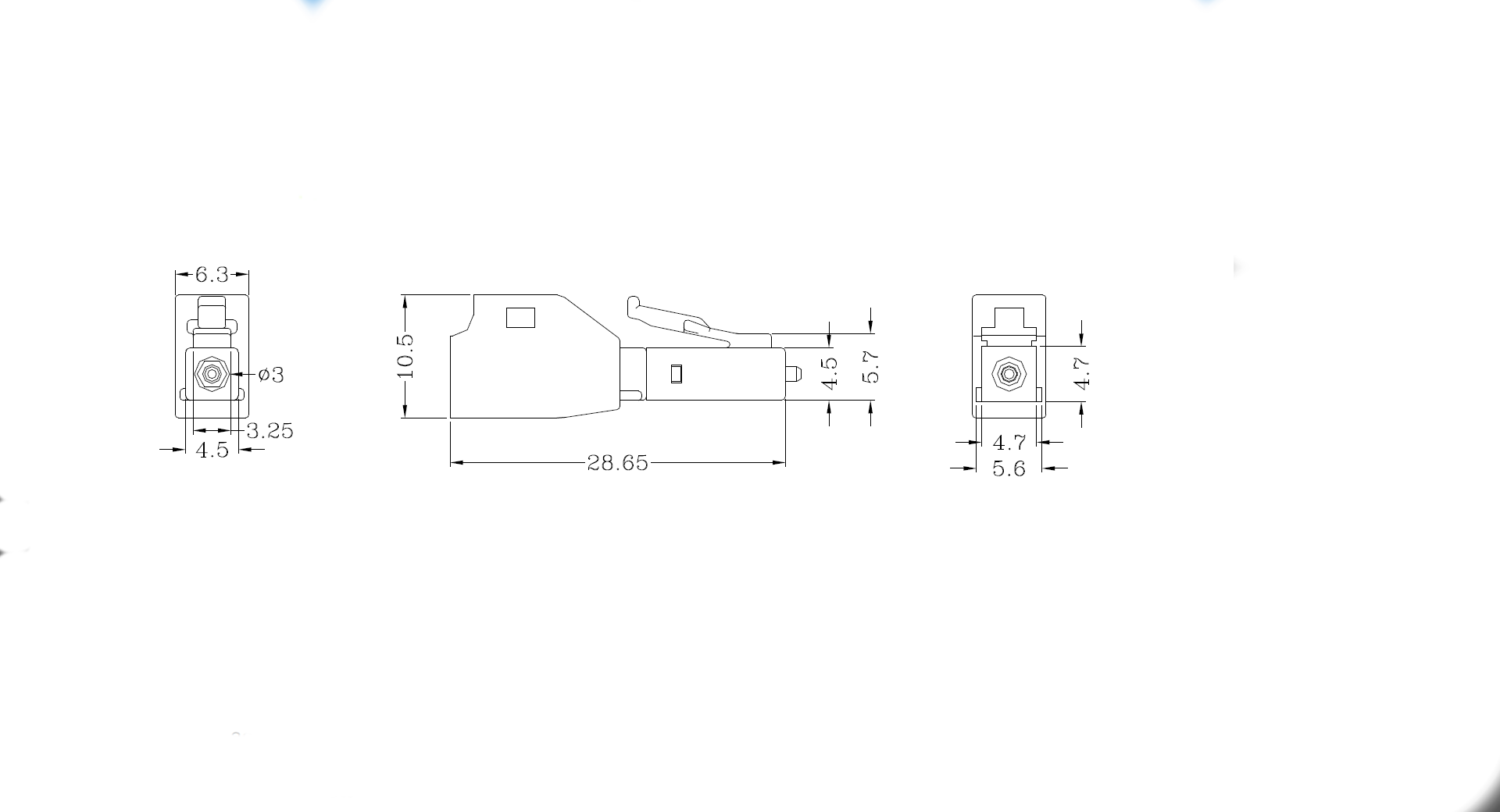

| Conform to Standard: | IEC61754-20 |
|---|---|
| Dust cover: | True |
| Height: | 10.5 mm |
| Internal Shutter: | False |
| Length: | 28.65 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -20 – 75 °C |
| Storage Temperature: | -40 – 75 °C |
| Type of connector connection 1: | LC |
| Type of connector connection 2: | LC |
| Type of housing: | flangeless |
| Width: | 6.3 mm |
Tekniske egenskaber
| Conform to Standard: | IEC61754-20 |
|---|---|
| Dust cover: | True |
| Height: | 10.5 mm |
| Internal Shutter: | False |
| Length: | 28.65 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -20 – 75 °C |
| Storage Temperature: | -40 – 75 °C |
| Type of connector connection 1: | LC |
| Type of connector connection 2: | LC |
| Type of housing: | flangeless |
| Width: | 6.3 mm |
Varianter
| Art. Nej. | Betegnelse | Suitable for type of fibre | Colour | Model | |
|---|---|---|---|---|---|
| 533680.10 | SM Attenuators LC/SPC 10 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.2 | SM Attenuators LC/SPC 2 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.3 | SM Attenuators LC/SPC 3 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.5 | SM Attenuators LC/SPC 5 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.7 | SM Attenuators LC/SPC 7 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.8 | LC / SPC Singlemode | Single mode | blue | LC/PC | |
| 533680.9 | LC / SPC Singlemode | Single mode | blue | LC/PC |
Produktinformation til LC / SPC Singlemode
Attenuators are used to increase the attenuation of fiber optic lines. This can be necessary at short distances to prevent overmodulation of the receiver. SPC = Return Loss max. 45 dB
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20
APC = Return Loss max. 60 dB
Suitable for CWDM !
Attenuation in dB:
1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 10 - 15 - 20
| Conform to Standard: | IEC61754-20 |
|---|---|
| Dust cover: | True |
| Height: | 10.5 mm |
| Internal Shutter: | False |
| Length: | 28.65 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -20 – 75 °C |
| Storage Temperature: | -40 – 75 °C |
| Type of connector connection 1: | LC |
| Type of connector connection 2: | LC |
| Type of housing: | flangeless |
| Width: | 6.3 mm |
| Conform to Standard: | IEC61754-20 |
|---|---|
| Dust cover: | True |
| Height: | 10.5 mm |
| Internal Shutter: | False |
| Length: | 28.65 mm |
| Material housing: | Plastic |
| Material sleeve: | Ceramics |
| Operating temperature: | -20 – 75 °C |
| Storage Temperature: | -40 – 75 °C |
| Type of connector connection 1: | LC |
| Type of connector connection 2: | LC |
| Type of housing: | flangeless |
| Width: | 6.3 mm |
Varianter
| Art. Nej. | Betegnelse | Suitable for type of fibre | Colour | Model | |
|---|---|---|---|---|---|
| 533680.10 | SM Attenuators LC/SPC 10 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.2 | SM Attenuators LC/SPC 2 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.3 | SM Attenuators LC/SPC 3 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.5 | SM Attenuators LC/SPC 5 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.7 | SM Attenuators LC/SPC 7 dB Return Loss 45 dB, SM, blue | Single mode | blue | LC/PC | |
| 533680.8 | LC / SPC Singlemode | Single mode | blue | LC/PC | |
| 533680.9 | LC / SPC Singlemode | Single mode | blue | LC/PC |
Producentangivelse
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
info@efb-elektronik.de
https://www.efb-elektronik.de/kontakt
