LSA Backmount Frames Universal
Priser kun synlige for indloggede brugere

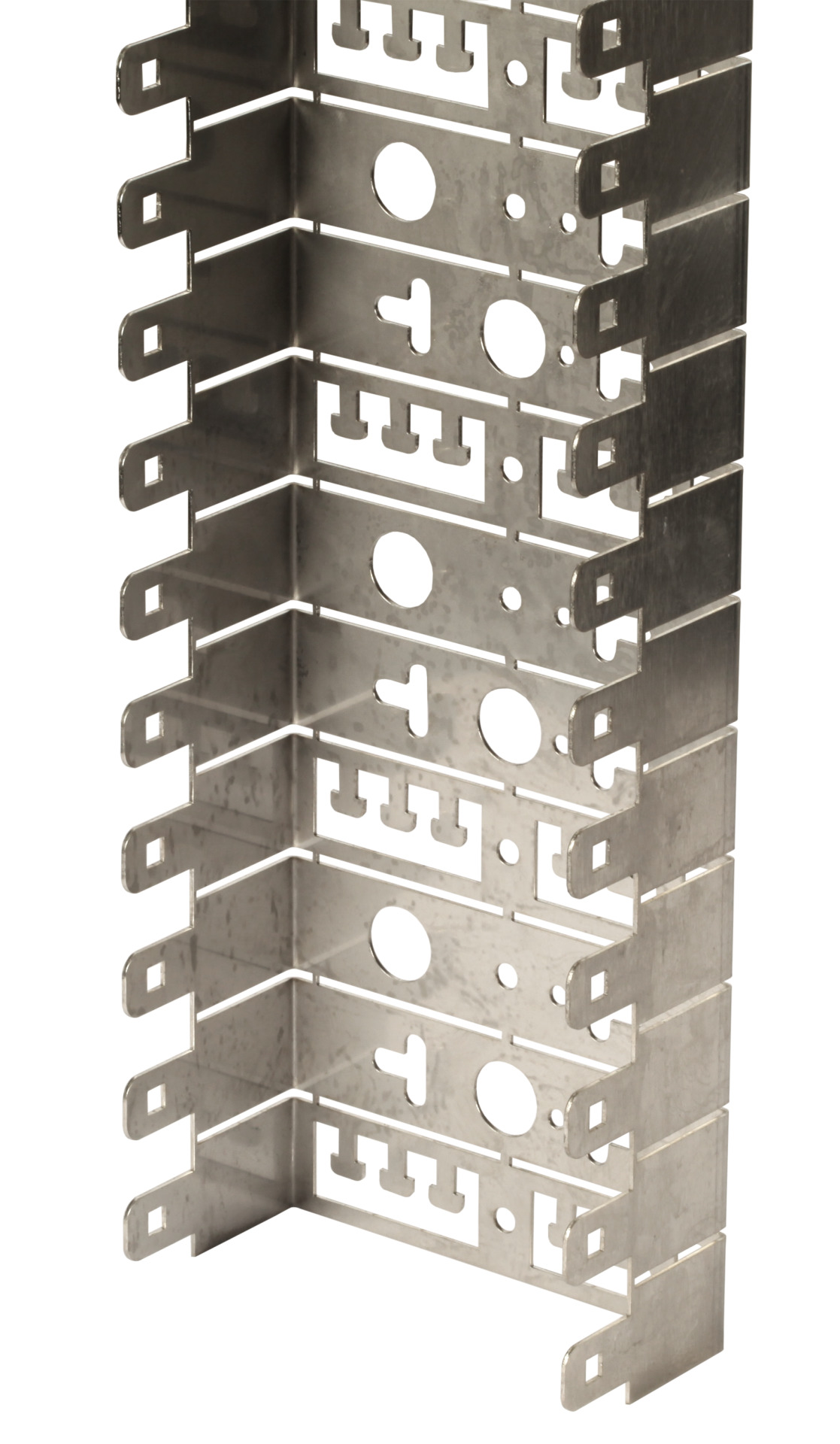

LSA Back Mount Frame, 50 Modules, D=30 mm, P=25 mm, PU 2 pcs.
Varenummer:
46011.50
EAN nr.:
4049759066758
Produktinformation für LSA Back Mount Frame, 50 Modules, D=30 mm, P=25 mm, PU 2 pcs.
For LSA modules 2/10 10pairs
Pitch (terminal-terminal distance) 25 mm
The depths are 22 / 30 / 50 mm
Individual modules are easy to cut off from the LSA backmount frame with diagonal cutter by customer, making them universally usable
Number of modules = 50
Pitch (terminal-terminal distance) 25 mm
The depths are 22 / 30 / 50 mm
Individual modules are easy to cut off from the LSA backmount frame with diagonal cutter by customer, making them universally usable
Number of modules = 50
Varianter
| Art. Nej. | Betegnelse | Depth | Width | Number of mountable connection strips | Modular spacing | Length | |
|---|---|---|---|---|---|---|---|
| 46010.50 | LSA Back Mount Frame, 50 Modules, D=22 mm, P=25 mm, PU 2 pcs. | 22.0 mm | 104.0 mm | 50 | 25.0 mm | 20.5 mm | |
| 46011.50 | LSA Back Mount Frame, 50 Modules, D=30 mm, P=25 mm, PU 2 pcs. | 30.0 mm | 104.0 mm | 50 | 25.0 mm | 20.5 mm | |
| 46012.50 | LSA Back Mount Frame, 50 Modules, D=50 mm, P=25 mm, PU 2 pcs. | 50.0 mm | 104.0 mm | 50 | 25.0 mm | 20.5 mm |
