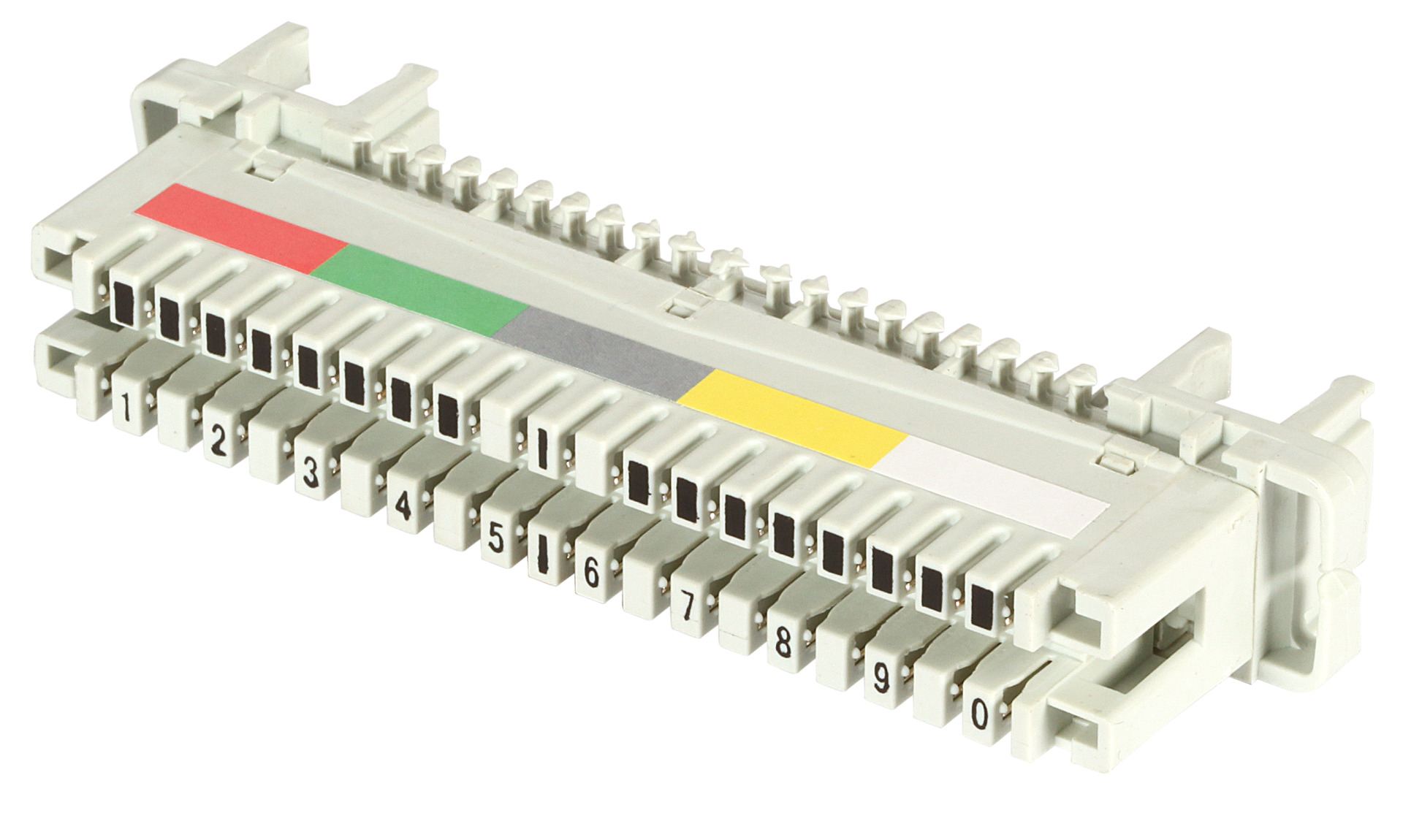

LSA Connection Module 2/10 10pairs for Rod Mounting

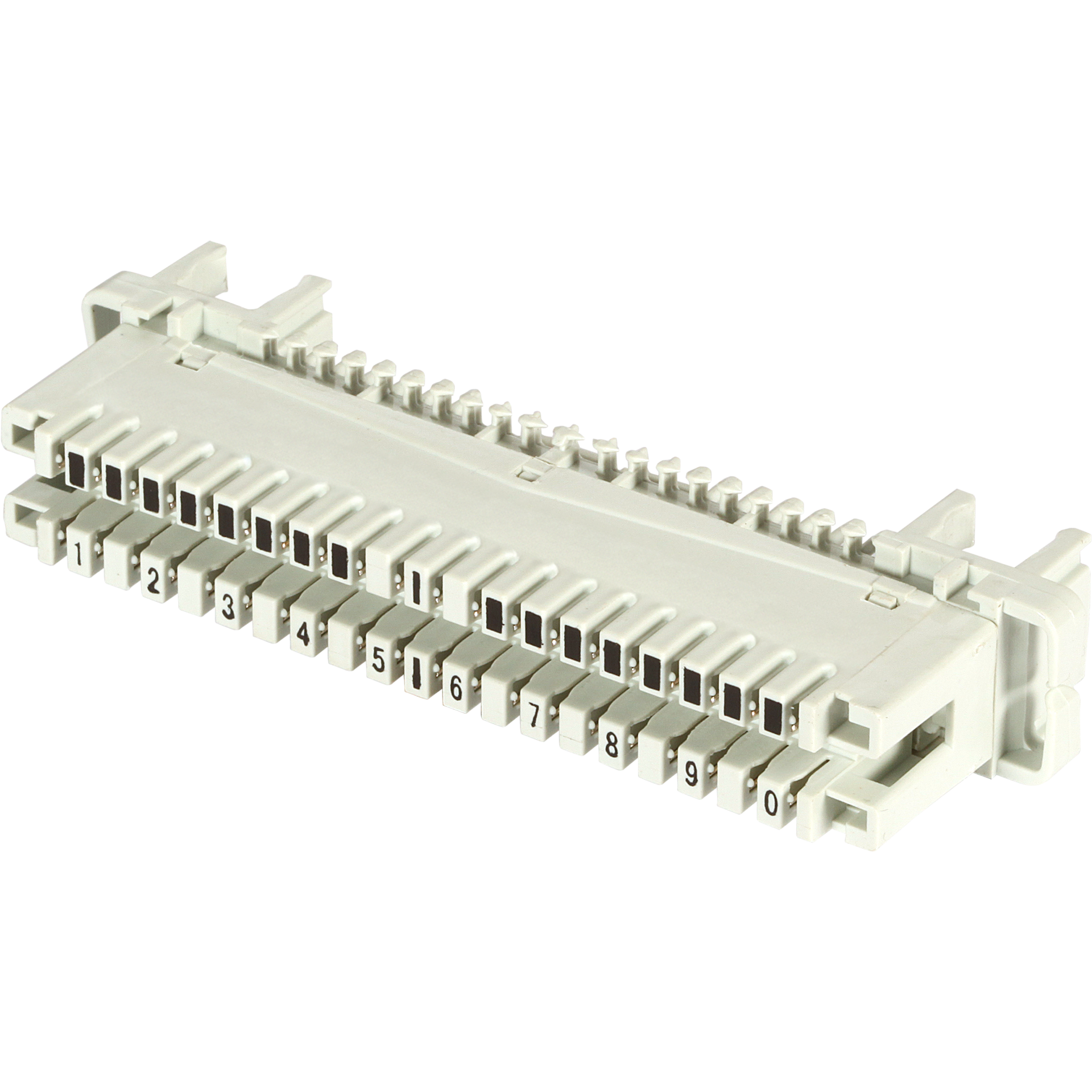

LSA Connection Module 2/10 10pairs for Profil Rods, w/o Colour Code
Varenummer:
46006.2
EAN Nr.:
4049759066574
Produktinformation til LSA Connection Module 2/10 10pairs for Profil Rods, w/o Colour Code
Connection Module with LSA terminal according to DIN 41611-6 for mounting on LSA Backmount Frames
For copper cores with a diameter of 0.4 – 0.8mm
For profile rod mounting
With large routing eyes - printed with numbers 1..0
Cable and routing side permanently connected
For copper cores with a diameter of 0.4 – 0.8mm
For profile rod mounting
With large routing eyes - printed with numbers 1..0
Cable and routing side permanently connected
Tekniske egenskaber
| Built-in possibility for over voltage protection: | True |
|---|---|
| Colour: | grey |
| Connection type: | LSA Plus |
| Model: | Connection strip |
| Mounting dimension: | 96 mm |
