2 pole Electrode Arrester 8 x 6
Priser kun synlige for indloggede brugere

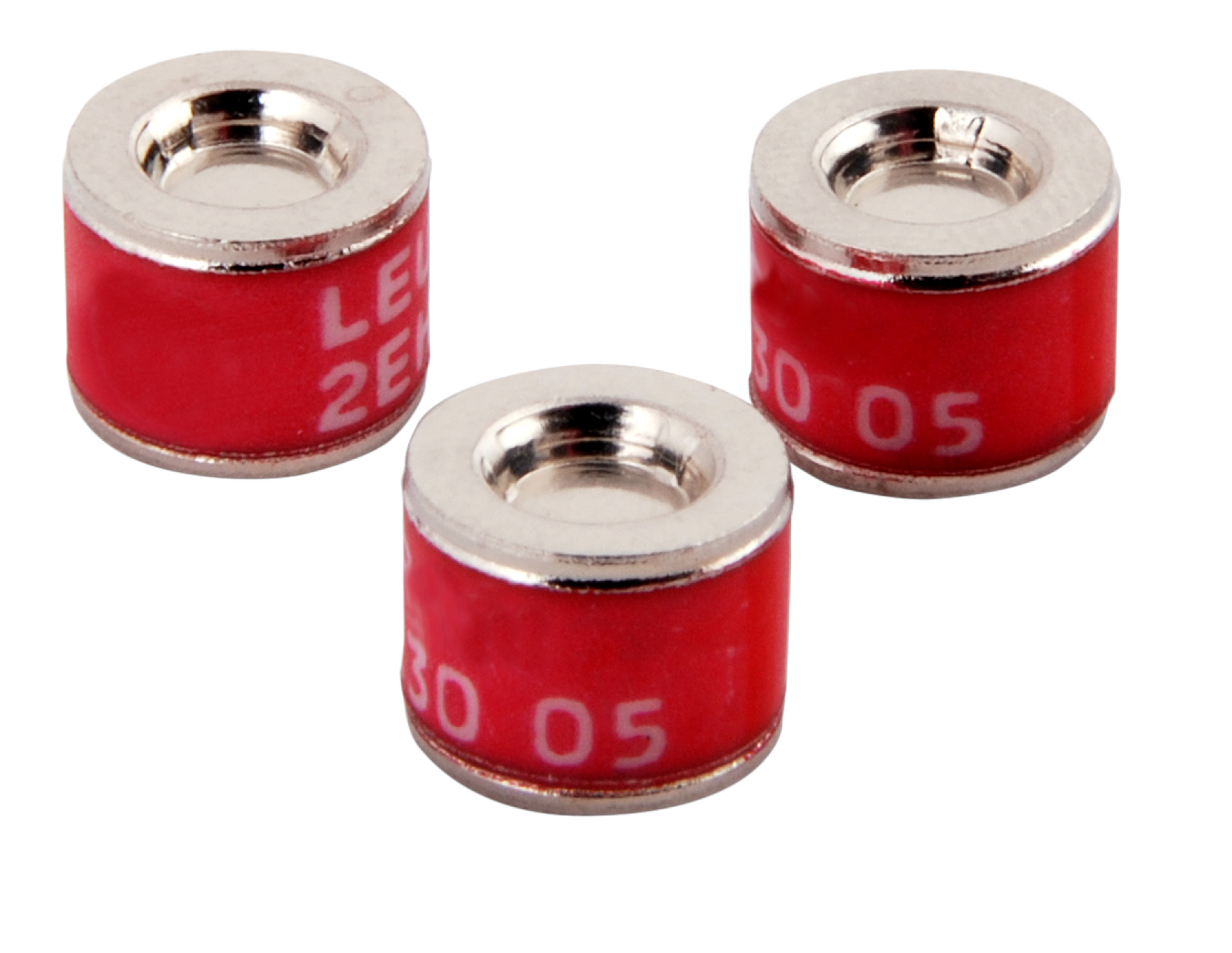

LSA Overvoltage Arrester 8x6 / 90 V / 10 kA
Varenummer:
46142.1
EAN nr.:
4049759067199
Produktinformation für LSA Overvoltage Arrester 8x6 / 90 V / 10 kA
Gas-filled
Rated discharge current 10 kA
Rated discharge current 10 kA
Tekniske egenskaber
| Connection 1: | terminal |
|---|---|
| Explosion-tested version: | False |
| Mounting method: | LSA-plus plugin |
| Signalling at the device: | without |
| With remote signalling contact: | False |
Varianter
| Art. Nej. | Betegnelse | Nominal load current | Frequency | Pro-active thermo-control | Nominal discharge surge current (8/20) | Nominal voltage DC | Type | Nominal voltage AC | |
|---|---|---|---|---|---|---|---|---|---|
| 46142.1 | LSA Overvoltage Arrester 8x6 / 90 V / 10 kA | 10000 A | 3 – Hz | True | 10 kA | 90 – V | 8x6 / 90V / 10kA | 90.0 – V | |
| 46143.1 | LSA Overvoltage Arrester 8x6 / 230 V / 10 kA | 10000 A | 3 – Hz | True | 10 kA | 230 – V | 8x6 / 230V / 10kA | 250 – V | |
| 46144.1 | LSA Overvoltage Arrester 8x6 / 230 V / 10 kA + FailSafe | 10000 A | 3 – Hz | True | 10 kA | 230 – V | 8x6 /230V / 10kA + Failsave | 250 – V |
