Modular Flat Cable UTP, German Post Standard

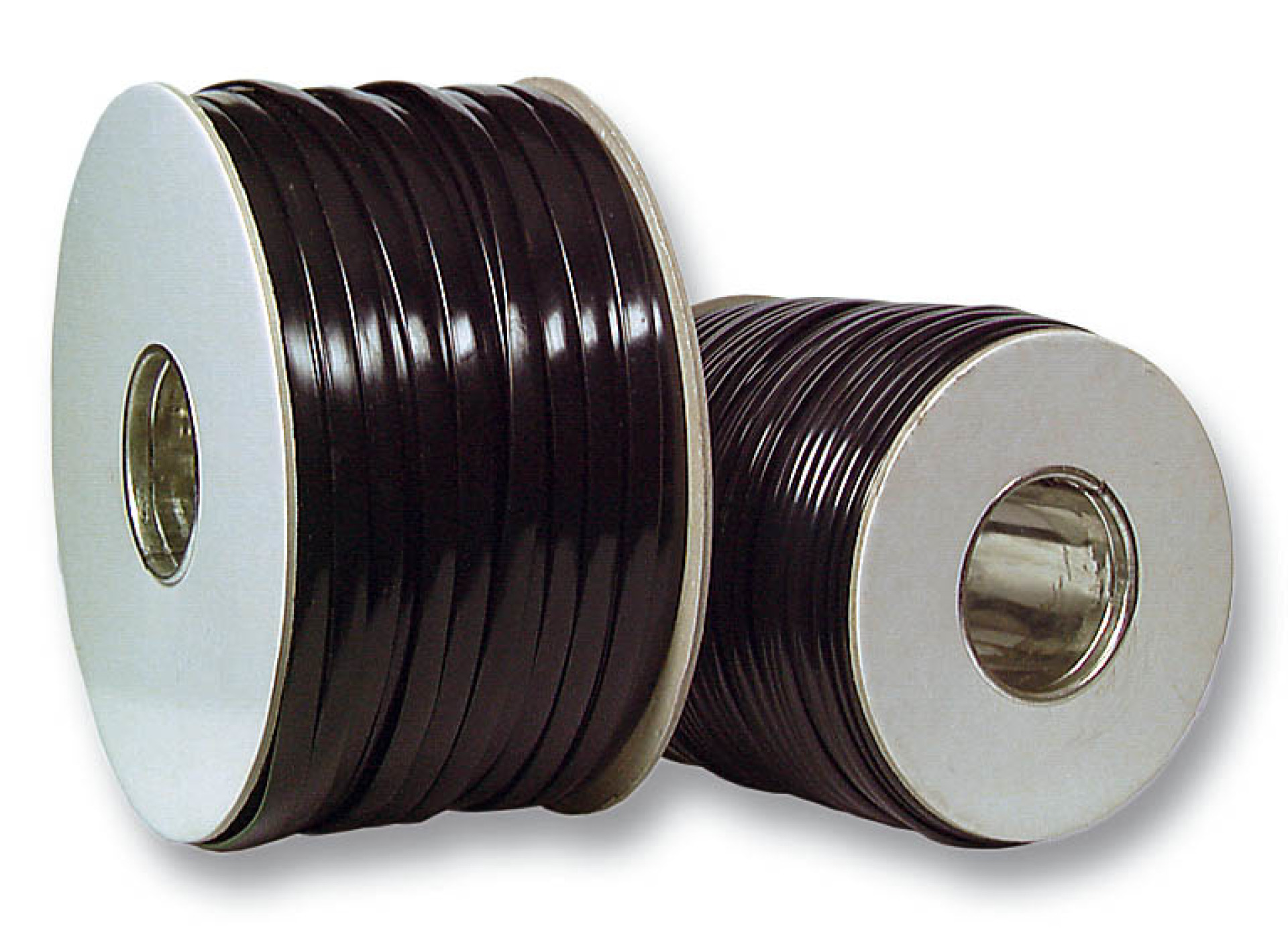

Modular Flat Cable, 4-pole black, 100 m reel
Varenummer:
91104.100
EAN Nr.:
4049759054830
Produktinformationen für Modular Flat Cable, 4-pole black, 100 m reel
According German Post Office standard
1=white, 2=brown, 3=green, 4=yellow, 5=grey, 6=pink, 7=blue, 8=red, 9=black, 10=violett
Unshielded
1=white, 2=brown, 3=green, 4=yellow, 5=grey, 6=pink, 7=blue, 8=red, 9=black, 10=violett
Unshielded
Technische Eigenschaften
| Armouring: | False |
|---|---|
| Circuit integrity: | False |
| Conductor category: | Class 2 = stranded |
| Core identification: | Colour |
| Core insulation: | Polypropylene (PP) |
| Diameter conductor: | 0.33 mm |
| Flame-retardant: | False |
| Halogen free (acc. EN 50267-2-2): | False |
| Jacket material: | Polyvinyl chloride (PVC) |
| Longitudinal water blocking: | False |
| Low smoke (acc. EN 61034-2): | False |
| Operating temperature, fix: | 60 – °C |
| Operating temperature, flexible: | 60 – °C |
| Outdoor use permitted: | False |
| Protective sheath: | False |
| Radial water blocking: | False |
| Screen over stranding: | None |
| Screen over stranding element: | None |
Varianten
| Art. Nr. | Bezeichnung | Number of cores | Colour outer sheath | Outer diameter approx. | |
|---|---|---|---|---|---|
| 91104.100 | Modular Flat Cable, 4-pole black, 100 m reel | 4 | black | 2.5 x 5.0 mm | |
| 91104.500 | Modular Flat Cable, 4-pole black, 500 m reel | 4 | black | 2.5 x 5.0 mm | |
| 91105.100 | Modular Flat Cable 4-pole light grey, 100 m reel | 4 | grey | 2.5 x 5.0 mm | |
| 91106.100 | Modular Flat Cable, 6-pole black, 100 m reel | 6 | black | 2.0 x 7.0 mm | |
| 91106.500 | Modular Flat Cable, 6-pole black, 500 m reel | 6 | black | 2.0 x 7.0 mm | |
| 91107.100 | Modular Flat Cable 6-pole light grey, 100 m reel | 6 | grey | 2.5 x 7.0 mm | |
| 91108.100 | Modular Flat Cable, 8-pole black, 100 m reel | 8 | black | 2.5 x 8.8 mm | |
| 91108.500 | Modular Flat Cable, 8-pole black, 500 m reel | 8 | black | 2.5 x 8.8 mm | |
| 91109.100 | Modular Flat Cable 8-pole light grey, 100 m reel | 8 | grey | 2.5 x 8.8 mm | |
| 91110.100 | Modular Flat Cable, 10-pole black, 100 m reel | 10 | black | 2.5 x 10.7 mm |
